SW-277
High Power GaAs SPDT Switch
DC - 2.0 GHz
Features
•
•
•
•
•
•
Positive Supply and Control Voltages
1 dB Compression Point: +36 dBm Typical, 8 V
3rd Order Intercept Point: +65 dBm Typical, 8 V
Low Insertion Loss: 0.4 dB Typical
Low Power Consumption: 100 µW
Fast Switching Speed
Rev. V6
Functional Schematic
Description
M/A-COM’s SW-277 is a GaAs MMIC SPDT switch
in a SOIC-8 lead surface mount plastic package.
The SW-277 is ideally suited for use where low
power consumption is required.
Typical
applications
include transmit/receive
switching, switch matrices and switched filter banks
in systems such as radio and cellular equipment,
PCM, GPS, fiber optic modules, and other battery
powered radio equipment.
The SW-277 is fabricated using a monolithic GaAs
MMIC using a mature 1 micron process. The
process features full chip passivation for increased
performance and reliability.
Pin Configuration
Pin No.
1
2
3
Description
Ground, Thermal
Contact
V
DD
RFC
3
Ground, Thermal
Contact
Pin No.
5
6
7
8
Description
RF Port 1
3
Control A
Control B
RF Port 2
3
Ordering Information
1
Part Number
SW-277
SW-277TR
4
Package
Bulk Packaging
1000 piece reel
3. External DC blocking capacitors required on all RF ports.
Absolute Maximum Ratings
4,5
Parameter
Input Power - 0.5 - 2.0 GHz
5 V Control and Supply
8 V Control and Supply
10 V Control and Supply
Power Dissipation
Supply Voltage
Control Voltage
Operating Temperature
Storage Temperature
Thermal Resistance
6
Absolute Maximum
+37 dBm
+40 dBm
+42 dBm
1.0 W
-1 V
≤
V
DD
≤
+ 12 V
-1 V
≤
V
C
≤
V
DD
+ 0.2 V
-40°C to +85°C
-65°C to +150°C
θjc
= 87°C/W
1. Reference Application Note M513 for reel size information.
Truth Table
2
Control
Inputs
A
1
0
2.
Condition of Switch
RF Common to Each RF Port
B
0
1
RF1
Off
On
RF2
On
Off
“0” = 0 to +0.2 V @ 20
μA
maximum.
“1” = +5 V @ 20
μA
typical to 10 V @ 500
μA
maximum.
1
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
6. Thermal resistance is given for T
A
= 25°C. T
CASE
is the
temperature of leads 1 and 4.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
SW-277
High Power GaAs SPDT Switch
DC - 2.0 GHz
Electrical Specifications
7
: T
A
= +25°C, V
DD
= +5 V, V
C
= +5 V / 0 V, P
IN
= +30 dBm
Parameter
Insertion Loss
Rev. V6
Test Conditions
DC - 0.5 GHz
0.5 - 1.0 GHz
1.0 - 2.0 GHz
DC - 0.5 GHz
0.5 - 1.0 GHz
1.0 - 2.0 GHz
DC - 2.0 GHz
Input Power (5 V Supply/Control) 0.9 GHz
Input Power (8 V Supply/Control) 0.9 GHz
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF, 50% Control to 10% RF
In-Band
Measured Relative to Input Power, two-tone up to +10 dBm
(5 V Supply/Control) 0.9 GHz
(8 V Supply/Control) 0.9 GHz
V
C
= +5 V
V
DD
= +5 V
Units
dB
dB
dB
dB
dB
dB
Ratio
dBm
dBm
nS
nS
mV
dBm
dBm
µA
µA
Min.
—
—
—
—
27
—
—
—
—
—
—
—
—
—
—
—
Typ.
8
0.45
0.55
0.6
30
32
27
1.2:1
33
35.8
30
35
12
55
65
—
—
Max.
—
0.65
—
—
—
—
—
—
—
—
—
—
—
—
20
60
Isolation
VSWR
1 dB Compression
Trise, Tfall
Ton, Toff
Transients
3rd Order Intercept
Control Current
Supply Current
7.
8.
All specifications apply when operated with control voltages of 0 V for V
C
low and 5 to 10 V for V
C
high, and 50
Ω
impedance at all RF
ports, unless otherwise specified. High power (greater than 1 W) handling specifications apply to cold switching only. For input powers
under 1 W, hot switching can be used. The high control voltage must be within ± 0.2 V of the supply voltage. External DC blocking
capacitors are required on all RF ports.
Typical values listed for middle of frequency range noted.

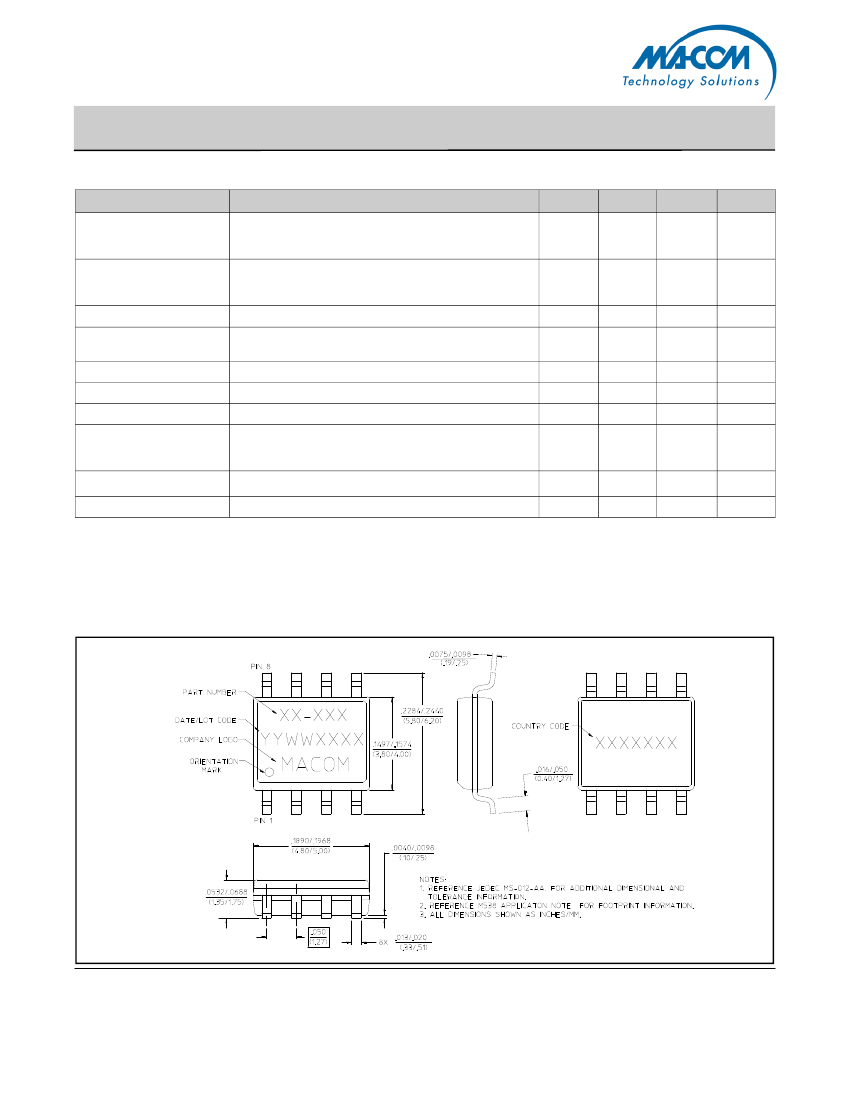

SOIC-8
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
SW-277
High Power GaAs SPDT Switch
DC - 2.0 GHz

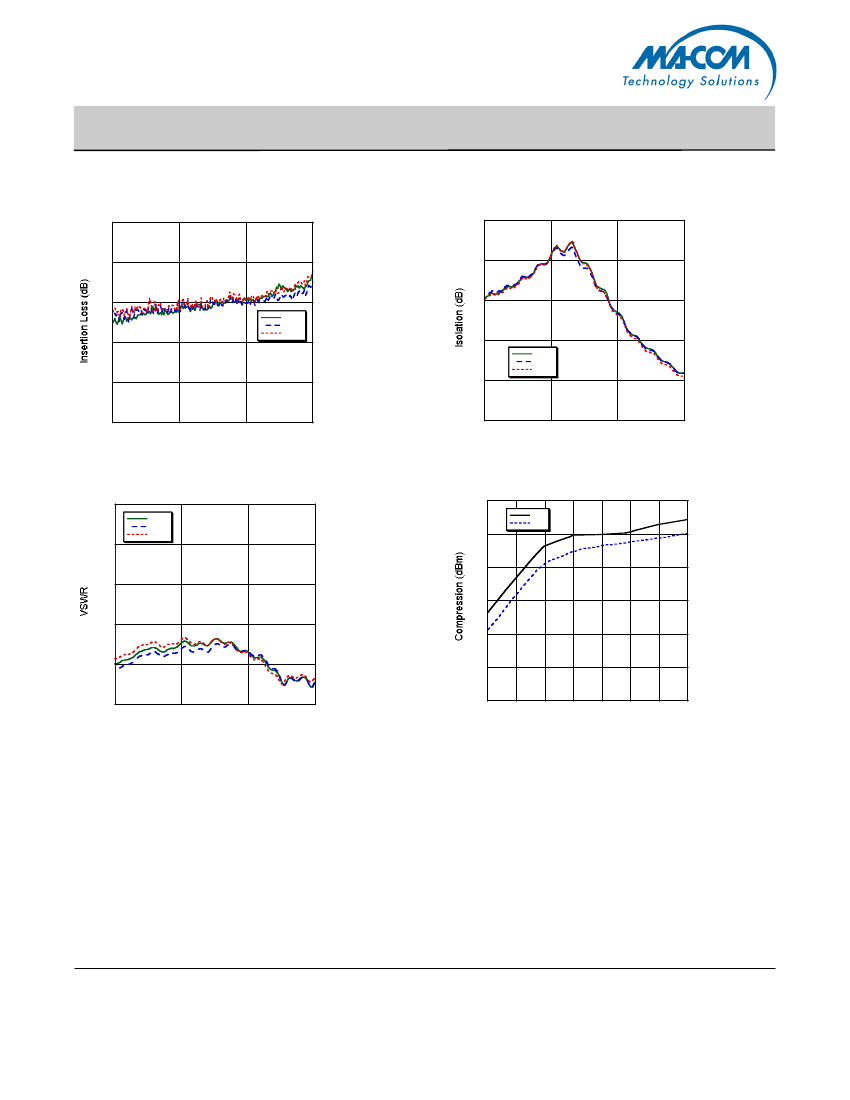

Typical Performance Curves
Insertion Loss
1.0
Rev. V6
Isolation
40
0.8
35
0.6
+25°C
-40°C
+85°C
30
0.4
25
+25°C
-40°C
85°C
0.2
20
0.0
0.5
1.0
1.5
2.0
15
0.5
1.0
1.5
2.0
Frequency (GHz)
Frequency (GHz)
VSWR
2.0
+25°C
-40°C
+85°C
Compression vs. Control Voltage @ 900 MHz
40
1dB
.1dB
35
1.8
30
1.6
25
1.4
20
1.2
15
1.0
0.5
10
1.0
1.5
2.0
3
4
5
6
7
8
9
10
Frequency (GHz)
Control Voltage (VDC)
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
