LTP747E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LTP747E

LTP747E: DescriptionSmart/Normal 5 X 7 Dot Matrix LED Display; CategoryLED optoelectronic/LED photoelectric; File Size130KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

LTP747E Overview

Smart/Normal 5 X 7 Dot Matrix LED Display

LTP747E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
color@wavelength	Orange
Configuration	Common Anode
Display height	18 mm
Maximum forward voltage	2.8 V
JESD-609 code	e0
Number of characters	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
peak wavelength	630 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

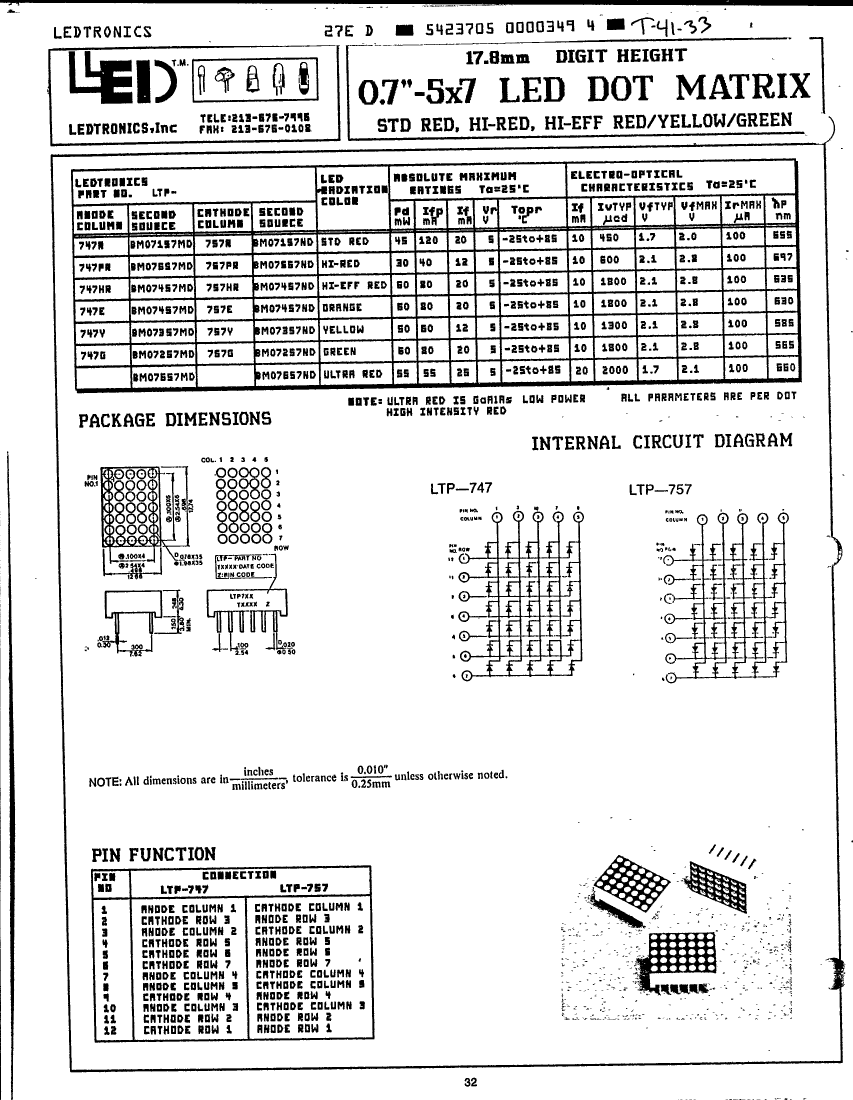

Preview

Download Datasheet

View All

LTP747E Related Products

	LTP747E	LTP747HR	LTP747G	LTP747R	LTP747Y	LTP757E	LTP757G	LTP757R	LTP757Y	LTP757HR
Description	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display	Smart/Normal 5 X 7 Dot Matrix LED Display
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color@wavelength	Orange	Red	Green	Red	Yellow	Orange	Green	Red	Yellow	Red
Configuration	Common Anode	Common Anode	Common Anode	Common Anode	Common Anode	Common Cathode	Common Cathode	Common Cathode	Common Cathode	Common Cathode
Display height	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Maximum forward voltage	2.8 V	2.8 V	2.8 V	2 V	2.8 V	2.8 V	2.8 V	2 V	2.8 V	2.8 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of characters	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
peak wavelength	630 nm	635 nm	565 nm	655 nm	585 nm	630 nm	565 nm	655 nm	585 nm	635 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	-	LEDtronics	-	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics
