UNISONIC TECHNOLOGIES CO., LTD
UT4414
N-CHANNEL ENHANCEMENT
MODE FIELD EFFECT
TRANSISTOR
1
Power MOSFET
DESCRIPTION
TO-252
The UTC
UT4414
is an N-channel enhancement mode FET with
excellent trench technology to provide customers perfect R
DS(ON)
and
low gate charge. The source leads are separated to allow a Kelvin
connection to the source, which may be used to bypass the source
inductance.
This device can be applied in a load switch or in PWM
applications.
SOP-8
FEATURES
* V
DSS
= 30V
* I
D
=8.5A @ V
GS
=10V
* R
DS(ON)
≤
26mΩ @ V
GS
=10V,I
D
=8.5A
* R
DS(ON)
≤
40mΩ @ V
GS
=4.5V, I
D
=5.0A

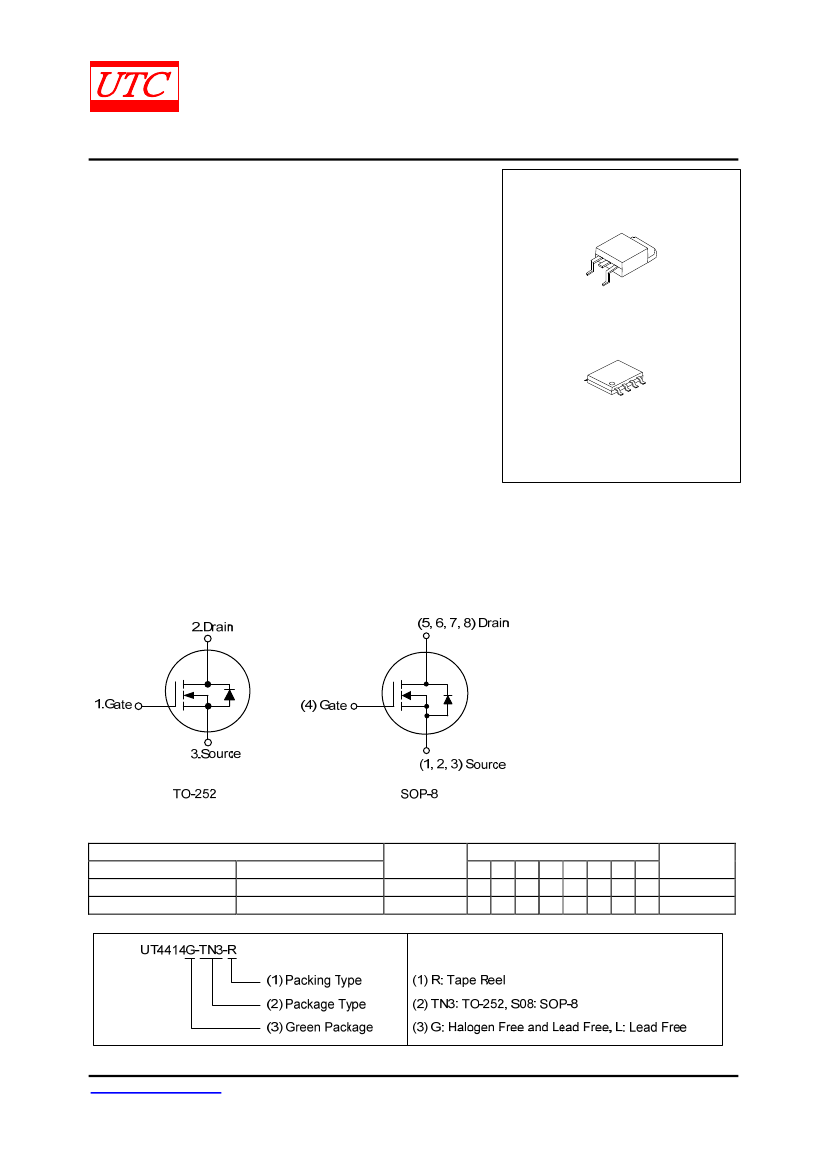

SYMBOL
ORDERING INFORMATION
1
G
S
Pin Assignment
2 3 4 5 6 7
D S -
-
-
-
S S G D D D
8
-
D
Packing
Tape Reel
Tape Reel
Ordering Number
Package
Lead Free
Halogen Free
UT4414L-TN3-R
UT4414G-TN3-R
TO-252
UT4414L-S08-R
UT4414G-S08-R
SOP-8
Note: Pin Assignment: G: Gate
D: Drain
S: Source
www.unisonic.com.tw
Copyright © 2019 Unisonic Technologies Co., Ltd
1 of 7
QW-R502-378.C
UT4414
MARKING
TO-252
SOP-8
Power MOSFET
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 7
QW-R502-378.C
UT4414
ABSOLUTE MAXIMUM RATING
(T
A
=25°C, unless otherwise specified)
SYMBOL
V
DSS
V
GSS
I
D
I
DM
E
AS
PARAMETER
Drain to Source Voltage
Gate to Source Voltage
Continuous Drain Current
Pulsed Drain Current
Avalanche Energy (Note 3)
Power MOSFET
RATINGS
UNIT
30
V
±20
V
8.5
A
50
A
Single Pulsed
11
mJ
TO-252
2.5
W
Total Power Dissipation
P
D
SOP-8
2.1
W
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Repetitive Rating: Pulse width limited by maximum junction temperature.
3. L = 0.1mH, I
AS
= 13A, V
DD
= 25V, R
G
= 25Ω, Starting T
J
= 25°C
THERMAL DATA
PARAMETER
SYMBOL
RATINGS
UNIT
TO-252
50
°C/W
Junction to Ambient
θ
JA
SOP-8
59
°C/W
2
Notes: 1. The value of
θ
JA
is measured with the device mounted on 1in FR-4 board with 2oz. Copper, in a still air
environment with T
A
=25°C. The value in any given application depends on the user's specific boar design.
The current rating is based on the t
≤
10s thermal resistance rating.
2. The
θ
JA
is the sum of the thermal impedance from junction to lead
θ
JL
and lead to ambient.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 7
QW-R502-378.C
UT4414
ELECTRICAL CHARACTERISTICS
(T
J
=25°C, unless otherwise specified)
SYMBOL
BV
DSS
I
DSS
I
GSS
V
GS(TH)
R
DS(ON)
TEST CONDITIONS
V
GS
=0V, I
D
=250µA
V
DS
=24V, V
GS
=0V
V
DS
=0V , V
GS
=±20V
V
DS
= V
GS
, I
D
=250µA
V
GS
=10V, I
D
=8.5A
V
GS
=4.5V, I
D
=5.0A
PARAMETER
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
Gate-Source Leakage Current
ON CHARACTERISTICS
Gate Threshold Voltage
Drain-Source On-State Resistance
Power MOSFET
MIN
30
TYP
MAX UNIT
V
µA
nA
V
mΩ
mΩ
pF
pF
pF
Ω
nC
nC
nC
ns
ns
ns
ns
4.3
1
A
V
ns
nC
0.004
1
100
3.0
26
40
1.0
1.9
20
31
420
110
95
DYNAMIC PARAMETERS
Input Capacitance
C
ISS
V
DS
=15V, V
GS
=0V, f=1MHz
Output Capacitance
C
OSS
Reverse Transfer Capacitance
C
RSS
Gate Resistance
R
G
V
DS
=0V, V
GS
=0V, f=1MHz
SWITCHING PARAMETERS
Total Gate Charge
Q
G
V
DS
=24V, V
GS
=10V, I
D
=8.5A
Gate-Source Charge
Q
GS
Gate-Drain Charge
Q
GD
Turn-ON Delay Time
t
D(ON)
Turn-ON Rise Time
t
R
V
DS
=15V, V
GS
=10V, I
D
=8.5A
R
G
=3Ω
Turn-OFF Delay Time
t
D(OFF)
Turn-OFF Fall Time
t
F
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Maximum Body-Diode Continuous Current
I
S
Drain-Source Diode Forward Voltage
V
SD
I
S
=1A, V
GS
=0V
Body Diode Reverse Recovery Time
t
rr
I
F
=8.5A, dI/dt=100A/μs
Body Diode Reverse Recovery Charge
Q
rr
I
F
=8.5A, dI/dt=100A/μs
Notes: 1. Pulse Test: Pulse width
≤
300μs, Duty cycle≤2%.
2. Essentially independent of operating temperature.
3.6
12.4
1.6
2.7
3.6
16
15
19
0.76
204
390
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 7
QW-R502-378.C
UT4414

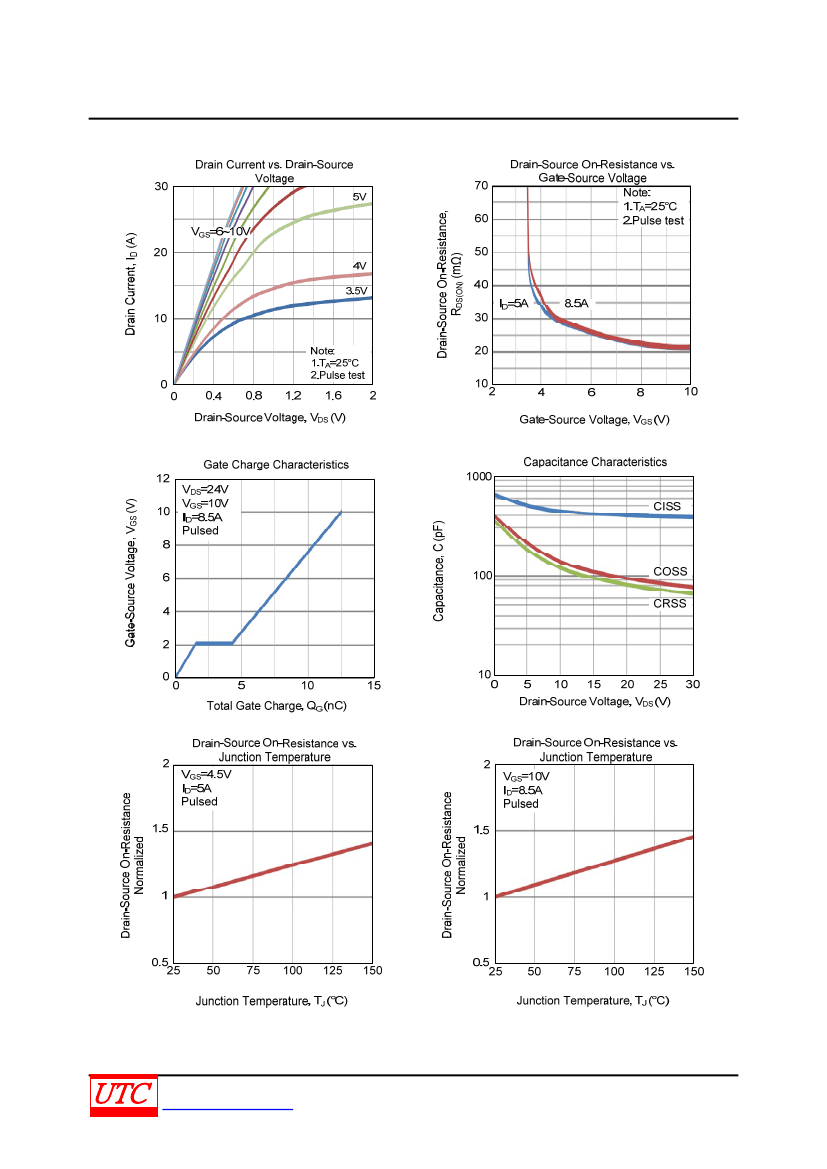

TYPICAL CHARACTERISTICS
Power MOSFET
