51FXY-RSM1-GAN-1-TB

Description
Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size127KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

51FXY-RSM1-GAN-1-TB Overview

Card Edge Connector, 51 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

51FXY-RSM1-GAN-1-TB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
Other featuresLOW PROFILE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.3 mm
Termination typeSURFACE MOUNT
Total number of contacts51
UL Flammability Code94V-0
Base Number Matches1
FXY
CONNECTOR

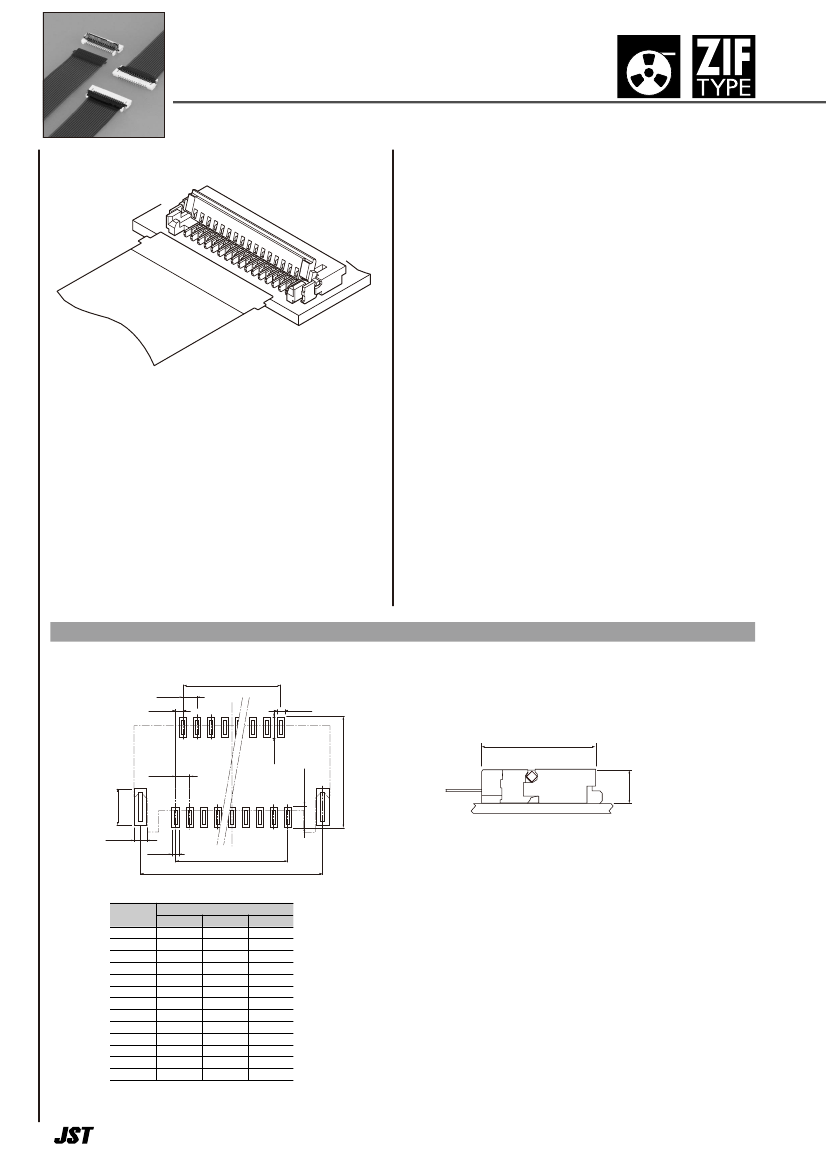

0.3mm pitch/Connectors for FPC
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/80m
max.
After environmental testing/60m
max.
(variation from initial value)
• Insulation resistance:
50M
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.3mm
<0.6mm pitch staggered>
Conductor width/0.3mm
Mating part thickness/0.2±0.03mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
In addition to achieving space saving and
low profile features demanded by the
market, this connector also realizes
superb operability by adopting a FPC with
protrusion. The use of the FPC provides
secure and foolproof mating at the
customers' production site.
• ZIF mechanism
• Self-lock mechanism enables the cover to
close by one-touch operation
• A FPC with protrusion improves operability
and reliability
PC board layout (viewed from component side) and Assembly layout
A
±0.05
0.6
±0.03
0.3
±0.03
0.3
±0.05
0.9
±0.05
4.45
4.72
±0.05
0.95
±0.05
0.6
±0.03
0.5
±0.05
0.3
±0.05
B
±0.05
G
±0.05
1.5
±0.05
Circuits
15
19
25
27
31
33
37
39
45
51
65
71
81
A
Dimensions (mm)
B
G
4.2
5.4
7.2
7.8
9.0
9.6
10.8
11.4
13.2
15.0
19.2
21.0
24.0
7.2
8.4
10.2
10.8
12.0
12.6
13.8
14.4
16.2
18.0
22.2
24.0
27.0
3.6
4.8
6.6
7.2
8.4
9.0
10.2
10.8
12.6
14.4
18.6
20.4
23.4
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
1.3
