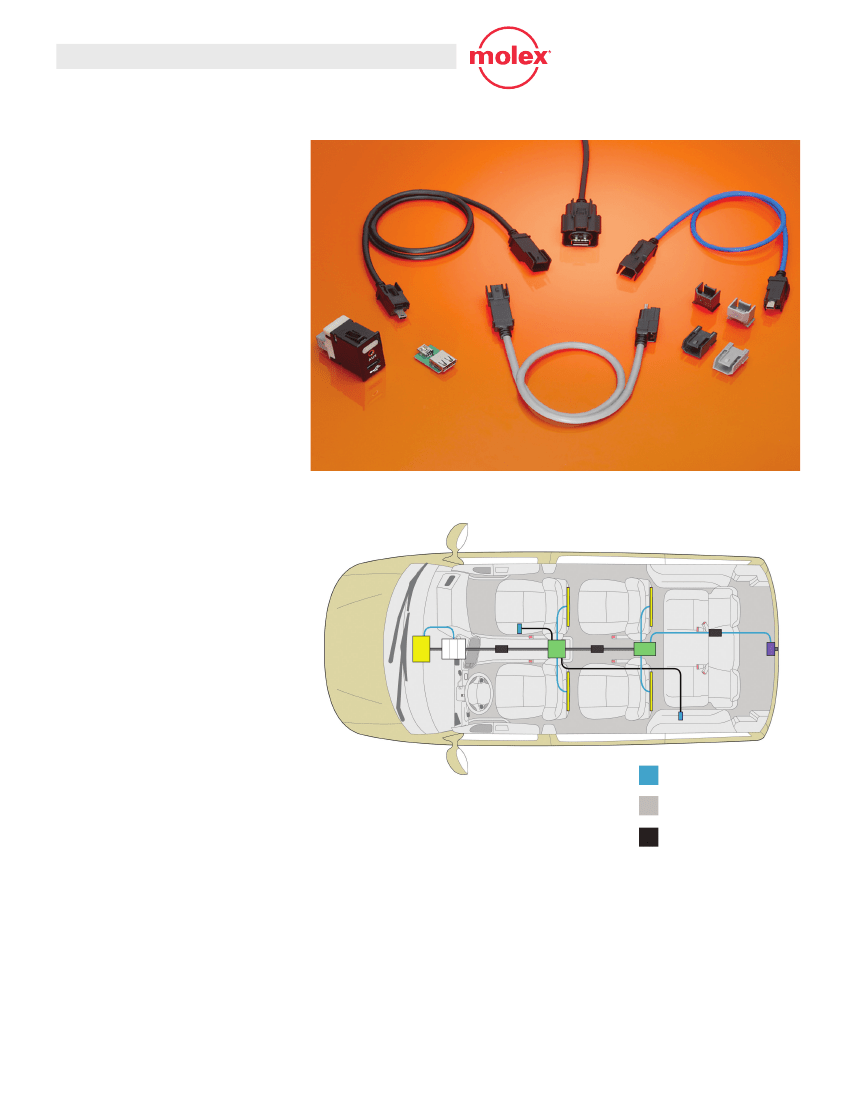

cables will bring USB and other technologies into the
information and entertainment systems in vehicles.
Cable assemblies utilizing the USB Standard A
receptacle provide shrouded and latching capabilities
for mounting in a vehicle, providing a consumer
interface for vehicle passenger use. Following similar
design principles, the HSAutoLink™ cabling system is
specified to allow for positive latching and connection
to a media module within the vehicle. This connection
links with the media module allowing a digital-signal
conversion to a vehicle’s more traditional-analog
signal, enabling the use of devices such as MP3
players, flash drives, portable navigation systems, etc.
Three primary cable configurations (Series 111005,
111014 and 111015), along with the keyed headers
right-angle (Series 49616) and vertical (104004),
will allow for various packaging options and offer
integration engineers the opportunity to more easily
design-in Molex’s HSAutoLink™ connector system.
For additional information visit: www.molex.com/
product/hsautolink.html.
LVDS (2/4 wire)
1394 Automotive
USCAR USB
FEATURES AND SPECIFICATIONS
HSAutoLink™ Interconnect
System (High-Speed
In-Vehicle Databus)

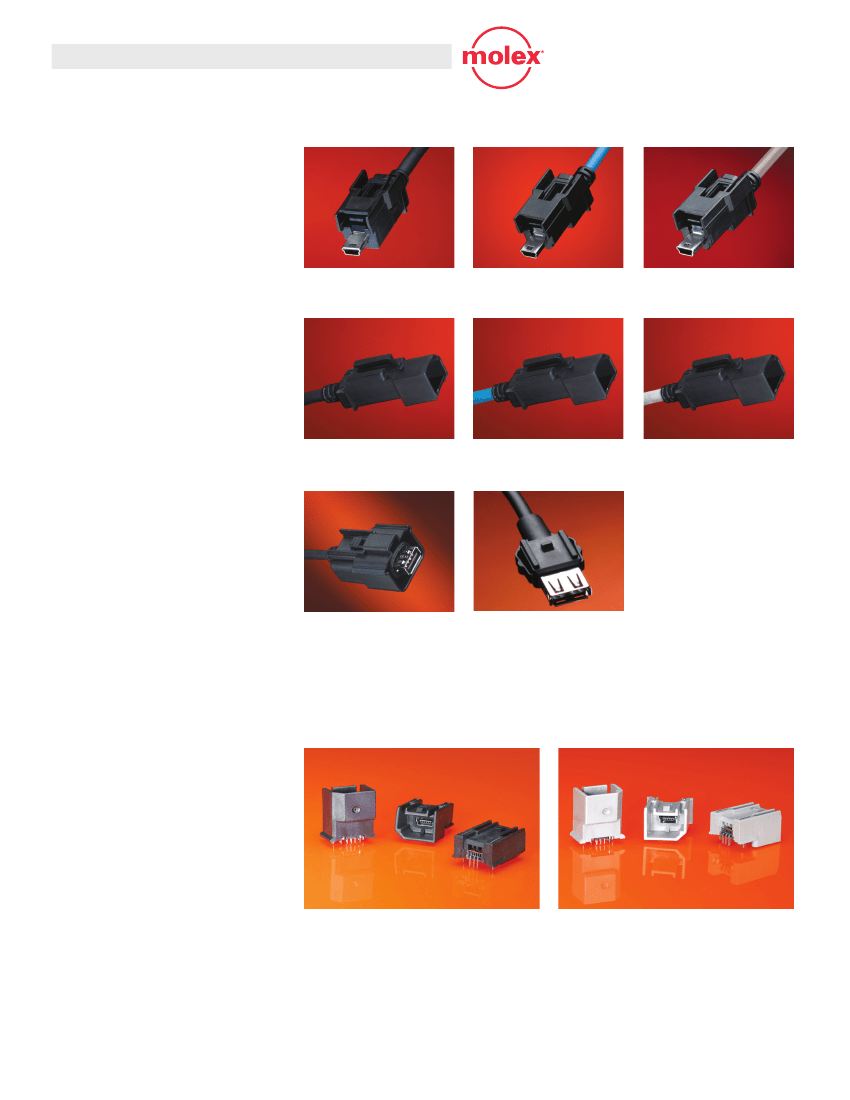

Plugs
Features and Benefits
USCAR USB, 1394 Auto
and LVDS Cable Assemblies
n
Shrouds and latches standard to meet USCAR
requirements
n
Full-length cable shielding provides superior
signal performance and reduced Electro-Magnetic
Interference (EMI)
n
Standard Molex shielded 5-circuit connector
components used providing ease-of-use and
simplified assembly process
n
USCAR-30 compliant ensures products are qualified
and market tested to stand up to the rigorous
in-vehicle environment automakers expect
USB 2.0
In-Line Receptacles
LVDS
1394 Auto
USB 2.0
USB Standard A
LVDS
1394 Auto
Shrouded
Unshrouded
USCAR USB, IEEE 1394
and LVDS PCB Mount Headers
n
Rugged assembly with positive latching and
assembly guide rails provides a proven interface
offering durability exceeding 5,000 cycles
n
Preassembled housing and industry standard
header meets all USB 2.0 electrical and EMI
shielding requirements and is USCAR-30 compliant
n
Vacuum pick-and-place capability from packaging
offers a high degree of manufacturing ease
n
Pre-alignment and solder hold-down posts for
shield assembly and main housing body provides
robust PCB mount retainment
n
Multiple header keying options provides assurance
of proper mating with side-by-side parts
Polarization A
Polarization B
Vertical and Right Angle
Vertical and Right Angle
FEATURES AND SPECIFICATIONS
HSAutoLink™ Interconnect
System (High-Speed
In-Vehicle Databus)
Printed Circuit Assemblies
Molex offers a wide range of custom printed circuit board assemblies. With a full range of capability from complete design and manufacturing to higher levels of integration
into packaged assemblies such as combined USB/Auxiliary Jack convenience ports.

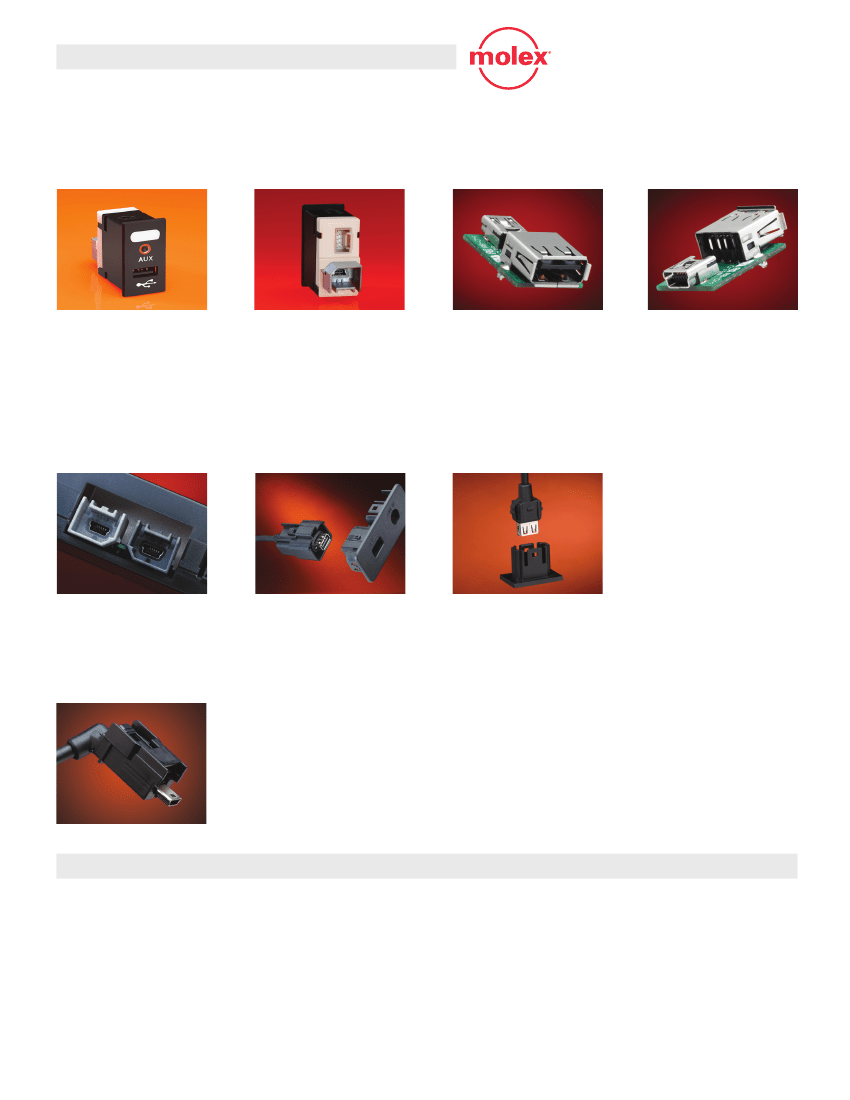

Customer Convenience Port -
Front View
Customer Convenience Port -
Rear View
PCB - Front View
PCB Rear View
Auxiliary Ports, Repeater Modules and Accessories
At the highest level of integration, Molex provides design services and manufactured solutions for active repeater modules. These modules are designed to customer defined
specifications and provide convenience features such as USB hubs, repeater, auxiliary port, analog audio/video input, and SD card slots. Molex can also provide a simple,
low-cost solution for cabled bezel mount convenience ports with USB and Aux Port. Each is provided by Molex technical development teams to meet specific requirements.
Repeater Modules
Auxiliary Port Connector
Latching Shroud
Right Angle, Polarization A and B
Custom Cable Assemblies
In addition to the standard cabled configurations, Molex provides flexible solutions meeting the needs of our customers extreme packaging requirements by offering various
cable exit options.
MARKETS AND APPLICATIONS
Markets
n
Automotive
n
Farm Equipment
n
Motorcycle
n
All-terrain Vehicles
n
Watercraft
n
Aircraft
Applications
n
Infotainment
n
Telematic Devices
n
Safety and Collision Avoidance Cameras
n
In-Vehicle Applications
ORDERING INFORMATION
Cable length “DIM A” provided as baseline offering. Length to order available by request.
HSAutoLink™ Interconnect
System (High-Speed
In-Vehicle Databus)
In-Line Receptacle-to-Plug Cable Assembly
Length
Order No.
111005-1010
111005-1020
111005-1030
111005-1040
In-Line Receptacle
A
B
Plug Polarization
A
B
A
B
Length
0.50m (1.64’)
USCAR USB
Plug-to-Plug Cable Assembly
Order No.
111014-5000
111014-5001
111014-5001
111014-5003
Plug Polarization
A
B
Plug Polarization
A
B
A
B
0.50m (1.64’)
USCAR USB Plug-to-USB Standard ‘A’ Consumer Port Cable Assembly *
Order No.
111015-0100
111015-0101
111015-0200
111015-0201
111015-0300
111015-0301
Plug Polarization
A
B
A
B
A
B
Standard ‘A’
Latching Shroud
Latching Shroud
Latching Shroud
Length
0.50m (1.64’)
1.00m (3.28’)
1.50m (4.92’)
* USCAR USB Plug to Standard ‘A’ Consumer Port cable assemblies alone can not obtain USB-IF 2.0 certification. Molex USCAR cable assemblies are built to USB 2.0 performance requirements and together with
customer system modules can be submitted to USB-IF organization for system certification.
Reference the “In-dash Automotive Embedded Host Certification waiver notification” at the USB-IF web site: http://compliance.usb.org/
LVDS Cable Assemblies - 2 wire
Plug-to-Plug Cable Assembly
Order No.
Plug Polarization
Plug Polarization
Length
111041-5001
A
A
111041-5000
B
0.50m (1.64’)
111041-5000
A
B
111041-5002
B
2-wire LVDS provides 1 differential pair only and no power/gnd lines. See drawings for greater detail.
In-Line Receptacle-to-Plug Cable Assembly
Order No.
111041-2010
111041-2030
111041-2020
111041-2040
In-Line Receptacle
A
B
Plug Polarization
A
B
A
B
Length
0.50m (1.64’)
LVDS Cable Assemblies - 4 wire
Plug-to-Plug Cable Assembly
Order No.
Plug Polarization
Plug Polarization
111019-5001
A
A
111019-5000
B
111019-5000
A
B
111019-5002
B
4-wire LVDS provides additional power/gnd lines. See drawings for greater detail.
Length
0.50m (1.64’)
In-Line Receptacle-to-Plug Cable Assembly
Order No.
111019-2010
111019-2030
111019-2020
111019-2040
In-Line Receptacle
A
B
Plug Polarization
A
B
A
B
Length
0.50m (1.64’)
1394 Cable Assemblies
Plug-to-Plug Cable Assembly (TX-RX - Cross Over Cable)
In-Line Receptacle-to-Plug Cable Assembly
Plug Polarization
A
B
A
B
Length
0.50m (1.64’)
Order No.
Plug Polarization
Plug Polarization
Length
Order No.
In-Line Receptacle
111020-1002
A
111020-2001
A
A
111020-1001
B
111020-2003
0.50m (1.64’)
111020-1001
A
111020-2002
B
B
111020-1003
B
111020-2004
1394 Copper Automotive Specification (TS2008001 1394Auto can be obtained by contacting 1394 Trade Association at: http://www.1394TA.org
