LL4001G - LL4007G
Taiwan Semiconductor
Small Signal Product
CREAT BY ART
1A, 50V - 1000V Surface Mount Glass Plassivated Silicon Rectifiers
FEATURES
- Plastic package has carries underwriters
- Ideal for automated placement
- Surge overload rating to 30 Amperes peak
- Reliable low cost construction utilizing molded
plastic technique results in in-expensive product
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
MELF
MECHANICAL DATA
Case:
MELF
Molding compound, UL flammability classification rating 94V-0
Mounting position:
Any
Polarity:
Indicated by silver cathode band
Weight:
0.12 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V DC.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
R
θJC
T
J
T
STG
LL40
01G
50
35
50
LL40
02G
100
70
100
LL40
03G
200
140
200
LL40
04G
400
280
400
1
30
1.1
5
100
15
50
- 65 to +150
- 65 to +150
LL40
05G
600
420
600
LL40
06G
800
560
800
LL40
07G
1000
700
1000
UNIT
V
V
V
A
A
V
μA
pF
°C/W
°C
°C
Document Number: DS_S1407007
Version: E15
LL4001G - LL4007G
Taiwan Semiconductor
Small Signal Product
CREAT BY ART

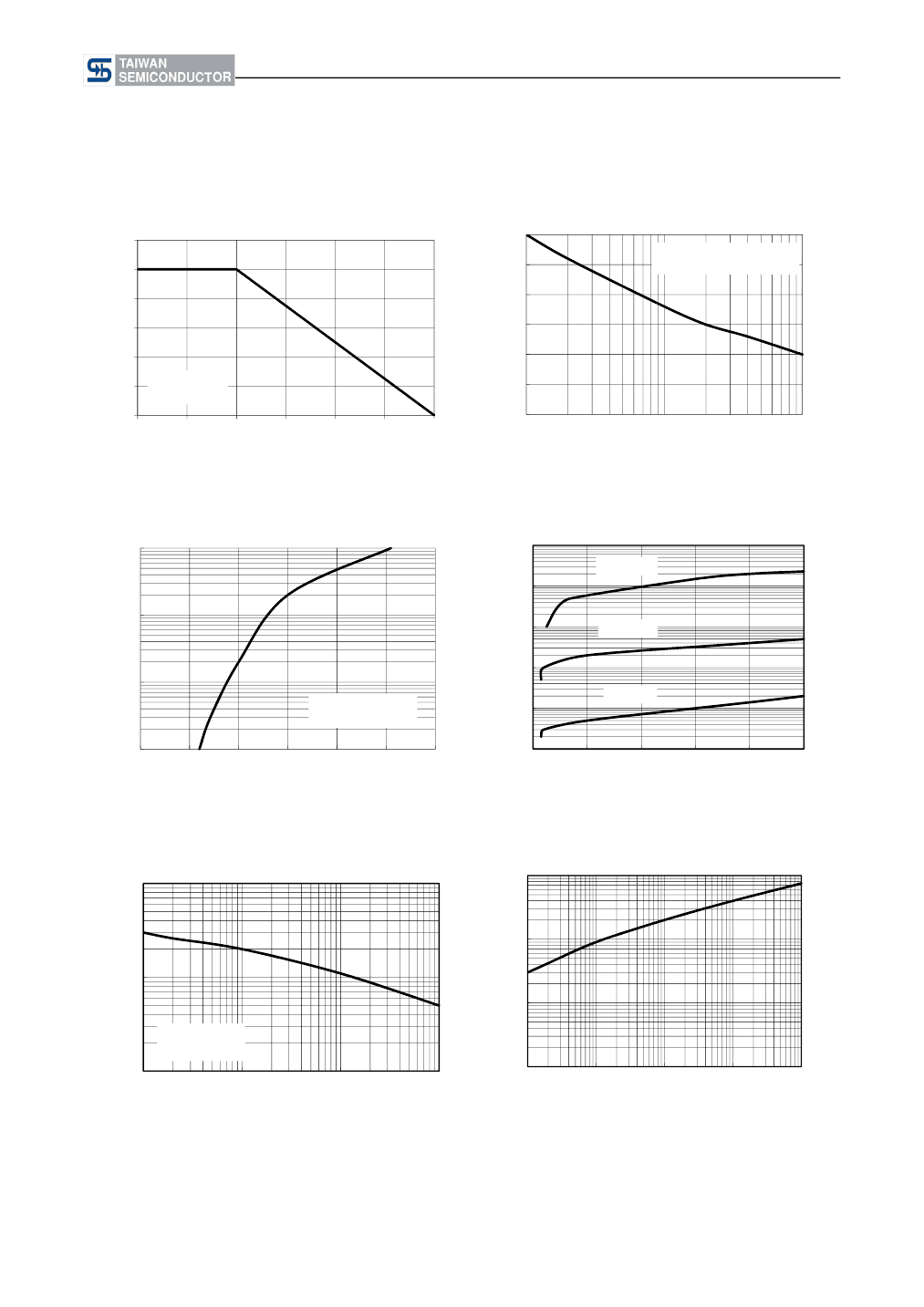

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
Fig.1 Forward Current Derating Curve
1.2
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
Terminal Temperature (°C)
Resistive or
Inductive Load
Peak Forward Surge Current(A)
Average Forward Current(A)
30
25
20
15
10
5
0
1
10
Number of Cycles at 60Hz
100
8.3ms Single Half Sine Wave
Fig. 2 Maximum Non-Repetitive Peak
Forward Surge Current
Fig. 3 Instantaneous Forward Characteristics
10
Instantaneous Forward Current(A)
Instantaneous Reverse Current(μA)
1000
Fig. 4 Typical Reverse Characteristics
T
J
= 150°C
100
1
10
T
J
= 100°C
1
T
J
= 25°C
0.1
Pulse Width = 300μs
1% Duty Cycle
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
Instantaneous Forward Voltage(V)
0.1
0.01
0
20
40
60
80
100
Percentage of Peak Reverse Voltage(%)
Fig. 5 Typical Junction Capacitance
100
Transient Thermal Impedance(°C/W)
100
Fig. 6 Typical Transient Thermal Impedance
Junction Capacitance(pF)
10
10
1
f = 1,0MH
Z
Vsig=50mVP-P
1
0.1
1
Reverse Voltage(V)
10
100
0.1
0.01
0.1
1
10
100
t - Pulse Duration (sec.)
Document Number: DS_S1407007
Version: E15
CREAT BY ART
LL4001G - LL4007G
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
LL400xG
(Note 1)
PACKING CODE
L0
PACKAGE
MELF
PACKING
5K / 13" Reel
Note 1: "x" defines voltage from 50V (LL4001G) to 1000V (LL4007G)
EXAMPLE
PREFERRED P/N
LL4007G L0
PART NO.
LL4007G
PACKING CODE
L0
DESCRIPTION
PACKAGE OUTLINE DIMENSIONS
MELF
Unit (mm)
DIM.
A
B
C
`
Min
4.80
2.25
0.30
Max
5.50
2.67
0.60
Unit (inch)
Min
0.189
0.089
0.012
Max
0.217
0.105
0.024
SUGGEST PAD LAYOUT
DIM.
C
G
X
X1
Y
Unit (mm)
Typ.
4.80
3.30
1.50
6.30
2.70
Unit (inch)
Typ.
0.189
0.130
0.059
0.248
0.106
Document Number: DS_S1407007
Version: E15
LL4001G - LL4007G
Taiwan Semiconductor
Small Signal Product
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_S1407007
Version: E15
