DS1101JA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> DS1101JA

DS1101JA: DescriptionHall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,; CategoryThe sensor Sensor/transducer; File Size73KB，2 Pages; ManufacturerThe Cherry Corporation

Download Datasheet Parametric Compare View All

DS1101JA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1101JA	-	-	View	Buy Now

DS1101JA Overview

Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,

DS1101JA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	15.9 mm
body height	10.3 mm
Body length or diameter	28.8 mm
shell	THERMOPLASTIC POLYESTER
Maximum measuring range (mm)	15.2 mm
Minimum measuring range (mm)	15.2 mm
Maximum working current	15 mA
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output range	20mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Sensor/Transducer Type	PROXIMITY SENSOR,HALL EFFECT
Maximum supply voltage	24 V
Minimum supply voltage	4.5 V
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

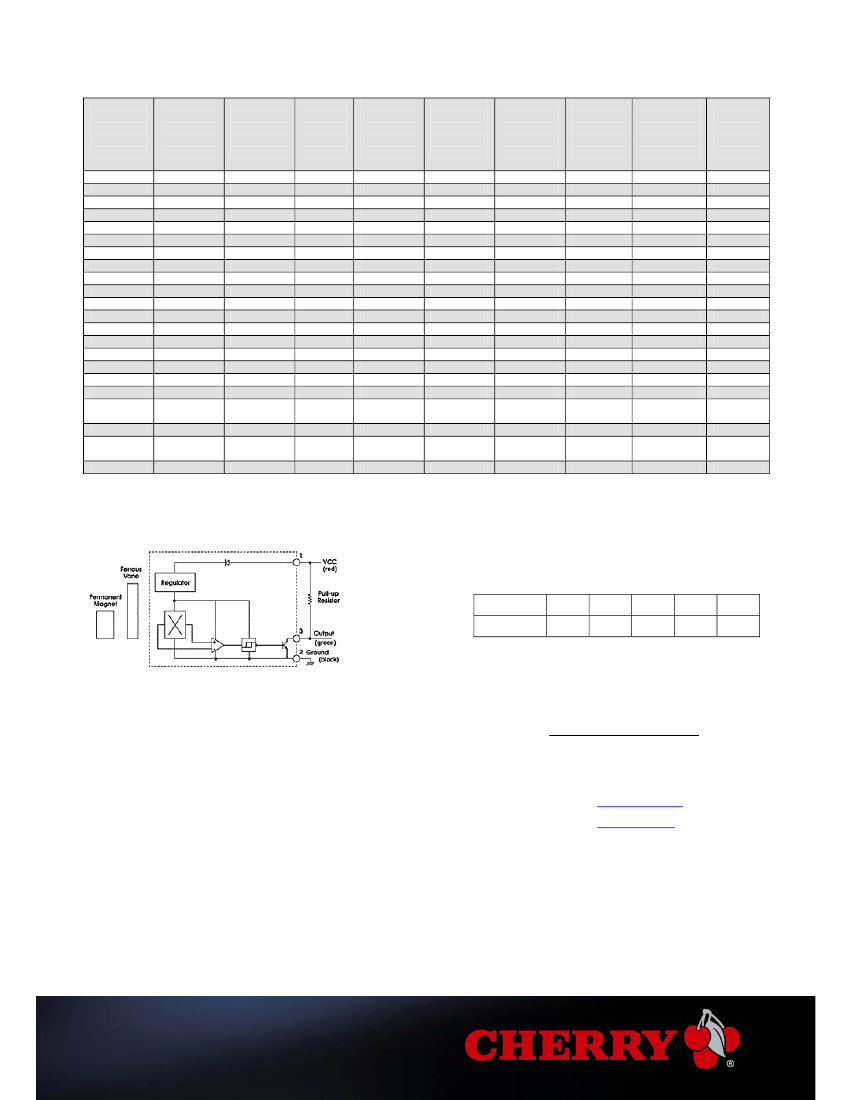

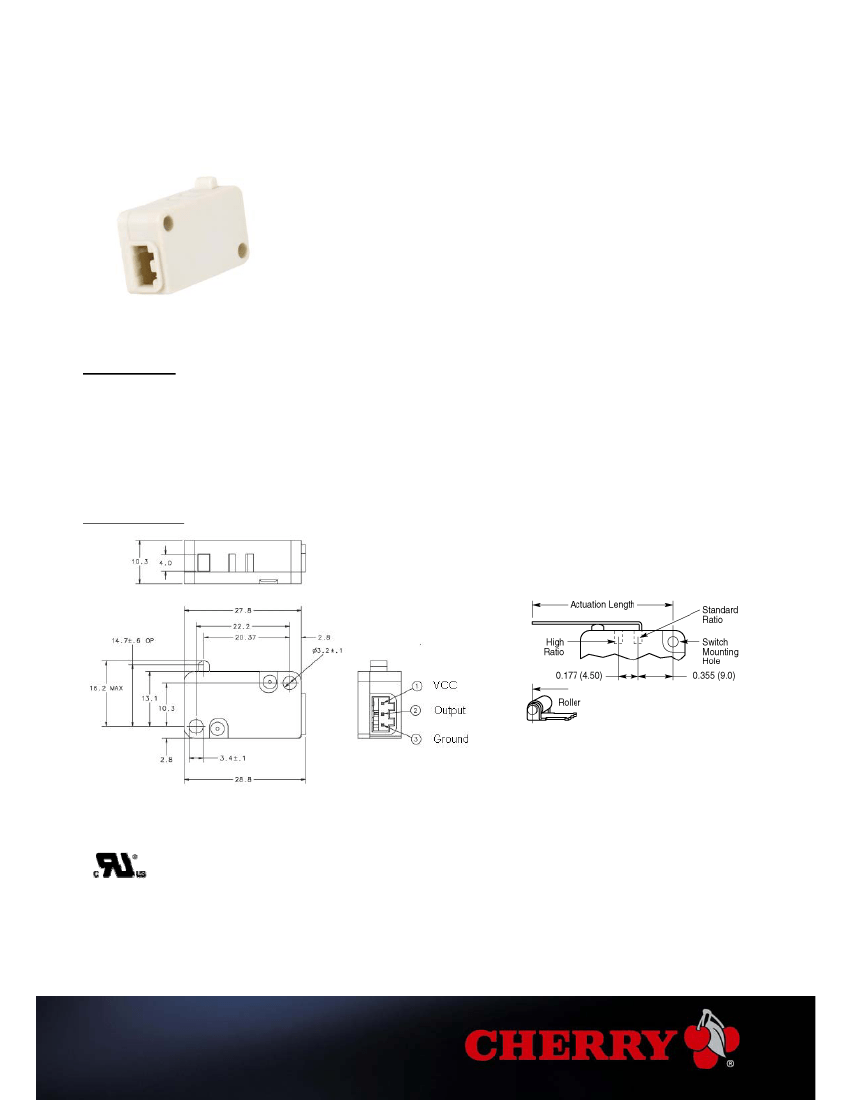

SOLID STATE SENSOR

DS Series

Digital Vane in Miniature switch package

Features



Fits mounting dimension of popular

snap-action switches.



Tested to over 10 million operations.



Two actuator mounting positions.



Available with lever, roller and

simulated roller actuators.



Sold state sinking output using hall

effect technology



Mates with Amp 102241-1 or

equivalent.

Material Specifications:

- Case, cover, actuating button:

Thermoplastic Polyester (PBT)

UL94V-0

Applications:



Pedal position sensing



Door/lid interlock



Joystick position sensing



End of travel sensing

Specifications

Supply voltage (VDC)

Supply Current

Output Type

Output Current (mA max.)

Sensor State (Button at rest)

Operating Temperature

Storage Temperature

4.5 to 24

15mA max at 25°C

Sink

Normally OFF

-40°C to 85°C

-40°C to 125°C

Dimensions mm

Note: Sensor requires the use of an external pull-up resistor. The value is dependent on the supply voltage. See chart below.

UL File No: E23301

DS1101JA Related Products

	DS1101JA	DS1101KA	DS1101KD	DS1101JJ	DS1101SC	DS1101AA	DS1101RA	DS1101JD	DS1101UC
Description	Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,	Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,	Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,	Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,	Hall Effect Sensor, 18.5mm Min, 18.5mm Max, 20mA, Rectangular,	Hall Effect Sensor, 14.7mm Min, 14.7mm Max, 20mA, Rectangular,	Hall Effect Sensor, 20.6mm Min, 20.6mm Max, 20mA, Rectangular,	Hall Effect Sensor, 15.2mm Min, 15.2mm Max, 20mA, Rectangular,	Hall Effect Sensor, 18.5mm Min, 18.5mm Max, 20mA, Rectangular,
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant	compliant	compliant	compliant
body width	15.9 mm	15.9 mm	15.9 mm	15.9 mm	15.9 mm	15.9 mm	15.9 mm	15.9 mm	15.9 mm
body height	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm
Body length or diameter	28.8 mm	28.8 mm	28.8 mm	28.8 mm	28.8 mm	28.8 mm	28.8 mm	28.8 mm	28.8 mm
shell	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER
Maximum measuring range (mm)	15.2 mm	15.2 mm	15.2 mm	15.2 mm	18.5 mm	14.7 mm	20.6 mm	15.2 mm	18.5 mm
Minimum measuring range (mm)	15.2 mm	15.2 mm	15.2 mm	15.2 mm	18.5 mm	14.7 mm	20.6 mm	15.2 mm	18.5 mm
Maximum working current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output range	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA	20mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Sensor/Transducer Type	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT	PROXIMITY SENSOR,HALL EFFECT
Maximum supply voltage	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Termination type	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR
Base Number Matches	1	1	1	1	1	1	1	-	-
