LC105S-151M

Description
General Purpose Inductor, 150uH, 20%, 1 Element, SMD
CategoryPassive components    inductor
File Size14KB,1 Pages
ManufacturerInductor Supply Inc
Download Datasheet Parametric View All

LC105S-151M Overview

General Purpose Inductor, 150uH, 20%, 1 Element, SMD

LC105S-151M Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.45 Ω
Nominal inductance(L)150 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberLC105S
Number of functions1
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-30 °C
Maximum rated current0.65 A
self resonant frequency5.8 MHz
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeJ BEND
Test frequency0.001 MHz
Tolerance20%
Base Number Matches1

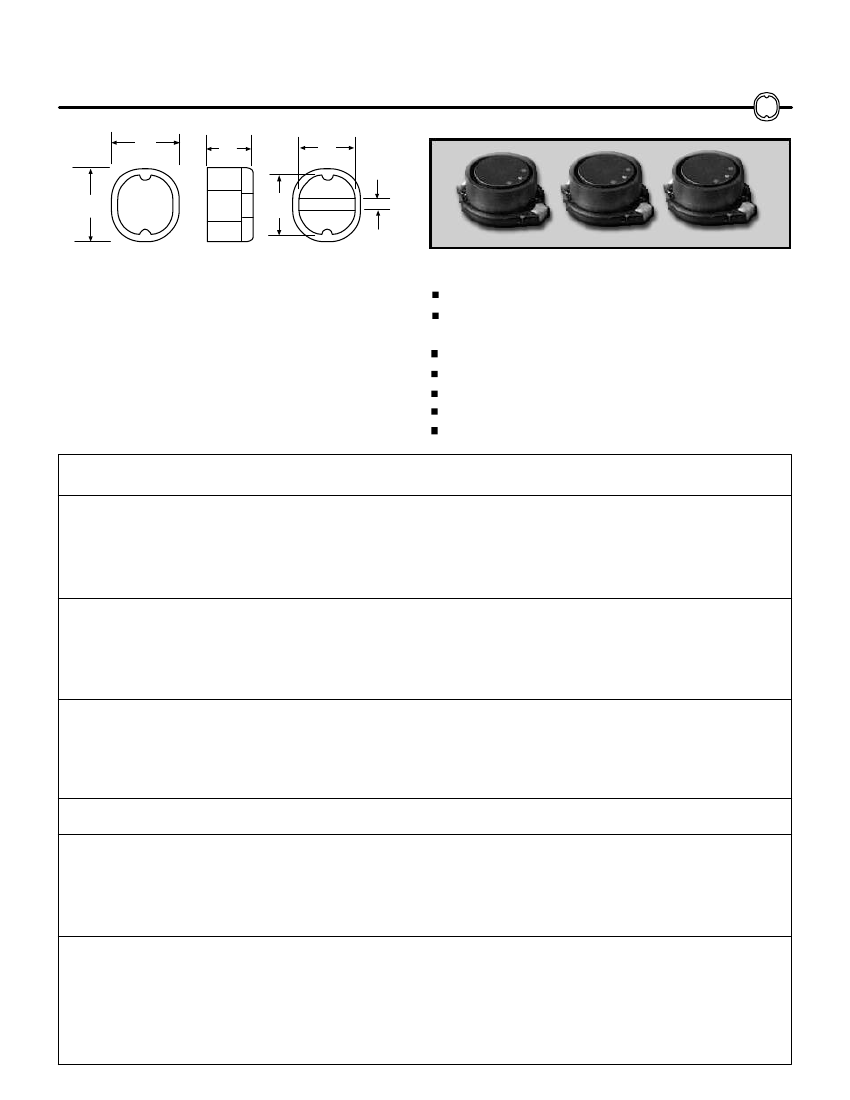

SMD Shielded
Power Inductors
9.0
+/- 0.4
5.0
+/- 0.5
7.8
Typ.
7.0
Typ.
2.0
Typ.
LC105S
10.0
+/- 0.4
CHARACTERISTICS
INDUCTANCE RANGE 1 µH to 68 µH.
TOLERANCE 10% over entire range.
CURRENT RATING Curr ent to cause maxim
um 10% of
inductance drop, or 40°C temperature rise.
OPERATING TEMPERATURE -30 to +100°C.
°C
FEATURES
High current rating
Low core loss for high frequency power application
APPLICATIONS
DC/DC Converters
Computers
Telecommunications equipment
Filters
LCD display
TEST
FREQUENCY
(MHz)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
TEST
FREQUENCY
(kHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
SELF RESONANT
FREQUENCY
TYPIC AL (MHz)
31.0
27.0
27.0
26.0
21.0
18.0
16.0
15.0
14.0
12.0
11.0
10.0
DC RESISTANCE
MAXIMUM
(OHMS)
0.06
0.06
0.07
0.08
0.09
0.11
0.12
0.16
0.18
0.19
0.22
0.28
RATED DC
CURRENT
MAXIMUM (AMPS)
2.53
2.31
2.06
1.89
1.71
1.54
1.39
1.28
1.17
1.07
0.97
0.88
PART
NUMBER
LC105S-100M
LC105S-120M
LC105S-150M
LC105S-180M
LC105S-220M
LC105S -270M
LC105S -330M
LC105S -390M
LC105S -470M
LC105S -560M
LC105S -680M
LC105S -820M
L ±20%
µH
10
12
15
18
22
27
33
39
47
56
68
82
LC105S -101M
LC105S -121M
LC105S -151M
LC105S -181M
LC105S -221M
LC105S -271M
LC105S -331M
LC105S -391M
LC105S -471M
100
120
150
180
220
270
330
390
470
7.0
6.5
5.8
5.3
5.2
4.6
4.2
3.6
3.6
0.35
0.38
0.45
0.62
0.69
0.78
1.03
1.18
1.60
0.80
0.73
0.65
0.60
0.54
0.49
0.44
0.41
0.37
