NRSS102M63V8X11.5TRF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF; CategoryPassive components capacitor; File Size119KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NRSS102M63V8X11.5TRF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF

NRSS102M63V8X11.5TRF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
length	11.5 mm
Manufacturer's serial number	NRSS
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
series	NRSS
Base Number Matches	1

Preview

Download Datasheet

View All

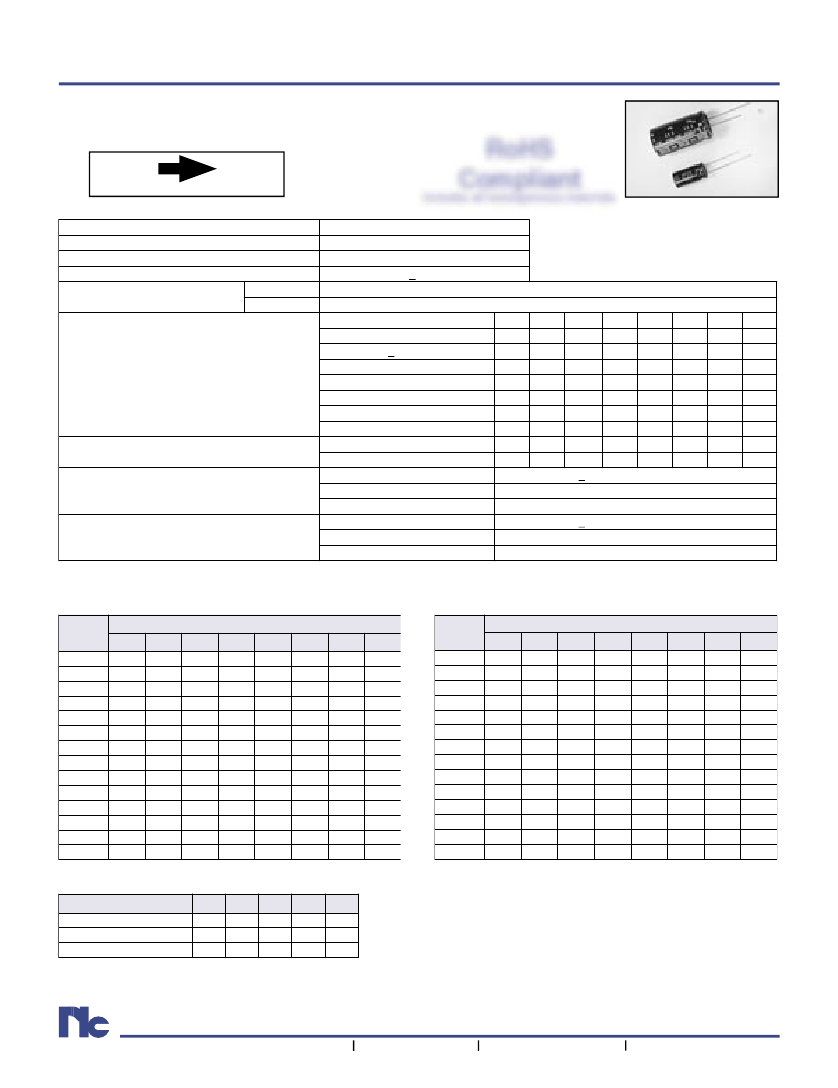

Miniature Aluminum Electrolytic Capacitors

RADIAL LEADS, POLARIZED, NEW REDUCED CASE

SIZING (FURTHER REDUCED FROM NRSA SERIES)

EXPANDED TAPING AVAILABILITY

(today’s standard)

NRSS Series

NRSA

(reduced sizes)

NRSS

includes all homogeneous materials

*See Part Number System for Details

6.3 ~ 100 VDC

10 ~ 10,000

µF

-40 ~ +85°C

+

20%

0.03CV or 4

µ

A , whichever is greater

0.01CV or 3

µ

A , whichever is greater

100

63

50

35

25

16

10

6.3

W.V. (Vdc)

125

79

63

44

32

20

13

8

S.V. (Vdc)

0.28

0.24

0.20

0.16

0.14

0.12

0.10

0.08

C <

1,000

µF

0.30

0.26

0.22

0.18

0.16

0.14

C = 2,200

µF

0.32

0.28

0.24

0.20

0.18

C = 3,300

µF

0.34

0.30

0.26

0.22

0.20

C = 4,700

µF

0.36

0.32

0.28

0.24

C = 6,800

µF

0.38

0.34

0.30

C = 10,000

µF

2

3

4

5

Z-25°C/Z+20°C

4

5

8

10

12

Z-40°C/Z+20°C

Within +

20% of initial measured value

Capacitance Change

Less than 200% of specified maximum value

Tan

δ

Less than specified maximum value

Leakage Current

Within +

20% of initial measured value

Capacitance Change

Less than 200% of specified maximum value

Tan

δ

Less than specified maximum value

Leakage Current

RoHS

Compliant

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

After 1 min.

Max. Leakage Current @ (20

o

C)

After 2 min.

Max. Tan

δ

@ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V.

85°C 2,000 Hours

Shelf Life Test

85°C 1,000 Hours

No Load

PERMISSIBLE RIPPLE CURRENT (mA rms)

AT 85

O

C AND 120Hz

½½½ ½

µ

½½

½½½

½½½½½

½½½½½½

MAXIMUM E.S.R. (Ω) AT 20

O

C AND 120Hz

½½½

½½

½½½

½½½½

½

½½½½½½½ ½½½½½½½ ½½½½½

½½½

½

½½½

½½½½

½½

½

½½½

½½½½

½½

½

½½½

½½

½½½½

½½

½

½½½

½½½½

½

½½

½

½½½

½½½½

½

½½

½

½½½

½

½½½

½½½½

½

½½

½

½½½

½

½½½

½½½½

½

½½½ ½

µ

½½

½½½

½½½½½

½½½½½½

½½½½½½½ ½½½½½½½ ½½½½½

½½

½½½

½

½½½½

½

½½½½

½

½½½½

½

½½½½

½

½½½½

½½½½½

½

½½½½

½½½½½

½

½½½½½

½

½½

½

½½½½

½

½½½½

½½½

½

½½½½

½

½½½

½½½½

½

RIPPLE CURRENT FREQUENCY CORRECTION FACTOR

Frequency (Hz)

~ 47

µF

100 ~ 470

µF

1000

µ

F ~

50

0.75

0.80

0.85

120

1.00

300

1.35

1.23

1.10

1K

1.57

1.34

1.13

10K

2.00

1.50

1.15

®

52

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
