D38999/24FD19SN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D38999/24FD19SN

Preview

D38999/24FD19SN: DescriptionMIL Series Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size196KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric Compare View All

D38999/24FD19SN Overview

MIL Series Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

D38999/24FD19SN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACT: M39029/56-351
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	D
Termination type	CRIMP
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

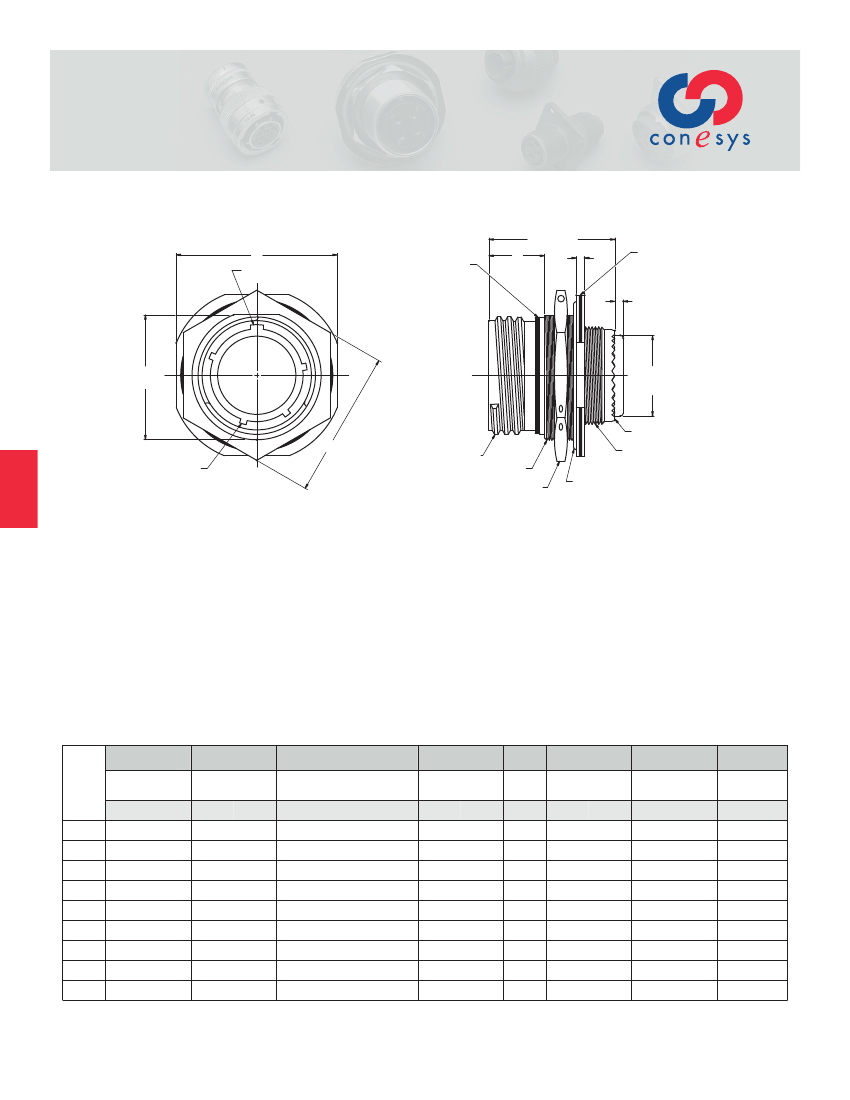

D38999/24

Jam Nut Receptacle

AE324

Triple Start Threaded Coupling, Crimp Removable, Rear Release, Scoop-Proof

32.50 (1.280)

MAX

A

MASTER KEYWAY

LOCKING INDICATOR BAND

COLOR: RED

D

G

BLUE COLOR BAND

(REAR RELEASE)

2.16(.085) MAX

GROMMET EXTENSION

B

FLAT

H

MAX

GROMMET

MIL–DTL–

38999 S III

Shell

Size

A

B

C

D

E

F

G

H

J

F

NUMBER OF TEETH

C

4 MINOR KEYWAYS

E

MATING THREAD

J

THREAD

HEX NUT

PER D38999/28

K

ACCESSORY THREAD

"O" RING SEAL

PANEL THICKNESS

3.20(.126)

1.58(.062)

Page 38

Page 44

Pages 17–19

Page 37

Pages 15, 16

Page 42

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Note 1:

“K” Accessory Thread for AE324 is same as AE326

(“D” Accessory Thread) on page 41.

Note 2:

“E” Mating Thread for AE324 is same as AE326

(“E” Mating Thread) on page 41 except it is Class 2A.

Note 3:

Maximum Grommet Extension for insert layouts

incorporating size 8 and 10 contacts =

5.95(.234).

A

±.016

inch

1.063

1.252

1.374

1.500

1.626

1.811

1.937

2.063

2.189

±.40

mm

27.00

31.80

34.90

38.10

41.30

46.00

49.20

52.40

55.60

+.004

-.006

inch

.651

.751

.938

1.062

1.187

1.312

1.437

1.562

1.687

B

+.10

-.15

mm

16.53

19.07

23.82

26.97

30.15

33.32

36.50

39.67

42.85

inch

.945/.859

1.063/.984

1.260/1.172

1.417/1.296

1.457/1.422

1.614/1.546

1.811/1.672

1.969/1.796

2.017/1.939

C

+.024

-.000

mm

24.00/21.82

27.00/24.99

32.00/29.77

36.00/32.91

37.00/36.12

41.00/39.26

46.00/42.47

50.00/45.61

51.23/49.25

inch

.555

D

+.60

-.00

mm

14.10

F

No. of

Teeth

12

16

20

24

28

32

36

40

44

+.035

-.004

inch

.087

.118

G

+.90

-.10

mm

2.20

3.00

H

Maximum

inch

.299

.427

.541

.666

.791

.897

1.022

1.147

1.272

mm

7.59

10.85

13.74

16.92

20.09

22.78

25.96

29.13

32.31

J

Jam Nut

Thread

0.100R

M17x1-6g

M20x1-6g

M25x1-6g

M28x1-6g

M32x1-6g

M35x1-6g

M38x1-6g

M41x1-6g

M44x1-6g

www.conesys.com

– 40 –

sales

@

aero-electric.com

D38999/24FD19SN Related Products

	D38999/24FD19SN	D38999/24FF28SN	D38999/24FF28SN-LC	D38999/24FD19SN-LC
Description	MIL Series Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,	MIL Series Connector, 28 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	MIL Series Connector, 28 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,	MIL Series Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,
Reach Compliance Code	compliant	compliant	unknown	unknown
Other features	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACT: M39029/56-351	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACTS: M39029/56-351; M39029/56-352	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACTS: M39029/56-351; M39029/56-352	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACT: M39029/56-351
Back shell type	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	YES	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	D	F	F	D
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	19	28	28	19
Base Number Matches	1	1	1	1
