CV7-A6BP45-FREQN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CV7-A6BP45-FREQN

Preview

CV7-A6BP45-FREQN: DescriptionHCMOS Output Clock Oscillator, 8MHz Min, 36MHz Max; CategoryPassive components oscillator; File Size20KB，1 Pages; ManufacturerCardinal Components

Download Datasheet Parametric View All

CV7-A6BP45-FREQN Overview

HCMOS Output Clock Oscillator, 8MHz Min, 36MHz Max

CV7-A6BP45-FREQN Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	BULK
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	50%
Manufacturer's serial number	CV7
Installation features	SURFACE MOUNT
Maximum operating frequency	36 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.1mm x 1.7mm
longest rise time	8 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

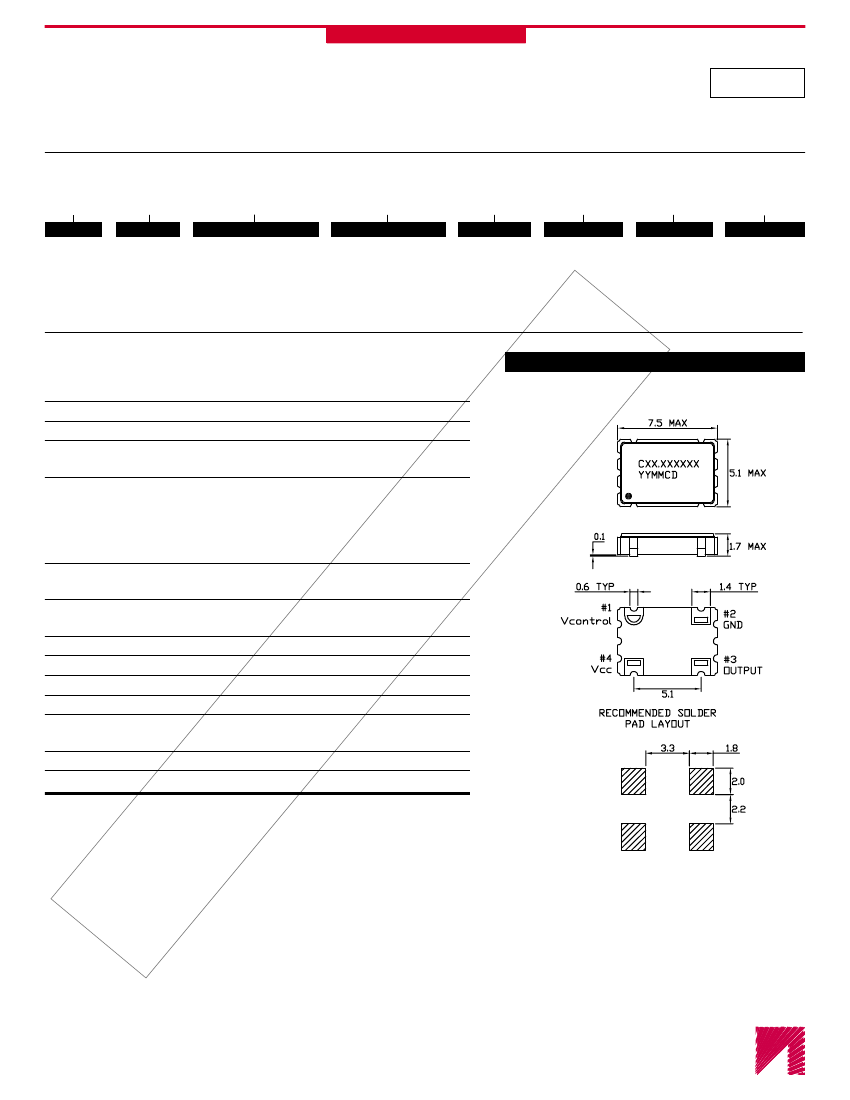

CARDINAL COMPONENTS

Ceramic 5 X 7 VCXO

• 5 X 7 Package Style

Series CV7

Part Numbering Example: CV7 L Z - A6 BP 45 - 22.5792 B

CV7

SERIES

CV7

L

VOLTAGE

Blank = 5V

L = 3.3V

Z

PACKAGING OPTIONS

Blank = Bulk

Z = Tape and Reel

A6

OPERATING TEMP.

A6 = 0°C ~ +70°C

BP

STABILITY

BP = ±50 ppm

45

SYMMETRY

Blank = 40/60%

45 = 45/55%

22.5792

FREQUENCY

B

PULL RANGE

B = ±100 ppm

N = ±80 ppm

Available Stability Options:

±50 ppm

Output Series:

Input Voltage:

Frequency Tuning Range:

HCMOS

+5.0 VDC ±5%

+3.3 VDC ±5%

±100 ppm @ 5.0V

±80 ppm @ 3.3VDC

±50 ppm

±15 ppm

±20 ppm

Output Voltage:

Operating Temperature

Output Load:

Maximum Input Current:

Maximum Rise/Fall Time:

Duty Cycle:

Storage Temperature:

Packaging:

0°C to +70°C

15 pf

8 ns

30 mA

Pr

el

Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053

.

http://www.cardinalxtal.com

E-Mail: cardinal@cardinalxtal.com

im

in

ar

40/60%

45/55%

-40°C to +85°C

Tape and Reel (1K per Reel)

yS

HCMOS V

OL

=10%V

DD

V Max.

HCMOS V

OH

=90%V

DD

V Min.

pe

External Control Voltage:

+2.5 VDC, ±2.0 VDC @ 5V input

+1.65 VDC, ±1.0 VDC @ 3.3V input

cif

88 a

ica

tio

Frequency Range:

8.000 MHz to 36.000 MHz

n

Specifications:
