6-104186-3: Description25 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

6-104186-3 Overview

25 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

Parameter Name	Attribute value
Objectid	2094081499
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
YTEOL	0
Other features	AMPMODU
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

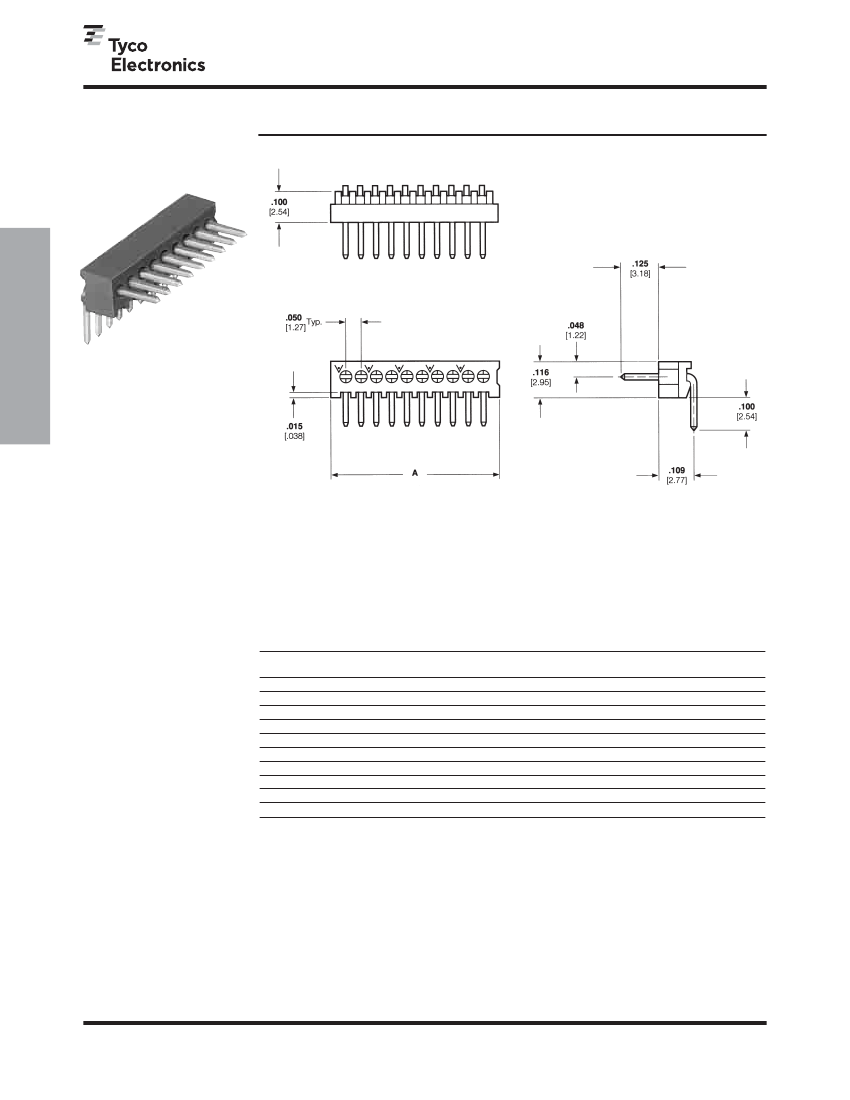

AMPMODU Interconnection System

Thru-Hole Headers––Unshrouded, .050 x .100 [1.27 x 2.54] Centerline,

Board-to-Board

Single Row, Right-Angle

Headers, Shrouded and

Unshrouded

Material and Finish

Housing

— Glass-filled thermoplastic,

black, 94V-0 rated

Contacts

— Copper alloy; duplex

plated .000030 [0.00076] gold in

mating area, .000150 [0.00381] tin

on solder posts, with entire contact

underplated .000050 [0.00127] nickel

	6-104186-3	5-104186-7	6-104186-0
Description	25 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	12 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT	CONNECTOR, 17 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
Other features	AMPMODU	AMPMODU	AMPMODU
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	25	12	17
UL Flammability Code	94V-0	94V-0	94V-0
Objectid	2094081499	2094081111	-
Number of connectors	ONE	ONE	-
