Part Number

Search

1-966195-7

Description
17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
CategoryThe connector    The connector
File Size106KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

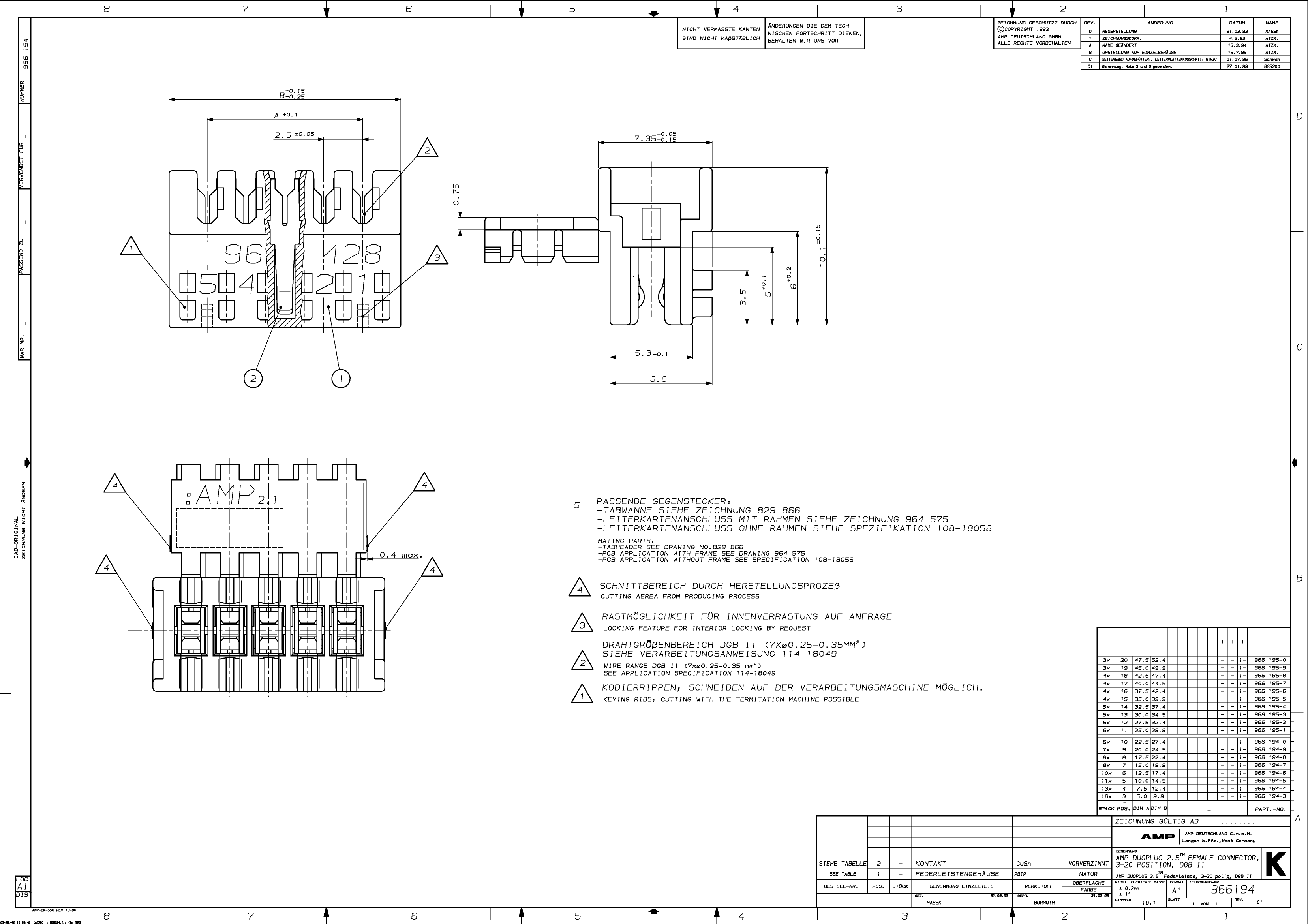

Download Datasheet Parametric View All

1-966195-7 Overview

17 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

1-966195-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresDUOPLUG 2.5
Board mount optionsEDGE MOUNT
subject depth0.398 inch
body length1.768 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Filter functionNO
IEC complianceNO
Minimum insulation diameter0.047 inch
Insulator colorNATURAL
MIL complianceNO
Manufacturer's serial number966195
Plug contact pitch0.098 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature110 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts17
UL Flammability Code94V-0
Maximum wire diameter22 AWG
Minimum wire diameter24 AWG
Base Number Matches1
