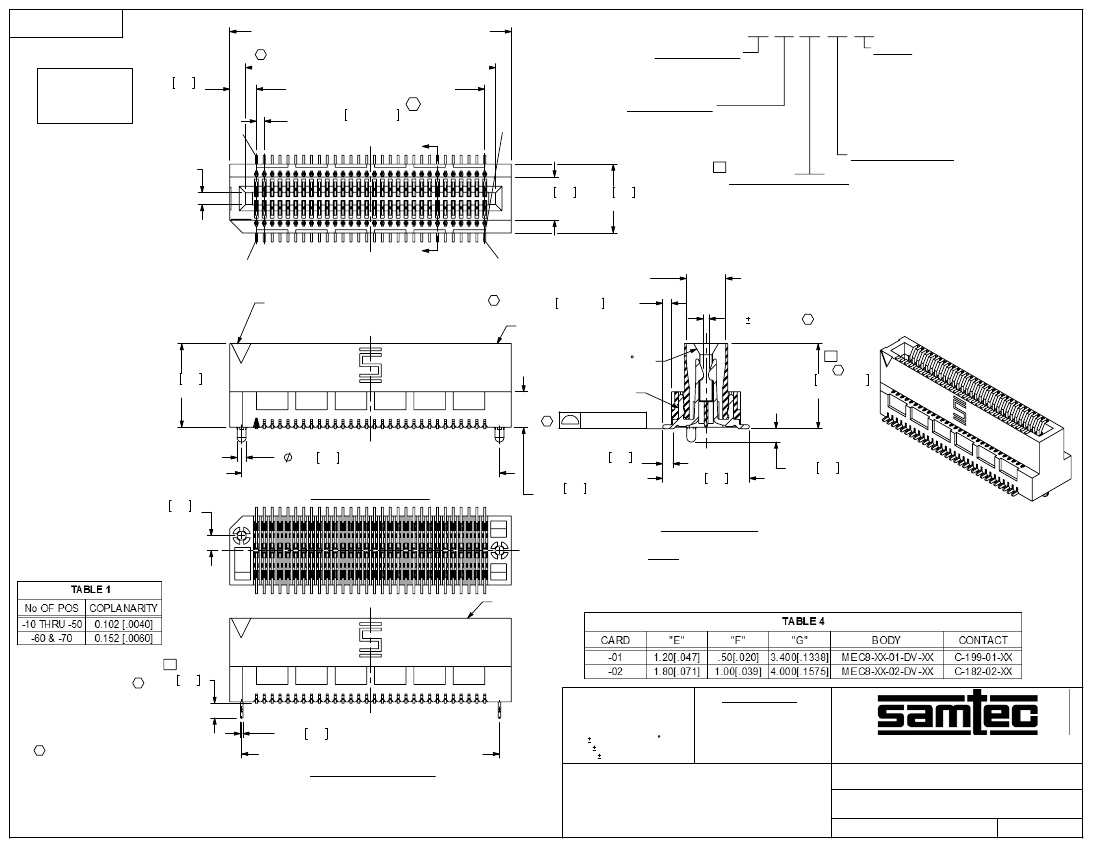

REVISION Y
DO NOT
SCALE FROM
THIS PRINT
2.70 .11
REF
02
"E" REF
(No OF POS x 0.800 [.0315]) + 4.60 [.181] REF
C
MEC8-1XX-XX-XX-DV-XX
No OF POSITIONS
-10, -20, -30, -35, -40,
-45, -50, -60, -70
CARD THICKNESS
-01: 1mm [.039] THICK CARD
-02: 1.57mm [.062] THICK CARD
Y
4.40 .17
REF
7.00 .28
REF
OPTION
-A: ALIGNMENT PINS
(USE MEC8-XX-XX-DV-A)
-LC: LOCKING CLIP(SEE NOTE 5)
(USE LC-05-TM)
-K: POLYAMIDE FILM PAD
(USE K-DOT-.217-.313-.005)(SEE FIG. 3)
-TR: TAPE & REEL
(No OF POS x 0.800 [.0315]) + 1.400[.0551] REF
(No OF POS -1 ) x 0.800 [.0315]
C
0.80±0.05 .031±.002
(TOL NON ACCUM)
C
L
"A"
60
ROW SPECIFICATION
-DV: DUAL VERTICAL
(USE MEC8-XX-XX-DV-XX)
PLATING SPECIFICATION
-L: 10µ" SELECTIVE GOLD, IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-C: 50µ" ELECTRO-POLISHED SELECTIVE GOLD,
IN CONTACT AREA, MATTE TIN ON TAIL
"F" .11 [.004]
C
01
POSITION #1
INDICATOR
"A"
C
C
L
59
"G"
0.90±0.15 .04±.006 (TYP)
MEC8-XX-XX-DV-A
1.13 x 60 REF
*=NOT RELEASED
Y
*=NOT RELEASED
C
8.50 .33
REF
C
SEE CONTACT
(TABLE 4)
SEE TABLE 1
1.05 .04
REF (TYP)
3.60 .14
REF
C
L
8.80 .35
8.65±0.15 .341±.006
(TYP)
0.90 .04 REF
(No OF POS x 0.800[.0315]) + 2.200[.0866] REF
1.50 .06
REF
1.35 .05
-A OPTION SHOWN
SECTION "A"-"A"
C
L
FOR POSITIONS -10, -20, -30 & -35
(SHOWN: MEC8-130-01-XX-DV-XX AS NOTED)
FIG 1
C
L
MEC8-XX-XX-DV
DESIGNED & DIMENSIONED
IN MILLIMETERS
(INCHES FOR REFERENCE ONLY)
C
Y
1.49 .06
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MM.
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
0.25 .01 REF
DECIMALS
1.
C
REPRESENTS A CRITICAL DIMENSION.
(No OF POS x 0.800[.0315]) + 2.200[.0866]
2. BURR ALLOWANCE: 0.04[.0015] MAX.
-LC OPTION SHOWN
3. MINIMUM PUSHOUT FORCE: .5 LB.
4. ASSEMBLIES TO BE PACKAGED IN TRAYS UNLESS
-TR OPTION IS SPECIFIED.
5. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT COMPATIBLE WITH
AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH
THE –LC OPTION."
.XX: .3 [.01]
2
.XXX: .13 [.005]
.XXXX: .051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
INSULATOR: LCP
-01: COLOR: NATURAL
-02: COLOR: BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\MKTG\MEC8-1XX-XX-XX-DV-XX-MKT.SLDDRW
0.8mm DUAL VERTICAL MOUNT MINI-EDGE CARD ASSEMBLY
DWG. NO.
BY:
CHAD F
MEC8-1XX-XX-XX-DV-XX
04/09/2002
SHEET
1
OF
2

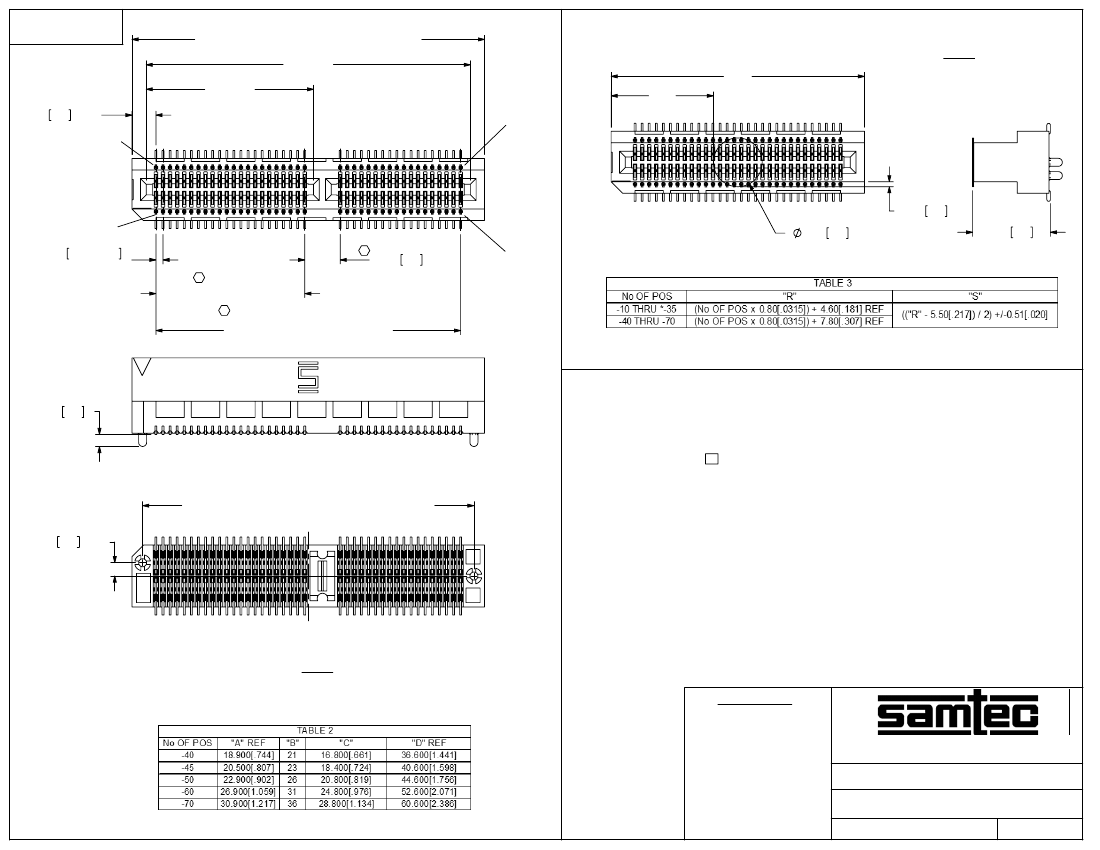

REVISION Y
(No OF POS x 0.80[.0315]) + 7.80[.307] REF
"D" REF
"A" REF
"S"
80
"R"
-K OPTION
(USE K-DOT-.217-.313-.005)
FIG 3
2.70 .11 REF
02
0.55 .02
01
0.80±0.05 .031±.002
(TOL NON-ACCUM)
C
C
5.50 .22
4.00 .16
79
8.78 .35
"B" SPACES @ .800 = "C"
C
(No OF POS + 3) x 0.800[.0315]
* = NOT RELEASED FOR SALE
1.35 .05
Y
((No OF POS + 6) x 0.80[.0315]) + 0.60[.024] REF
1.50 .06 REF
C
L
FIG 2
FOR POSITIONS -40 THRU 70
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
(SHOWN: MEC8-140-01-XX-DV-A)
F:\DWG\MISC\MKTG\MEC8-1XX-XX-XX-DV-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.444444
0.8mm DUAL VERTICAL MOUNT MINI-EDGE CARD ASSEMBLY
DWG. NO.
BY:
CHAD F
MEC8-1XX-XX-XX-DV-XX
04/09/2002
SHEET
2
OF
2
