Datasheet> All Categories > Passive components> oscillator> MTO-8360

Preview

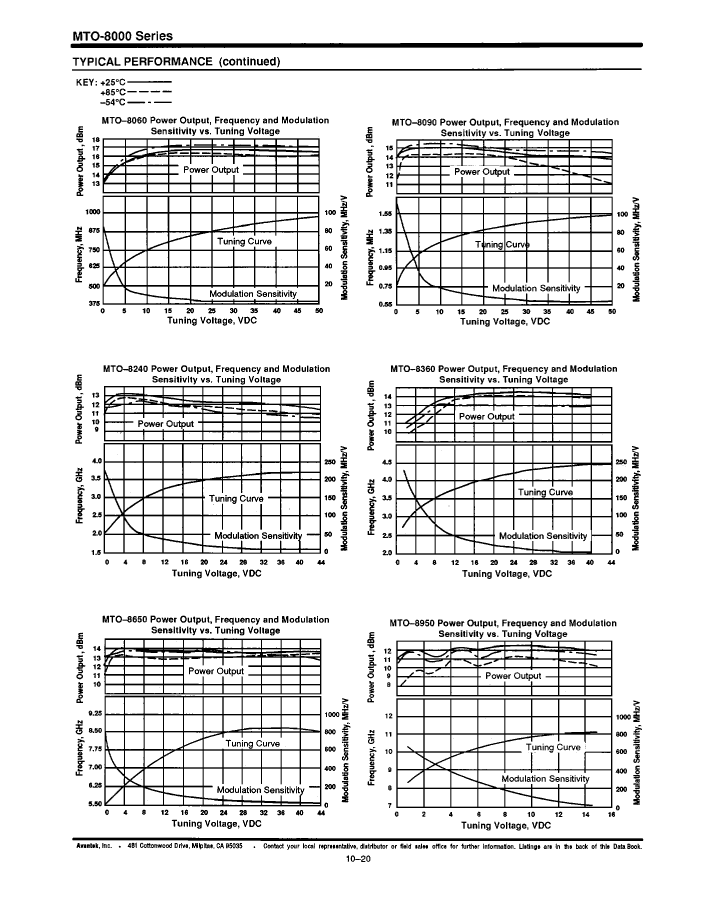

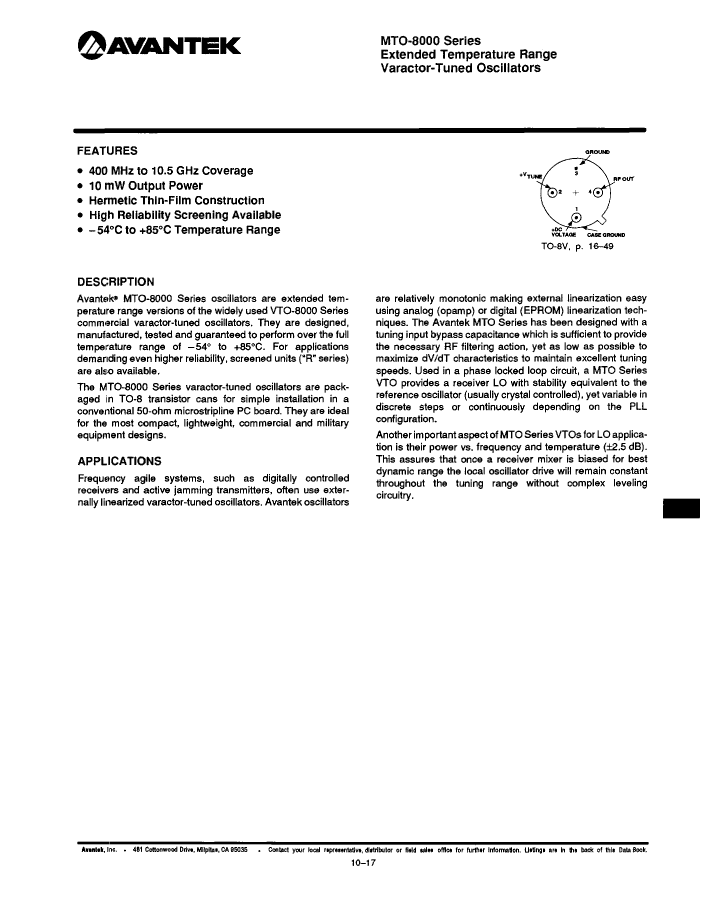

MTO-8360: DescriptionVoltage Controlled Oscillator, 3600MHz Min, 4300MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN; CategoryPassive components oscillator; File Size138KB，4 Pages; ManufacturerAvantek Inc

Download Datasheet Parametric Compare View All

MTO-8360 Overview

Voltage Controlled Oscillator, 3600MHz Min, 4300MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN

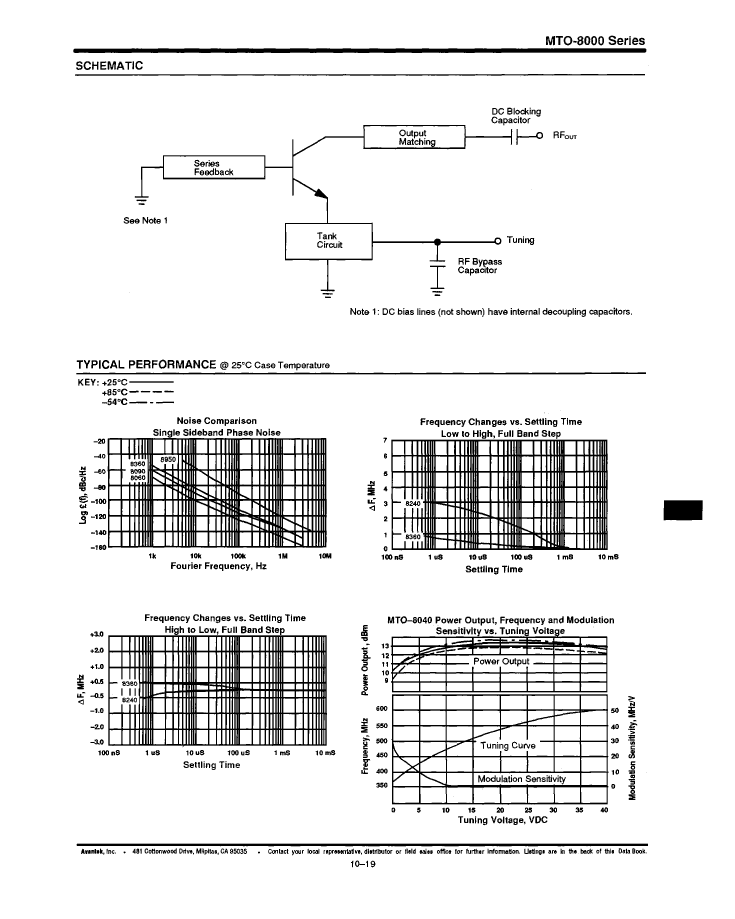

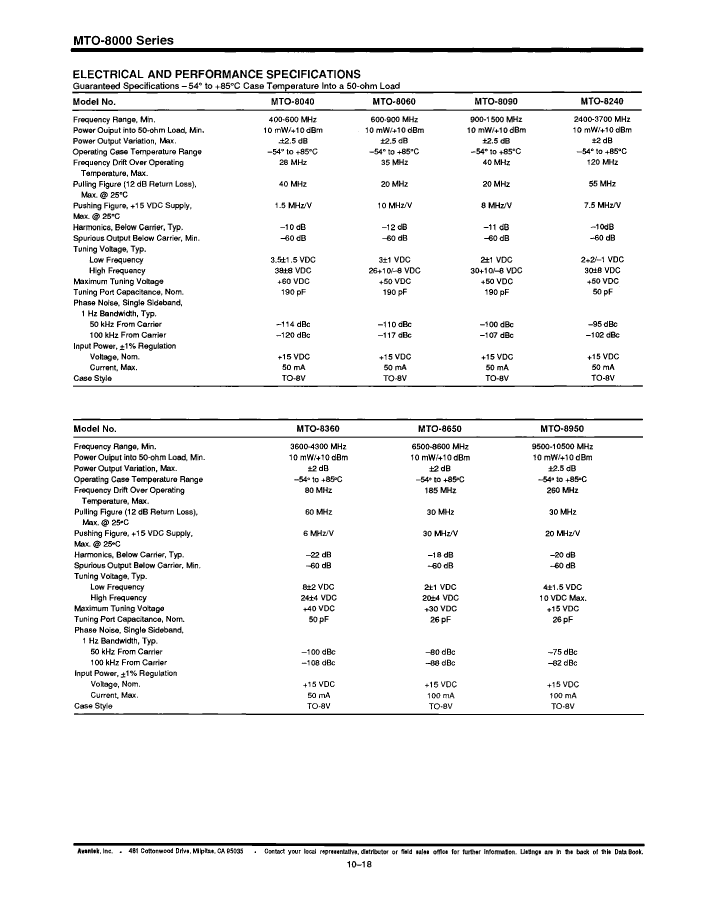

MTO-8360 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum control voltage	40 V
Minimum control voltage	6 V
Installation features	THROUGH HOLE MOUNT
offset frequency	50 kHz
Maximum operating frequency	4300 MHz
Minimum operating frequency	3600 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	10 dBm
phase noise	-100 dBc/Hz
physical size	12.7mm x 4.318mm
power change	2 dB
Maximum slew rate	50 mA
Nominal supply voltage	15 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

MTO-8360 Related Products

	MTO-8360	MTO-8240	MTO-8950	MTO-8040	MTO-8090	MTO-8650	MTO-8060
Description	Voltage Controlled Oscillator, 3600MHz Min, 4300MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 2400MHz Min, 3700MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 9500MHz Min, 10500MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 400MHz Min, 600MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 900MHz Min, 1500MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 6500MHz Min, 8600MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN	Voltage Controlled Oscillator, 600MHz Min, 900MHz Max, HERMETIC THIN-FILM, TO-8V, 4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum control voltage	40 V	50 V	15 V	60 V	50 V	30 V	50 V
Minimum control voltage	6 V	1 V	2.5 V	2 V	1 V	1 V	2 V
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
offset frequency	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz	50 kHz
Maximum operating frequency	4300 MHz	3700 MHz	10500 MHz	600 MHz	1500 MHz	8600 MHz	900 MHz
Minimum operating frequency	3600 MHz	2400 MHz	9500 MHz	400 MHz	900 MHz	6500 MHz	600 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-54 °C	-54 °C	-54 °C	-54 °C	-54 °C	-54 °C	-54 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	10 dBm	10 dBm	10 dBm	10 dBm	10 dBm	10 dBm	10 dBm
phase noise	-100 dBc/Hz	-95 dBc/Hz	-75 dBc/Hz	-114 dBc/Hz	-100 dBc/Hz	-80 dBc/Hz	-110 dBc/Hz
physical size	12.7mm x 4.318mm	12.7mm x 4.318mm	12.7mm x 4.318mm	12.7mm x 4.318mm	12.7mm x 4.318mm	12.7mm x 4.318mm	12.7mm x 4.318mm
power change	2 dB	2 dB	2.5 dB	2.5 dB	2.5 dB	2 dB	2.5 dB
Maximum slew rate	50 mA	50 mA	100 mA	50 mA	50 mA	100 mA	50 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	-	-	-
Maker	-	Avantek Inc	Avantek Inc	-	Avantek Inc	Avantek Inc	Avantek Inc
