17-4202-2488-2T datasheet, PDF

Datasheet> All Categories > The connector> The connector> 17-4202-2488-2T

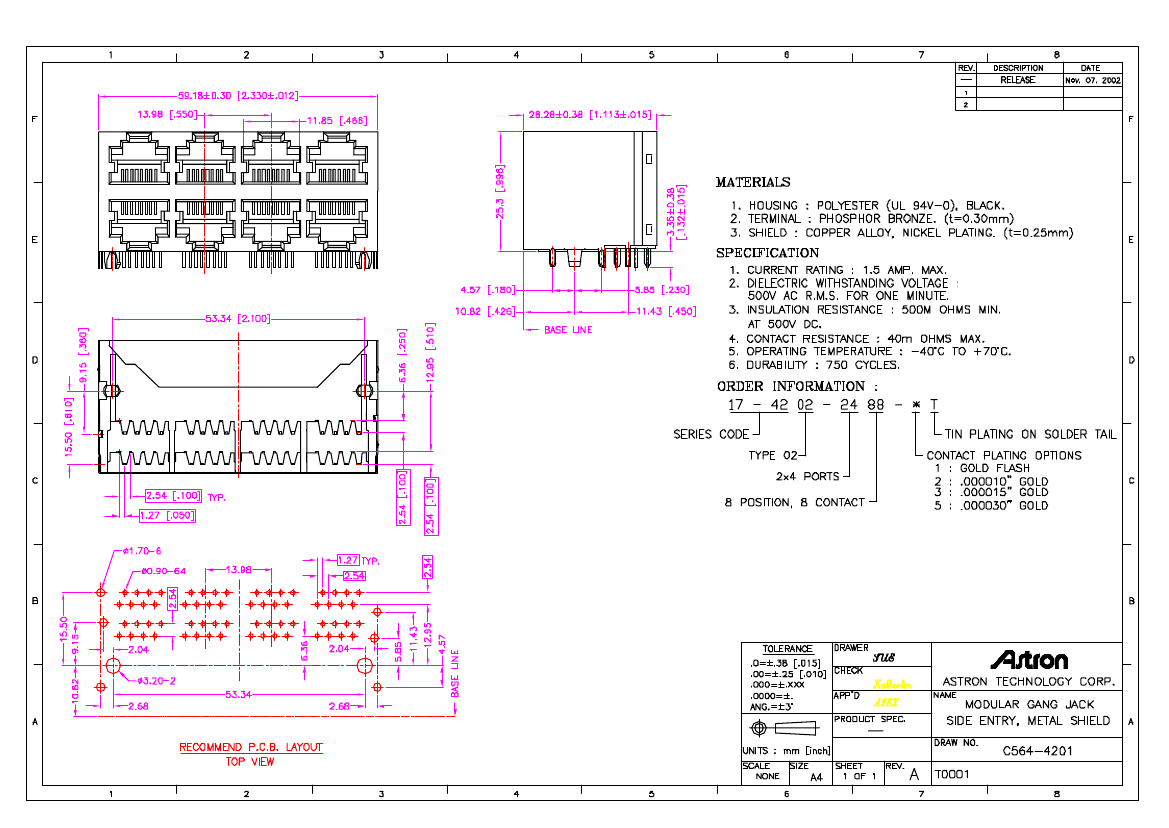

17-4202-2488-2T: DescriptionTelecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerAstron; Websitehttp://www.astron.com.tw

Download Datasheet Parametric Compare View All

17-4202-2488-2T Overview

Telecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

17-4202-2488-2T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	WITH METAL SHIELD
Board mount options	LOCATING POSTS
body width	0.996 inch
subject depth	1.113 inch
body length	2.33 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	40 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	500VAC V
Durability	750 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	17-42
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.132 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

17-4202-2488-2T Related Products

	17-4202-2488-2T	17-4202-2488-3T	17-4202-2488-1T
Description	Telecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknow	unknow	unknow
Other features	WITH METAL SHIELD	WITH METAL SHIELD	WITH METAL SHIELD
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.996 inch	0.996 inch	0.996 inch
subject depth	1.113 inch	1.113 inch	1.113 inch
body length	2.33 inch	2.33 inch	2.33 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	40 mΩ	40 mΩ	40 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	750 Cycles	750 Cycles	750 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	17-42	17-42	17-42
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of ports	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Plating thickness	10u inch	15u inch	FLASH inch
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.132 inch	0.132 inch	0.132 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	64	64	64
Base Number Matches	1	1	1
