ACR400SE12 datasheet, PDF - EEWORLD Datasheet

ACR400SE12: DescriptionSilicon Controlled Rectifier, 380000mA I(T), 1200V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size200KB，4 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

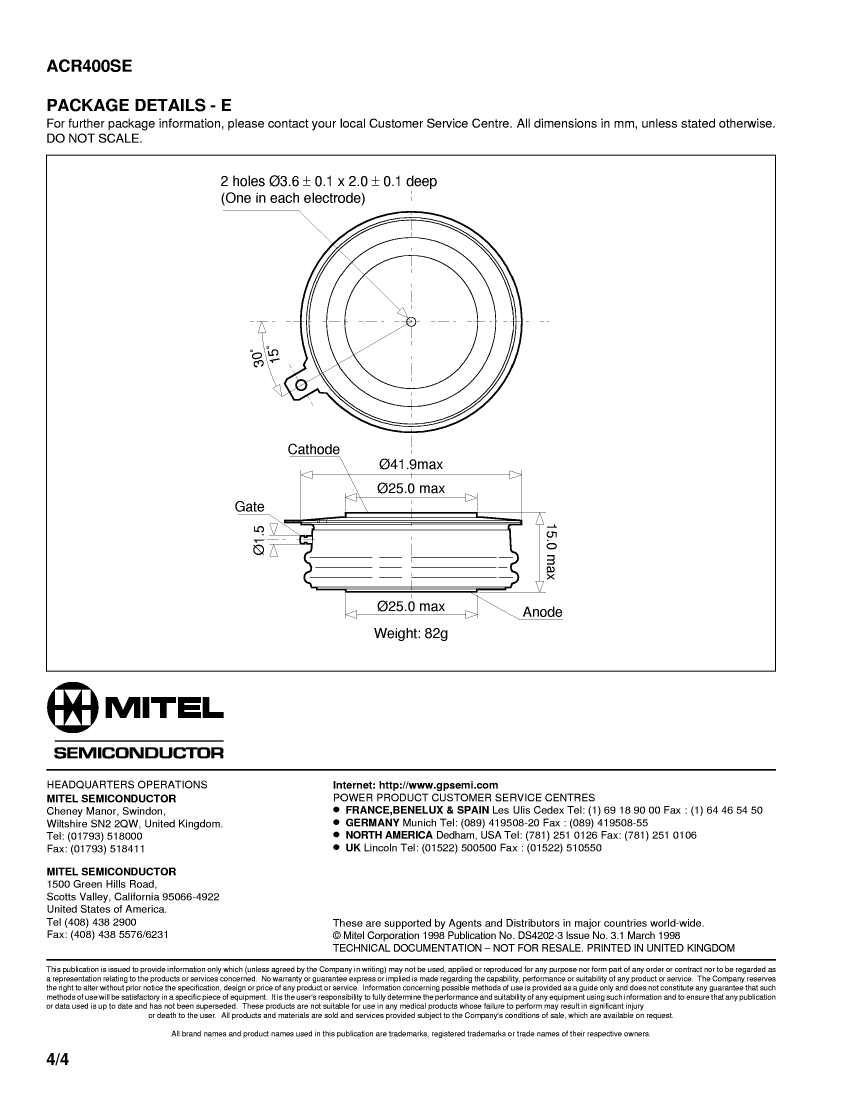

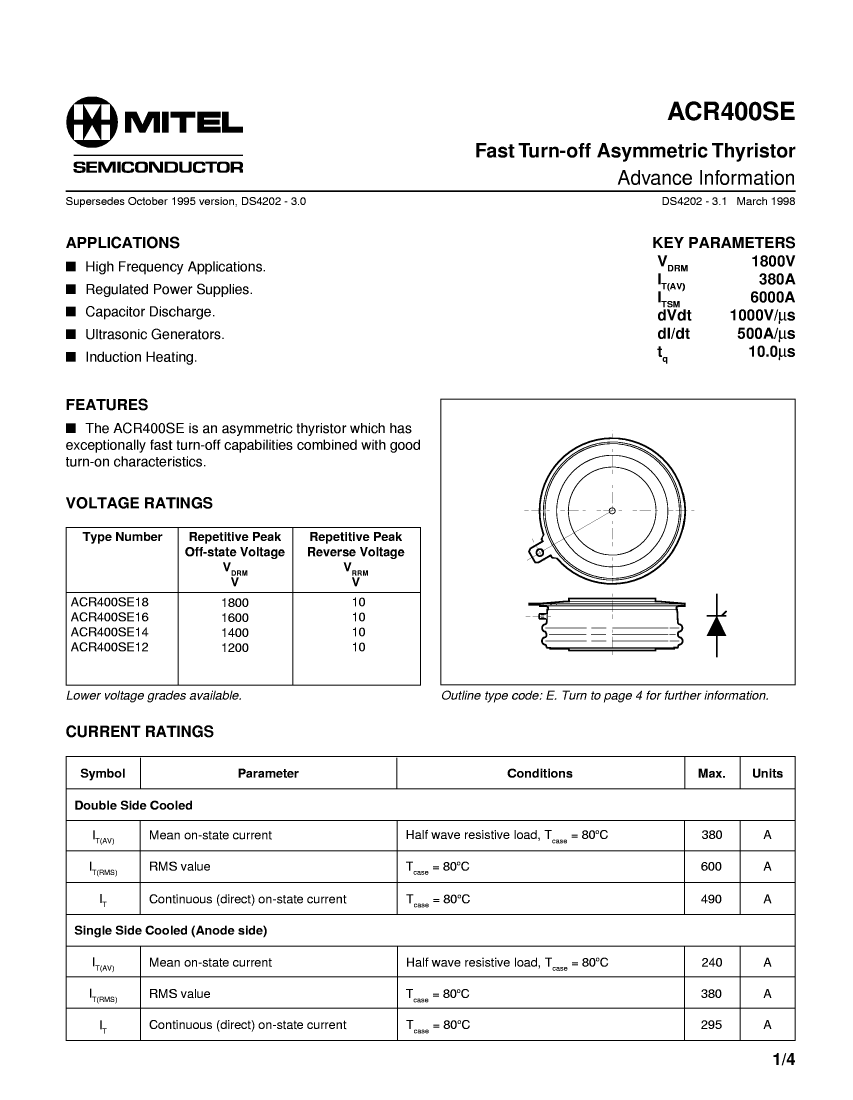

ACR400SE12 Overview

Silicon Controlled Rectifier, 380000mA I(T), 1200V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown

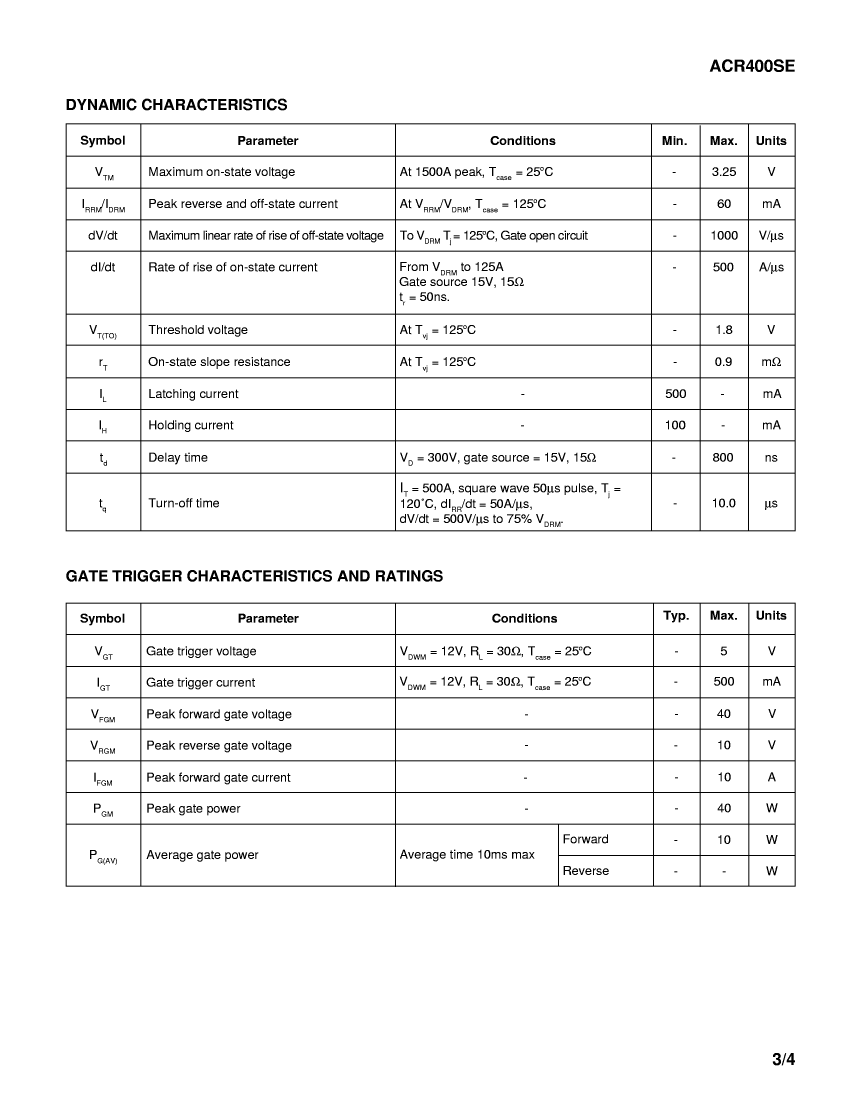

Nominal circuit commutation break time	10 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	500 mA
Maximum DC gate trigger voltage	5 V
Maximum leakage current	60 mA

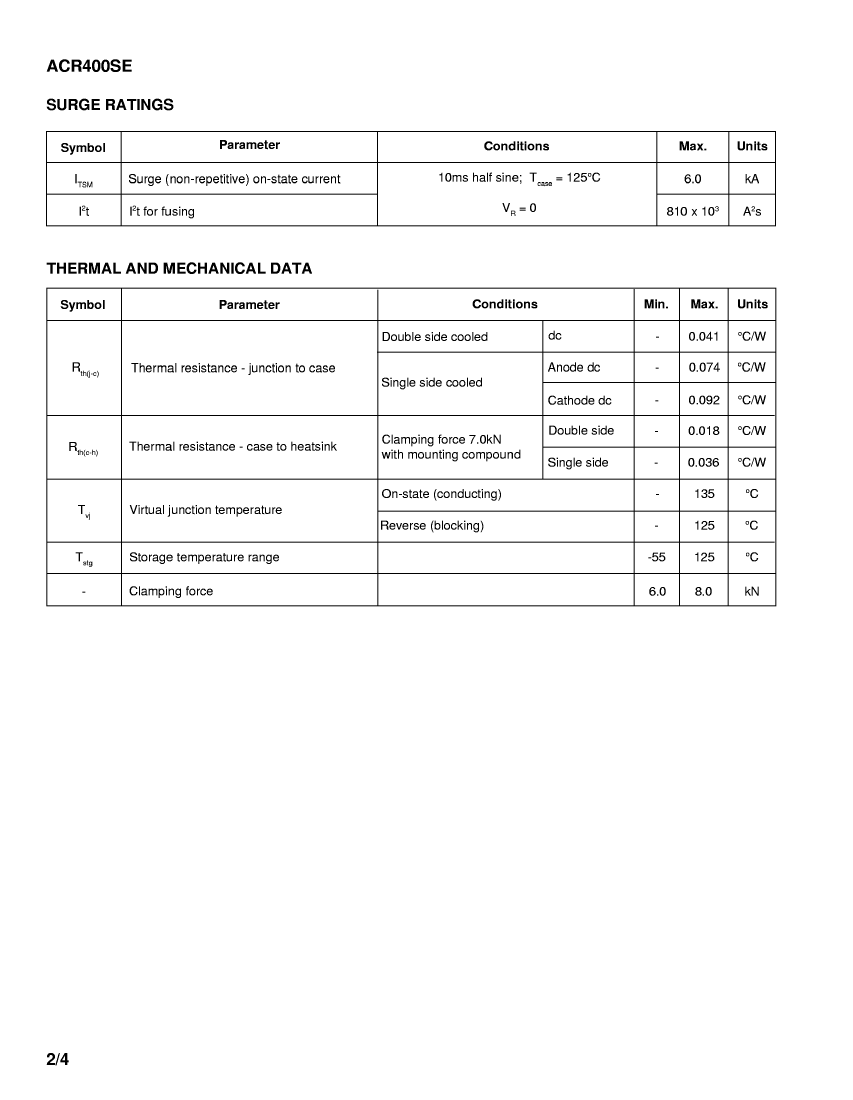

On-state non-repetitive peak current	6000 A
Maximum on-state current	380000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	1200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	ACR400SE12	ACR400SE16	ACR400SE18
Description	Silicon Controlled Rectifier, 380000mA I(T), 1200V V(DRM),	Silicon Controlled Rectifier, 380000mA I(T), 1600V V(DRM),	Silicon Controlled Rectifier, 380000mA I(T), 1800V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Nominal circuit commutation break time	10 µs	10 µs	10 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	500 mA	500 mA	500 mA
Maximum DC gate trigger voltage	5 V	5 V	5 V
Maximum leakage current	60 mA	60 mA	60 mA
On-state non-repetitive peak current	6000 A	6000 A	6000 A
Maximum on-state current	380000 A	380000 A	380000 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	1200 V	1600 V	1800 V
surface mount	NO	NO	NO
Trigger device type	SCR	SCR	SCR
Maker	-	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)
