SF0150CD01804S

Description
SAW Filter, 10 Pin(s), Ceramic,
CategoryAnalog mixed-signal IC    filter
File Size45KB,2 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric View All

SF0150CD01804S Overview

SAW Filter, 10 Pin(s), Ceramic,

SF0150CD01804S Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
filter typeSAW FILTER
JESD-609 codee0
Installation typeSURFACE MOUNT
Number of terminals10
Maximum operating temperature80 °C
Minimum operating temperature
Packaging MaterialsCERAMIC
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1
150 MHz Filter
for CDMA Applications
Part Number SF0150CD01804S
Micro Networks Corp., 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com

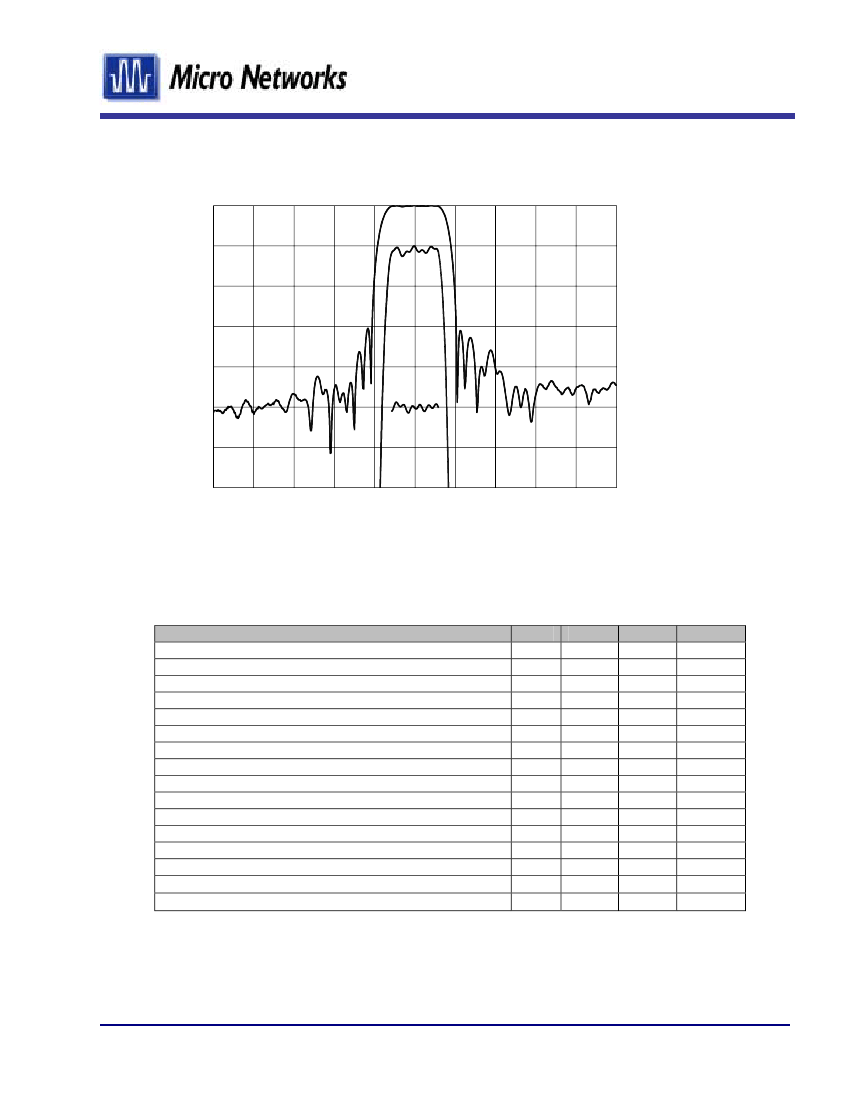

TYPICAL PERFORMANCE
Horizontal: 1 MHz/div
Vertical (from top): Magnitude
Magnitude
Phase
10 dB/div
1 dB/div
5 deg/div
SPECIFICATION
Parameter
1
Center Frequency (Fc)
Insertion Loss
0.5 dB Bandwidth
5 dB Bandwidth
15 dB Bandwidth
30 dB Bandwidth
Rejection (75 MHz to 147.75 MHz)
Rejection (152.25 MHz to 225 MHz)
2
Passband Amplitude Ripple
2
Passband Phase Linearity
2
Integrated Phase Error
Return Loss
Triple Travel Suppression
Input Power
Operating Temperature Range
Source and Load Impedance
Notes:
Min
Typ
150
Max
25
1.18
1.77
2.50
4.50
30
30
0.6
5
0.0015
10
30
0
23
50
+10
80
Units
MHz
dB
MHz
MHz
MHz
MHz
dB
dB
dB p-p
deg p-p
2
rad
dB
dB
dBm
°C
1. Fixed reference. All specified bandwidths are centered at this frequency.
2. Over center 1.18 MHz.
Rev 01x 27-Apr-01

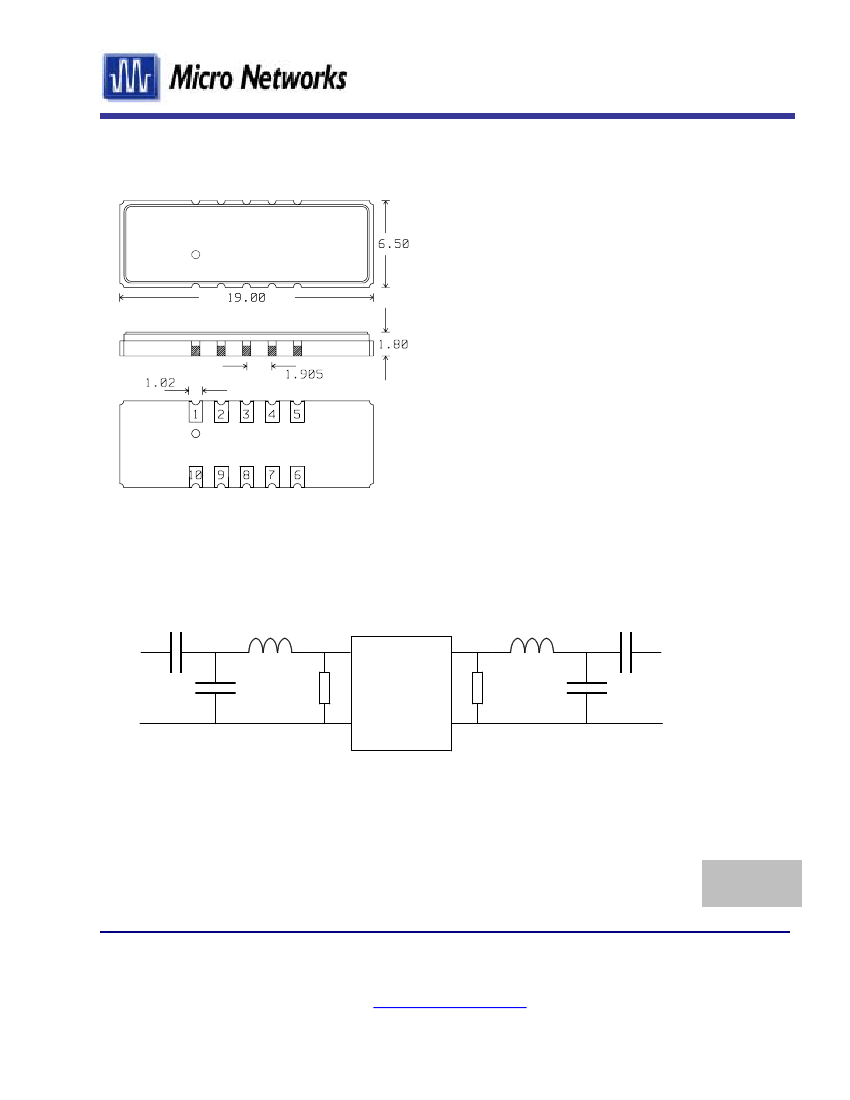

Page 1 of 2
