MAVCML0035: DescriptionSurface Mount TO8 Voltage Controlled Oscillators; CategoryPassive components oscillator; File Size138KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

MAVCML0035 Overview

Surface Mount TO8 Voltage Controlled Oscillators

MAVCML0035 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	MACOM
Reach Compliance Code	unknow
Number of terminals	4
Maximum operating frequency	4370 MHz
Minimum operating frequency	4230 MHz
Nominal operating frequency	4370 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	10 V
Certification status	Not Qualified
Maximum slew rate	130 mA
Nominal supply voltage	10 V
technology	BIPOLAR

Preview

Download Datasheet

View All

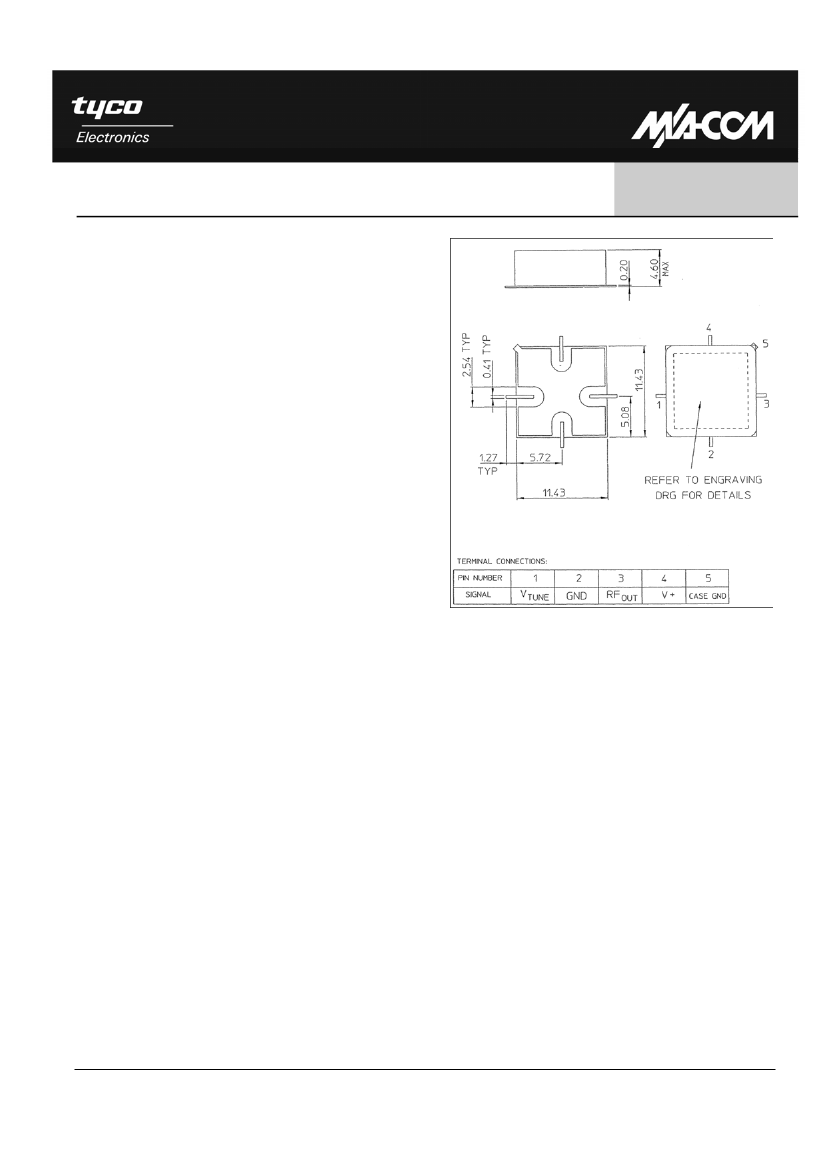

Surface Mount TO8 Voltage Controlled Oscillators

Features

•

Extremely Linear Tuning

High Tuning Speed

Low Phase Noise

Surface Mount PCB

Hermetically Sealed

Suitable for High Reliability Applications

Custom Designs Available

MAVCMLSeries

Primary Applications

•

Radar Receivers

Communications Systems

Countermeasure Systems

Satellite Systems

VCOs have a wide variety of applications where very

fast tuning speeds are required. This feature along

with our superior output power flatness performance

is critical for requirements in radar receivers or for

rapid generation of jamming signals in ECM

transmitters. When high frequency stability is

required for radar, communications synthesizers or

frequency converters, these VCOs may be

integrated into phase lock loop circuitry. Low phase

noise performance of the VCO, with our highly linear

tuning, simplifies loop filter design and enables the

designer to achieve superior synthesizer

performance. These VCOs can be qualified for high

reliability and military requirements. The

accompanying table is an example of our standard

VCO designs. A wide range of custom designs are

also available with output frequencies to 6 GHz.

Please contact the factory to discuss your

requirements.

All dimensions are in mm. +/- 0.1

Standard finish : Gold Plate.

Description

These designs utilize silicon bipolar devices as the

negative resistance generator. The frequency of

operation is determined by a varactor diode that

serves as a voltage variable capacitor. Silicon

hyperabrupt varactors offer the lowest phase noise

performance. Careful selection of the varactor

diodes manufactured in-house provide linear

monotonic tuning characteristics requiring only

simple external driver circuits.

This range of VCOs is constructed using discrete

chip device integrated onto a conventional alumina

substrate or on a Glass Microwave Integrated Circuit

(GMIC

). This is packaged into standard outline

TO-8 SMT packages. These packages are

hermetically sealed using resistance weld

techniques. This compact rugged construction

allows for simple installation on either through hole

or surface mount PCB, and finds a wide range of

applications in demanding military, hi-rel and

commercial systems.

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.
