54FCT16543TEB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT16543TEB

54FCT16543TEB: DescriptionRegistered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56; Categorylogic logic; File Size410KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

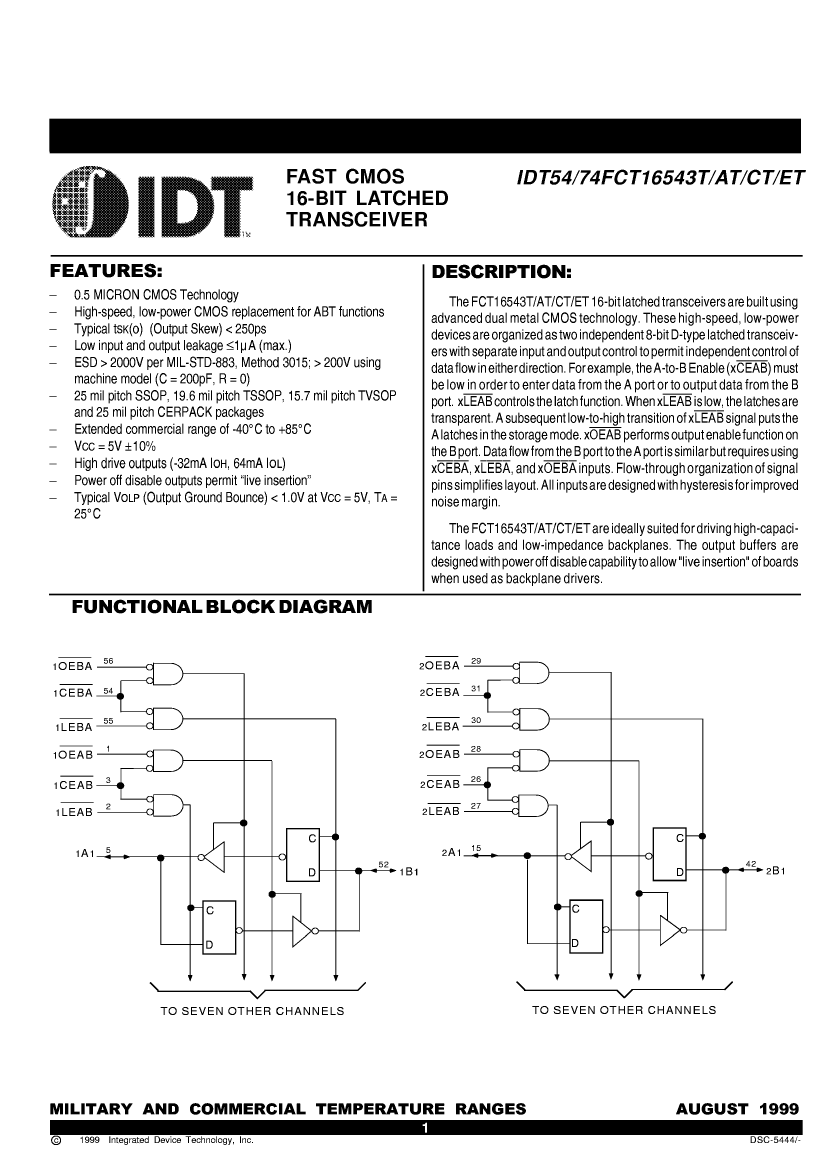

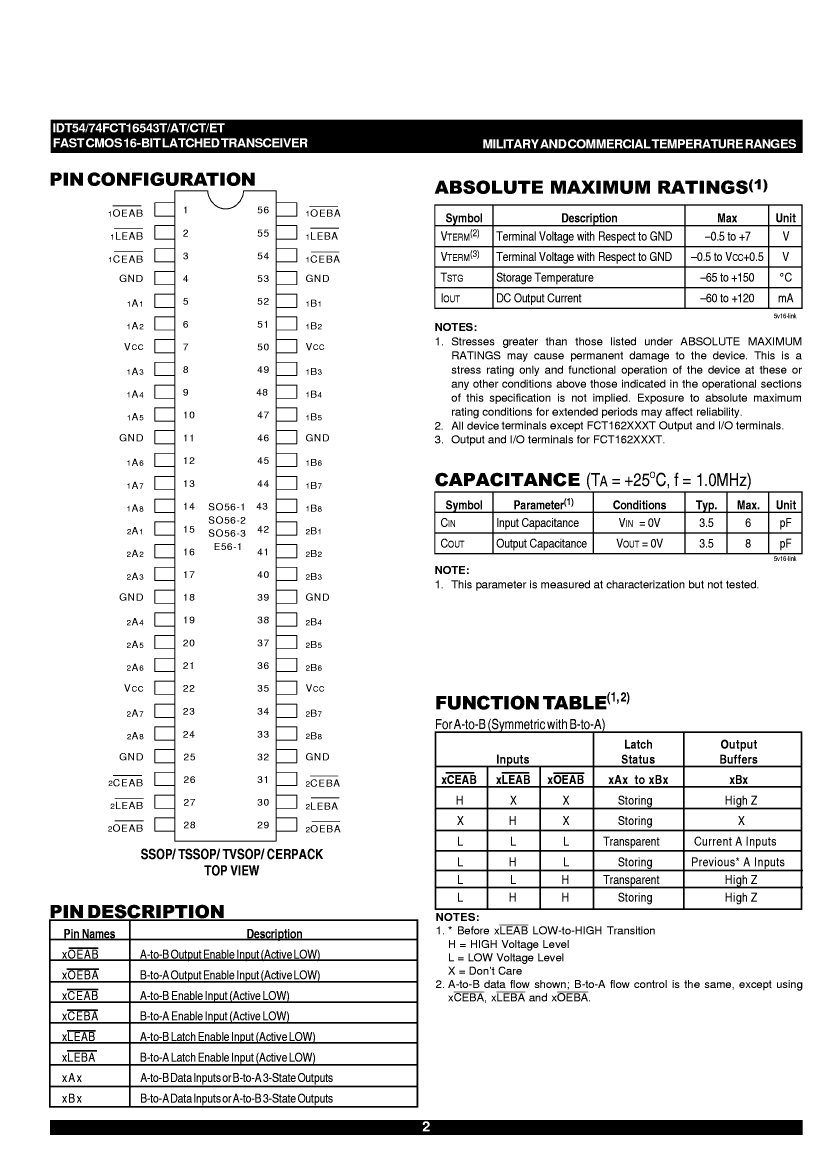

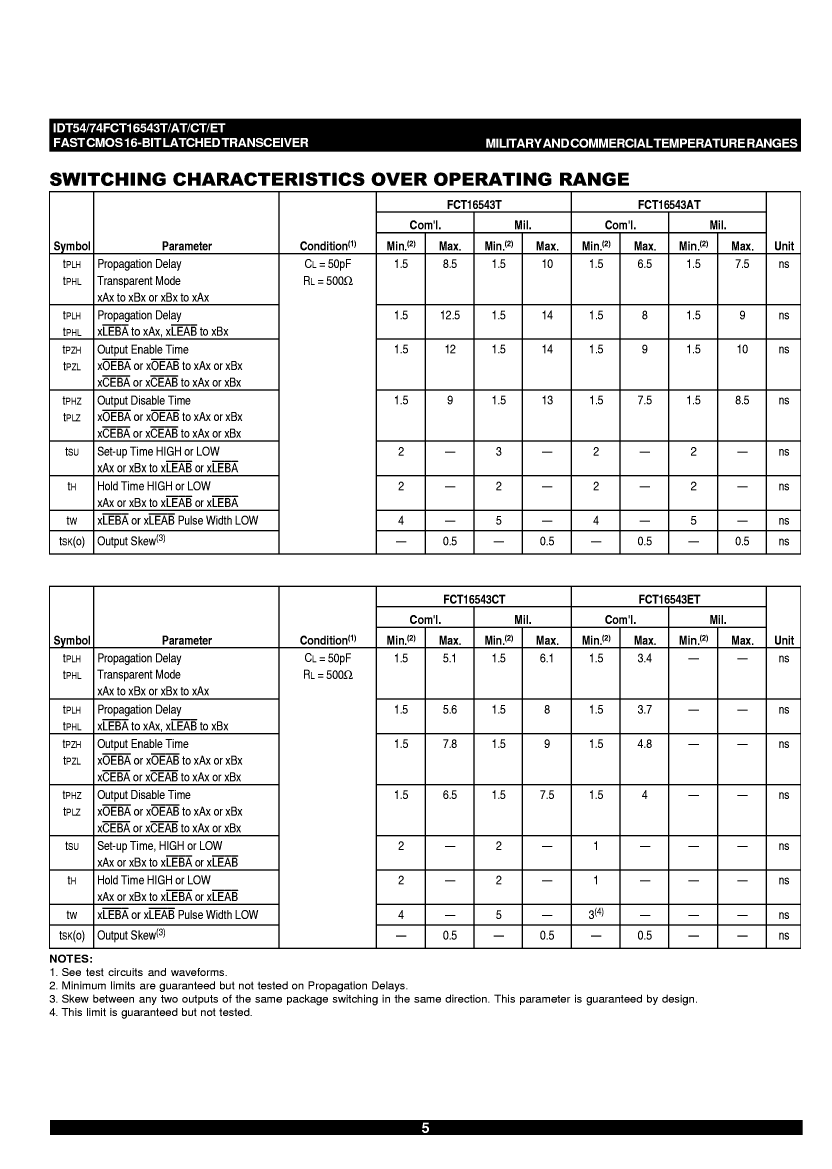

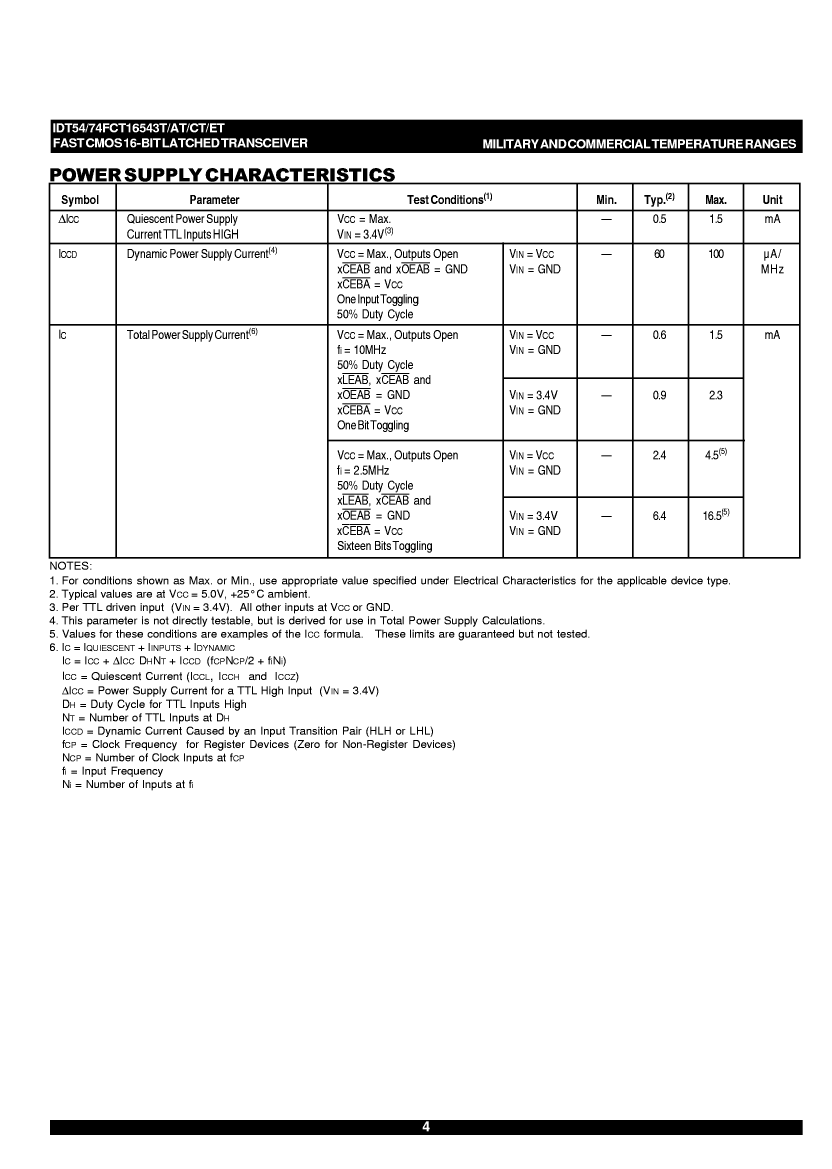

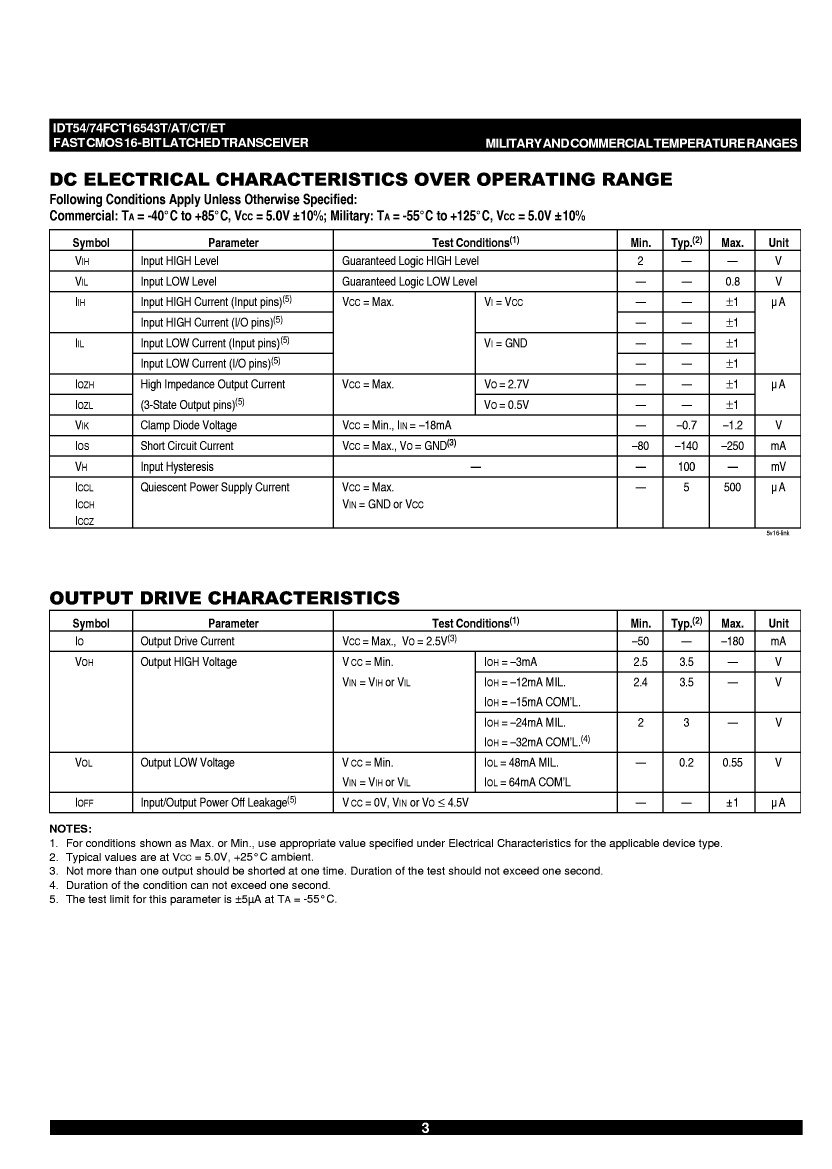

54FCT16543TEB Overview

Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56

54FCT16543TEB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DFP, FL56,.4,25
Reach Compliance Code	not_compliant
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-CDFP-F56
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL56,.4,25
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	10 ns
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
translate	N/A
Base Number Matches	1

Preview

Download Datasheet

View All

54FCT16543TEB Related Products

	54FCT16543TEB	54FCT16543ATEB	54FCT16543CTEB	74FCT16543TPF
Description	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.0157 INCH PITCH, TVSOP-56
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL56,.4,25	DFP, FL56,.4,25	DFP, FL56,.4,25	SOP, TSSOP56,.25,16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	FCT	FCT	FCT	FCT
JESD-30 code	R-CDFP-F56	R-CDFP-F56	R-CDFP-F56	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A	0.064 A
Number of digits	8	8	8	8
Number of functions	2	2	2	2
Number of ports	2	2	2	2
Number of terminals	56	56	56	56
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DFP	SOP
Encapsulate equivalent code	FL56,.4,25	FL56,.4,25	FL56,.4,25	TSSOP56,.25,16
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
power supply	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	10 ns	7.5 ns	6.1 ns	8.5 ns
propagation delay (tpd)	14 ns	9 ns	8 ns	12.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)
Terminal form	FLAT	FLAT	FLAT	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.4 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	6	6
translate	N/A	N/A	N/A	N/A
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-
Objectid	-	1904413369	1904413372	1155482519
