121685-0018: DescriptionBoard Connector,; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

121685-0018 Overview

Board Connector,

121685-0018 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

MSMC

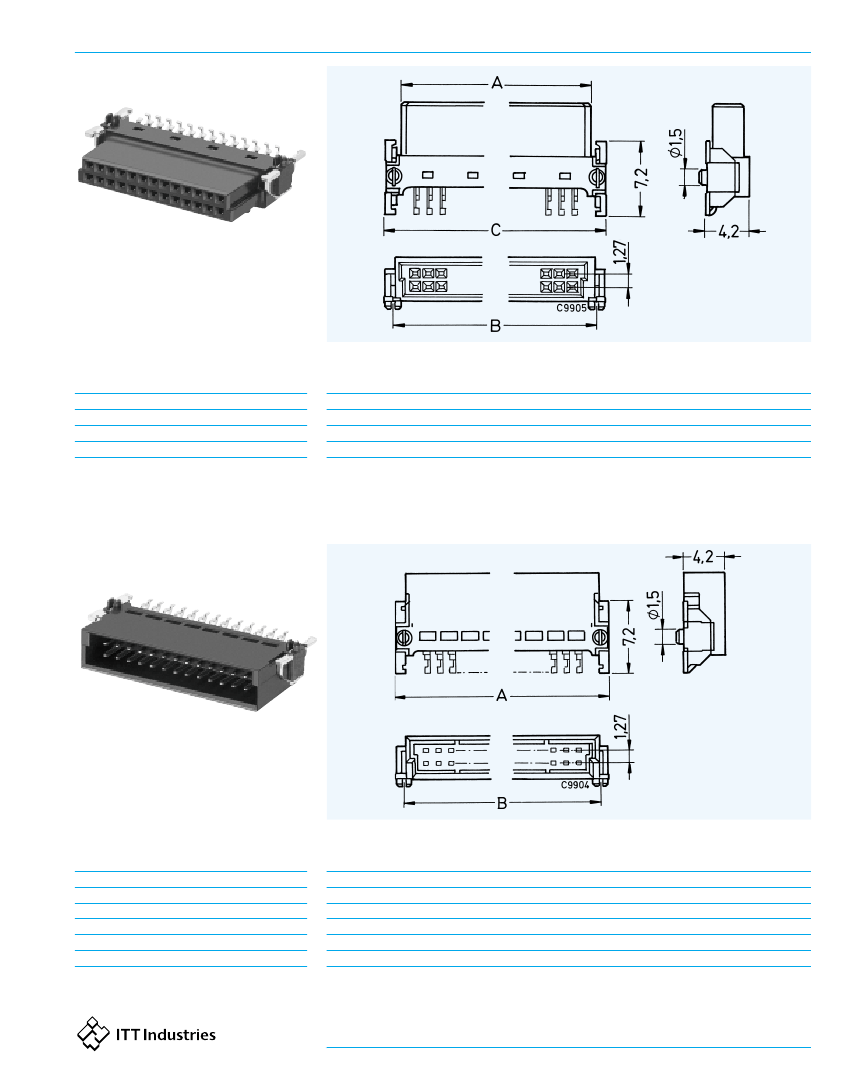

Female Connector, 90° SMT

Microminiature Surface Mount Connectors

Order references

Size

Designation

12-way MSMC12F90

26-way MSMC26F90

50-way MSMC50F90

Packaging unit 560 pcs / reel

Order number

121685-0017

121685-0018

121685-0019

Dimensions

No of contacts

12

26

50

A

9,37 (.369)

18,26 (.719)

33,50 (1.319)

B

10,77 (.424)

19,66 (.774)

34,90 (1.374)

C

12,70 (.500)

21,60 (.851)

36,80 (1.449)

Other sizes please consult factory

Male Connector, 90° SMT

Order references

Size

Designation

12-way MSMC12M90

26-way MSMC26M90

50-way MSMC50M90

68-way MSMC68M90

80-way MSMC80M90

Packaging unit 560 pcs / reel

Order number

121685-0020

121685-0021

121685-0001

121685-0041

121685-0042

Dimensions

No of contacts

12

26

50

68

80

A

12,70

21,60

36,80

48,20

55,80

(.500)

(.851)

(1.449)

(1.898)

(2.197)

10,77

19,66

34,90

46,33

53,95

B

(.424)

(.774)

(1.374)

(1.824)

(2.124)

Cannon

5

Dimensions are shown in mm (inch)

Dimensions subject to change

www.ittcannon.com

121685-0018 Related Products

	121685-0018	121685-0017	121685-0019	121685-0041	121685-0042
Description	Board Connector,	Board Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector,
Reach Compliance Code	compli	compli	compli	compli	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	1	1	1	1	1
Contact point gender	-	FEMALE	FEMALE	MALE	-
Filter function	-	NO	NO	NO	-
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	-	NO	NO	NO	-
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	-	BOARD	BOARD	BOARD	-
Number of rows loaded	-	2	2	2	-
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	-	12	50	68	-
