SMA4011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SMA4011

SMA4011: Description1000MHz - 4000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, HERMETIC SELAED PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size100KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

SMA4011 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMA4011	-	-	View	Buy Now

SMA4011 Overview

1000MHz - 4000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, HERMETIC SELAED PACKAGE

SMA4011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY, I/P POWER-MAX (PEAK)=24DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	12.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

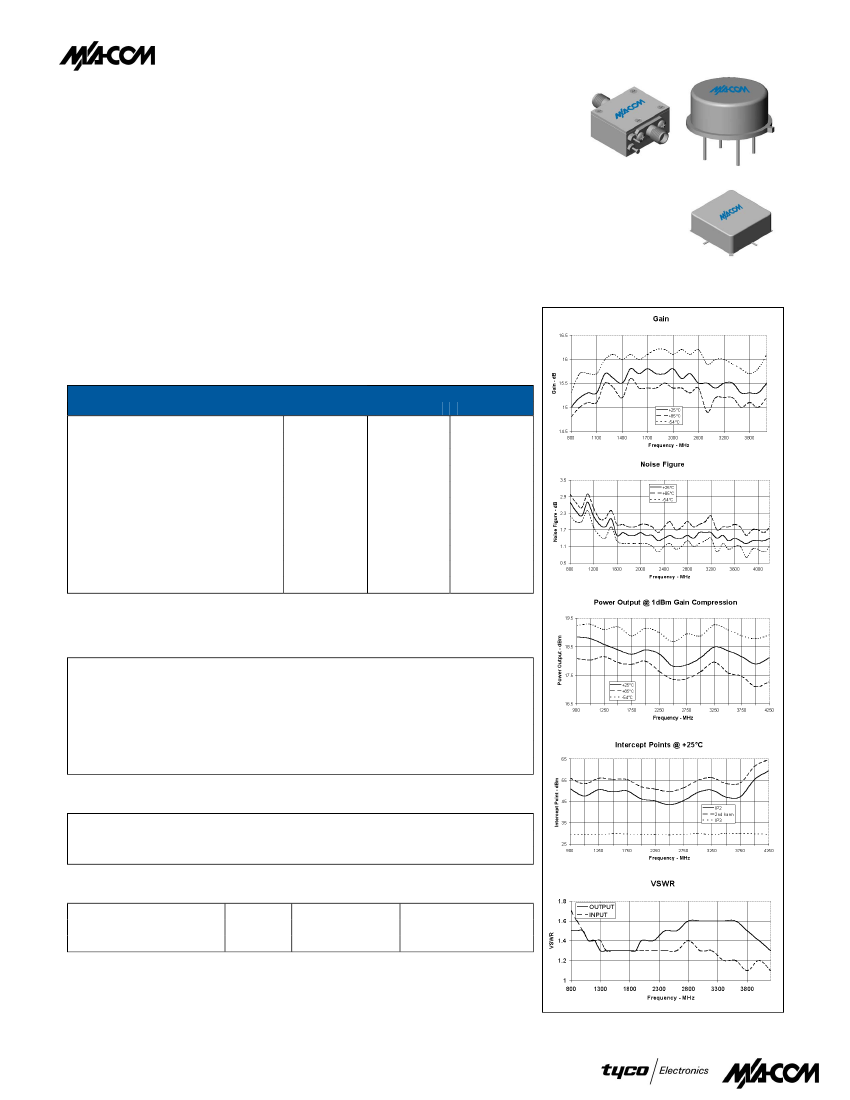

A4011/SMA4011

1000 TO 4000 MHz

TO-8 CASCADABLE AMPLIFIER

· LOW NOISE FIGURE: 2.0 dB (TYP.)

· MEDIUM OUTPUT POWER: +18.3 dBm (TYP.)

· HIGH EFFICIENCY: 65 mA (TYP.) @ +5 Vdc

· PHEMT AMPLIFIER

Specifications (Rev. Date: 6/01)*

Characteristics

Frequency

Small Signal Gain (min.)

Gain Flatness (max.)

Reverse Isolation

Noise Figure (max.)

Power Output @ 1 dB comp. (min.)

IP3

IP2

Second Order Harmonic IP

VSWR Input / Output (max.)

DC Current @

5 Volts (max.)

Typical

0° to 50°C

Typical Performance @ 25°C

Guaranteed

-54° to +85°C

0.8-4.5 GHz

15.5 dB

±0.4 dB

16 dB

2.0 dB

18.3 dBm

+29 dBm

+45 dBm

+50 dBm

1.4:1 / 1.4:1

65 mA

1.0-4.0 GHz

13.0 dB

±0.7 dB

2.7 dB

16.5 dBm

1.0-4.0 GHz

12.5 dB

±1.0 dB

3.2 dB

16.0 dBm

2.0:1 / 1.9:1

70 mA

2.2:1 / 2.0:1

75 mA

* Measured in a 50-ohm system at +5 Vdc Nominal. Subject to change without notice.

Absolute Maximum Ratings

Storage Temperature

Max. Case Temperature

Max. DC Voltage

Max. Continuous RF Input Power

Max. Short Term RF Input Power (1 minute max.)

Max. Peak Power (3

µsec

max.)

“S” Series Burn-in Temperature (Case)

-62° to +150°C

125°C

+7 Volts

+13 dBm

100 mW

0.25 W

125°C

Thermal Data: V

5 Vdc

Thermal Resistance

Transistor Power Dissipation P

Junction Temperature Rise Above Case T

°C/W

°C

Outline Drawings

Package

Figure

Model

TO-8

A4011

Surface Mount

SMA4011

SMA Connectorized

CA4011

Specifications subject to change without notice.

•

North America: 1-800-366-2266

Visit www.macom.com for complete contact and product information.
