SIS18T datasheet, PDF - EEWORLD Datasheet

SIS18T: DescriptionIC Socket, SIP18, 18 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size140KB，4 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

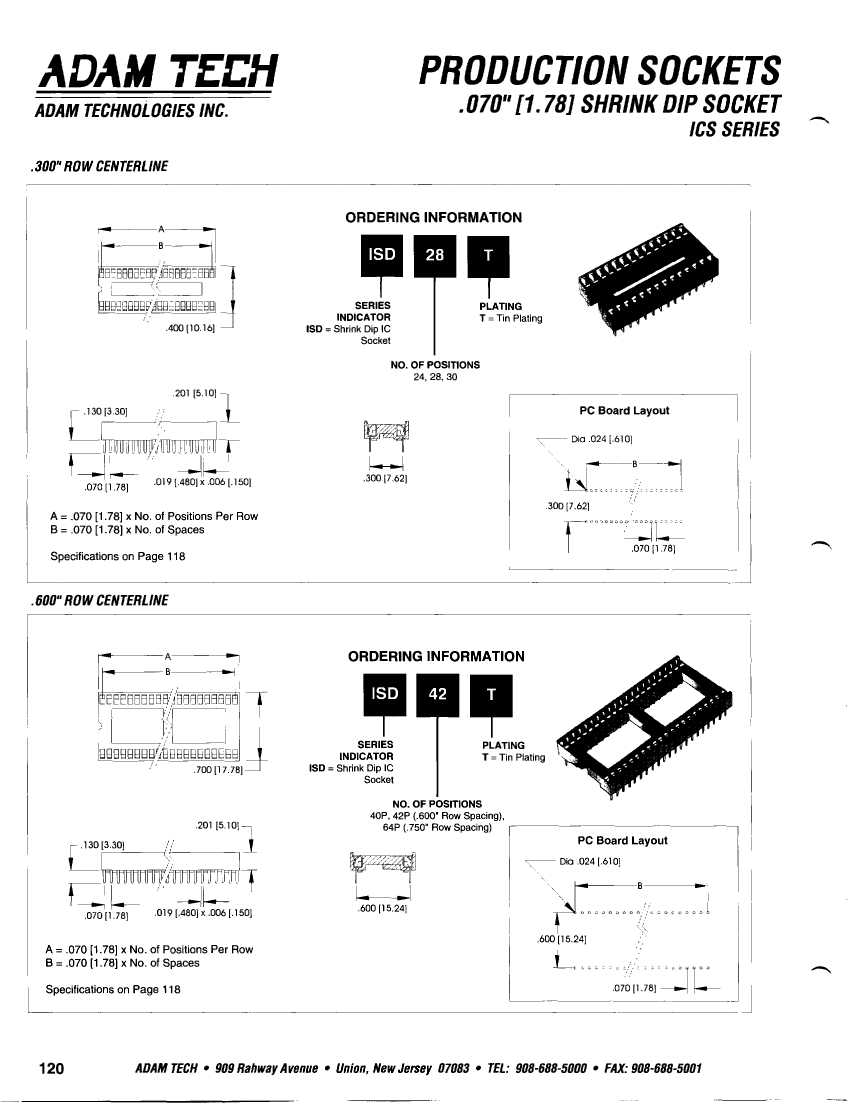

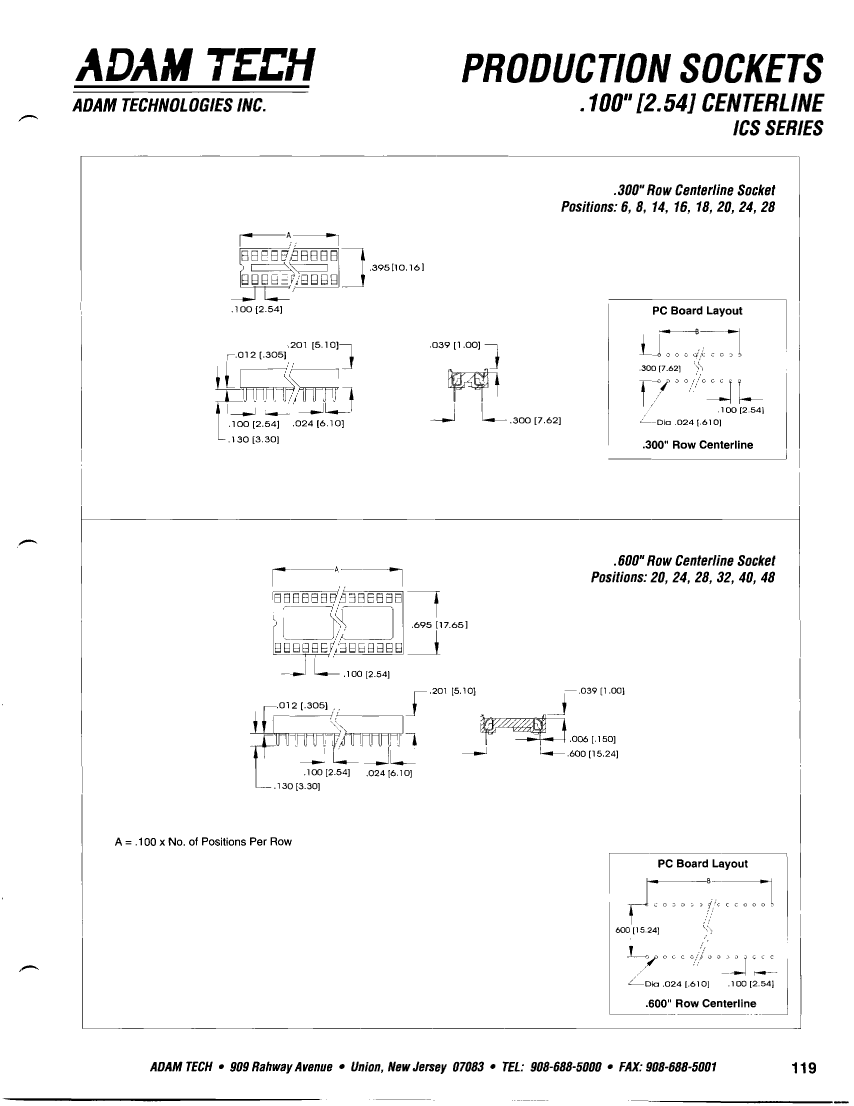

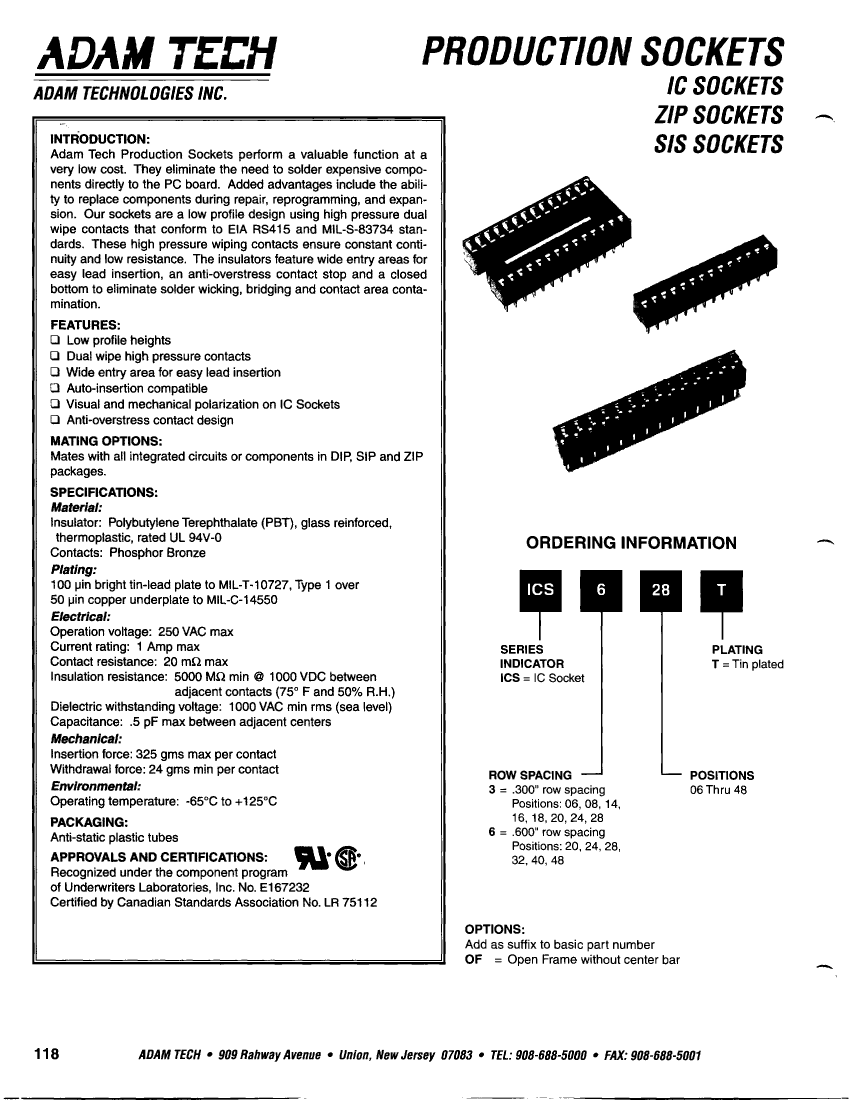

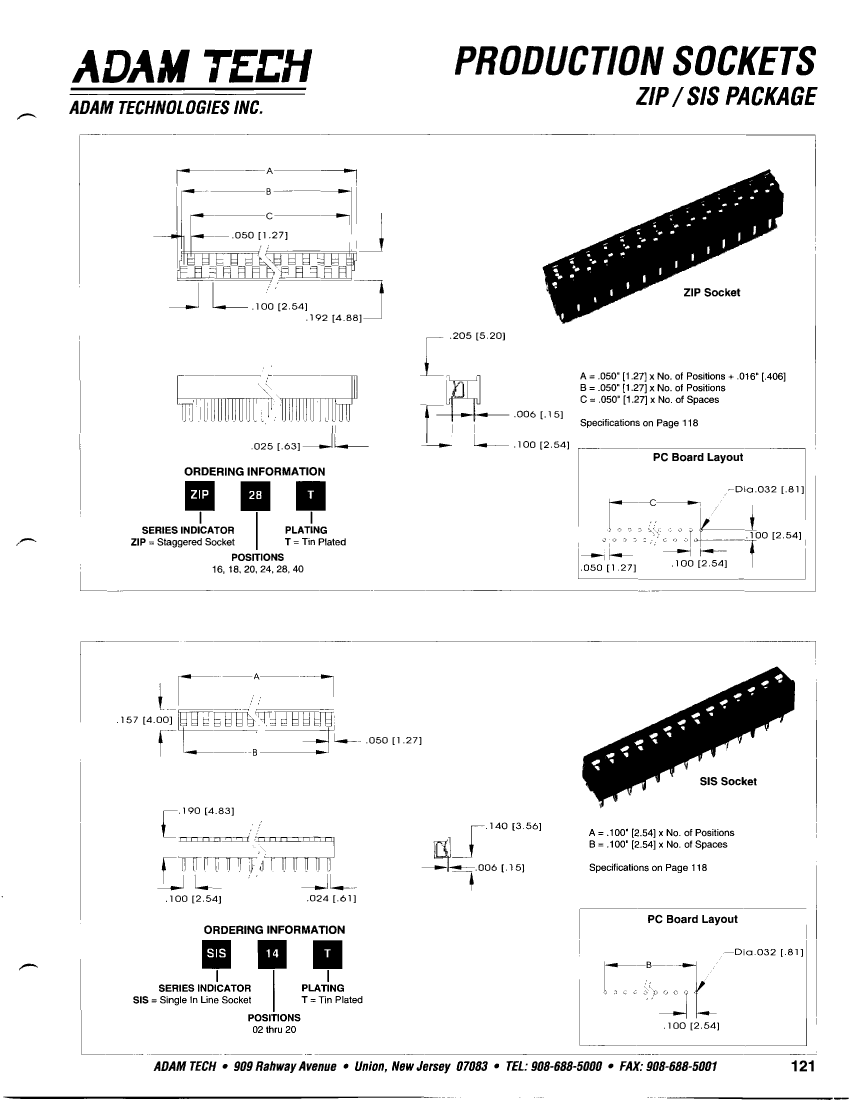

SIS18T Overview

IC Socket, SIP18, 18 Contact(s), 2.54mm Term Pitch, Solder

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.157 inch
subject depth	0.189 inch
body length	1.8 inch
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	GOLD
Contact material	P-CUSN
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SIP18
Dielectric withstand voltage	1000VAC V
Shell material	POLYBUTYLENE TEREPHTHALATE-THERMOPLASTIC
Insulation resistance	5000000000 Ω
Manufacturer's serial number	SIS
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	18
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1
