BA400-798G-TR: DescriptionBoard Stacking Connector, 400 Contact(s), 10 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size334KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

BA400-798G-TR Overview

Board Stacking Connector, 400 Contact(s), 10 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

BA400-798G-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	400
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

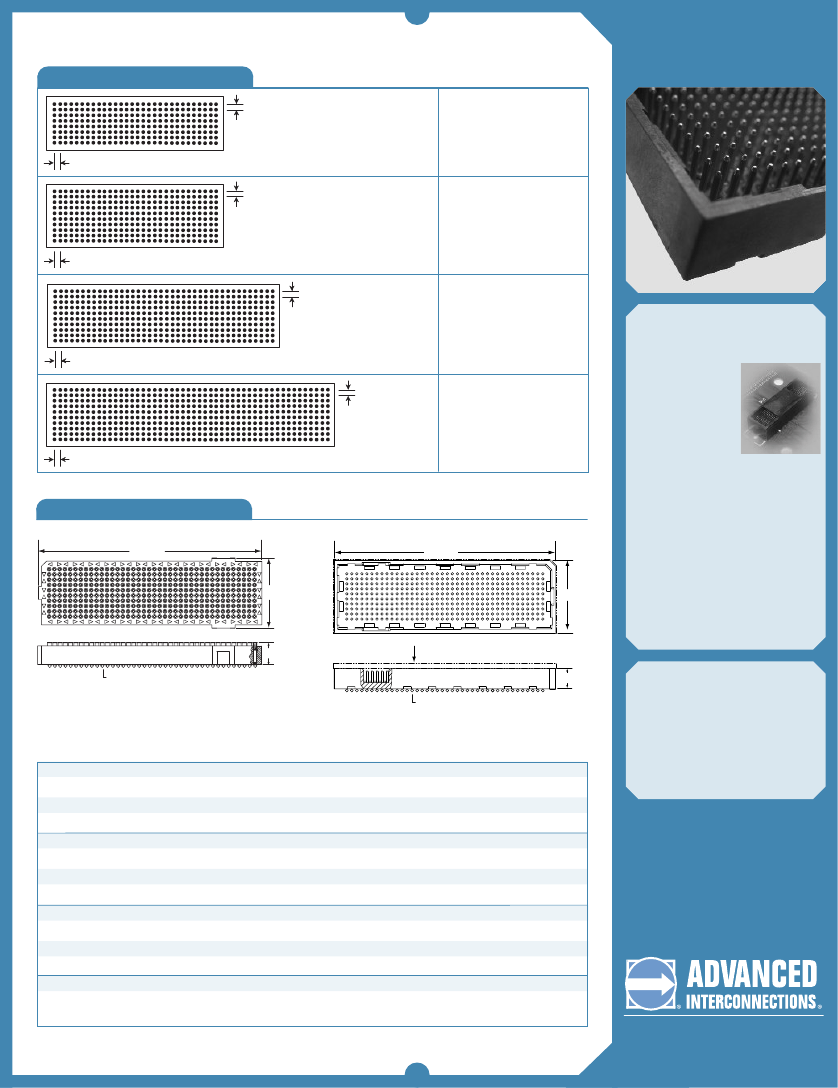

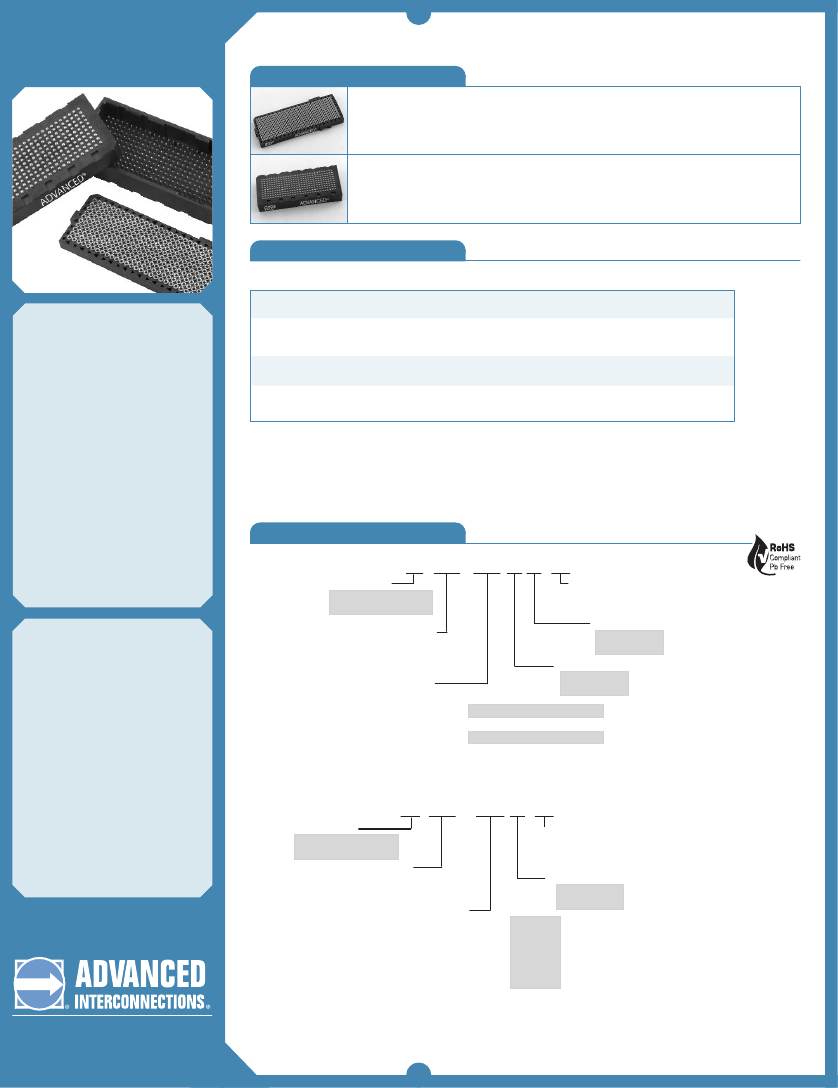

Board to Board

Connectors

Female

B2B High Density SMT Connectors

.050/(1.27mm) Pitch

Table of Models

Description:

Molded B2B

Connector (BB)

Material: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

Description:

Molded B2B

Connector (BA)

Material: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

Male

Performance

Mated Height

6.00mm

Differential Insertion Loss

-.20dB @ 1.70 GHz

-.50dB @ 3.30 GHz

-.15dB @ 1.30 GHz

-.50dB @ 2.50 GHz

-.20dB @ 1.70 GHz

-.51dB @ 3.40 GHz

-.60dB @ 2.20 GHz

-.20dB @ 1.40 GHz

Differential Return Loss

-10dB @ 3.30 GHz

-15dB @ 1.70 GHz

-10dB @ 2.50 GHz

-15dB @ 1.30 GHz

-10dB @ 3.40 GHz

-15dB @ 1.70 GHz

-10dB @ 2.20 GHz

-15dB @ 1.40 GHz

Features:

• Robust, shrouded design with

screw-machined terminals and

multi-finger contacts can withstand

the rigorous demands of blind

mating and mating/unmating

cycles.

• At 3 amps per pin, more contacts

can be assigned to data/signal

transfer (fewer pins needed to

handle power and ground).

• High density - over 400 contacts

per square inch.

• Industry standard footprints in four

mated heights.

• Precision molded with integral

polarization keying features.

8.00mm

12.70mm

19.05mm

Insertion Force (6.00mm, 300 position):

50g average (per pin)

Extraction Force (6.00mm, 300 position):

45g average (per pin)

Durability (mated cycles):

500 cycles (<10mΩ change in resistance)

Additional performance and test data

available online.

How To Order

Female

Body Type

RoHS Compliant Insulator:

BB XXX - XXX G G -TR

BB = Female

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper

(C17200) ASTM-B-194

Solder Ball:

Standard: 63Sn/37Pb

Lead-free: 95.5Sn/4.0Ag/0.5Cu

Plating:

G - Gold over Nickel

Gold per ASTM-B-488

Nickel per QQ-N-290

Number of Positions

240, 300, 400, 500* standard

(Consult factory for custom)

Packaging Options**

TR - Tape and Reel

(includes pick-up dot)

Contact Plating

RoHS Compliant:

G - Gold

Terminal Plating

RoHS Compliant:

SMT Terminal Type

G - Gold

For mated height of .236/(6.00):

Sn/Pb Solder Ball:

-783

Lead-free Solder Ball:

-794

For mated height of .315/(8.00), .500/(12.70), or .750/(19.05):

Sn/Pb Solder Ball:

-739

Lead-free Solder Ball:

-793

*500 pos. available in 6mm mated height only.

**If no packaging code is indicated, female connectors are supplied with pick-up dots

in standard trays.

Male

Body Type

RoHS Compliant Insulator:

BA XXX - XXX G -TR

BA = Male

Number of Positions

240, 300, 400, 500* standard

(Consult factory for custom)

SMT Terminal Type

Packaging Option

TR - Tape and Reel

(includes pick-up cap)

Terminal Plating

RoHS Compliant:

G - Gold

Connector

Sn/Pb

Lead-free

Mated Height Solder Ball Solder Ball

.236/(6.00)

-741

-795

.315/(8.00)

-742

-796

.500/(12.70)

-743

-797

.750/(19.05)

-748

-798

*500 pos. available in 6mm mated height only.

**If no packaging code is indicated, male connectors are supplied with pick-up caps

in standard trays.

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16A

inch/(mm)
