BZY91C39N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZY91C39N

BZY91C39N: DescriptionZener Diode, 39V V(Z), 5.13%, 100W, Silicon, Unidirectional, DO-5; CategoryDiscrete semiconductor diode; File Size115KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

BZY91C39N Overview

Zener Diode, 39V V(Z), 5.13%, 100W, Silicon, Unidirectional, DO-5

BZY91C39N Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-5
JESD-30 code	O-MUPM-D1
Number of components	1
Number of terminals	1
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
polarity	UNIDIRECTIONAL
Maximum power dissipation	100 W
Certification status	Not Qualified
Nominal reference voltage	39 V
surface mount	NO
technology	ZENER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum voltage tolerance	5.13%
Working test current	500 mA
Base Number Matches	1

Preview

Download Datasheet

View All

Zeners/Studs

BZY91 Series

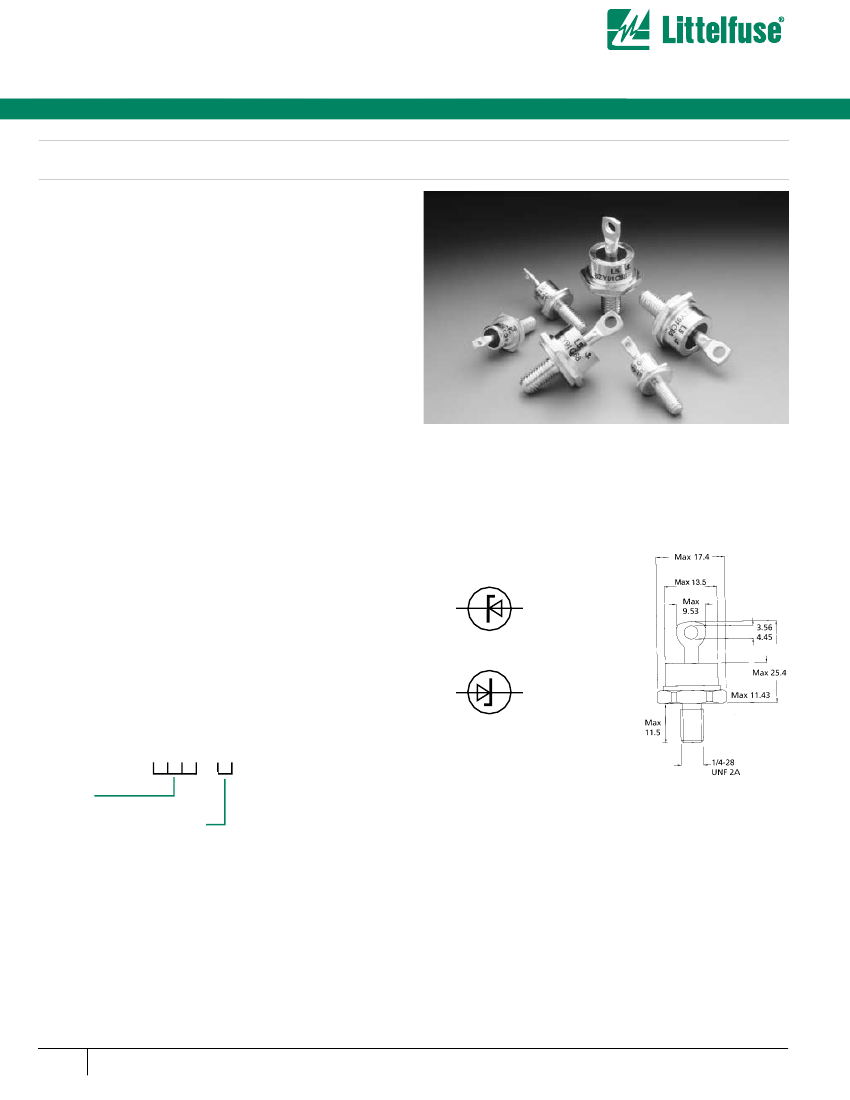

FEATURES

•

Voltage range 7.5 - 75 Volts

•

5000 Watt peak pulse power

•

100 Watt steady state @ 25°C

•

75 Watt steady state @ 65°C

•

Glass passivated junction

•

5000 Watt surge capability at 1 ms

•

Typically IR less than1 µA above 10V

•

Excellent clamping capability

•

Stud cathode & stud anode

•

Operating temperature -55°C to +175°C

•

100% tested

MECHANICAL CHARACTERISTICS

•

Case: Hermetically sealed DO5 outline

•

Finish: All external surfaces are corrosion resistant and

AVAILABLE IN THE

FOLLOWING CONFIGURATIONS

terminal solderable

•

Polarity: Indicated by direction of zener symbol

•

Weight: 14 grammes excluding mounting kit (approx)

•

Torque Setting 30inch/lb

ELECTRICAL DATA

•

Forward voltage Vf 1.5V max @ If

≤

10A 300µS square

wave pulse

•

Vz measured with pulse

≤

100µS and duty cycle

≤

0.001

•

Rz determined with DC plus 10% superimposed AC @ 1KHz

STUD CATHODE NORMAL

ORDERING INFORMATION

BZY91C

Voltage

N = Stud Cathode Normal

R = Stud Anode Reverse

STUD ANODE REVERSE

All dimensions in mm

322

w w w. l i t t e l f u s e . c o m
