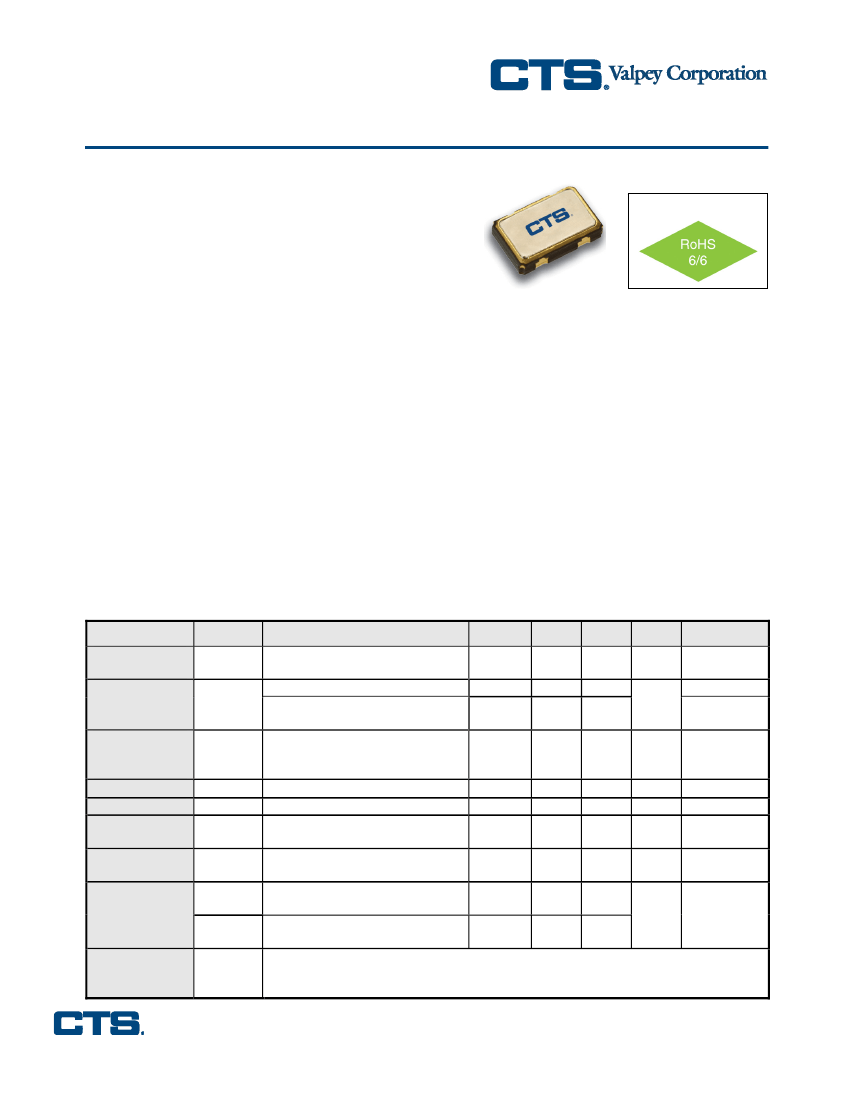

T5621 Series
T5721 Series
5x7 mm Surface Mount High Reliability
Tristate/Non-Tristate, 16kHz to 100MHz
Features
Leadless chip carrier package is hermetically
sealed for superior aging and field performance
Crystal angle controlled to ±1 minute for excellent
temperature stability
168 hour Class B burn-in and extensive
environmental testing for best performance in
rugged field environments
Start-up time <10 ms, typical
Tristate option available
Calculated MTBF is 3.8 x 10
6
hours at 125°C
RoHS Status
Application
Surface Mounted PCB projects requiring high
reliability HCMOS clock waveforms
Description:
These high reliability oscillators provide HCMOS clock waveforms for applications subjected to the most
stringent environmental conditions. They are mechanically robust and weigh less than 0.2 grams. This
5x7mm SMD package has a hermetic seal, thus ensuring the integrity of the part. Each oscillator is burned-in
at 125°C for 168 hours, temperature cycled and centrifuged then fully tested in accordance with Table 1.
Reliability tests are performed per Table 2.
Electrical Specifications
Parameter
Frequency
Range
Frequency
Stability
Operating
Temperature
Range
Input Voltage
Input Current
Waveform
Symmetry
Rise / Fall
Time
Output Level
Input
Requirement
for Pin.1
Symbol
F
∆F/F
T
Vcc
Icc
Measured at 50% V
DD
Tr/Tf
“Zero”
Level
“One”
Level
<10MHz
≥10MHz
Sinking 16mA
Sourcing 10mA
4.5
Vs. Operating Temperature
Aging 1
st
Year
After 1
st
Year
Condition
Min
0.0016
25
Typ
Max
100
75
3
1
Unit
MHz
Note
See Chart
ppm
C
V
mA
%
ns
V
0.8 to 2.4
volts
See Chart
-55
4.5
5.0
20
40/60
5
2
+125
5.5
35
60/40
15
5
0.5
Output enable -
pin 1 may float or 2.8V min(sourcing 400 uA)
Output disable (Tristate) pin 1 requires 0.4V max (sinking 400 uA)
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevD0812
Specifications are subject to change without notice
1
T5621 Series
T5721 Series
5x7 mm Surface Mount High Reliability
Tristate/Non-Tristate, 16kHz to 100MHz
Environmental and Mechanical Conditions
Parameter
Shock
Vibration
Humidity
Leak
Case
Pads
Resistance to Solvents
Marking
Conditions
MIL-STD 883, Method 2002, Test Condition B (1500 peak g, 0.5 ms
duration, ½ sine wave, 5 shocks in 6 planes)
MIL-STD 883, Method 2007, Test Condition A (20-2000Hz of 0.06” d.a.
or 20 Gs, whichever is less)
Resistant to 85° R.H. at 85°C
MIL-STD-883, Method 1014, Condition A and Condition C
Hermetically sealed ceramic LCC
60 microinch of gold over nickel
Per MIL-STD-202, Method 215
Epoxy ink or laser engraved
FIXED OUTPUT
Model
T5621
T5622
T5623
T5624
TRISTATE
Model
T5721
T5722
T5723
T5724
Operating Temperature
-55C to +85C
-55C to +85C
-55C to +125C
-55C to +125C
Frequency Stability
±25 ppm
±50 ppm
±75 ppm
±50 ppm
Table 1
Each unit undergoes screening for product level B
class 2 oscillators by MIL-PRF-55310
Internal Visual
Stabilization Bake
Temperature Cycling
Constant Acceleration
Fine Leak
Gross Leak
Burn-in
MIL-STD-883 Method 1008, COND. B
MIL-STD-883 Method 1010, COND. B
MIL-STD-883 Method 2001, COND. A
MIL-STD-883 Method 1014, COND. A
MIL-STD-883 Method 1014, COND. C
MIL-STD-883 Method 1015, COND. B
(125°C for 160 hours with bias)
Thermal Characteristics
Thermal Resistance
From Junction to Case, RØjc
16 °C/Watt
Surface Mount Application
These packages are designed for reflow soldering in
accordance with recommended profiles. For hand-
soldering, the temperature of the iron should not
exceed 400°C for three seconds.
Electrical test at 25°C
Current
Frequency at max V
DD
Rise Time
Frequency at min V
DD
Fall Time
“Zero” logic level
Duty Cycle
“One” logic level
Tristate
Frequency at 25°C and frequency verification at temperature
extremes
Serialized test data on each unit available upon request for additional cost.
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevD0812
Specifications are subject to change without notice
2
T5621 Series
T5721 Series
5x7 mm Surface Mount High Reliability
Tristate/Non-Tristate, 16kHz to 100MHz

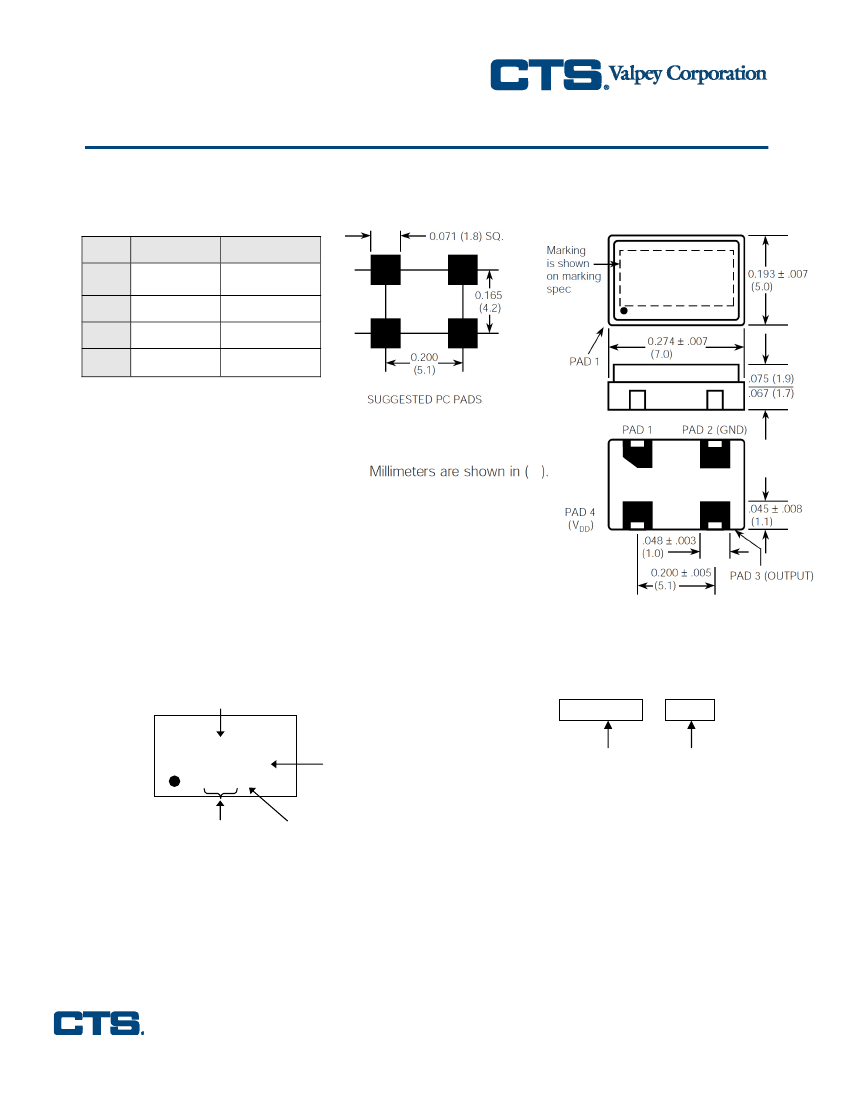

Pin Assignments
Pin #
Pin 1
Pin 2
Pin 3
Pin 4
T5621-5624
Not
Connected
Ground
Output
+5.0V, V
DD
T5721-T5724
Tristate
Ground
Output
+5.0V, V
DD
Package
Marking Specification
Model Number
How to Order
T
5622
5622
is model type
–
40M
40M Frequency
in MHz
T5622
40.000M
YWWx
Date Code
Manufacturer’s Code
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevD0812
Specifications are subject to change without notice
3
T5621 Series
T5721 Series
5x7 mm Surface Mount High Reliability
Tristate/Non-Tristate, 16kHz to 100MHz

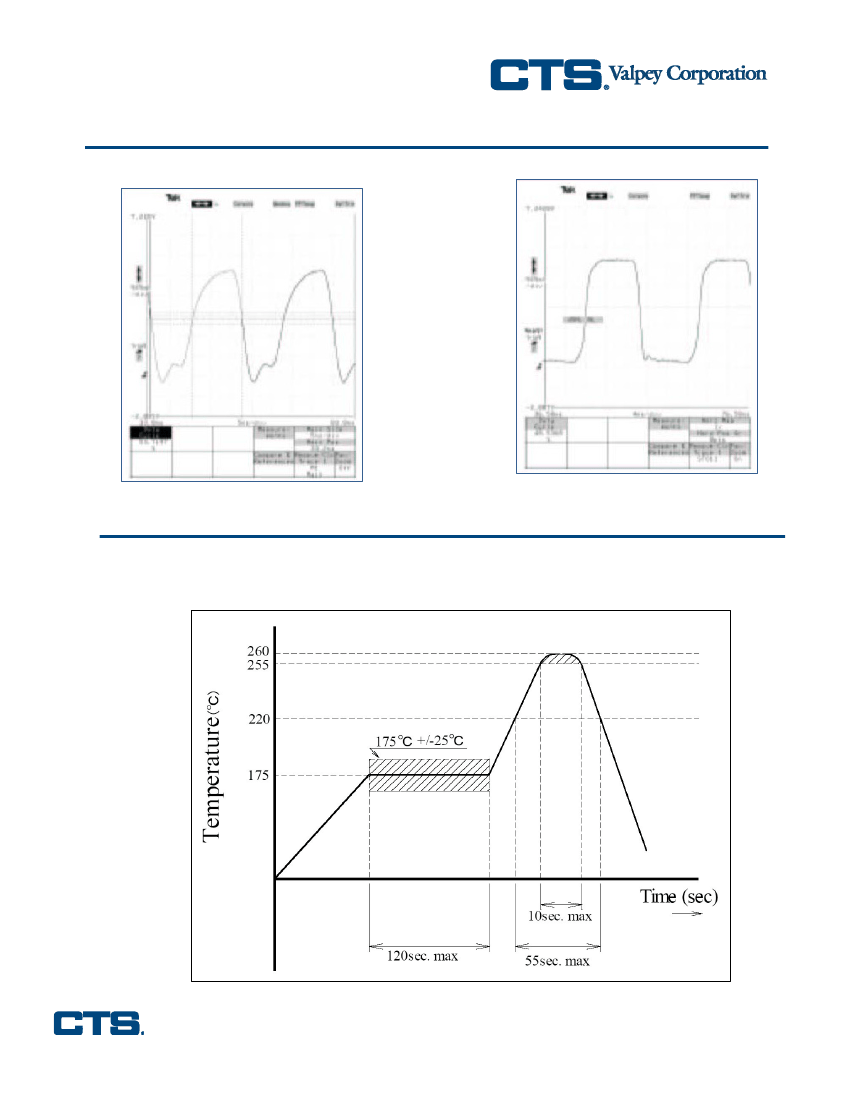

Fig.1 T5322-20M with 25pf load
Fig.2 T5322-20M without load
Recommended Reflow Soldering Profile
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevD0812
Specifications are subject to change without notice
4
T5621 Series
T5721 Series
5x7 mm Surface Mount High Reliability
Tristate/Non-Tristate, 16kHz to 100MHz
TABLE 2
Reliability Test Procedures and Conditions for Quartz Crystal Oscillators
1. Group A
Electrical Characteristics at 25°C
Frequency at nominal supply voltage and endpoints
Input current
Symmetry (Duty Cycle)
Zero/One levels
Rise/Fall times
Frequency (verify frequency at the temperature extremes)
Physical Dimensions
Length/width
Height
Package finish (Corrosion, discoloration, etc.)
Marking placement/legibility
2. Group B
1000 hrs at or above 125°C, nominal voltage, proper load
(sample size by MIL -PRF-55310 table 6, max. aging within 15
years requirement without catastrophic failures)
3. Group C- All units have passed Group A testing
A. Subgroup 1: 8 pcs.
Standard
MIL-STD-883
Condition
Method 2002
COND.B
Method 2007
COND. A
Description
Mechanical Shock
1500 g’s, 0.5ms
5 drops, 6 axis
Vibration, var.
freq. 20 g’s,
0.06” disp., 20-
20, 000-20 Hz
Solderability
End Point
Measurement
Frequency
Output waveform
Frequency
Output waveform
B.
Standard
MIL-STD-883
Subgroup 2: 4 pcs (One-half of Subgroup 1)
Condition
Method 1011
COND. B
Description
Thermal Shock
Liq. To liq.
15 cycles
Altitude, 3.44
inch Hg. 12 hrs
Moisture resist.
with supply
voltage applied
25°C to 65°C,
90 to 100% RH,
10 cycles
End point
Measurement
Frequency
Output waveform
MIL-STD-202
MIL-STD-883
Method 105
COND. B
Method 1004
Frequency
Output waveform
Frequency
Output waveform
MIL-STD-202
Method 210
COND. A
Resistance to
Frequency
Solder Heat
Output waveform
Immersion @350ºC
3.5 sec
C.
Standard
Subgroups 3: 4 pcs. (One half of Subgroup 1)
Condition
Storage Temp.
No. Oper
Method 1009
COND. A
Method 1014
COND. A
Method 1014
COND. C
Description
24 hrs. @ -55°C
24 hrs. @ 125°C
Salt Atmosphere
24 hrs. @ 35°C
0.5-3.0% Solution
Fine Leak
Gross Leak
End point
Measurement
Frequency
Output waveform
Frequency
Output waveform
Visual
Qs <5 X10
-8
MIL-STD-883
MIL-STD-883
MIL-STD-883
Visual 95%
Coverage
MIL-STD-883
MIL-STD-883
Method 2003
Visual in 125°C
Detector fluid
Test data is available for additional cost.
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevD0812
Specifications are subject to change without notice
5
