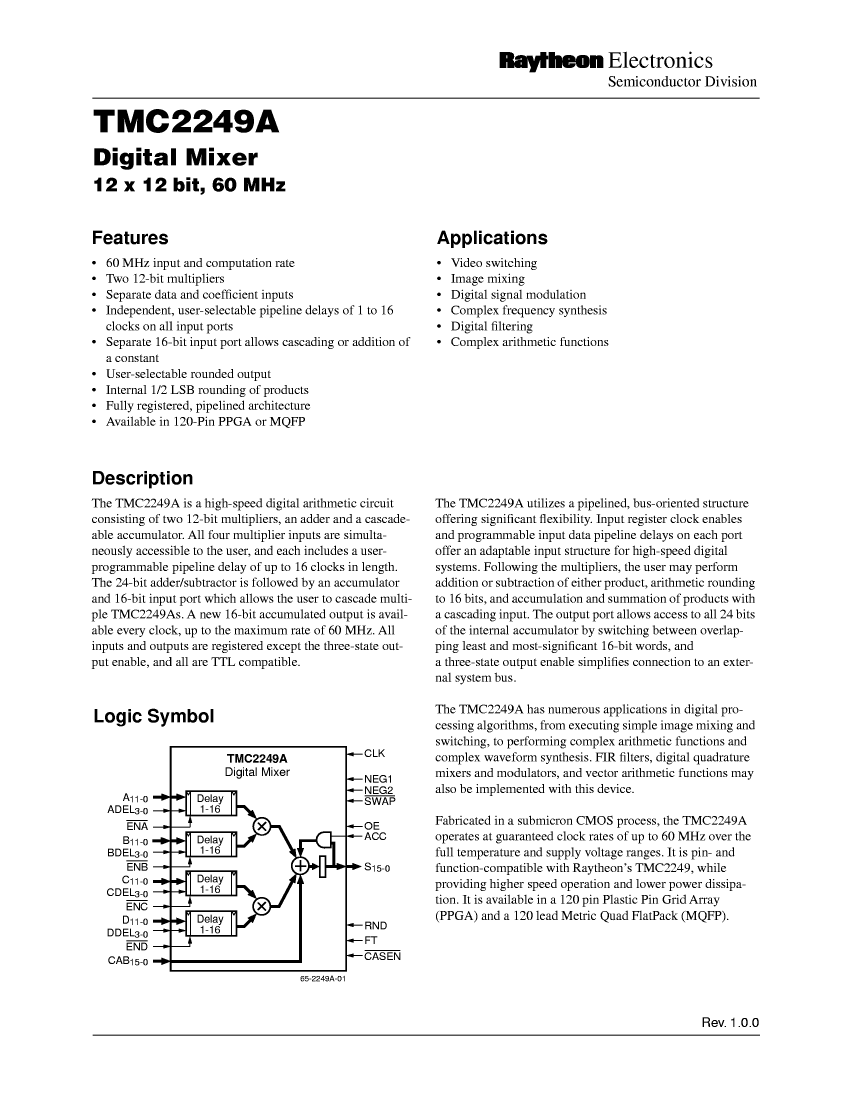

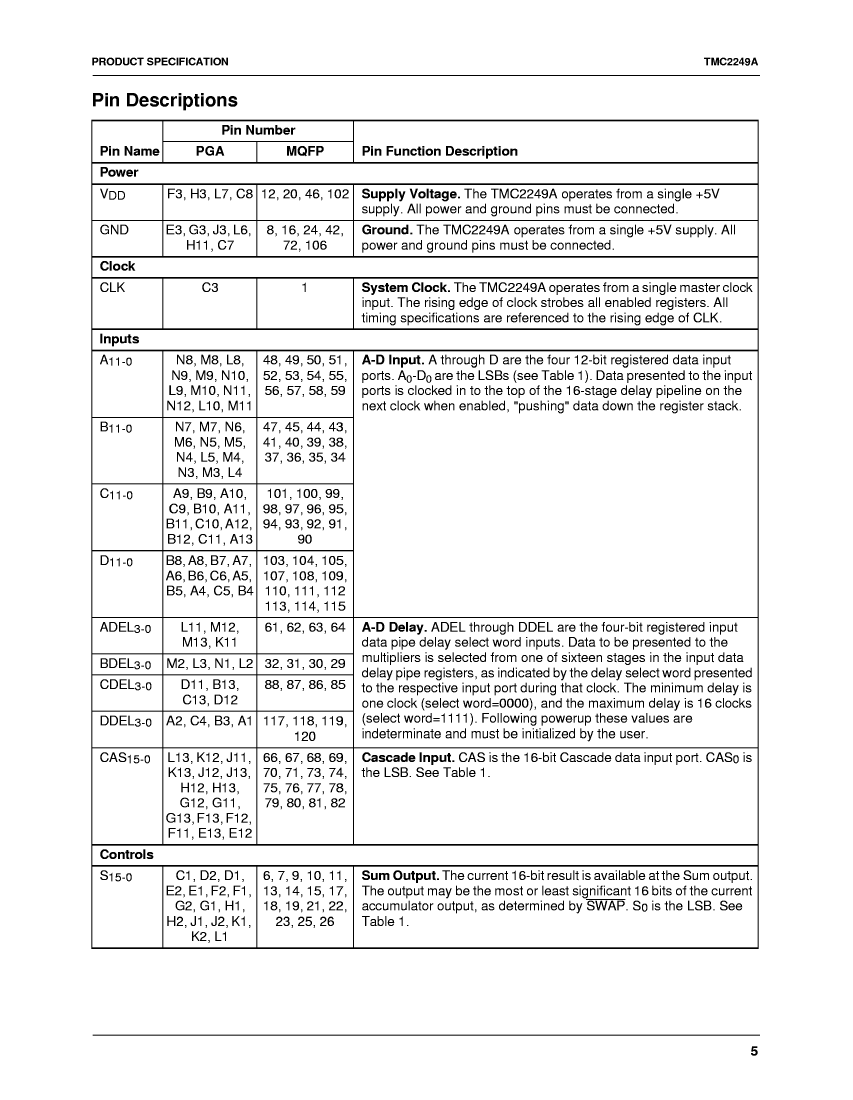

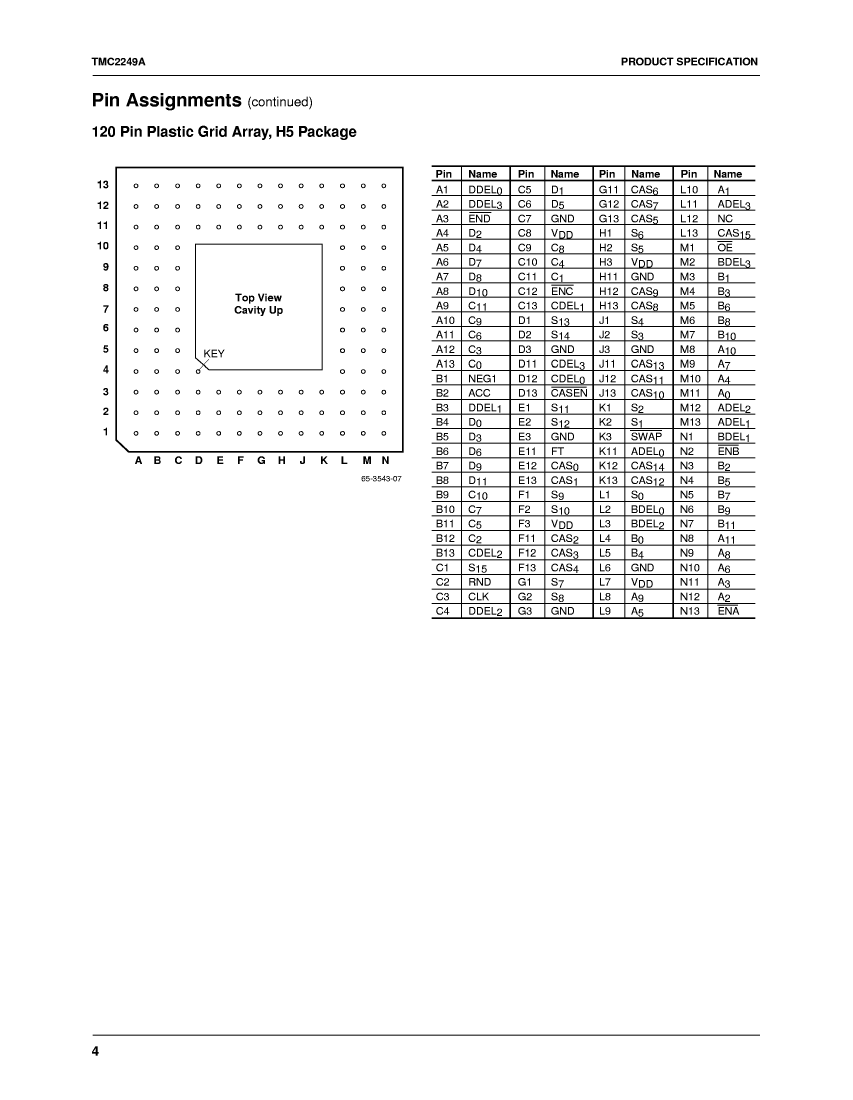

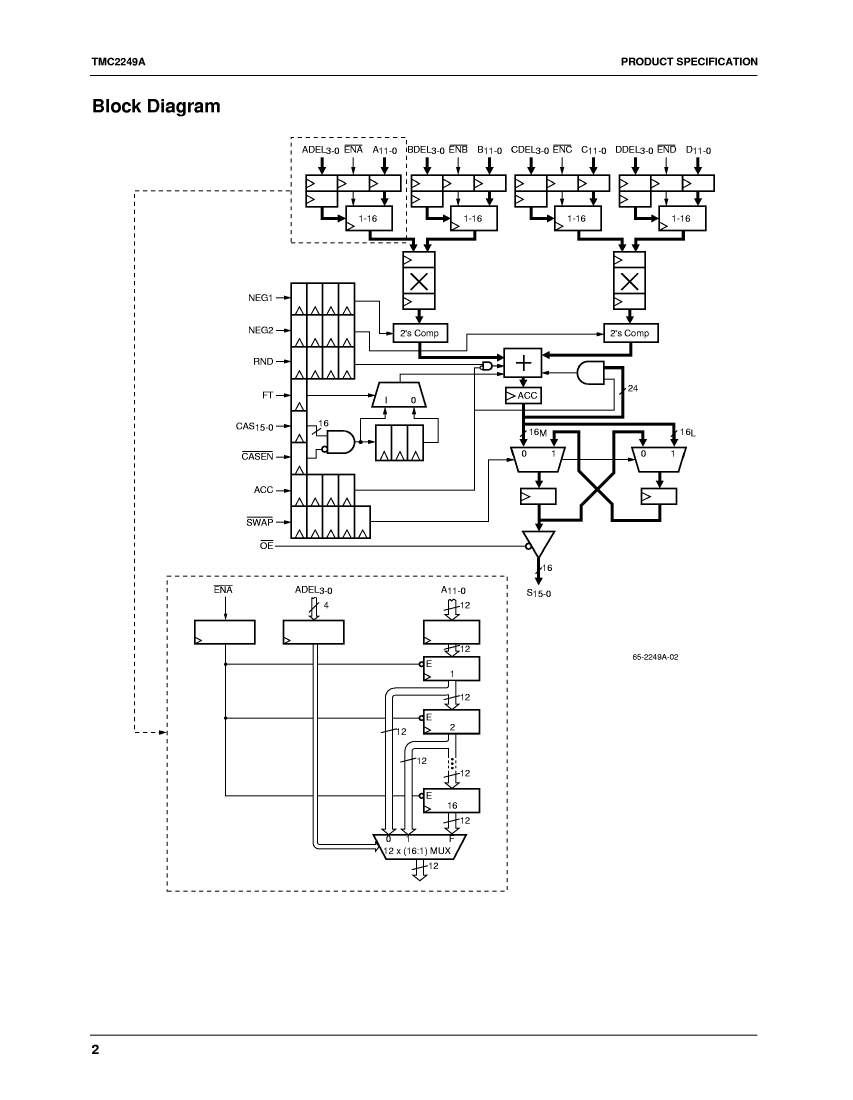

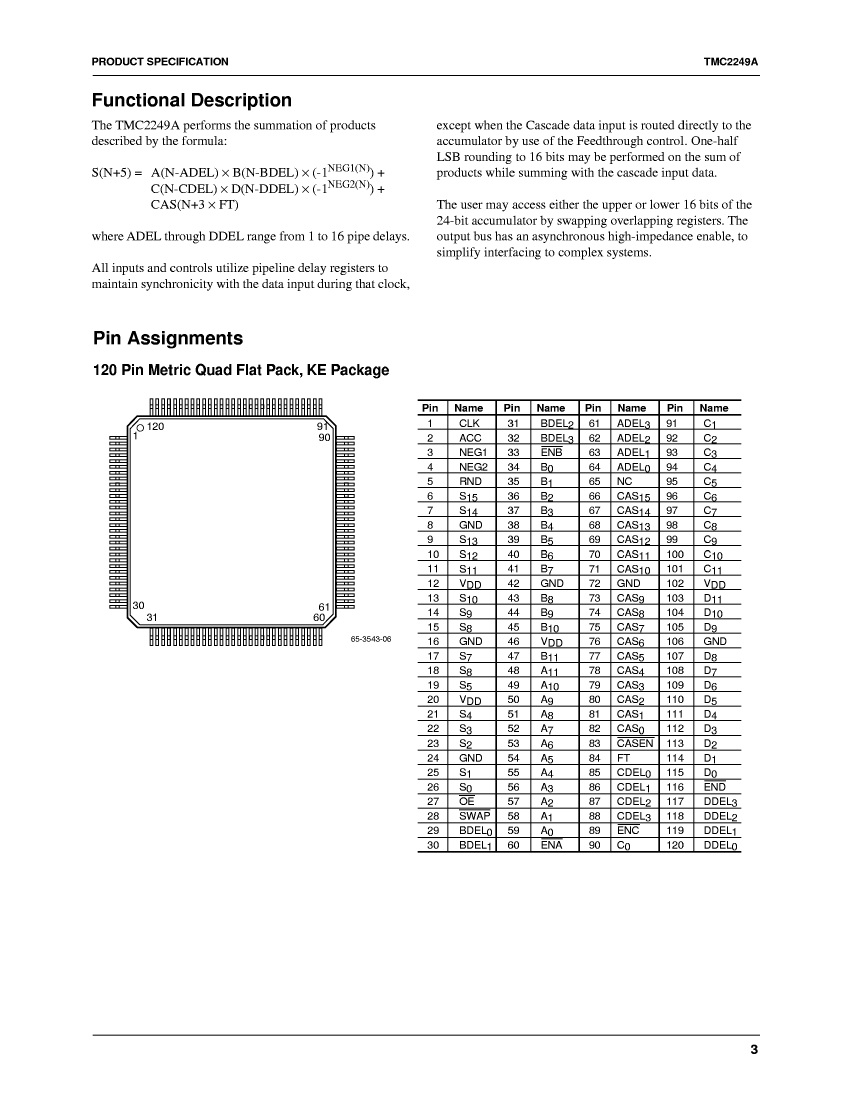

Mixer, 12-Bit, CMOS, PQFP120,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | unknown |
| boundary scan | NO |
| maximum clock frequency | 60 MHz |
| External data bus width | 12 |
| JESD-30 code | S-PQFP-G120 |
| JESD-609 code | e0 |
| low power mode | NO |
| Number of terminals | 120 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output data bus width | 16 |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Encapsulate equivalent code | QFP120,1.2SQ,32 |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum slew rate | 145 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.8 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, MIXER |
| Base Number Matches | 1 |
| TMC2249AKEC2 | TMC2249AKEC | TMC2249AKEC1 | TMC2249AH5C | TMC2249AH5C2 | TMC2249AH5C1 | |
|---|---|---|---|---|---|---|
| Description | Mixer, 12-Bit, CMOS, PQFP120, | Mixer, 12-Bit, CMOS, PQFP120, | Mixer, 12-Bit, CMOS, PQFP120, | Mixer, 12-Bit, CMOS, PPGA121, | Mixer, 12-Bit, CMOS, PPGA121, | Mixer, 12-Bit, CMOS, PPGA121, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| boundary scan | NO | NO | NO | NO | NO | NO |
| maximum clock frequency | 60 MHz | 25 MHz | 40 MHz | 25 MHz | 60 MHz | 40 MHz |
| External data bus width | 12 | 12 | 12 | 12 | 12 | 12 |
| JESD-30 code | S-PQFP-G120 | S-PQFP-G120 | S-PQFP-G120 | S-PPGA-P121 | S-PPGA-P121 | S-PPGA-P121 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| low power mode | NO | NO | NO | NO | NO | NO |
| Number of terminals | 120 | 120 | 120 | 121 | 121 | 121 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output data bus width | 16 | 16 | 16 | 16 | 16 | 16 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QFP | QFP | QFP | PGA | PGA | PGA |
| Encapsulate equivalent code | QFP120,1.2SQ,32 | QFP120,1.2SQ,32 | QFP120,1.2SQ,32 | PGA120,13X13 | PGA120,13X13 | PGA120,13X13 |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | FLATPACK | FLATPACK | GRID ARRAY | GRID ARRAY | GRID ARRAY |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 145 mA | 75 mA | 105 mA | 75 mA | 145 mA | 105 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal pitch | 0.8 mm | 0.8 mm | 0.8 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | QUAD | PERPENDICULAR | PERPENDICULAR | PERPENDICULAR |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, MIXER | DSP PERIPHERAL, MIXER | DSP PERIPHERAL, MIXER | DSP PERIPHERAL, MIXER | DSP PERIPHERAL, MIXER | DSP PERIPHERAL, MIXER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
