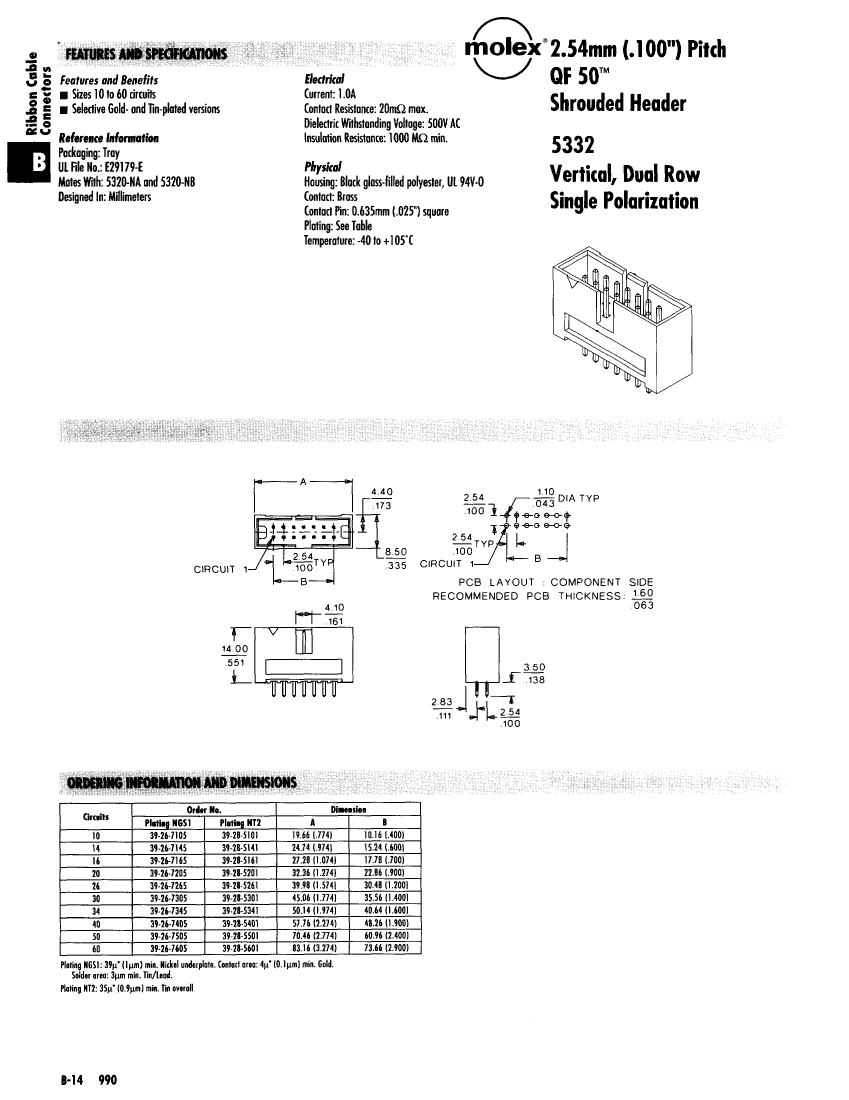

39-28-5501 |
39-28-5601 |
39-28-5401 |
| Description |
Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle |
Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle |
Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle |
| Reach Compliance Code |
unknown |
unknown |
unknown |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
| Other features |
QF50, POLARIZATION AVAILABLE, SHROUDED |
QF50, POLARIZED, SHROUDED |
QF50, POLARIZED, SHROUDED |
| body width |
0.335 inch |
0.335 inch |
0.335 inch |
| subject depth |
0.551 inch |
0.551 inch |
0.551 inch |
| body length |
2.774 inch |
3.274 inch |
2.274 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
SN ON NI |
SN ON NI |
SN ON NI |
| Contact completed and terminated |
GOLD |
GOLD |
GOLD |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
BRASS |
BRASS |
BRASS |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
20 mΩ |
20 mΩ |
20 mΩ |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Dielectric withstand voltage |
500VAC V |
500VAC V |
500VAC V |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| maximum insertion force |
3.058 N |
3.058 N |
3.058 N |
| Insulation resistance |
1000000000 Ω |
1000000000 Ω |
1000000000 Ω |
| Insulator color |
BLACK |
BLACK |
BLACK |
| insulator material |
GLASS FILLED POLYESTER |
GLASS FILLED POLYESTER |
GLASS FILLED POLYESTER |
| MIL compliance |
NO |
NO |
NO |
| Manufacturer's serial number |
5332 |
5332 |
5332 |
| Plug contact pitch |
0.1 inch |
0.1 inch |
0.1 inch |
| Match contact row spacing |
0.1 inch |
0.1 inch |
0.1 inch |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
| PCB row number |
2 |
2 |
2 |
| Number of rows loaded |
2 |
2 |
2 |
| Maximum operating temperature |
105 °C |
105 °C |
105 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |
-40 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
2.54 mm |
2.54 mm |
2.54 mm |
| Plating thickness |
35u inch |
35u inch |
35u inch |
| polarization key |
CTR AND 1 DETENT |
CTR AND 1 DETENT |
CTR AND 1 DETENT |
| Rated current (signal) |
1 A |
1 A |
1 A |
| Guideline |
UL |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.138 inch |
0.138 inch |
0.138 inch |
| Terminal pitch |
2.54 mm |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
50 |
60 |
40 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.1946 N |
.1946 N |
.1946 N |
| Base Number Matches |
1 |
1 |
1 |
