HD63A21P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> HD63A21P

HD63A21P: DescriptionParallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size838KB，25 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD63A21P Overview

Parallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40

HD63A21P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	1.5 MHz
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.8 mm
Number of I/O lines	16
Number of ports	2
Number of terminals	40
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1

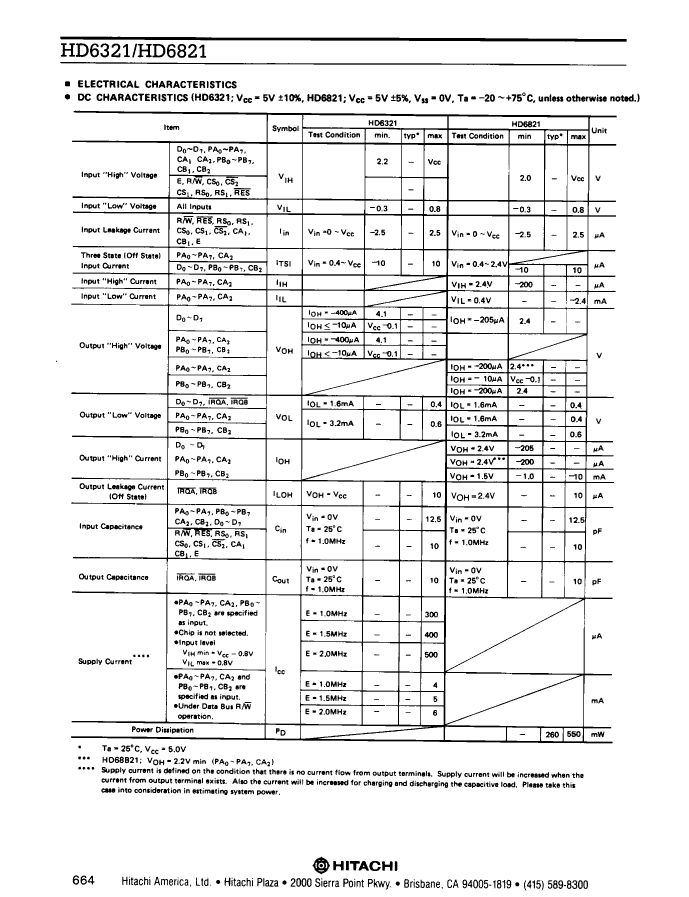

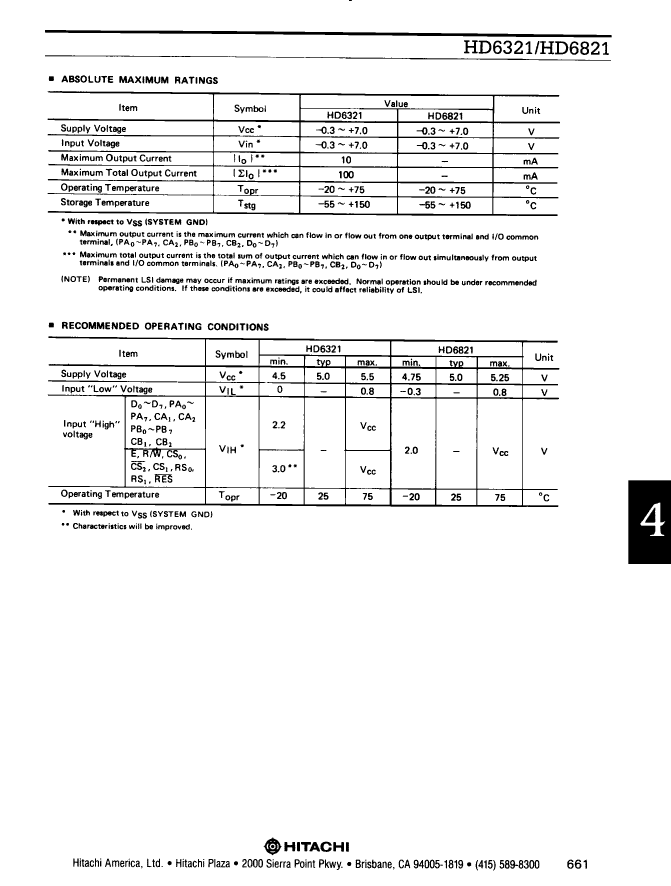

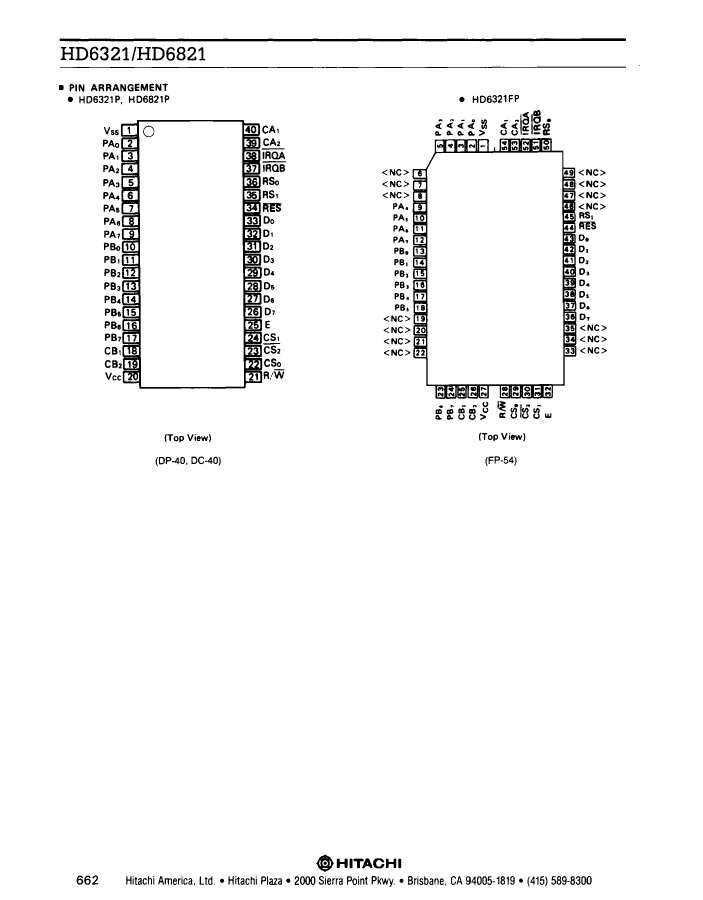

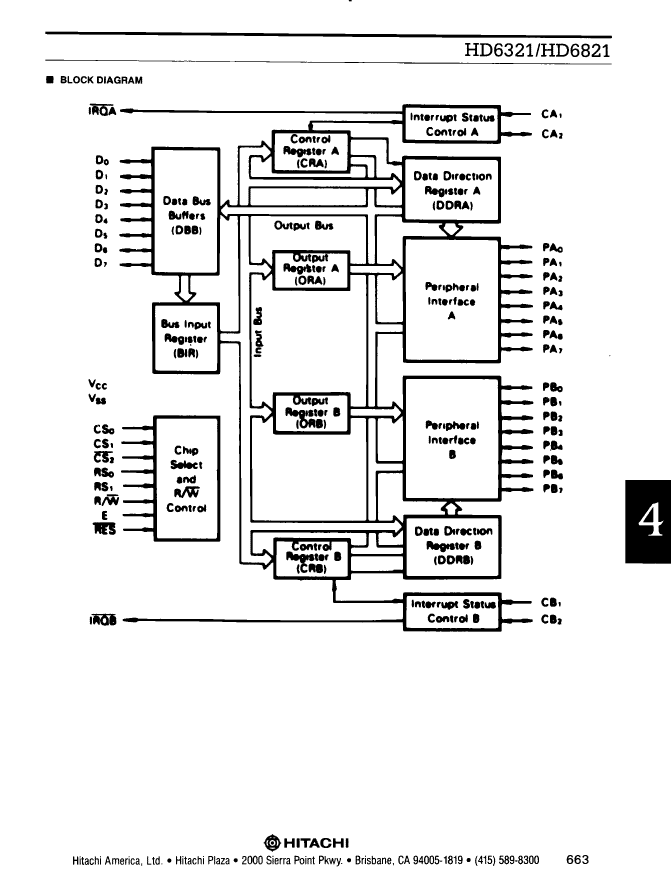

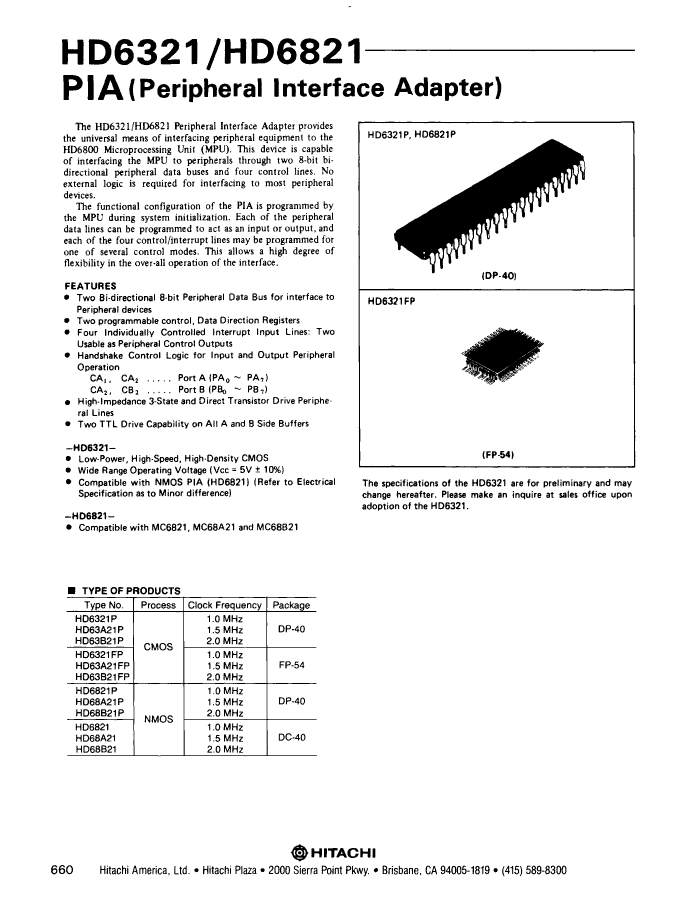

Preview

Download Datasheet

View All

HD63A21P Related Products

	HD63A21P	HD6321P	HD6821P	HD63A21FP	HD63B21FP	HD63B21P	HD6321FP
Description	Parallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40	Parallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40	Parallel I/O Port, 16 I/O, NMOS, PDIP40, PLASTIC, DIP-40	Parallel I/O Port, 16 I/O, CMOS, PQFP54, PLASTIC, FP-54	Parallel I/O Port, 16 I/O, CMOS, PQFP54, PLASTIC, FP-54	Parallel I/O Port, 16 I/O, CMOS, PDIP40, PLASTIC, DIP-40	Parallel I/O Port, 16 I/O, CMOS, PQFP54, PLASTIC, FP-54
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	QFP	QFP	DIP	QFP
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, FP-54	PLASTIC, FP-54	DIP, DIP40,.6	PLASTIC, FP-54
Contacts	40	40	40	54	54	40	54
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	1.5 MHz	1 MHz	1 MHz	1.5 MHz	2 MHz	2 MHz	1 MHz
External data bus width	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PQFP-G54	R-PQFP-G54	R-PDIP-T40	R-PQFP-G54
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	52.8 mm	52.8 mm	52.8 mm	20 mm	20 mm	52.8 mm	20 mm
Number of I/O lines	16	16	16	16	16	16	16
Number of ports	2	2	2	2	2	2	2
Number of terminals	40	40	40	54	54	40	54
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	QFP	QFP	DIP	QFP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	QFP54,.77X1.0,40	QFP54,.77X1.0,40	DIP40,.6	QFP54,.77X1.0,40
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	2.9 mm	2.9 mm	5.08 mm	2.9 mm
Maximum slew rate	5 mA	4 mA	4 mA	5 mA	6 mA	6 mA	4 mA
Maximum supply voltage	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES	NO	YES
technology	CMOS	CMOS	NMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1 mm	1 mm	2.54 mm	1 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	14 mm	14 mm	15.24 mm	14 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1	1	1	1	-	-	-
Maker	-	-	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
