3930-2041: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3930-2041 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking

3930-2041 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.317 inch
subject depth	0.63 inch
body length	0.669 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3930
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	4
Evacuation force-minimum value	1.946 N
Base Number Matches	1

Preview

Download Datasheet

View All

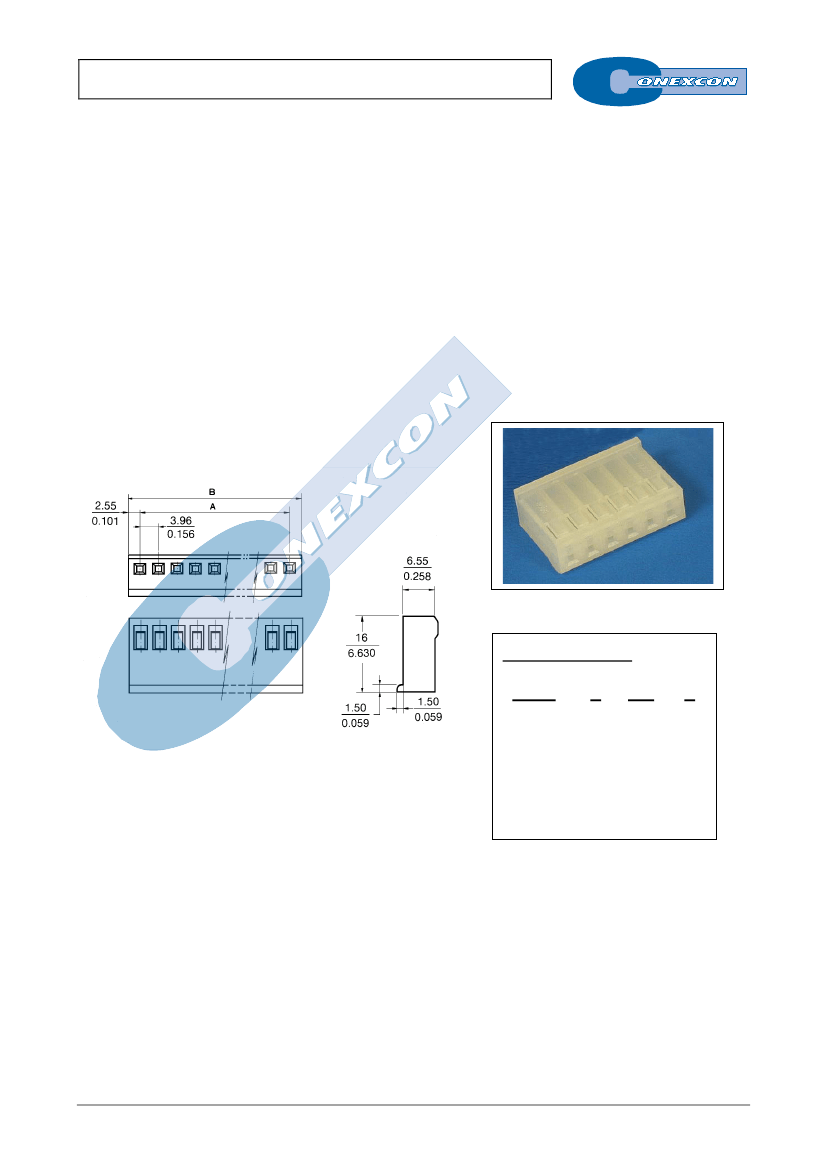

SINGLE ROW CRIMP CONNECTOR HOUSING

3930 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2, through 15 circuits



Mates with 3.96 mm pitch 3963, 3966 and 3968 headers

and 1,14 mm square/round pin headers 3917, 3918,

3919, 3920, 3986, 3987 and 3988 Series



Polarised with locking ramp



Use crimp terminal 3933 and 3934

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-0



Operating temperature: -40ºC to +85ºC



RoHS compliant

Dimension Information



Contact retention force to the housing: > 3.00 Kgf

Insertion force to header: < 2.00 Kgf/pin

Withdrawal force from header: < 0.20 Kgf/pin

Durability: 25 cycles

Ordering Information:

3930 -

XX-

1. Connector Series

3. (XX) Number of circuits



Available in 2 through 15 circuits

Dimensions:

(In mm.)

= 3.96 x (XX*-1)

= 3.96 x (XX)+1.14

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE
