74ALVT162731DG-T: DescriptionIC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver; Categorylogic logic; File Size568KB，17 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74ALVT162731DG-T Overview

IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver

74ALVT162731DG-T Parametric

Parameter Name	Attribute value
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
Other features	CAN ALSO OPERATE IN 3.3V SUPPLY
series	ALVT
JESD-30 code	R-PDSO-G56
length	14 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	7
Number of functions	1
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	7.3 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm
Base Number Matches	1

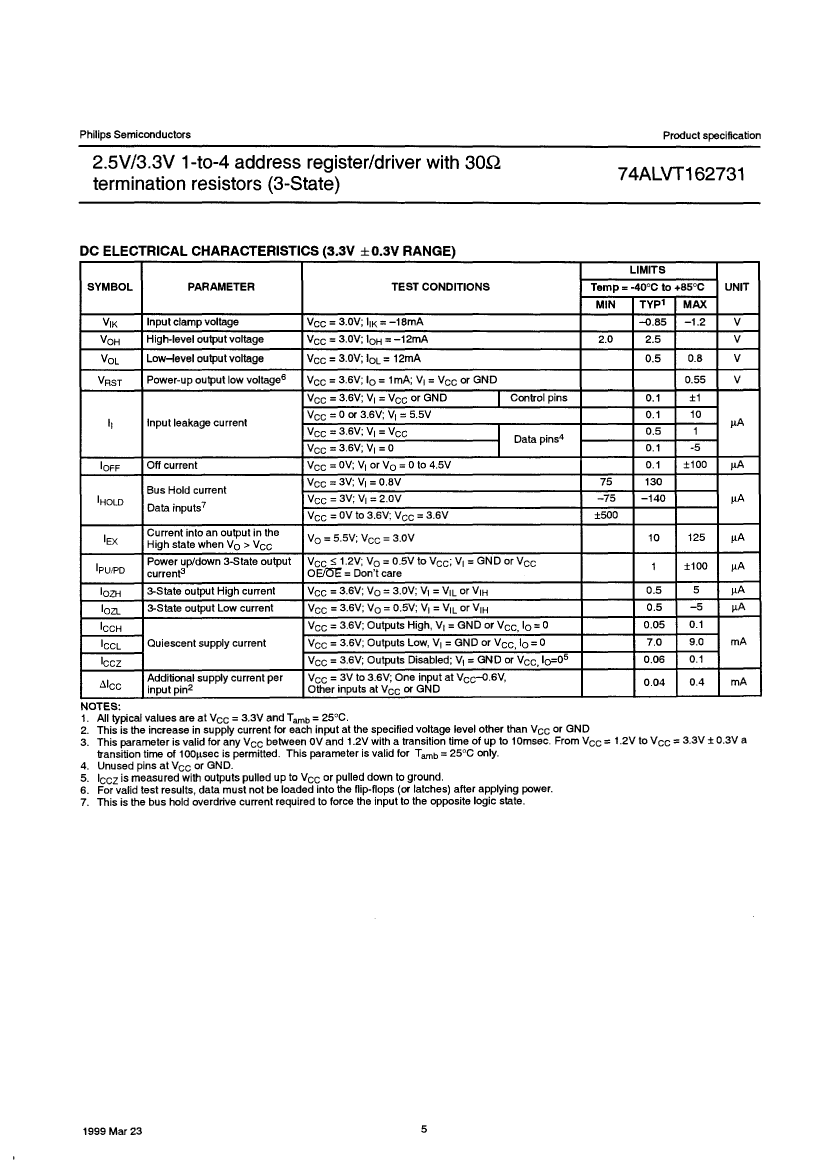

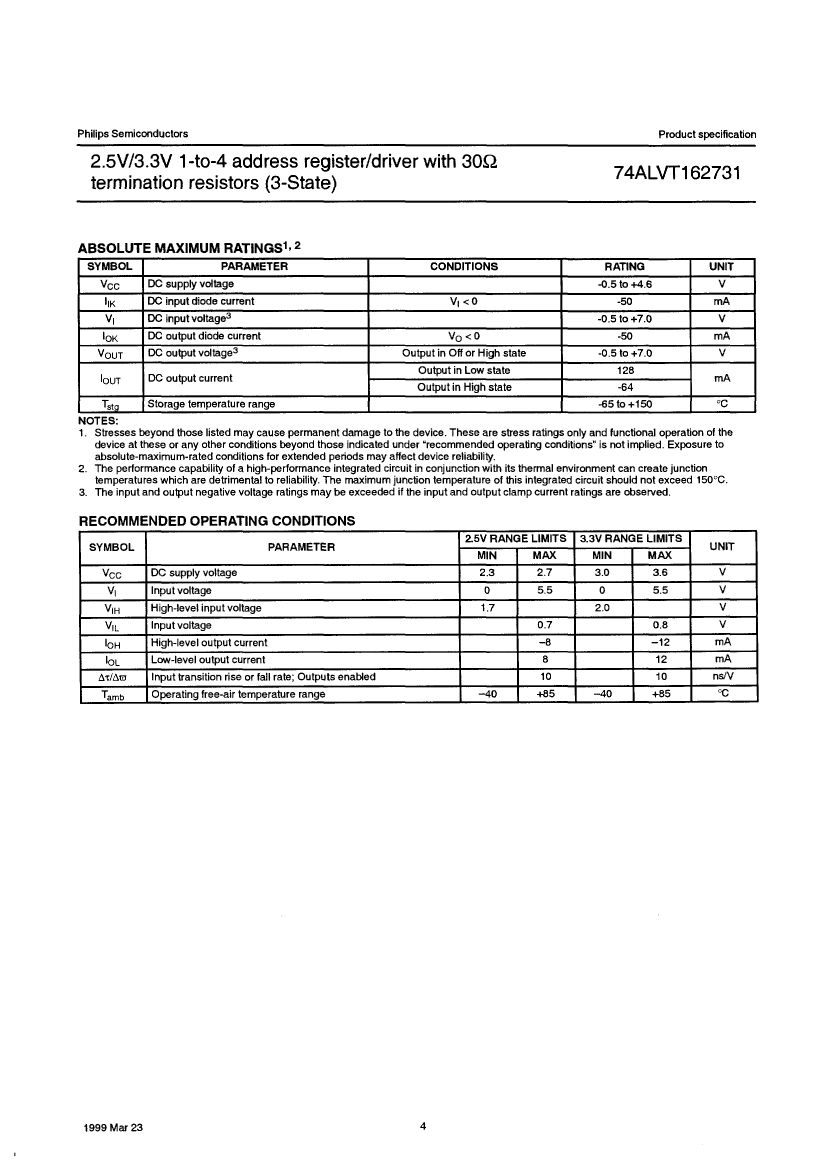

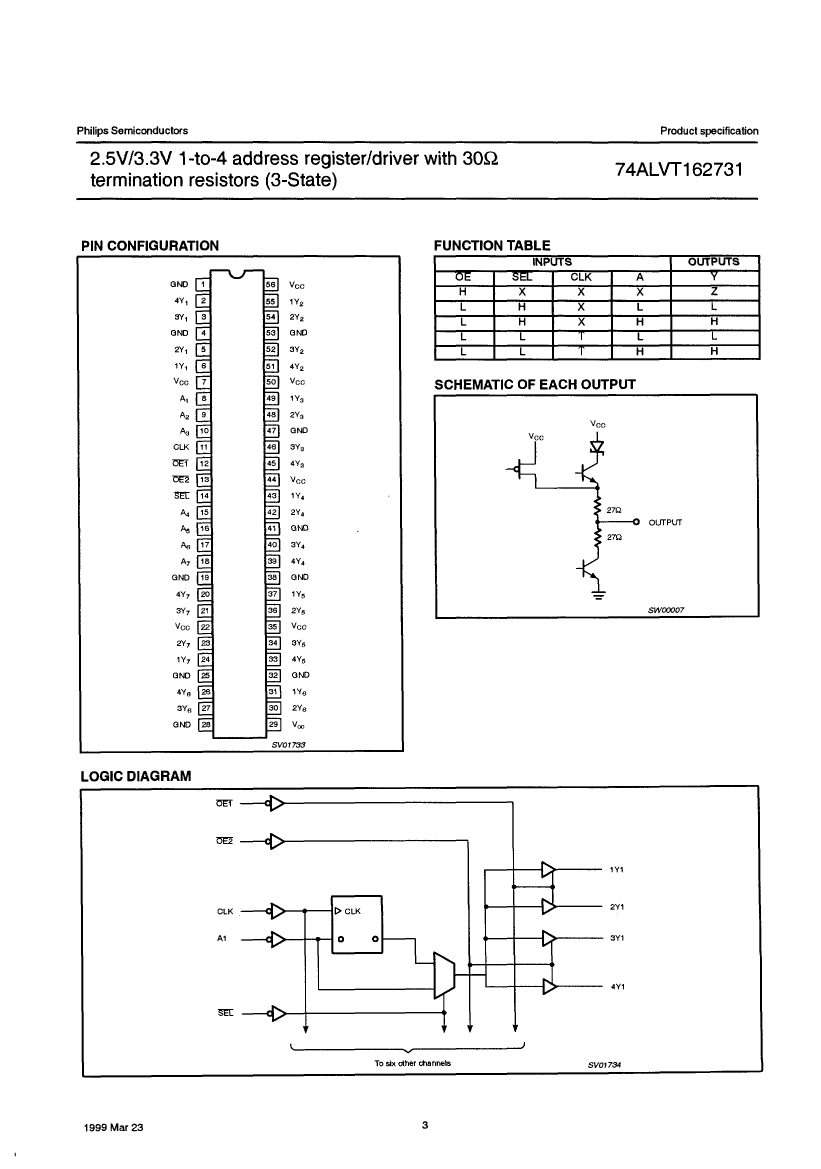

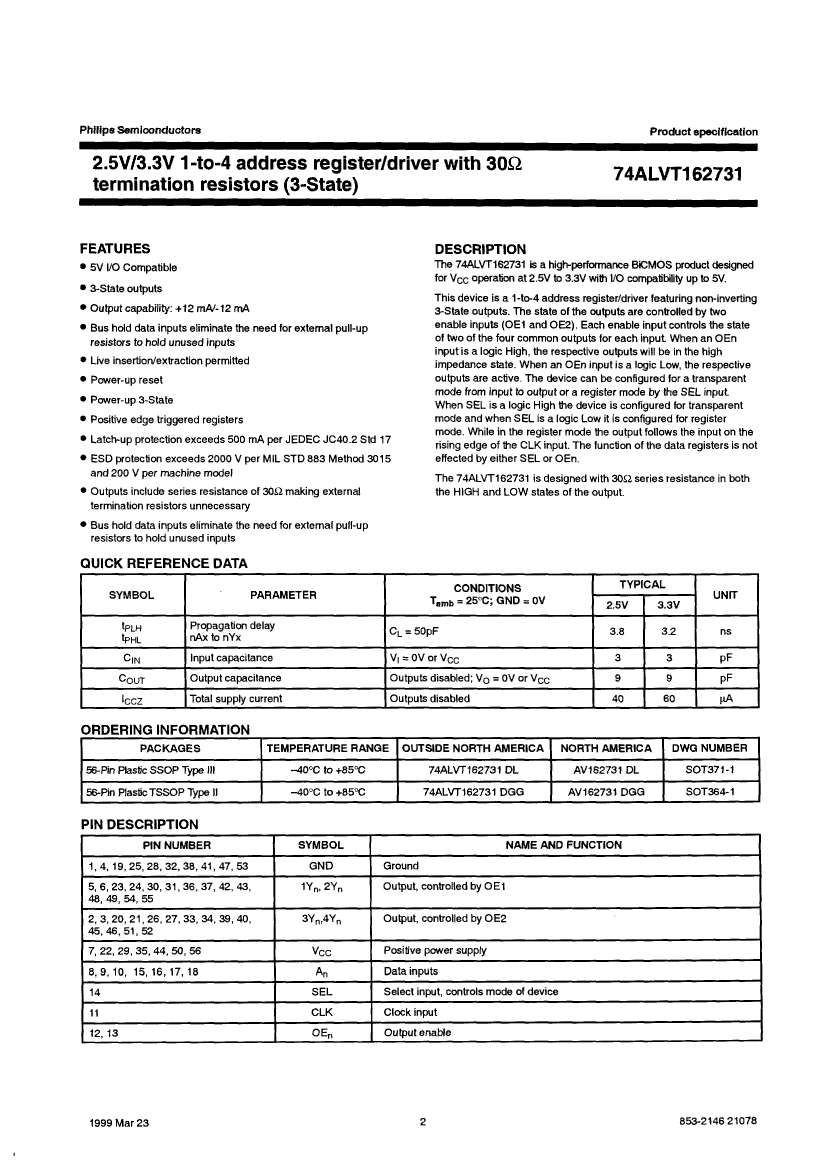

Preview

Download Datasheet

View All

74ALVT162731DG-T Related Products

	74ALVT162731DG-T	935262441118	935262441112	74ALVT162731DG	935262442112	935262442118
Description	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, SSOP56, Bus Driver/Transceiver	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, SSOP56, Bus Driver/Transceiver	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver	IC ALVT SERIES, 7 1-BIT DRIVER, TRUE OUTPUT, PDSO56, PLASTIC, TSSOP-56, Bus Driver/Transceiver
Parts packaging code	TSSOP	SSOP	SSOP	TSSOP	TSSOP	TSSOP
package instruction	TSSOP,	SSOP,	SSOP,	TSSOP,	TSSOP,	TSSOP,
Contacts	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY	CAN ALSO OPERATE IN 3.3V SUPPLY
series	ALVT	ALVT	ALVT	ALVT	ALVT	ALVT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	14 mm	18.425 mm	18.425 mm	14 mm	14 mm	14 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	7	1	1	7	7	1
Number of functions	1	7	7	1	1	7
Number of ports	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SSOP	TSSOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	7.3 ns	7.3 ns	7.3 ns	7.3 ns	7.3 ns	7.3 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.8 mm	2.8 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.635 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	7.5 mm	7.5 mm	6.1 mm	6.1 mm	6.1 mm
Base Number Matches	1	1	1	1	1	1
Maker	-	NXP	NXP	-	NXP	NXP
