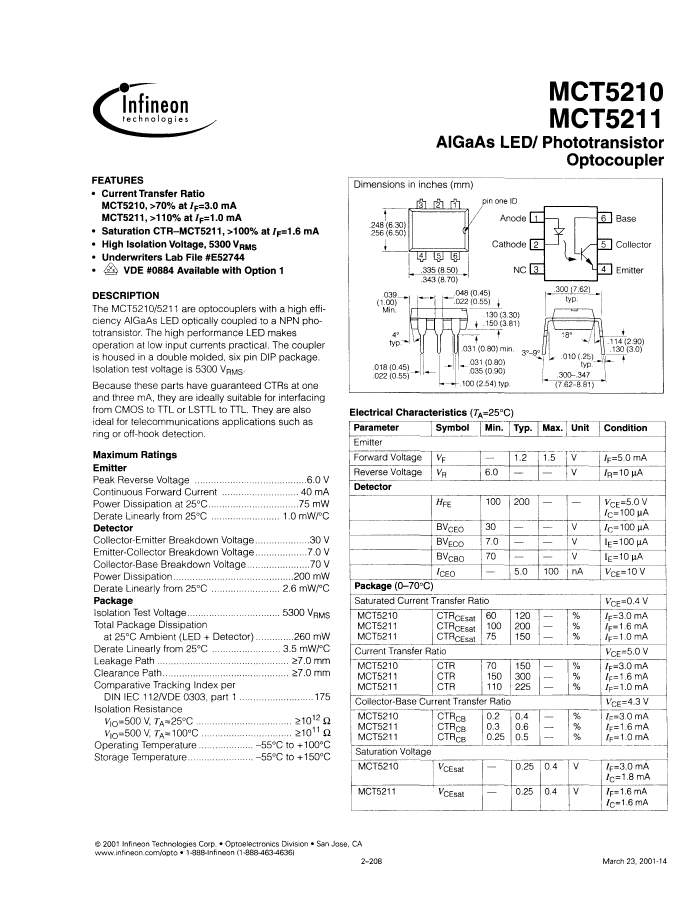

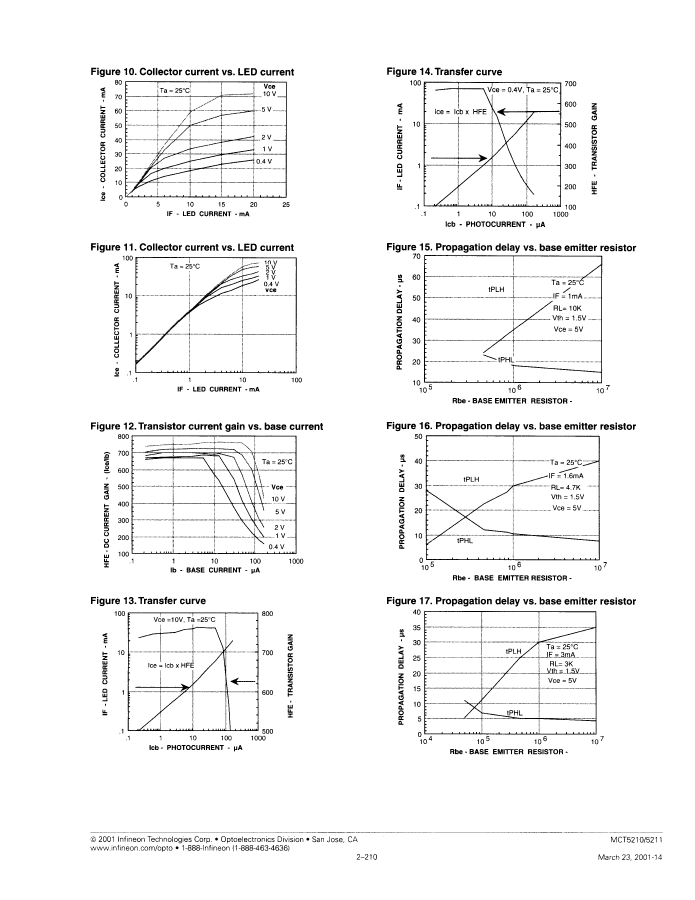

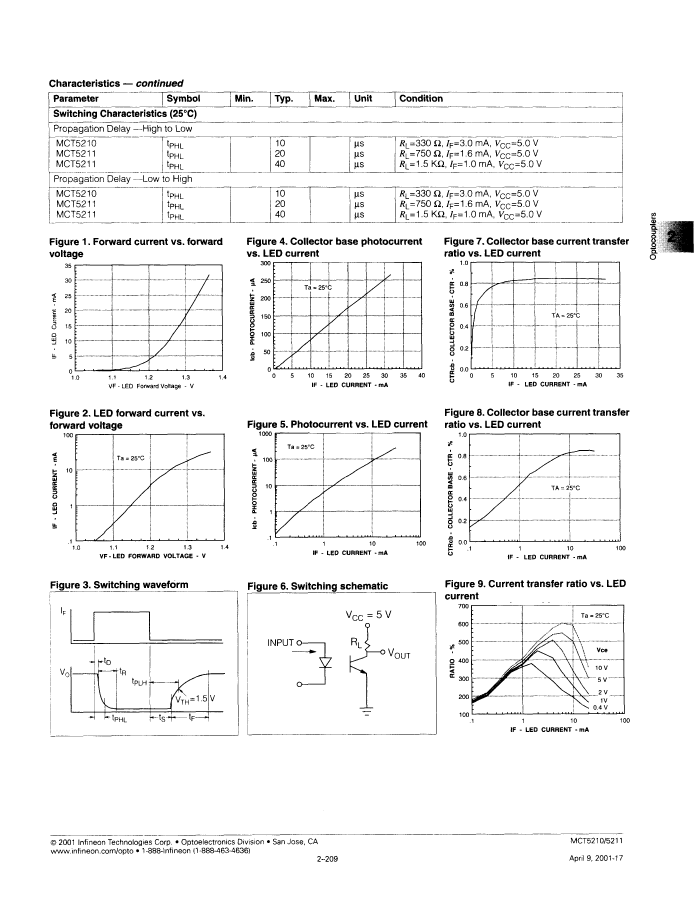

MCT5211-X001: DescriptionTransistor Output Optocoupler, 1-Element, 5300V Isolation, MOLDED, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size187KB，3 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

MCT5211-X001 Overview

Transistor Output Optocoupler, 1-Element, 5300V Isolation, MOLDED, DIP-6

Parameter Name	Attribute value
package instruction	MOLDED, DIP-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Nominal current transfer ratio	300%
Maximum dark power	100 nA
Maximum forward current	0.04 A
Maximum insulation voltage	5300 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1

	MCT5211-X001	MCT5210-X001
Description	Transistor Output Optocoupler, 1-Element, 5300V Isolation, MOLDED, DIP-6	Transistor Output Optocoupler, 1-Element, 5300V Isolation, MOLDED, DIP-6
package instruction	MOLDED, DIP-6	MOLDED, DIP-6
Reach Compliance Code	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	30 V	30 V
Configuration	SINGLE	SINGLE
Nominal current transfer ratio	300%	150%
Maximum dark power	100 nA	100 nA
Maximum forward current	0.04 A	0.04 A
Maximum insulation voltage	5300 V	5300 V
Number of components	1	1
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1	1
