Dual Output
BWR Models
Low-Cost, DIP-Packaged
3 Watt, DC/DC Converters
Features
s
Low cost!
Automated, SMT-on-pcb construction
No external components required
±5, ±12 or ±15 Volt outputs
Choice of 3 input voltage ranges:
4.5-9 Volts
9-18 Volts
18-72 Volts
1.25" x 0.8" x 0.45" DIP form factor
Industry-standard package and pinout
Fully isolated, 1000Vdc guaranteed
Guaranteed efficiencies to 78%
–25 to +75°C operation with no derating
UL 1950, CSA 22.2 No. 234 and IEC 950
EMI/EMC characterized
Modifications and customs for OEM’s
n
n
n
n
n
n
n
n
n
n
n
n

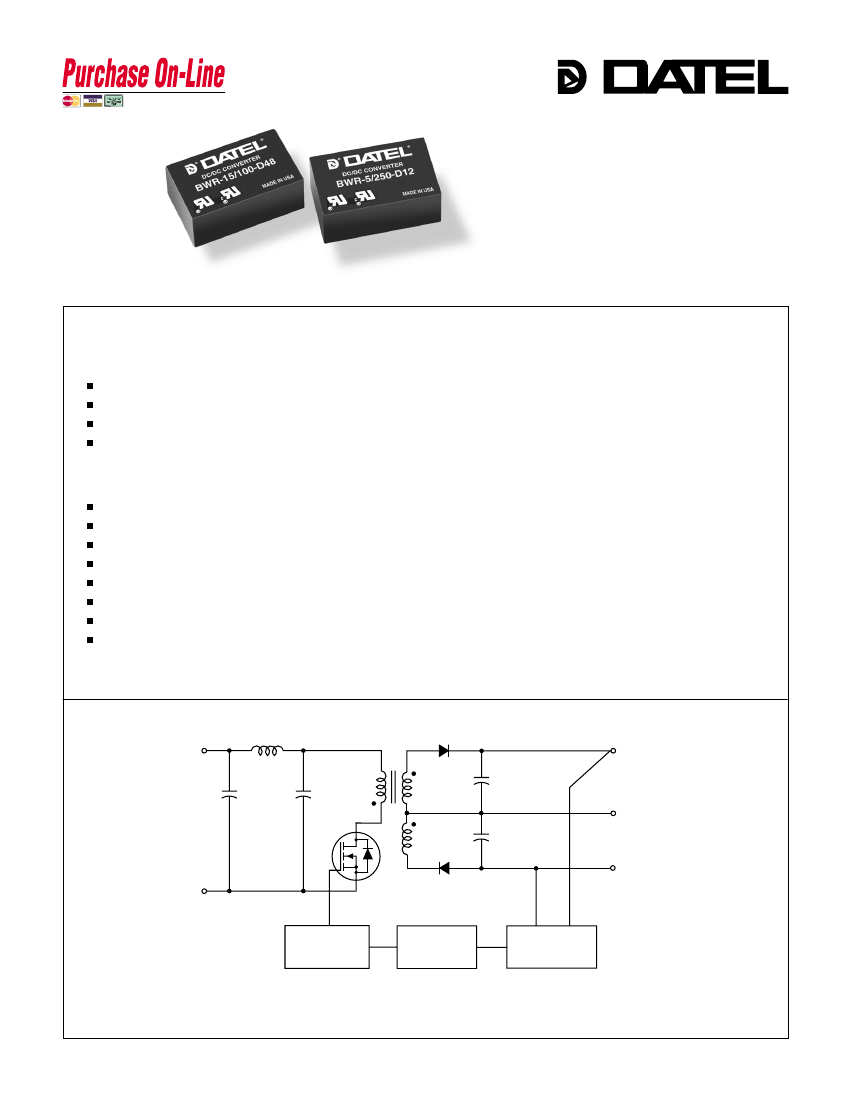

Packaged in industry-standard DIP’s, the 3 Watt dual-output models of DATEL’s XWR
Series DC/DC converters are fully regulated (±0.5% max. line, ±1% max. load), fully
isolated (1000Vdc minimum), extremely efficient (as high as 78% guaranteed) building
blocks providing true component-like flexibility and convenience to designers of modern
distributed power systems.
Exploiting high-frequency (170-200kHz), flyback topologies and contemporary,
highly automated, SMT assembly techniques, BWR Model DC/DC’s have enough room
to include input (pi type) and output filters within their package. Offering true "plug-and-
play" convenience, these power converters require no external components. They
operate over the full –25 to +75°C temperature range with no output power derating.
Output voltages are either ±5, ±12 or ±15 Volts. Input voltage ranges are either
4.5-9V ("D5" models), 9-18V ("D12" models) or an ultra-wide 18-72V ("D48" models).
Transient response time is a quick 200µsec.
These extremely rugged modules are fully encapsulated with a thermally conductive
potting compound. They are moisture and vibration resistant and have established a
reputation for outstanding MTBF. For telecommunication, computer and other EMI-
sensitive applications, these DIP-packaged DC/DC converters offer full EMI/EMC
characterization data.
Industry-standard pinouts make DATEL’s BWR Model 3W DC/DC’s ideal replace-
ments for other more costly, less reliable power converters. Similarly, they are excellent
choices for new design-ins in systems demanding small size, low cost and high reliability.
+V
IN
+V
OUT
COMMON
–V
OUT
–V
IN
PWM
CONTROLLER
OPTO
ISOLATION
REFERENCE &
ERROR AMP
Figure 1. Simplified Schematic
DATEL, Inc., 11 Cabot Boulevard, Mansfield, MA 02048 (U.S.A.)
·
Tel: (508)339-3000, (800)233-2765 Fax: (508)339-6356
·
Email: datellit@mcimail.com
XWR Series
3W,
DUAL OU T P U T
DC/DC
CONVERTERS
Performance Specifications and Ordering Guide
➀
Output
Model
BWR-5/250-D12
BWR-5/250-D48
BWR-12/105-D5
BWR-12/125-D12
BWR-12/125-D48
BWR-15/85-D5
BWR-15/100-D12
BWR-15/100-D48
➀
➁
➂
➃
Input
Regulation (Max.)
➂
Line
Load
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±0.5%
±1.0%
±1.0%
V
OUT
(Volts)
±5
±5
±12
±12
±12
±15
±15
±15
I
OUT
(mA, Max.)
±250
±250
±105
±125
±125
±85
±100
±100
R/N (mVp-p)
➁
Typ.
Max.
75
75
75
75
75
75
75
75
120
120
150
150
150
150
150
150
V
IN
Nom.
(Volts)
12
48
5
12
48
5
12
48
Range
(Volts)
9-18
18-72
4.5-9
9-18
18-72
4.5-9
9-18
18-72
I
IN
➃
(mA)
35/278
10/76
75/727
35/346
10/81
100/736
35/346
10/81
Efficiency
Min.
Typ.
75%
75%
70%
73%
78%
70%
73%
78%
77%
77%
72%
75%
80%
72%
75%
80%
Package
(Case,
Pinout)
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
C1, P2
Typical at T
A
= +25°C under nominal line voltage and full-load conditions unless otherwise noted.
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
Balanced loads, 10% to 100% load.
Nominal line voltage, no-load/full-load conditions.
PART NUMBER STRUCTURE
Mechanical Specifications
I F I C A T I O N S
MECHANICAL SPEC
B WR
-
15
/
100
-
D48
Output Configuration:
B
= Bipolar
Wide Range Input
Nominal Output Voltages:
±5, ±12 or ±15 Volts
Input Voltage Range:
D5
= 4.5-9 Volts (5V nominal)
D12
= 9-18 Volts (12V nominal)
D48
= 18-72 Volts (48V nominal)
1.25
(31.75)
STANDOFFS
0.025
(0.64)
0.45
(11.43)
Case C1
Maximum Output Current
in mA from each output
0.020 ±0.002 DIA.
(0.508 ±0.051)
0.600
(15.24)
0.200
(5.08)
0.100
(2.54)
0.18
(4.57)
0.15 MIN
(3.81)
3 4
7
8
0.600
(15.24)
0.80
(20.32)
1 2
5
6
BOTTOM VIEW
PLASTIC CASE WITH AN INSULATED BASE
0.10
(2.54)
I/O Connectiions
Pin
1
2
3
4
5
6
7
8
Function P2
+Input
+Input
–Input
–Input
Common
+Output
Common
–Output
2
3W,
DUAL
OUTPUT
DC/DC
CONVERTERS
BWR Models
Performance/Functional Specifications
Typical @ T
A
= +25°C under nominal line voltage and full-load conditions, unless noted.
➀
Input
Input Voltage Range:
"D5" Models
"D12" Models
"D48" Models
Input Current
Input Filter Type
➁
Reverse-Polarity Protection
V
OUT
Accuracy
(50% load)
Temperature Coefficient
Ripple/Noise
(20MHz BW)
➁
Line/Load Regulation
Efficiency
Isolation Voltage
➂
Current Limiting:
"D5" Models
"D12" and "D48" Models
Transient Response
(50% load step)
Switching Frequency:
"D5" Models
"D12" and "D48" Models
Operating Temperature
➃
(Ambient, no derating)
Storage Temperature
Dimensions
Case Material
Pin Material
Weight
4.5-9 Volts (5V nominal)
9-18 Volts (12V nominal)
18-72 Volts (48V nominal)
See Ordering Guide
Pi
Yes (Instantaneous, 2A maximum)
Input Voltage:
"D5" Models
"D12" Models
"D48" Models
Absolute Maximum Ratings
12 Volts
20 Volts
80 Volts
Current must be <2A. Brief duration
only. Fusing recommended.
None
Current limited. Max. current and
short-circuit duration are model
dependent. "D12" and "D48" models
can withstand sustained output short
circuits.
–40 to +100°C
+300°C
Input Reverse-Polarity Protection
Output Overvoltage Protection
Output Current
Output
±1%, maximum
±0.02% per °C
See Ordering Guide
See Ordering Guide
See Ordering Guide
1000Vdc, minimum
Power-limiting technique, auto-recovery
Hiccup technique, auto-recovery
Storage Temperature
Lead Temperature
(soldering, 10 sec.)
These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.
Dynamic Characteristics
200µsec to ±1% of final value
TECHNICAL NOTES
Floating Outputs
200kHz
170kHz
Environmental
–25 to +75°C
–40 to +100°C
Since these are isolated DC/DC converters, their outputs are "floating." Any
BWR model may be configured to produce an output of 10V, 24V or 30V (for
±5V, ±12V or ±15V models, respectively) by applying the load across the
+Output and –Output pins (pins 6 and 8), with either output grounded. The
Common (pins 5 and 7) should be left open. Minimum 20% loading is
recommended under these conditions.
Filtering and Noise Reduction
All BWR 3 Watt DC/DC Converters achieve their rated ripple and noise
specifications without the use of external input/output capacitors. In critical
applications, input/output ripple and noise may be further reduced by installing
electrolytic capacitors across the input terminals and/or low-ESR tantalum or
electrolytic capacitors across the output terminals. Output capacitors should be
connected between their respective output pin (pin 6 or 8) and Common (pins 5
and 7) as shown in Figure 2. The caps should be located as close to the power
converters as possible. Typical values are listed in the tables below. In many
applications, using values greater than those listed will yield better results.
To Reduce Input Ripple
"D5" Models
"D12" Models
"D48" Models
To Reduce Output Ripple
±5V Outputs
±12/15V Outputs
47µF, 15V
10µF, 35V
4.7µF, 100V
47µF, 10V, Low ESR
22µF, 20V, Low ESR
Physical
1.25" x 0.8" x 0.45" (31.8 x 20.3 x 11.4mm)
Diallyl phthalate, UL94V-0-rated
Brass, solder coated
0.5 ounces (14.2 grams)
➀
These power converters require a minimum 10% loading to maintain specified regulation.
Operation under no-load conditions will not damage these devices; however they may not
meet all listed specifications.
➁
Application-specific internal input/output filtering can be recommended and perhaps added
internally upon request. Contact DATEL Applications Engineering for details.
➂
Devices can be screened or modified for higher guaranteed isolation voltages.
Contact DATEL Applications Engineering for details.
➃
Devices can be warranted or screened for lower-temperature operation.
Contact DATEL Applications Engineering for details. See DATEL's new BST 3W Models
for guaranteed operation to –40°C.
In critical, space-sensitive applications, DATEL may be able to tailor the internal
input/output filtering of these units to meet your specific requirements. Contact
our Applications Engineering Group for additional details.
3
XWR Series
3 W, D U A L O U T P U T D C / D C C O N V E R T E R S
E M I R A D I AT E D E M I S S I O N S
+OUTPUT
1, 2
+INPUT
+
C
IN
3, 4
–INPUT
COMMON
6
+
C
OUT
5, 7
+
C
OUT
8
–OUTPUT
If you’re designing with EMC in mind, note that all of DATEL’s BWR 3 Watt
DC/DC Converters have been characterized for radiated and conducted emissions
in our new EMI/EMC laboratory. Testing is conducted in an EMCO 5305 GTEM
test cell utilizing EMCO automated EMC test software. Radiated emissions are
tested to the limits of FCC Part 15, Class B and CISPR 22 (EN 55022), Class B.
Correlation to other specifications can be supplied upon request. Radiated
emissions plots to FCC and CISPR 22 for model BWR-5/250-D12 appear below.
Published EMC test reports are available for each model number. Contact
DATEL’s Applications Engineering Department for more details.

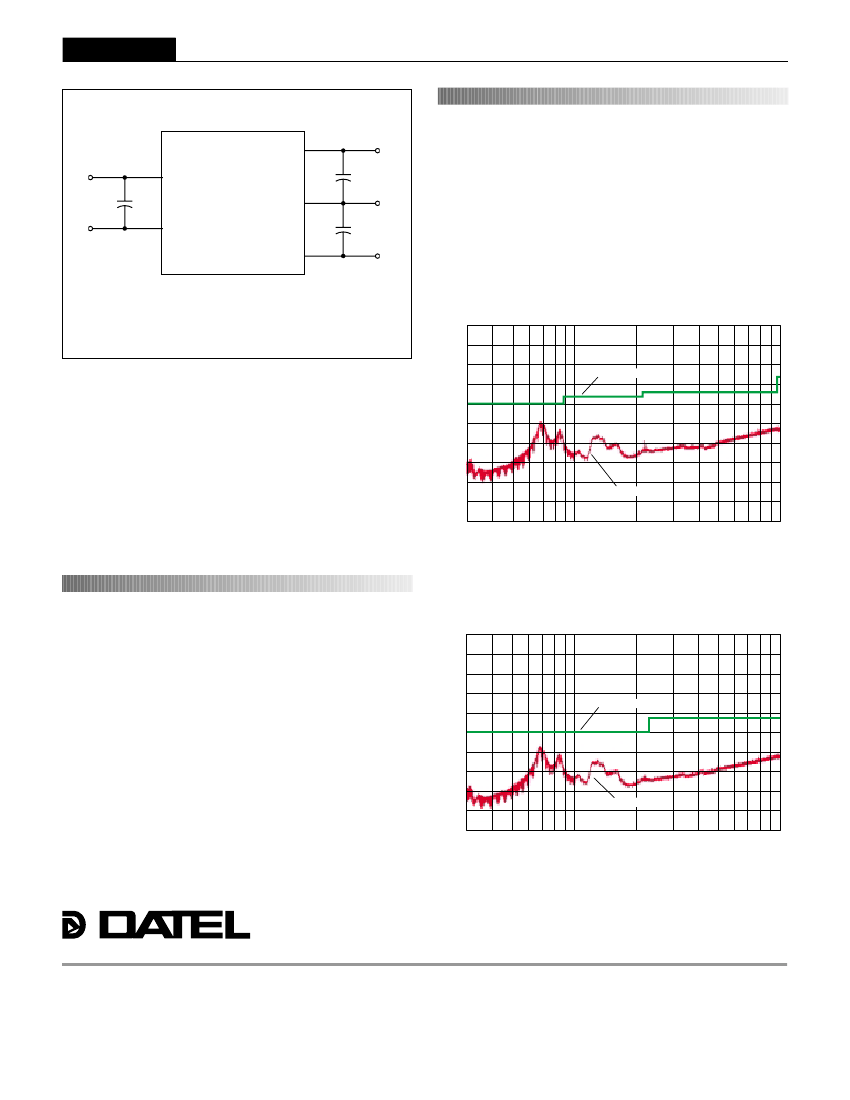

BWR-5/250-D12 Radiated Emissions
FCC Part 15 Class B, 3 Meters
Converter Output = ±5Vdc @ ±203mA
80
70
60
Figure 2. Using External Capacitors to Reduce
Input/Output Ripple/Noise
Radiated Emissions (dBµV/M)
FCC Class B Limit
50
40
30
20
10
0
Radiated Emissions
Input Fusing
Certain applications and/or safety agencies may require the installation of fuses
at the inputs of power conversion components. For DATEL BWR 3 Watt
DC/DC Converters, you should use slow-blow type fuses with values
no greater than the following:
V
IN
Range
"D5"
"D12"
"D48"
Fuse Value
1.5A
1A
0.5A
–10
–20
100
1000
Frequency (MHz)
C U S T O M C A PA B I L I T I E S
DATEL’s world-class design, development and manufacturing team stands
ready to work with you to deliver the exact power converter you need for your
demanding, large volume, OEM applications. And ... we’ll do it on time and
within budget!
Radiated Emissions (dBµV/M)
BWR-5/250-D12 Radiated Emissions
EN 55022 Class B, 10 Meters
Converter Output = ±5Vdc @ ±203mA
80
70
60
50
EN 55022 Class B Limit
Our experienced applications and design staffs; quick-turn prototype capability;
highly automated, SMT assembly facilities; and in-line SPC quality-control
techniques combine to give us the unique ability to design and deliver any
quantity of power converters to the highest standards of quality and reliability.
We have compiled a large library of DC/DC designs that are currently used in a
variety of telecom, medical, computer, railway, aerospace and industrial
applications. We may already have the converter you need.
Contact us. Our goal is to provide you the highest-quality, most cost-
effective power converters available.
40
30
20
10
0
Radiated Emissions
–10
–20
100
1000
Frequency (MHz)
®
®
INNOVATION and EXCELLENCE
ISO-9001 REGISTERED
DS0317
8/99
DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356
Internet: www.datel.com
Email: sales@datel.com
Data Sheet Fax Back: (508) 261-2857
DATEL (UK) LTD. Tadley, England Tel: (01256)-880444
DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: 01-34-60-01-01
DATEL GmbH München, Germany Tel: 89-544334-0
DATEL KK Tokyo, Japan Tel: 3-3779-1031, Osaka Tel: 6-354-2025
DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein
do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
