AMMP-6420
6 – 18 GHz Power Amplifier
Data Sheet
Description
The AMMP-6420 MMIC is a broadband 1W power
amplifier in a surface mount package designed for use
in transmitters that operate in various frequency bands
between 6GHz and 18GHz. At 17GHz, it provides 30dBm
of output power (P-1dB) and 16.5dB of small-signal
gain from a small easy-to-use device. This MMIC
optimized for linear operation with an output third
order intercept point (OIP3) of 37dBm. The AMMP-
6420 also integrates a temperature compensated RF
power detection circuit that enables power detection
of 0.4V/W at 18GHz.
Features
•
5x5mm surface mount package
•
Wide frequency range: 6 - 18 GHz
•
High gain: 16 dB
•
Return loss: Input: -3 dB, Output: -6 dB
•
High Power: @ 18 GHz, P-1dB = 30 dBm
•
Highly linear: OIP3=37dBm
•
Integrated RF power detector
Applications
•
Microwave Radio systems
•
Satellite VSAT and DBS systems
•
LMDS & Pt-Pt mmW Long Haul Platforms
•
802.16 & 802.20 WiMax BWA systems
•
WLL and MMDS loops
•
Commercial grade military

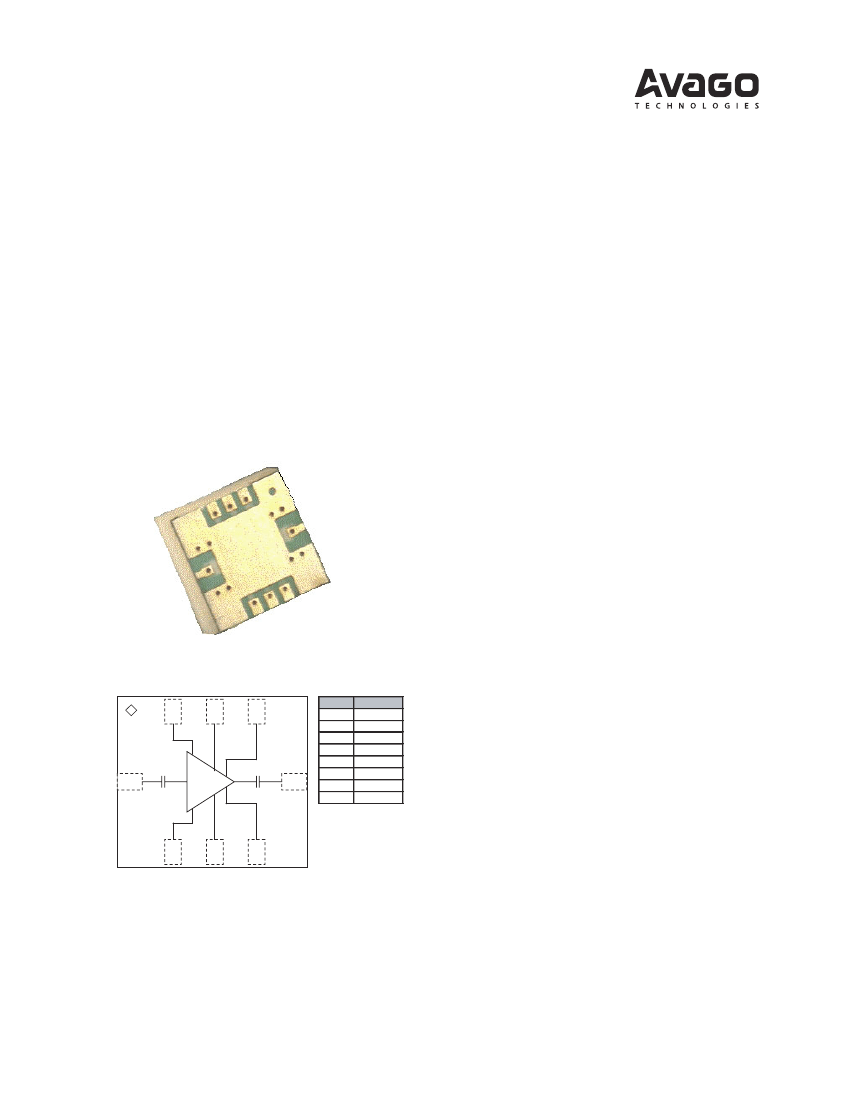

Functional Diagram
1
2
3
Pin
1
2
3
4
5
6
7
8
Function
Vgg
Vdd
DET_O
RF_out
DER_R
Vdd
Vgg
RF_in
8
4
7
6
5
PACKAGE
BASE
GND
AMMP-6420 Absolute Maximum Ratings
[1]
Symbol
V
d
V
g
I
d
P
in
T
ch
T
stg
T
max
Parameters/Conditions
Positive Drain Voltage
Gate Supply Voltage
Drain Current
CW Input Power
Operating Channel Temp.
Storage Case Temp.
Maximum Assembly Temp (60 sec max)
Units
V
V
mA
dBm
°C
°C
°C
-65
-3
Min.
Max.
7
0.5
1500
23
+150
+150
+300
AMMP-6420 DC Specifications/Physical Properties
[1]
Symbol
I
d
Parameters and Test Conditions
Units
Min.
Typ.
800
-0.8
-0.7
Max.
Drain Supply Current
(V
d
=5 V, V
g
set for I
d
Typical)
Gate Supply Operating Voltage
(I
d(Q)
= 800 (mA))
First Stage Thermal Resistance
[2]
(Channel-to-Backside at Tch=150
°
C)
Second Stage Thermal Resistance
[2]
(Channel-to-Backside at Tch=150
°
C)
mA
V
°C/W
°C/W
1000
-0.6
V
g
θ
1(ch-bs)
θ
2(ch-bs)
Notes:
1. Ambient operational temperature TA=25°C unless otherwise noted.
2. Thermal resistance (°C/Watt) at a channel temperature T(°C) can be estimated using the equation:
θ
(T) =
θch-bs
x [T (°C) + 273] / [150°C + 273]..
AMMP-6420 RF Specifications
[3, 4]
Symbol
Gain
P
-1db
P
-3db
IP
3
RLin
RLout
Isolation
(TA= 25°C, Vd=5, Id(Q)=800 mA, Zo=50
Ω)
Parameters and Test Conditions
Small-signal Gain
[4]
Output Power at 1dB Gain Compression
[5]
Output Power at 3dB Gain Compression
[5]
Third Order Intercept Point
[5]
;
∆f=100MHz;
Pin=-20dBm
Input Return Loss
[4]
Output Return Loss
[4]
Min. Reverse Isolation
Units
dB
dBm
dBm
dBm
dB
dB
dB
Minimum
14.5
25.5
Typical
16.5
27.5
29
37
3
6
45
Maximum
3. Small/Large -signal data measured in wafer form TA = 25°C.
4. 100% on-wafer RF test is done at frequency = 6, 12, and 18 GHz.
2
AMMP-6420 Typical Performances
40
35
30
S21[dB]
25
20
15
10
5
0
2
4
6
8
10 12 14
Frequency [GHz]
(TA = 25°C, Vd =5V, ID = 800 mA, Zin = Zout = 50
Ω)
0
S21[dB]
S12[dB]
-20
Return Loss [dB]
S12 [dB]
-5
0
-40
-10
-60
-15
S11[dB]
S22[dB]
-20
2
4
6
8
10
12 14
Frequency [GHz]
16
18
20
22
-80
16
18
20
22

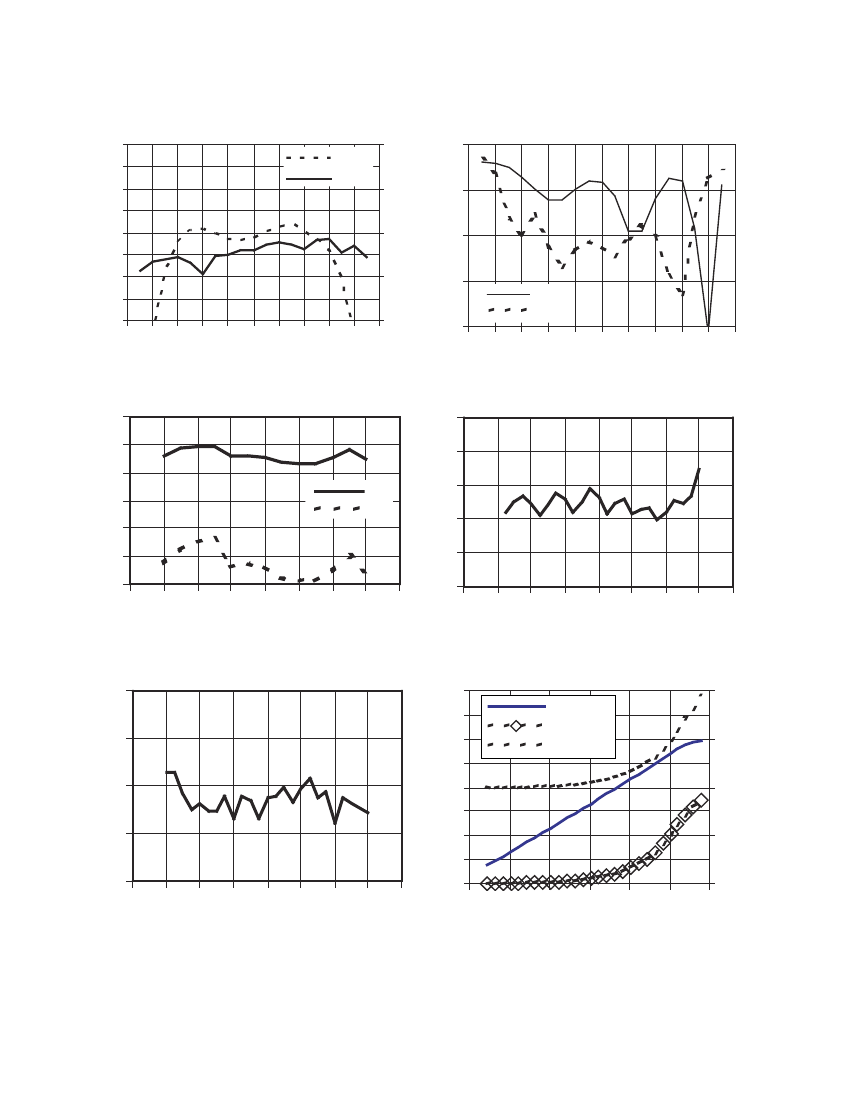

Figure 1. AMMP-6420 Typical Gain and Reverse Isolation
Figure 2. AMMP-6420 Typical Return Loss (Input and Output)
35
30
10
8
P-1 [dBm], PAE [%]
25
20
15
10
5
4
6
8
10
12
14
Frequency [GHz]
16
18
20
P-1
PAE
Noise Figure [dB]
6
4
2
0
4
6
8
10
12
14
16
18
20
Frequency [GHz]
Figure 3. AMMP-6420 Typical Output Power (@P-1) and PAE and
Frequency
Figure 4. AMMP-6420 Typical Noise Figure
50
40
35
Pout(dBm)
PAE[%]
1000
45
Po[dBm], and, PAE[%]
30
25
20
15
10
5
Id(total)
900
Ids [mA]
IP3 [dBm]
40
800
35
700
30
4
6
8
10
12
14
Frequency [GHz]
16
18
20
0
-15
-10
-5
0
Pin [dBm]
5
10
15
600
Figure 5. AMMP-6420 Typical IP3
Figure 6. AMMC-6420 Typical Output Power, PAE, and Total Drain
Current versus Input Power at 18GHz
3
Typical Scattering Parameters
[1]
Freq
[GHz]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
dB
-0.84
-1.30
-2.23
-2.98
-3.22
-2.96
-2.74
-2.45
-2.14
-2.18
-2.52
-3.32
-5.21
-8.83
-7.00
-4.35
-3.65
-4.76
-9.17
-9.91
-2.64
-0.98
-0.62
-0.47
-0.37
S11
Mag
0.91
0.86
0.77
0.71
0.69
0.71
0.73
0.75
0.78
0.78
0.75
0.68
0.55
0.36
0.45
0.61
0.66
0.58
0.35
0.32
0.74
0.89
0.93
0.95
0.96
Phase
-80.88
-138.65
-177.48
155.82
136.92
115.95
95.98
74.61
51.62
25.66
-2.71
-36.38
-83.50
-169.91
76.01
10.30
-34.53
-77.10
-131.13
67.67
-18.55
-60.66
-88.35
-109.75
-128.37
(TA = 25°C, Vd =5 V, ID = 800 mA, Zin = Zout = 50
Ω)
S21
dB
-15.58
0.41
-29.29
0.01
17.28
24.06
23.24
20.77
18.41
16.96
16.66
17.63
19.55
21.38
21.12
19.23
17.44
16.12
11.32
0.93
-17.21
-33.75
-38.78
-42.18
-50.39
Mag
0.17
1.05
0.03
1.00
7.31
15.97
14.52
10.92
8.33
7.05
6.81
7.61
9.49
11.72
11.38
9.16
7.44
6.40
3.68
1.11
0.14
0.02
0.01
0.01
0.00
Phase
161.79
17.89
-84.66
109.86
-5.78
-139.30
112.29
30.02
-35.29
-90.64
-142.64
163.54
101.48
25.44
-61.70
-143.73
135.70
42.40
-72.46
172.30
79.18
131.20
115.81
45.94
-37.52
dB
-48.80
-48.49
-73.79
-56.96
-63.08
-58.30
-57.62
-59.12
-60.96
-56.18
-52.92
-52.81
-49.86
-46.52
-46.86
-48.77
-46.56
-46.93
-52.70
-44.38
-47.97
-49.26
-61.62
-78.83
-69.79
S12
Mag
3.63E-03
3.76E-03
2.04E-04
1.42E-03
7.02E-04
1.22E-03
1.32E-03
1.11E-03
8.95E-04
1.55E-03
2.26E-03
2.29E-03
3.22E-03
4.72E-03
4.54E-03
3.64E-03
4.70E-03
4.50E-03
2.32E-03
6.04E-03
4.00E-03
3.44E-03
8.30E-04
1.14E-04
3.24E-04
Phase
-82.09
-128.07
48.92
-16.96
51.36
-14.95
-102.40
172.39
138.10
80.19
45.84
-2.15
-52.63
-115.01
172.21
89.00
26.05
-41.88
-76.86
-109.33
165.10
133.49
-61.95
-35.93
-152.77
dB
-0.75
-2.76
-0.63
-1.21
-4.61
S22
Mag
0.92
0.73
0.93
0.87
0.59
Phase
-73.22
-136.81
-170.75
139.43
88.90
125.41
98.53
81.23
63.77
39.17
13.06
-12.39
-33.56
-38.24
-44.10
-69.72
-97.75
-114.48
-136.60
175.52
124.74
72.70
21.66
-22.07
-57.83
-12.52 0.24
-7.04
-7.21
-5.99
-5.19
-5.17
-5.89
-7.59
-9.39
-7.24
-5.64
-5.74
-6.61
-3.70
-2.48
-2.70
-2.88
-2.60
-2.14
-1.68
0.44
0.44
0.50
0.55
0.55
0.51
0.42
0.34
0.43
0.52
0.52
0.47
0.65
0.75
0.73
0.72
0.74
0.78
0.82
Note:
1. Data obtained from on-wafer measurements.
4
AMMP-6420 Typical Performance Curves (Over Temperature and Voltage)
0
-5
0
-5
-10
-15
S22_20
-20
-25
0
5
10
15
Frequency[GHz]
20
25
S11[dB]
-15
S11_20
-20
-25
S11_-40
S11_85
S22[dB]
-10
S22_-40
S22_85
0
5
10
15
Frequency[GHz]
20
25

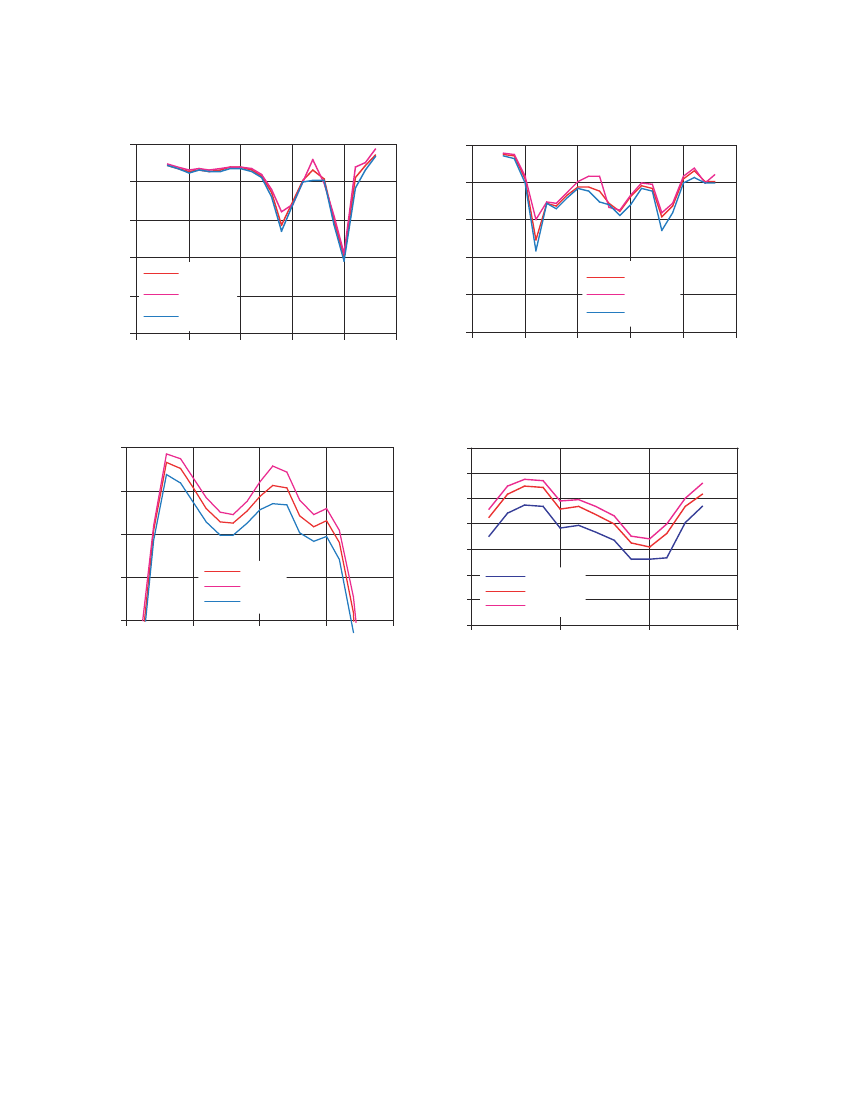

Figure 7. AMMP-6420 Typical S11 over temperature
Figure 8. AMMP-6420 Typical S22 over temperature
25
34
32
20
30
P-2 [dBm]
S21_20
S21_-40
S21_85
3
8
13
Frequency[GHz]
18
23
S21[dB]
15
28
26
24
22
20
5
10
Frequency [GHz]
15
20
P-2_85deg
P-2_20deg
P-2_-40deg
10
5
Figure 9. AMMP-6420 Typical Gain over temperature
Figure 10. AMMP-6420 Typical P-2 over temperature
5
