FH3-24S-1.25DS(01): DescriptionCard Edge Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size85KB，4 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

FH3-24S-1.25DS(01) Overview

Card Edge Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Black Insulator

FH3-24S-1.25DS(01) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
body width	0.177 inch
subject depth	0.374 inch
body length	1.327 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

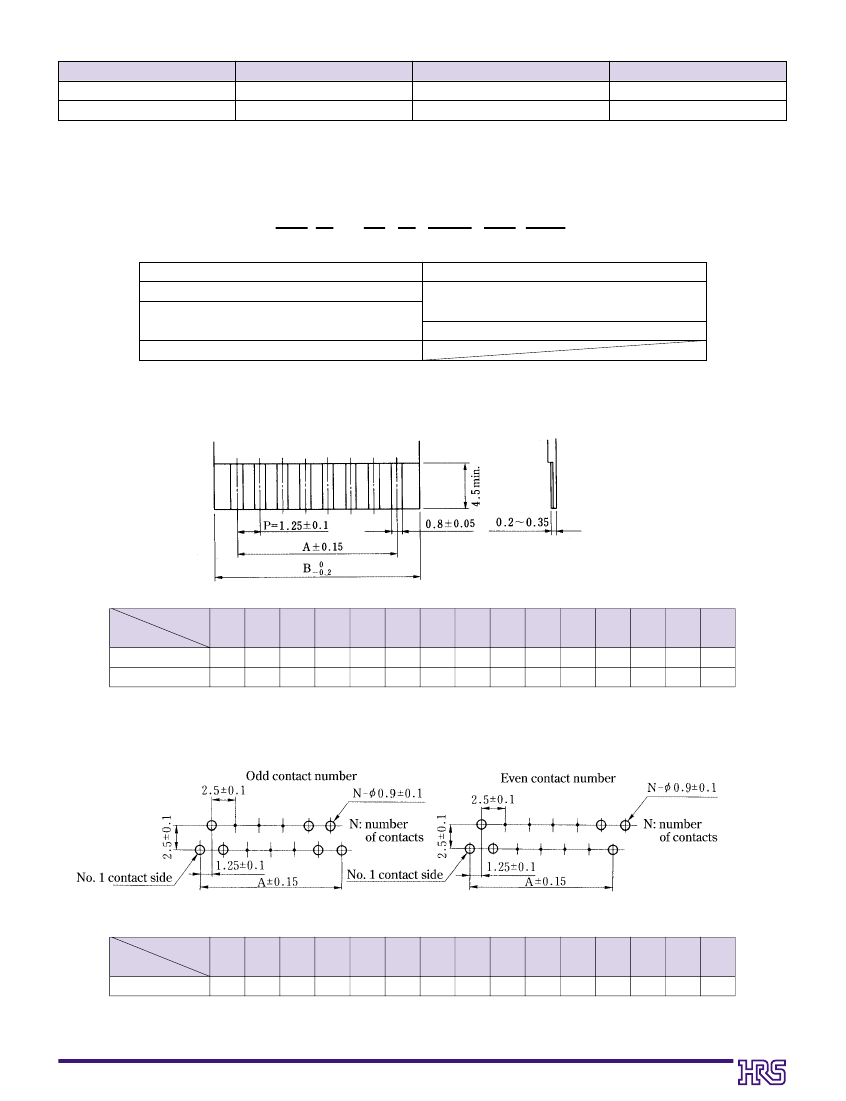

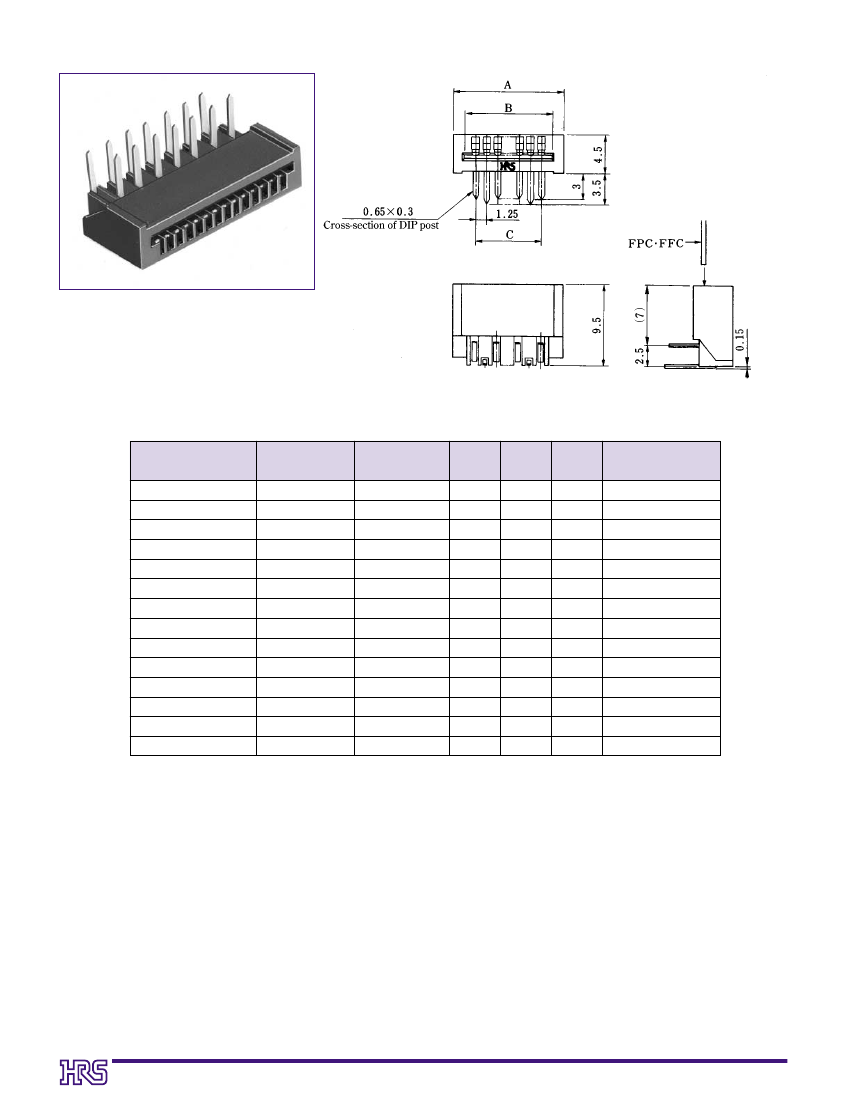

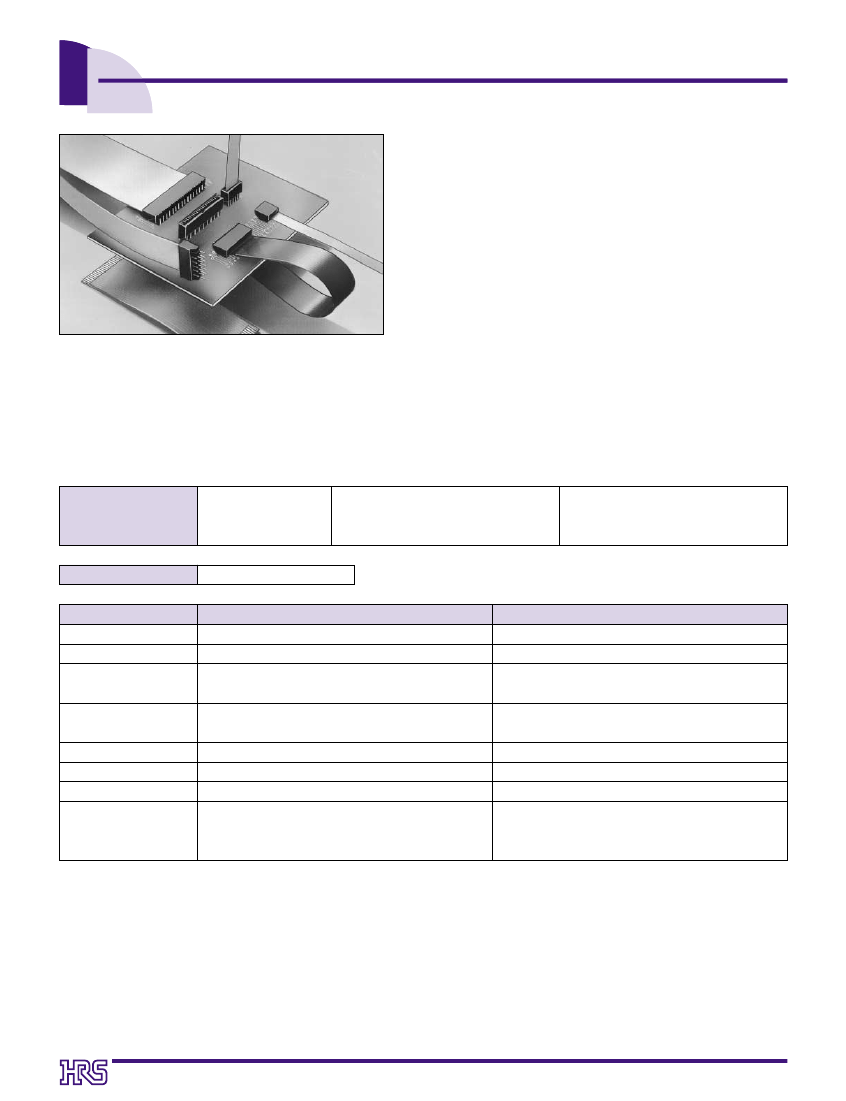

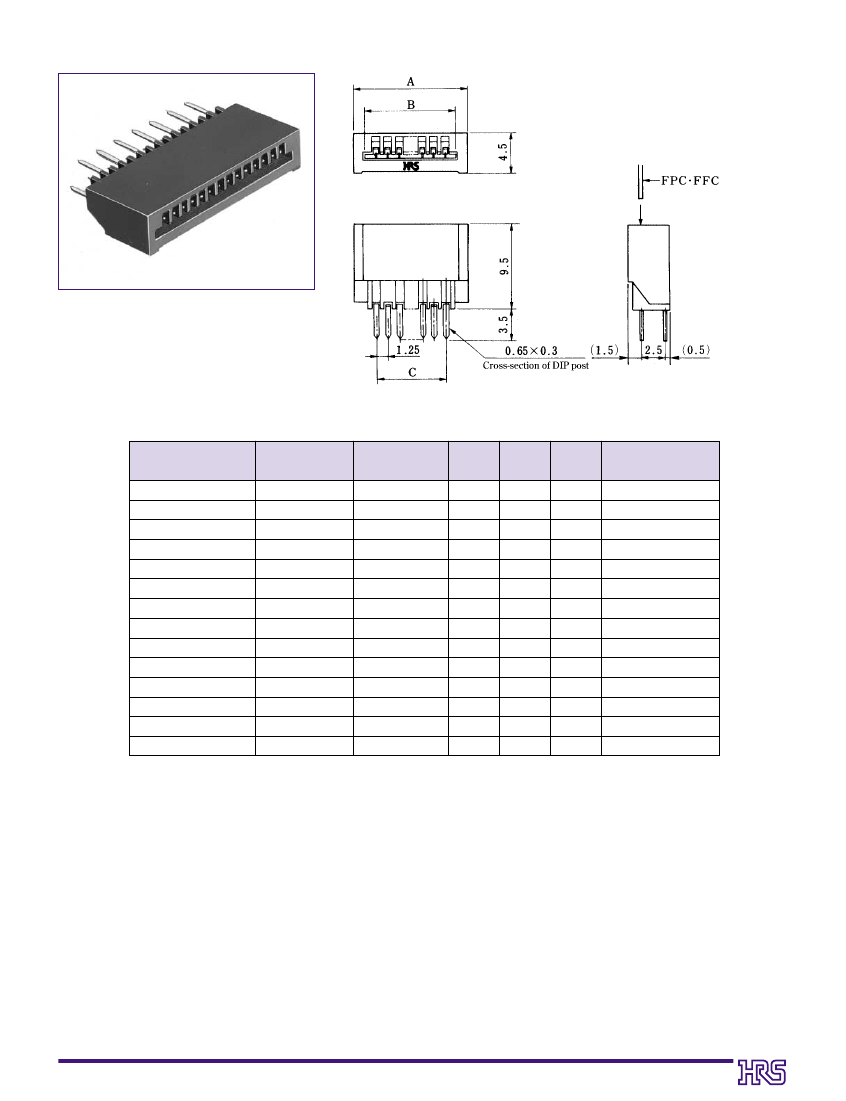

1.25mm Pitch FPC/FFC Connector

FH3 Series

sFeatures

1. 1.25mm FPC and FFC DIP Connector

The contact pitch is 1.25mm.

2. Contact Reliability

This connector has high contact reliability for high voltage

contact.

3. Sixteen Types of Contact Numbers

This connector consists of 16 kinds of 6, 8, 9, 10, 12, 13, 14,

15, 15, 17, 18, 19, 20, 21, 22, 24, and 30 contacts.

sApplications

HDD, facsimiles, printers, VTR, etc.

sProduct

Specifications

Rating

Rated Current: 1A

Rated Voltage: 200V AC

Operating Temperature Range:-40~+85ç (Note 1) Storage Temperature Range:-10~+60ç (Note 2)

Operating Humidity Range:Relative humidity, 90% max. Storage Humidity Range:Relative humidity, 90% max.

(Not dewed)

Applicable FPC

Item

1. Insulation Resistance

2. Withstand voltage

3. Contact Resistance

4. Mechanical operation

5. Vibration

6. Shock

7. Moisture Resistance in Steady State

8. Temperature Cycle

500Mø min.

Neither short or breakdown should occur

20mø max.

π FPC conductor resistance included

Contact resistance: 40mø max.

No part should be broken, cracked or loosened

Insulation resistance: 50Mø min.

No part should be broken, cracked or loosened

Frequency: 10~55Hz and full amplitude 1.50mm in 3 directions for 2 hours, respectively

Acceleration: 490m/S2, duration: 11ms, sine half-wave: in 3 directions for 3 times, respectively

Exposed to temperature 40ç and humidity 90~95% for 96 hours

5 cycles under conditions as follows;

Temperature: -55ç

+15~+35

+85

+5~+35ç

Time: 30

5 max.

5 max. for 5 minutes

Note 1. Temperature rise included when energized

Note 2. This storage indicates a long-term storage state for the unused product before board mounted.

The operating temperature and humidity ranges are applied to the non-energized state after the connector has been installed

in the board.

Note 3. The above standards represent this series. The individual formal agreement should be based on the "Specification".

30 cycles

t=0.2~0.35 Tin plating

Specification

Measured at 500V DC

500V AC for 1 minute

Measured at 0.1A

Condition

(Not dewed)
