M83723/87W1624N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M83723/87W1624N

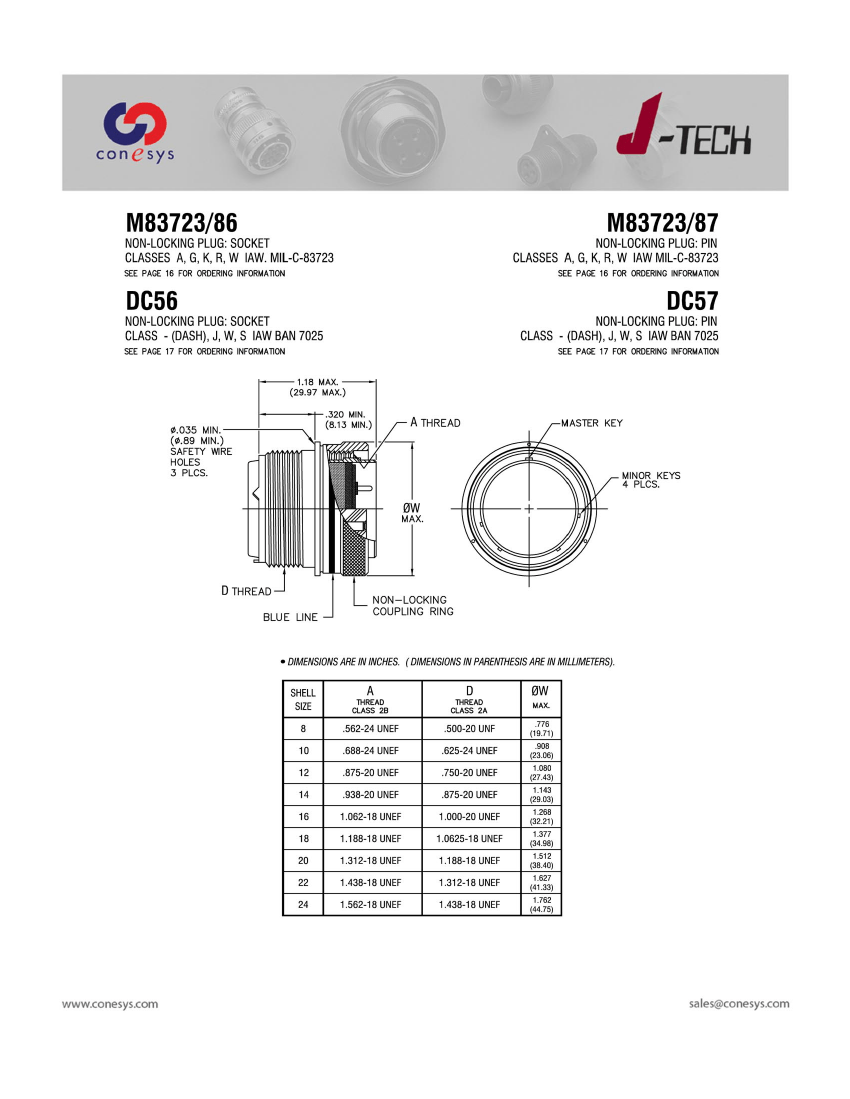

Preview

M83723/87W1624N: DescriptionMIL Series Connector, 24 Contact(s), Aluminum Alloy, Male, Plug,; CategoryThe connector The connector; File Size254KB，1 Pages; ManufacturerConesys

Download Datasheet Parametric Compare View All

M83723/87W1624N Overview

MIL Series Connector, 24 Contact(s), Aluminum Alloy, Male, Plug,

M83723/87W1624N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83723
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

M83723/87W1624N Related Products

	M83723/87W1624N	M83723/91W1412N	M83723/87W1831N	M83723/92W1412N
Description	MIL Series Connector, 24 Contact(s), Aluminum Alloy, Male, Plug,	MIL Series Connector, 12 Contact(s), Aluminum Alloy, Female, Plug,	MIL Series Connector, 31 Contact(s), Aluminum Alloy, Male, Plug,	MIL Series Connector, 12 Contact(s), Aluminum Alloy, Male, Plug,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-83723	STANDARD: MIL-C-83723	STANDARD: MIL-C-83723	STANDARD: MIL-C-83723
Back shell type	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED	OLIVE DRAB CADMIUM PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	16	14	18	14
Total number of contacts	24	12	31	12
Base Number Matches	1	1	1	-
