IDCS2512NB331M

Description
General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD
CategoryPassive components    inductor
File Size137KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

IDCS2512NB331M Overview

General Purpose Inductor, 330uH, 20%, 1 Element, Ferrite-Core, SMD

IDCS2512NB331M Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance1.4 Ω
Nominal inductance(L)330 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberIDCS-2512
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum rated current0.2 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

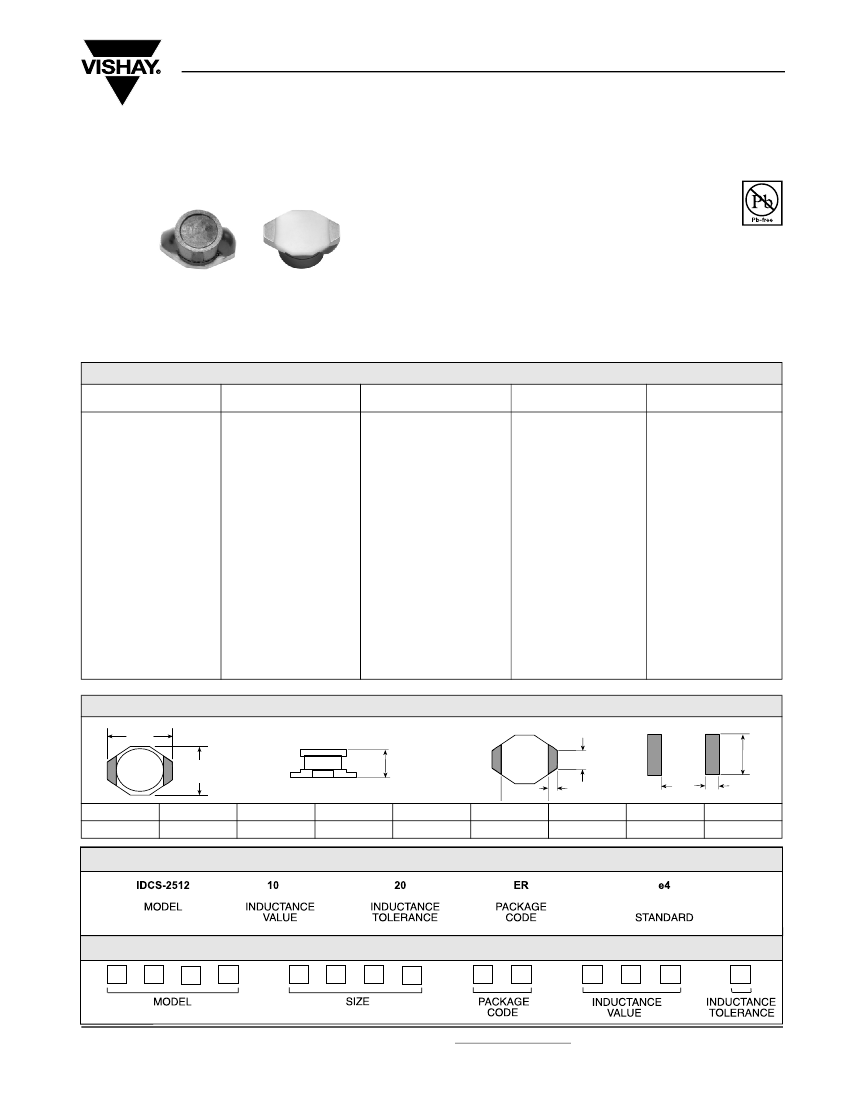

IDCS-2512
Vishay Dale
High Current, Shielded, Surface Mount Inductor
FEATURES
High energy storage
Low resistance
Magnetically shielded
Tape and reel packaging for automatic handling
100 % lead (Pb)-free and RoHS compliant
RoHS
COMPLIANT
ELECTRICAL SPECIFICATIONS
Inductance Range:
1.0 µH to 10 000 µH, tested at 1.0 Vrms
Inductance Tolerance:
20 %, tighter tolerances available
upon request
Operating Temperature:
- 40 °C to + 125 °C
Resistance to Solder Heat:
260 °C for 10 seconds
MATERIALS
Core:
Ferrite
Wire:
Enamelled copper wire
Base:
Ceramic
Terminal:
Gold over Nickel
Adhesive:
Epoxy resin
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10 000
* 30 °C temperature rise
TOLERANCE
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
TEST FREQUENCY L
(kHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR MAXIMUM
(Ohms)
0.040
0.045
0.050
0.055
0.060
0.065
0.075
0.090
0.11
0.19
0.23
0.29
0.48
0.59
0.77
1.4
1.8
2.2
3.4
4.2
8.5
11.0
13.9
25.0
32.8
RATED DC CURRENT*
(Amps)
3.0
2.8
1.8
1.6
1.4
1.2
1.0
0.80
0.70
0.60
0.50
0.40
0.30
0.26
0.22
0.20
0.19
0.18
0.15
0.12
0.10
0.08
0.06
0.04
0.02
DIMENSIONS
in inches [millimeters]
A
Max.
B
Max.
D
Max.
E
F
I
H
J
A (Max.)
0.260 [6.60]
B (Max.)
0.175 [4.45]
D (Max.)
0.115 [2.92]
E
0.050 [1.27]
F
0.040 [1.02]
G
0.170 [4.32]
H
0.055 [1.40]
I
0.160 [4.06]
J
0.140 [3.56]
DESCRIPTION
µH
%
JEDEC LEAD (Pb)-FREE
GLOBAL PART NUMBER
I
D
C
S
2
5
1
2
E
R
1
0
0
M
Document Number: 34009
Revision: 16-Jan-06
For technical questions, contact: magnetics@vishay.com
www.vishay.com
75
