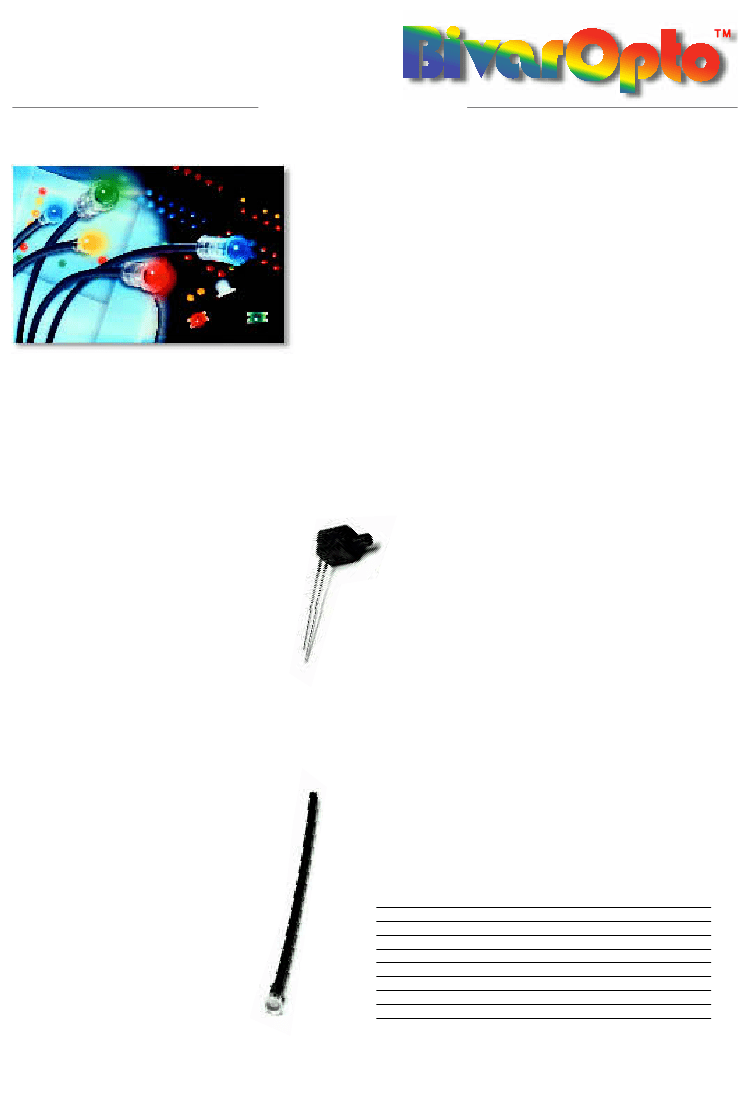

Flexible Light Pipes

FLP S

ERIES

Flexible Light Pipes for Through-Hole

and Surface Mount

Highly Transmissive Optical Grade Materials

Secure Press-Fit Panel Mounting

Wide, Ultra-Bright Color Selections

Through-Hole And Surface Mount Versions

Wide Selection Of Lens Shapes And Sizes

Custom Lenses Available (Subject To Quotation

And Minimum Orders)

Award winning Flexible Light Pipes were introduced

in 1999 to eliminate daughter cards and hard-wired

front panel LEDs and to provide designers unmatched

flexibility in indicator placement and design.

BivarOpto’s patented flexible light pipe technology

allows for LEDs to be placed anywhere on a PCB or

within an enclosure. Installation is by means of a

simple press-fit application. Retention is vibration

and shock resistant. Non-conducting 94V-0

Polycarbonate lenses protect static sensitive compo-

nents from accidental ESD damage by eliminating

potential contact with circuitry. For more information

on Bivar’s Flexible Light Pipe technology visit us on

line at www.bivar.com.

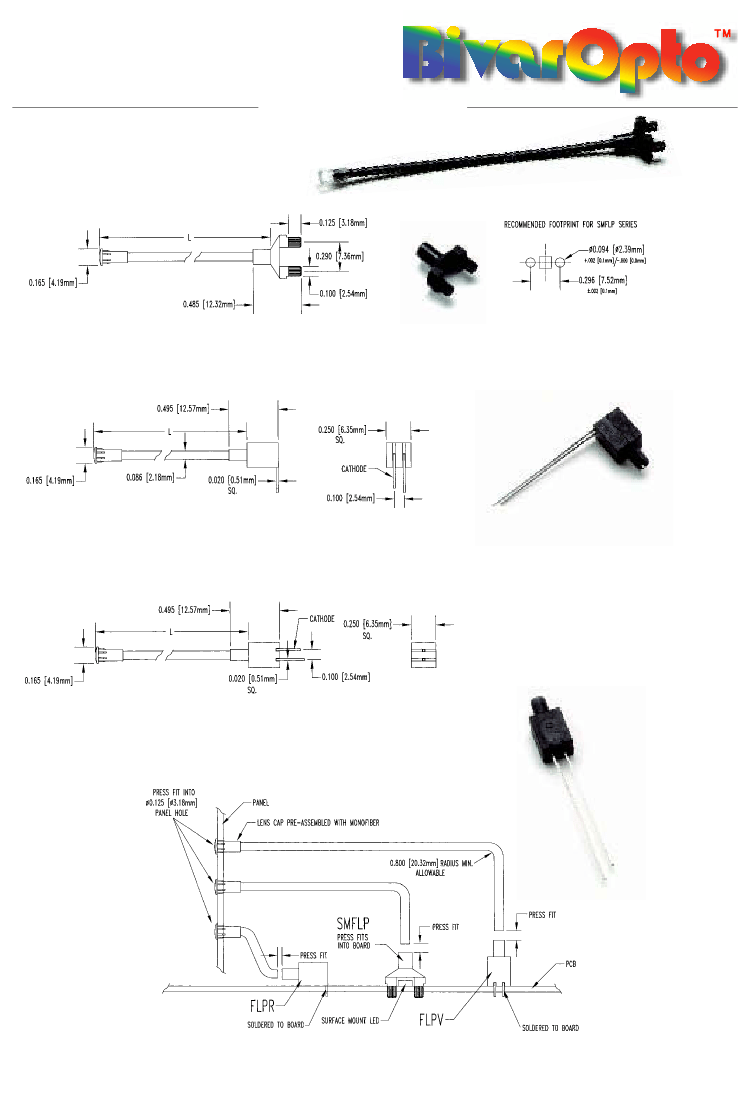

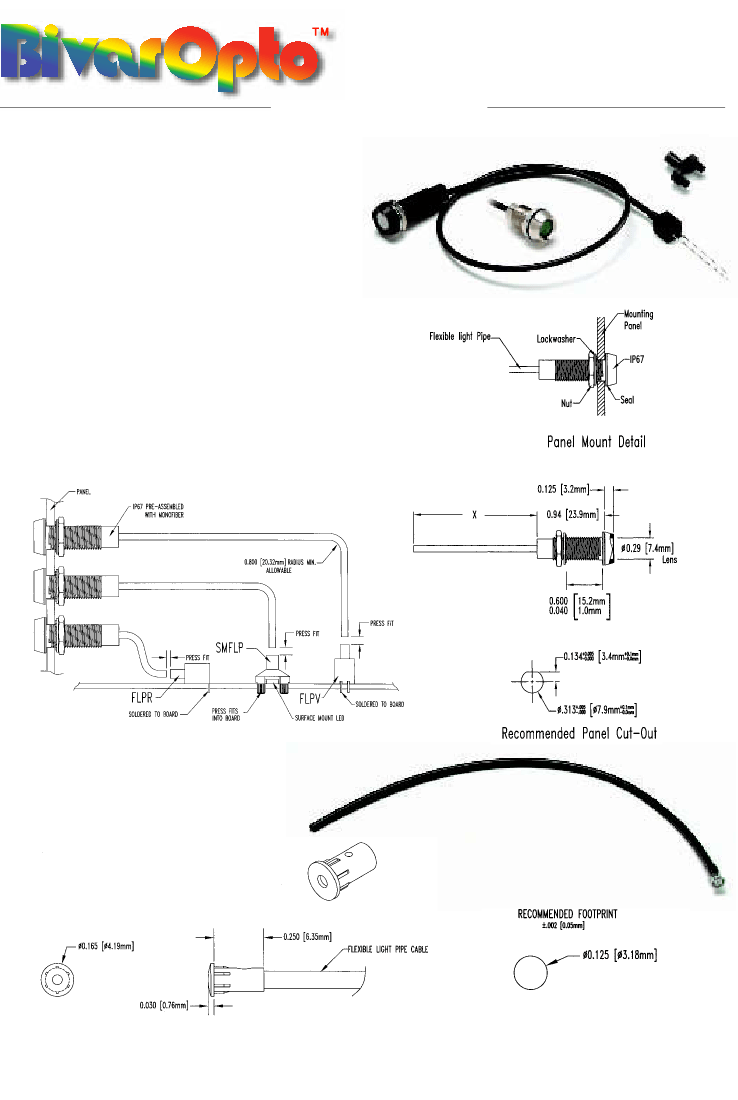

Mounting Information:

Front Panel: 0.040 [1mm] - 0.125 [3.2mm]

SMD Adapter Hole Size: 0.094" (2.4mm) diameter

+ 0.002 (0.05mm), - 0.000 (0.0mm) on

0.296" (7.5mm) centers ±0.002

Material Specifications Plastic Optical Fiber:

Fiber Core: PMMA 94-HB

Fiber Cladding: Fluorinated Polymer TFE

Fiber Jacket: 94V-0 PVC Alloy

Material Specifications Housings & Adapters:

SMFLP: UL 94V-0 rated, Black 6 Nylon

Oxygen Index: +28%

FLP: UL 94V-0 rated, Black 6 Nylon

Oxygen Index: +28%

Application Notes:

Available in lengths from 2.5" [63.5mm]

to 328.0' [100m]

After initial captured light loss of

approximately 4% for the fiber and 4%

for the Fresnel detail there is no significant

degradation over practical lengths.

Minimum bend radius of fiber is 10x

the diameter or 0.800 [20.3mm]

0603, 0805 and 1206 size SMD LEDs

are recommended for use with the SMD

adapter with minimum brightness levels

of 20 mcd.

Ordering Information:

FLP

Series

Lens

Orientation

Series Choices:

FLP (Through-hole)

SMFLP (Surface Mount Adapter)

6.0

Length

Color

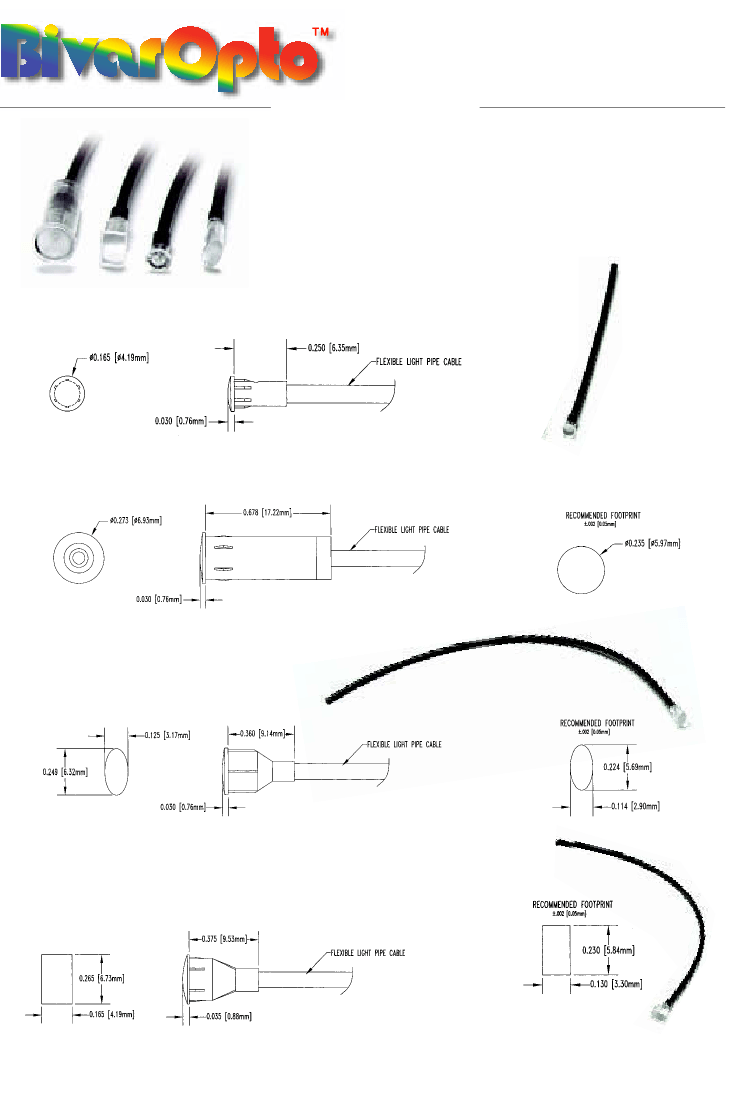

Lens Choices:

“Blank”

3mm clear lens

7mm clear lens

oval clear lens

rectangular 2x7 clear lens

Orientation:

(Through-hole only)

Right Angle

Vertical

Length:

Expressed in inches from 2.5" to 3940.0"

±0.250 [6.35mm] per 1.0' [304.8mm]

Color Options and Suffixes:

Suffix

UBW.6K

Color

Super Red

Super Green

Super Yellow

High Efficiency Red

Super Amber

Ultra Blue

Ultra Turquoise

Ultra Green

Peak (nm)

660nm

568nm

585nm

635nm

610nm

470nm

505nm

563nm

Typ. Vf

1.7

2.2

2.1

2.0

2.2

3.5

2.2
