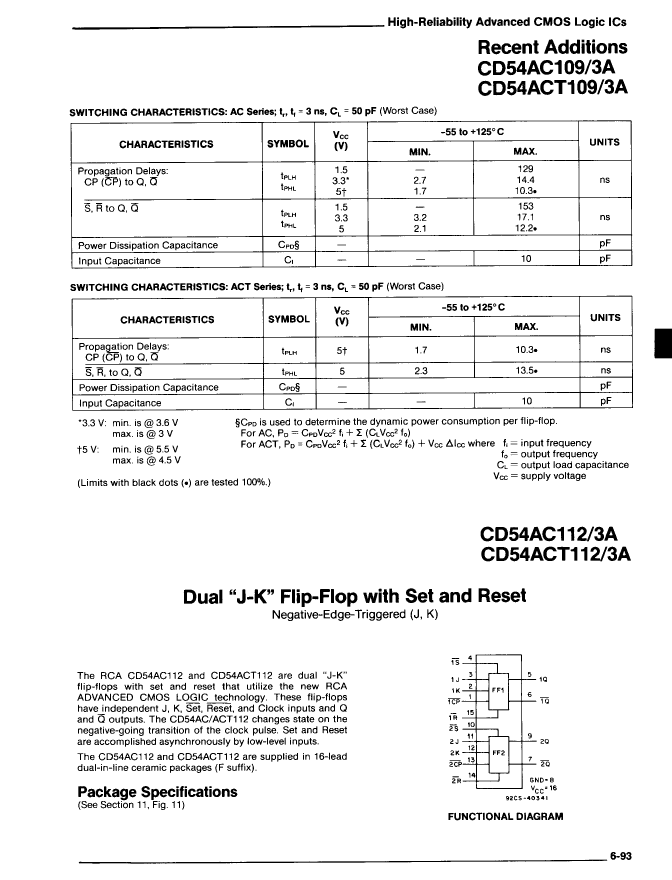

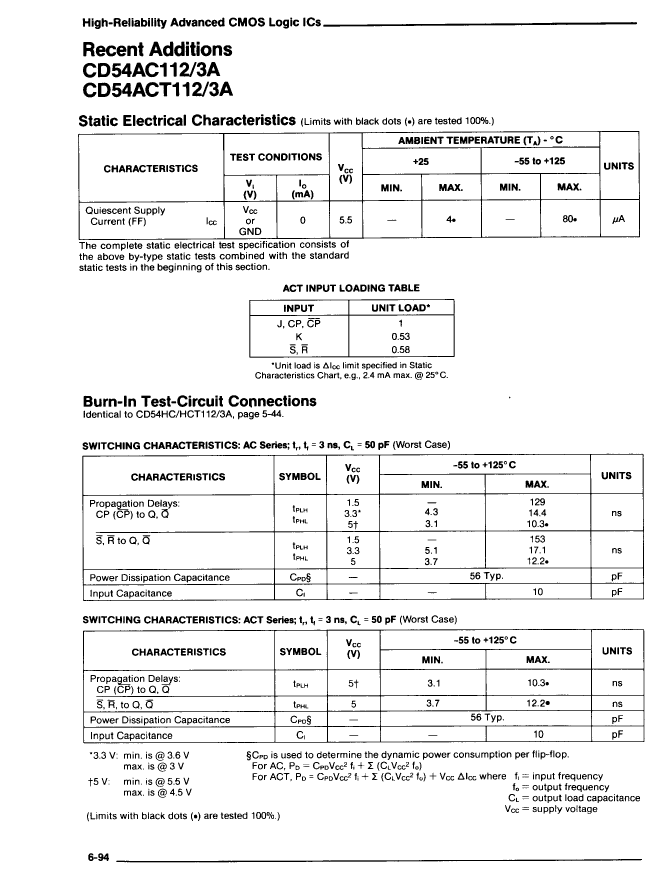

CD74ACT112M: DescriptionJ-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16,; Categorylogic logic; File Size115KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD74ACT112M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74ACT112M	-	-	View	Buy Now

CD74ACT112M Overview

J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16,

CD74ACT112M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.024 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

CD74ACT112M Related Products

	CD74ACT112M	CD54ACT112F	CD54AC112F	CD54AC112FX	CD74AC112EX	CD74ACT112M96	CD74AC112M	CD74ACT112EX	CD74AC112MX
Description	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, CDIP16	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDIP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDIP16,	J-K Flip-Flop, 2-Func, Negative Edge Triggered, CMOS, PDSO16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-PDSO-G16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
MaximumI(ol)	0.024 A	0.024 A	0.012 A	0.012 A	0.012 A	0.024 A	0.012 A	0.024 A	0.012 A
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	SOP16,.25	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	3.3/5 V	3.3/5 V	3.3/5 V	5 V	3.3/5 V	5 V	3.3/5 V
surface mount	YES	NO	NO	NO	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
package instruction	SOP, SOP16,.25	DIP, DIP16,.3	-	-	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25
Maximum Frequency@Nom-Sup	100000000 Hz	-	71000000 Hz	71000000 Hz	71000000 Hz	100000000 Hz	71000000 Hz	100000000 Hz	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	-	-
Maker	-	-	RCA	RCA	RCA	RCA	RCA	RCA	RCA
