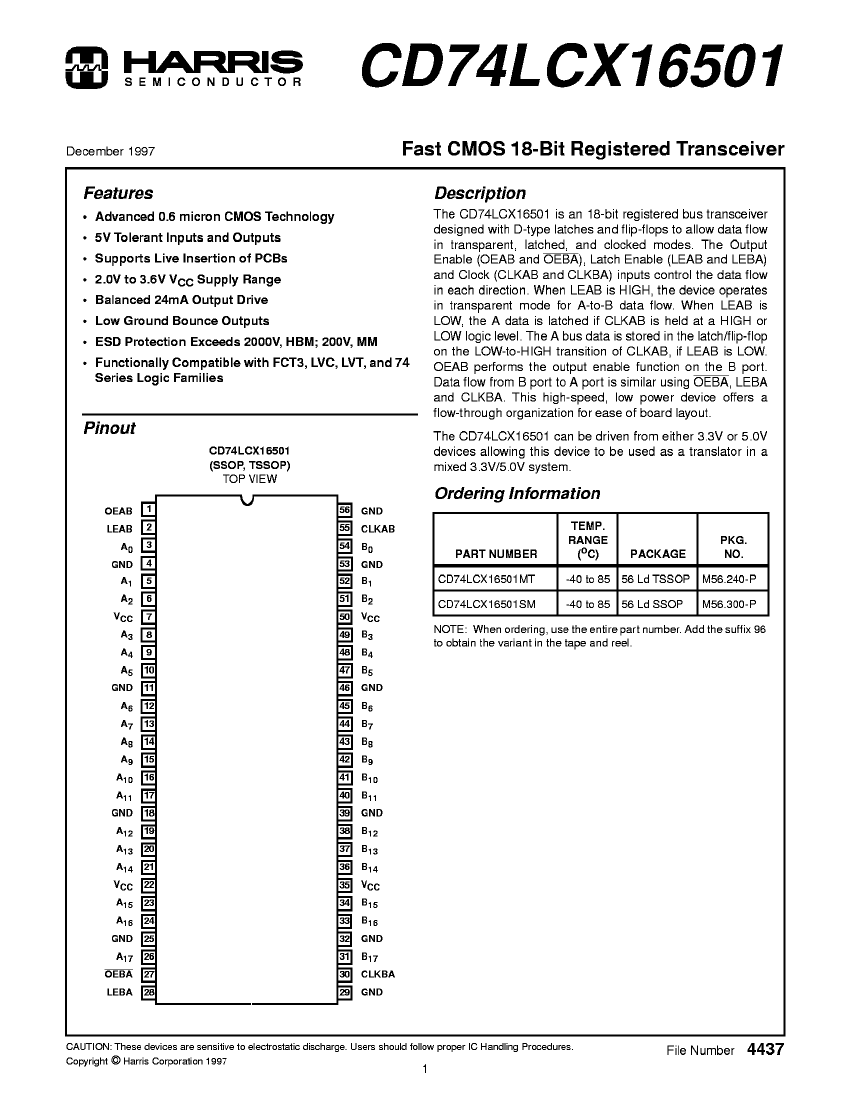

Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56

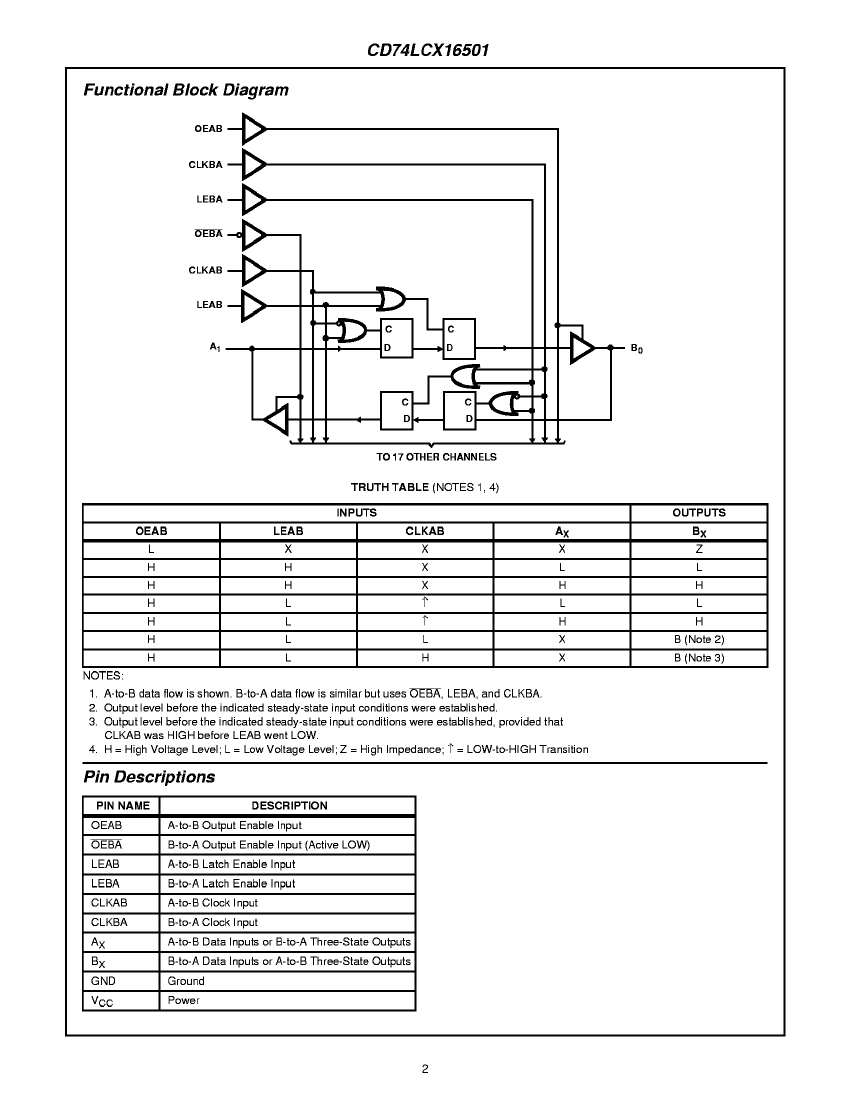

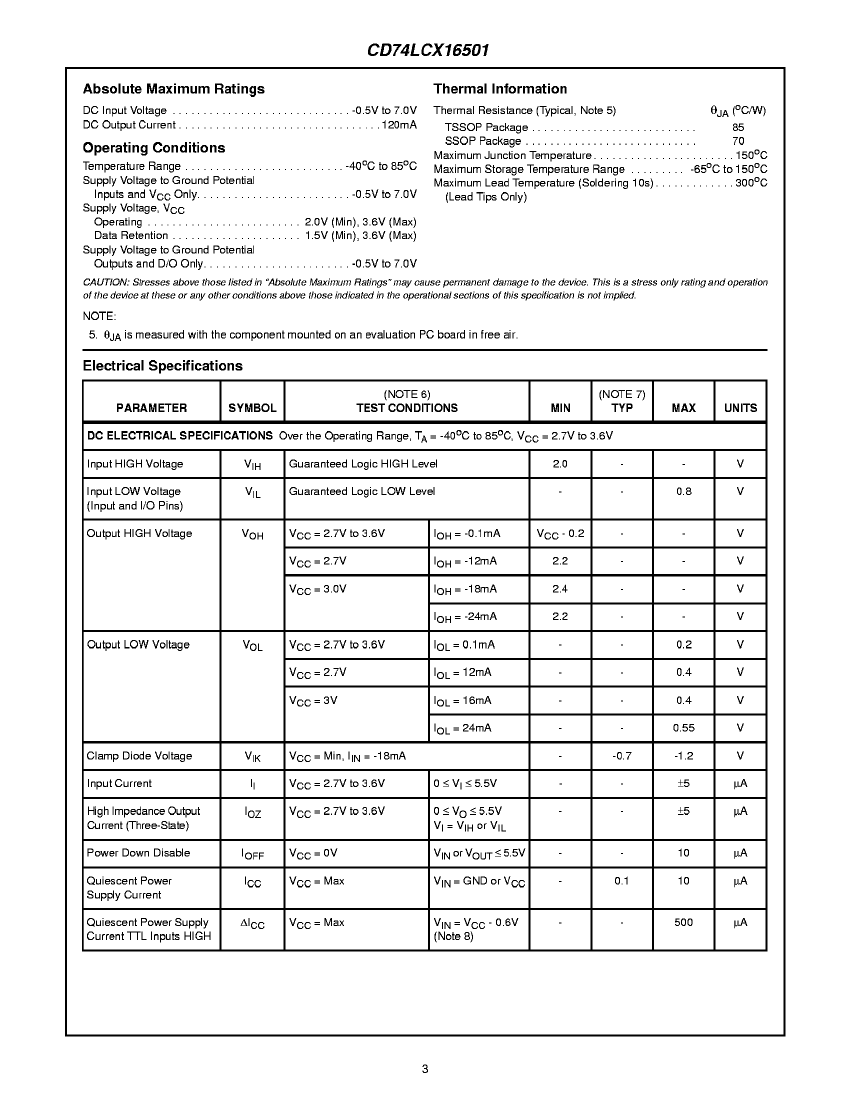

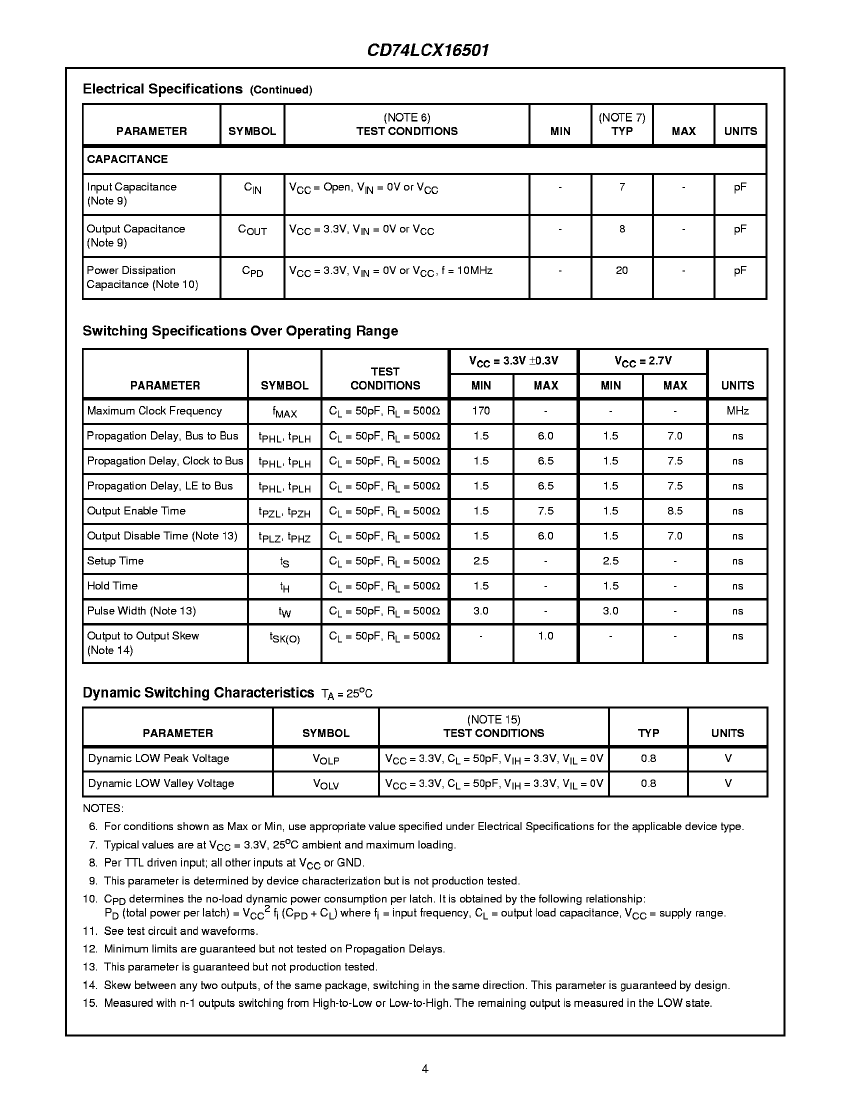

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | LVC/LCX/Z |
| JESD-30 code | R-PDSO-G56 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| Number of digits | 18 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 56 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 7.5 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 3.6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 3.3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| CD74LCX16501SM96 | CD74LCX16501MT96 | CD74LCX16501MT | CD74LCX16501SM | |
|---|---|---|---|---|
| Description | Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56 | Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56 | Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56 | Registered Bus Transceiver, LVC/LCX/Z Series, 1-Func, 18-Bit, True Output, CMOS, PDSO56 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | LVC/LCX/Z | LVC/LCX/Z | LVC/LCX/Z | LVC/LCX/Z |
| JESD-30 code | R-PDSO-G56 | R-PDSO-G56 | R-PDSO-G56 | R-PDSO-G56 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER |
| Number of digits | 18 | 18 | 18 | 18 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 56 | 56 | 56 | 56 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 7.5 ns | 7.5 ns | 7.5 ns | 7.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | - |
| Maker | - | Harris | Harris | Harris |
