TK10491MCBX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> TK10491MCBX

TK10491MCBX: DescriptionTelecom Circuit, 1-Func, PDSO16, MFP-16; CategoryWireless rf/communication Telecom circuit; File Size132KB，3 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

TK10491MCBX Overview

Telecom Circuit, 1-Func, PDSO16, MFP-16

TK10491MCBX Parametric

Parameter Name	Attribute value
package instruction	SSOP,
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
length	8.2 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum slew rate	4.4 mA
Nominal supply voltage	3 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

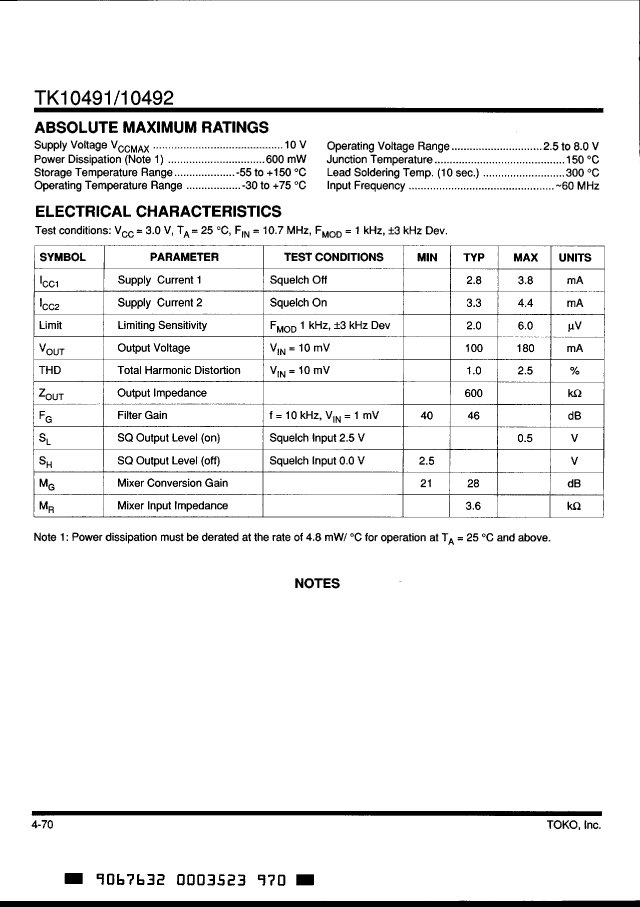

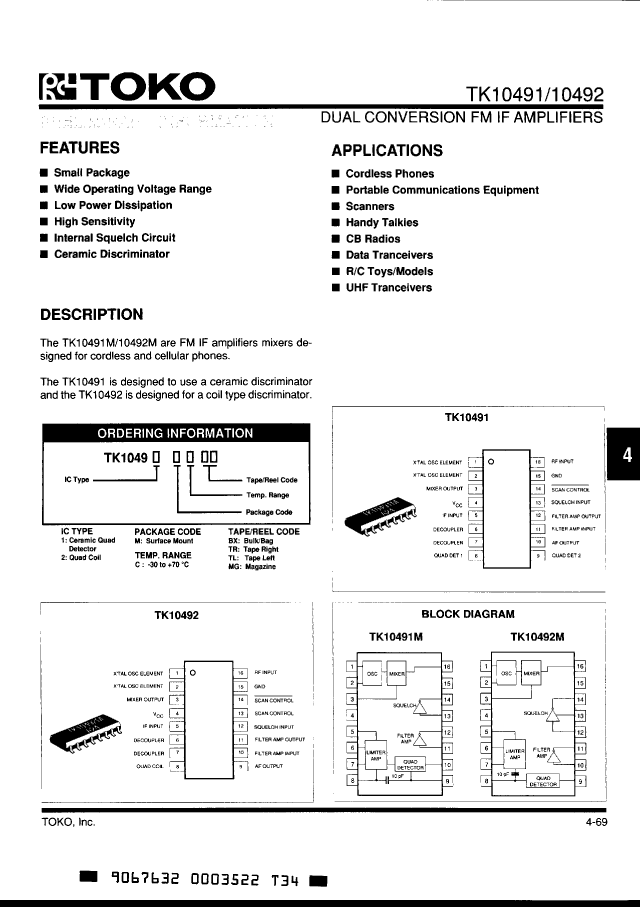

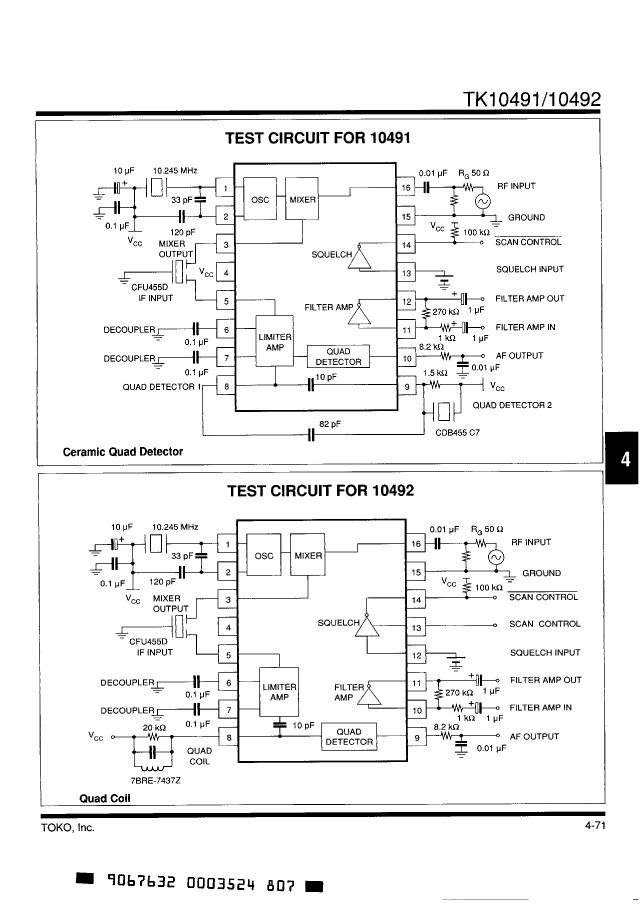

Preview

Download Datasheet

View All
