SP7.5-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SP7.5-A

SP7.5-A: DescriptionGeneral Purpose Inductor, 0.034uH, 1 Element, Ceramic-Core, SMD,; CategoryPassive components inductor; File Size53KB，1 Pages; ManufacturerPiconics Inc; Websitehttp://www.piconics.com

Download Datasheet Parametric Compare View All

SP7.5-A Overview

General Purpose Inductor, 0.034uH, 1 Element, Ceramic-Core, SMD,

SP7.5-A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	3 Ω
Nominal inductance(L)	0.034 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	10
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal shape	WIRE BOND PAD
Test frequency	200 MHz
Base Number Matches	1

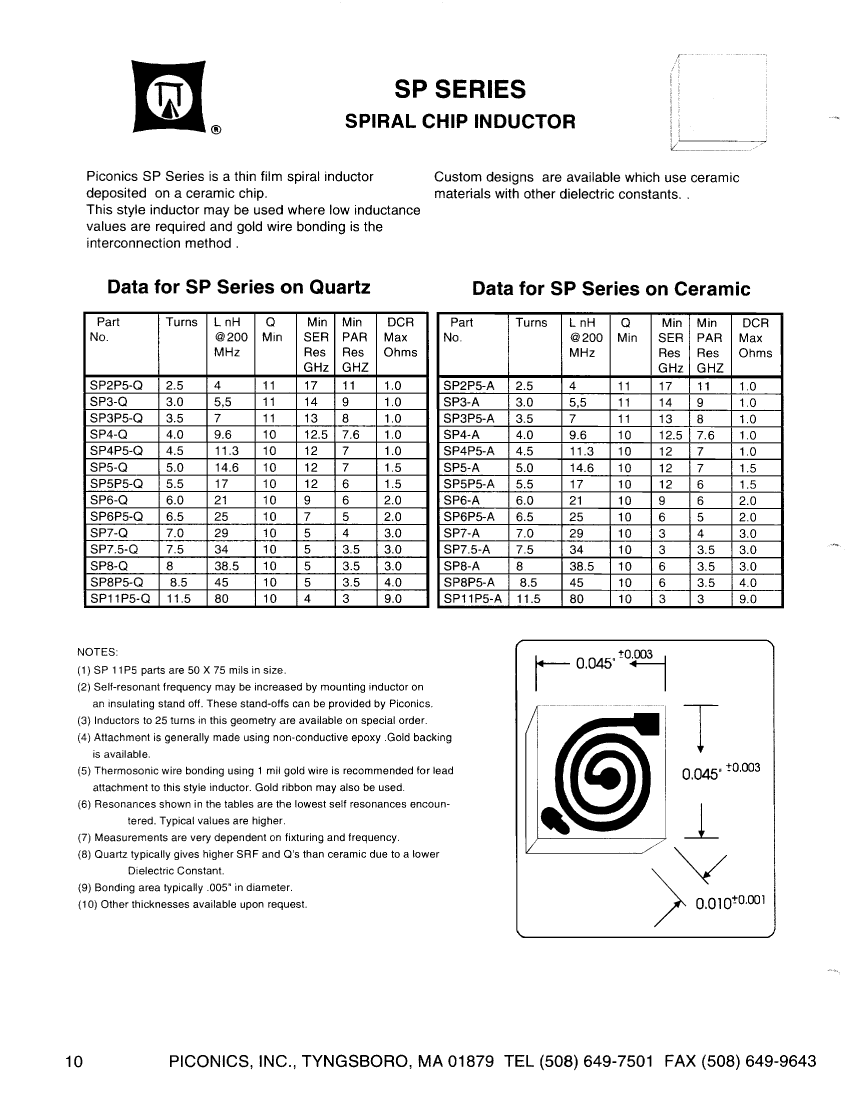

Preview

Download Datasheet

View All

SP7.5-A Related Products

	SP7.5-A	SP7.5-Q	SP4P5-Q	SP7-A	SP6-Q	SP6P5-A	SP8-Q	SP3-Q
Description	General Purpose Inductor, 0.034uH, 1 Element, Ceramic-Core, SMD,	General Purpose Inductor, 0.034uH, 1 Element, Quartz-Core, SMD,	General Purpose Inductor, 0.0113uH, 1 Element, Quartz-Core, SMD,	General Purpose Inductor, 0.029uH, 1 Element, Ceramic-Core, SMD,	General Purpose Inductor, 0.021uH, 1 Element, Quartz-Core, SMD,	General Purpose Inductor, 0.025uH, 1 Element, Ceramic-Core, SMD,	General Purpose Inductor, 0.0385uH, 1 Element, Quartz-Core, SMD,	General Purpose Inductor, 0.0055uH, 1 Element, Quartz-Core, SMD,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	CERAMIC	QUARTZ	QUARTZ	CERAMIC	QUARTZ	CERAMIC	QUARTZ	QUARTZ
DC Resistance	3 Ω	3 Ω	1 Ω	3 Ω	2 Ω	2 Ω	3 Ω	1 Ω
Nominal inductance(L)	0.034 µH	0.034 µH	0.0113 µH	0.029 µH	0.021 µH	0.025 µH	0.0385 µH	0.0055 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Minimum quality factor (at nominal inductance)	10	10	10	10	10	10	10	11
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal shape	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD	WIRE BOND PAD
Test frequency	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
self resonant frequency	-	3500 MHz	7000 MHz	-	6000 MHz	-	3500 MHz	9000 MHz
