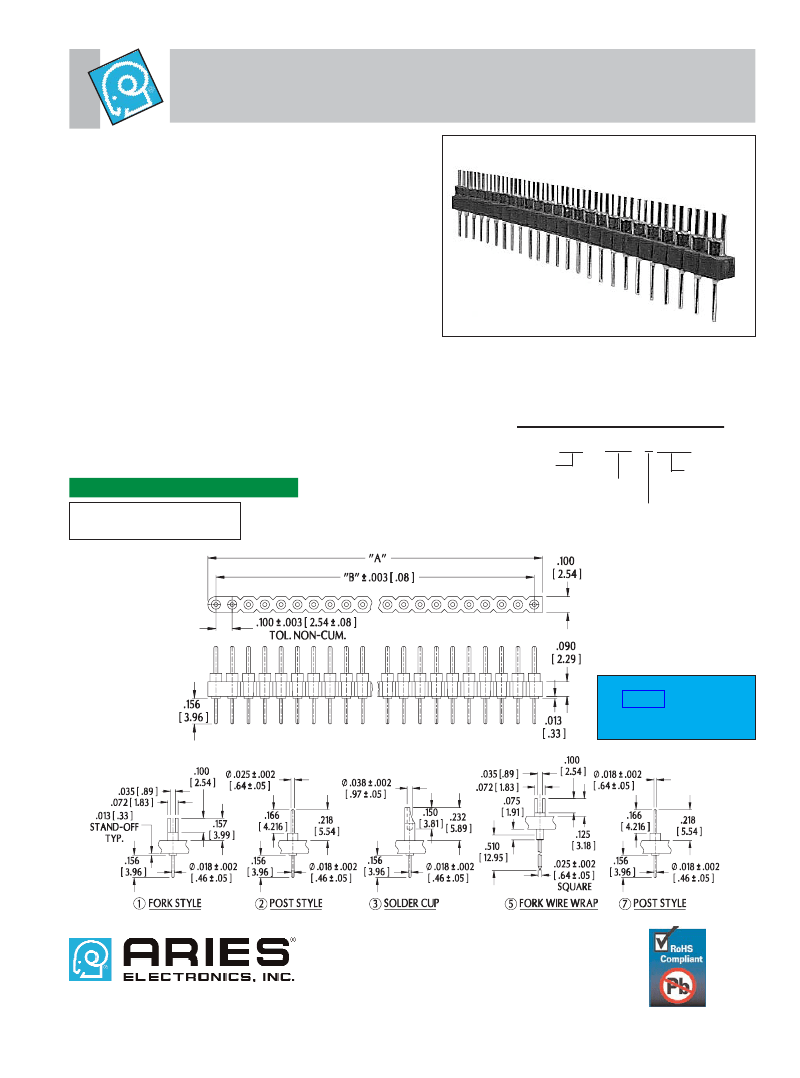

Series 0625 Pin-Line Headers
with Screw Machine Contacts
FEATURES:
• Aries Pin-Line headers are available with a variety of screw machined con-
tacts. Consult Data Sheet No. 12034 for strip-line headers with coined
contacts.
• ”Break” feature allows header to be cut to the number of
positions desired.
• Side-to-side and end-to-end stackable.
SPECIFICATIONS:
• Body material is Black UL 94-V0 Glass-filled 4/6 Nylon.
• Fork and Post style cont acts are Brass Alloy 360 1/2 hard per UNS
C36000 ASTM-B16-00.
• Solder cup style contact is Phosphor Bronze Alloy per
544 UNS C54400 ASTM-B139-01.
• Contact plating is either 10
μ
[.25μm] min. Gold per MIL-G-45204 or 200
μ
[5.08μm] min. 93/7 Tin/Lead per ASTM B545 or 200μ [5.08μm] min. Tin
per ASTM B545 Type 1 over 100μ [2.54μm] min. Nickel per SAE-AMS-
QQ-N-290.
• Contact current rating=2 Amps (3 Amps for Pin Style 5).
• Operating temperature= -67°F to 221°F [-55°C to 105°C]
Tin & Tin/Lead plating,
= -67°F to 257°F [-55°C to 125°C] Gold plating.
• Fork contact accepts up to .035 [.89] diameter leads.
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.028 ± .002 [.71 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-0625-XXXX
No. of pins:
1 to 25
Series
Pin style
(see below)
Plating:
0=Tin
0TL=Tin/Lead
1=Gold
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13] “A”=NO. OF PINS PER ROW X .100 [2.54]
unless otherwise specified “B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Consult Data Sheet No.
12034 for strip-line
headers with coined
contacts.
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
12036
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
