102691-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size154KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

102691-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL

102691-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.515 inch
subject depth	0.55 inch
body length	5.38 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
maximum insertion force	1.112 N
Insulation resistance	103000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	102691
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.48 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	100
Evacuation force-minimum value	.2085 N
Base Number Matches	1

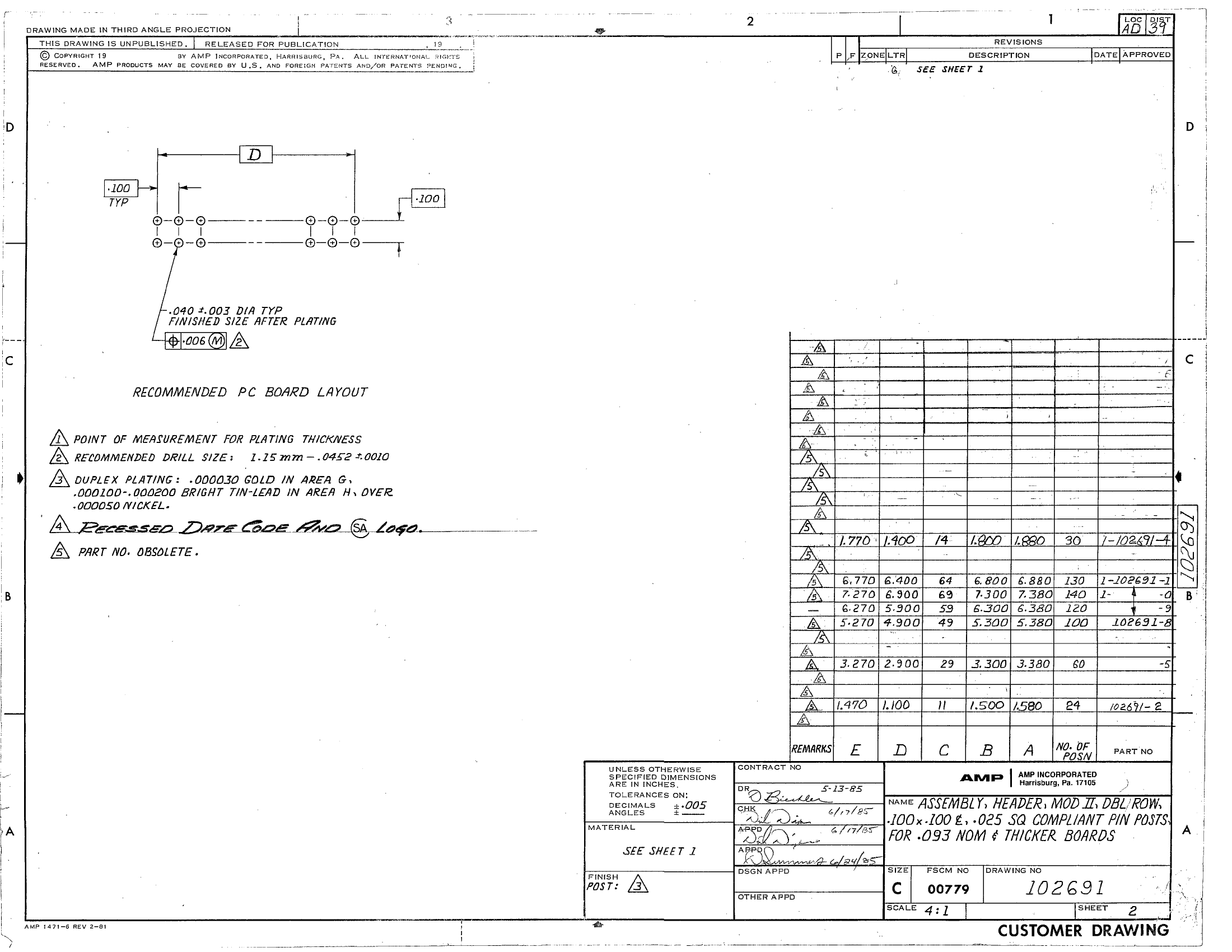

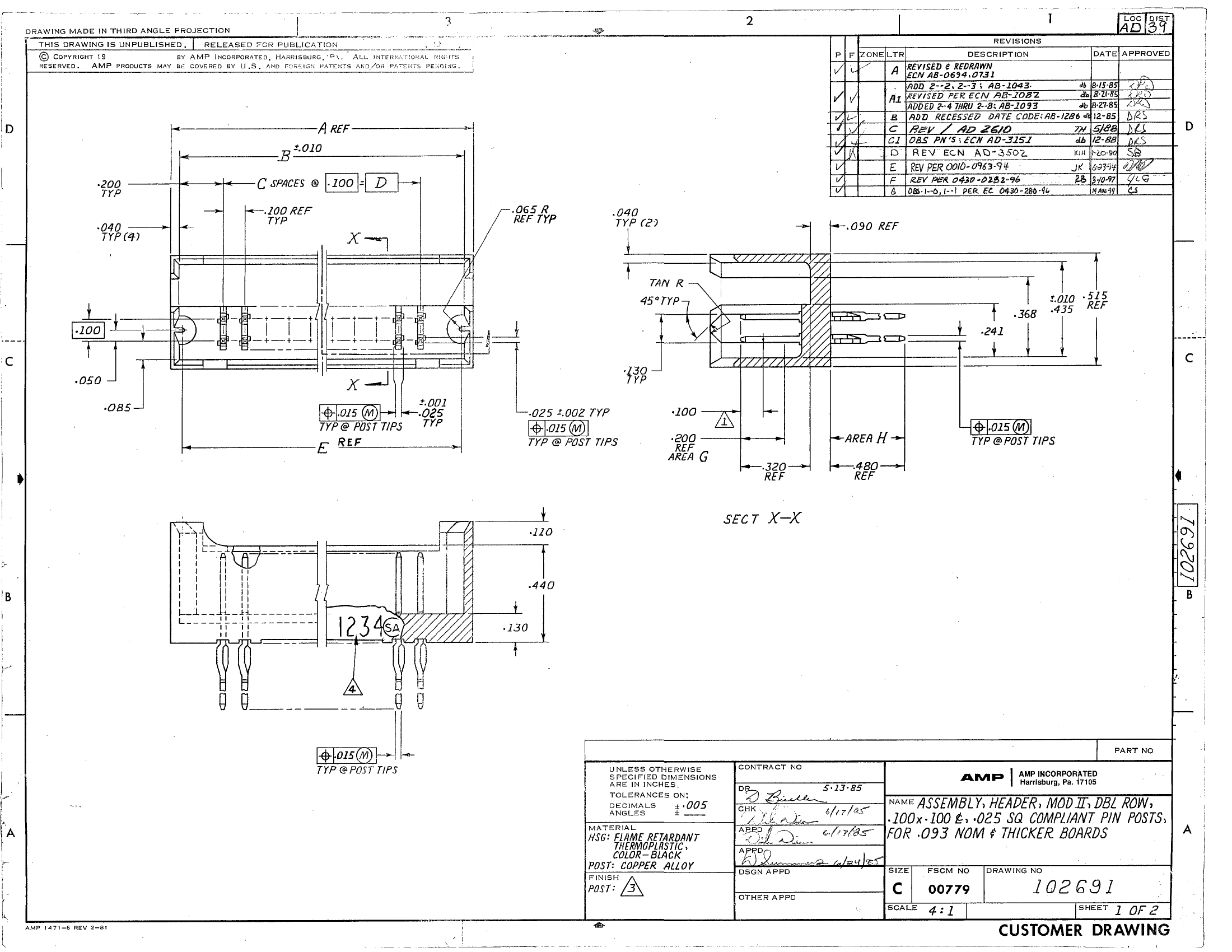

Preview

Download Datasheet

View All

102691-8 Related Products

	102691-8	1-102691-1	1-102691-0	102691-2	SM13T2-18-24.0M-50G3GG
Description	HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,130 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL	24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	Parallel - 3Rd Overtone Quartz Crystal, 24MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown
body width	0.515 inch	0.515 inch	0.515 inch	-	-
subject depth	0.55 inch	0.55 inch	0.55 inch	-	-
body length	5.38 inch	6.88 inch	7.38 inch	-	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	-
Contact completed and terminated	GOLD	GOLD	GOLD	-	-
Contact point gender	MALE	MALE	MALE	MALE	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact resistance	12 mΩ	12 mΩ	12 mΩ	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	-	-
Durability	200 Cycles	200 Cycles	200 Cycles	-	-
maximum insertion force	1.112 N	1.112 N	1.112 N	-	-
Insulation resistance	103000000 Ω	103000000 Ω	103000000 Ω	-	-
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	-	-
Manufacturer's serial number	102691	102691	102691	-	SM13T2
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	-	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	-
Number of connectors	ONE	ONE	ONE	ONE	-
PCB row number	2	2	2	-	-
Number of rows loaded	2	2	2	2	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	-	-
Plating thickness	30u inch	30u inch	30u inch	-	-
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	-	-
Rated current (signal)	2 A	2 A	2 A	-	-
Guideline	UL, CSA	UL, CSA	UL, CSA	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-
Terminal length	0.48 inch	0.48 inch	0.48 inch	-	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-
Total number of contacts	100	130	140	24	-
Evacuation force-minimum value	.2085 N	.2085 N	.2085 N	-	-
Base Number Matches	1	1	1	-	-
