METALLIZED POLYPROPYLENE
OIL FILLED MOTOR RUN
X386S
PAGE 5 OF 5
GENERAL SPECIFICATIONS
PHYSICAL CHARACTERISTICS
CONSTRUCTION:
NON-INDUCTIVE WOUND METALLIZED POLYPROPYLENE.
CASE:
NON-CORROSIVE SEAMLESS CAN WITH DOUBLE ROLL LOCK COVER, SUITABLE FOR
OUTDOOR APPLICATIONS.
LEAD MATERIAL:
4-TINE AMP250 QUICK DISCONNECT TERMINALS STANDARD, ALSO AVAILABLE
WITH 2 OR 3 TINES AND/OR WITH A BLEEDER RESISTOR UPON REQUEST.

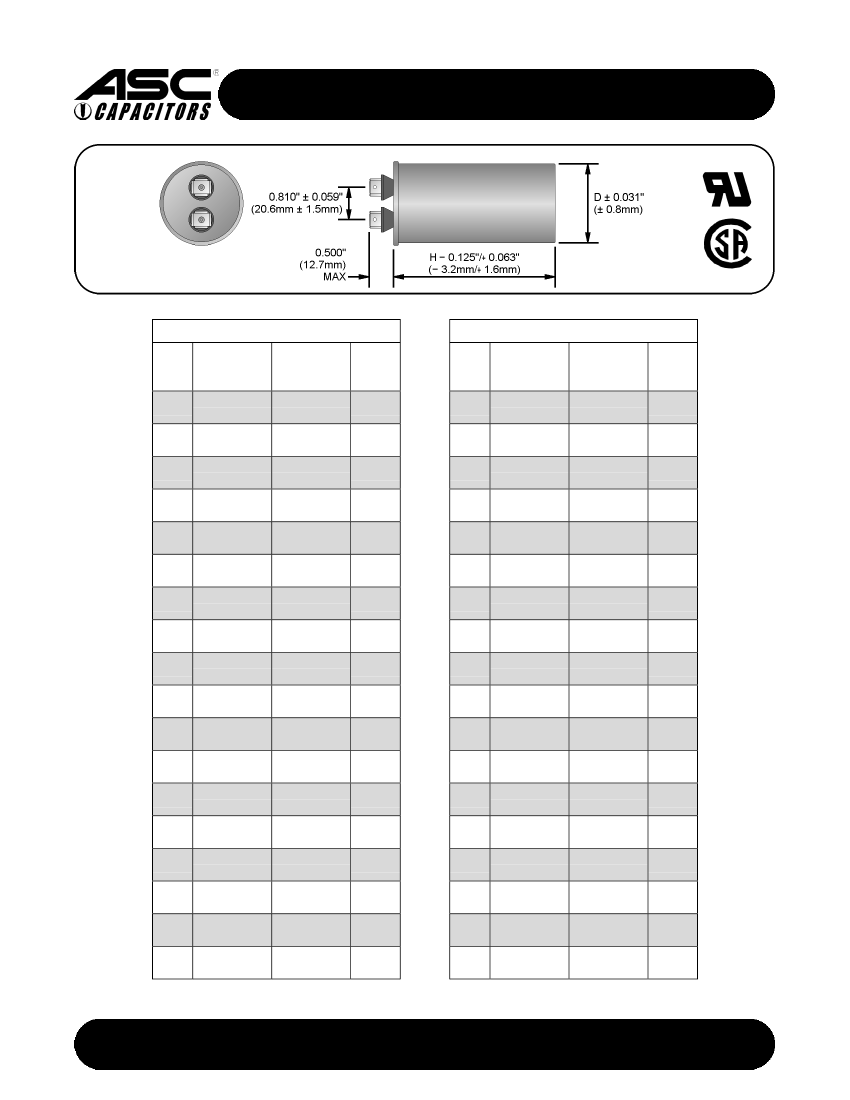

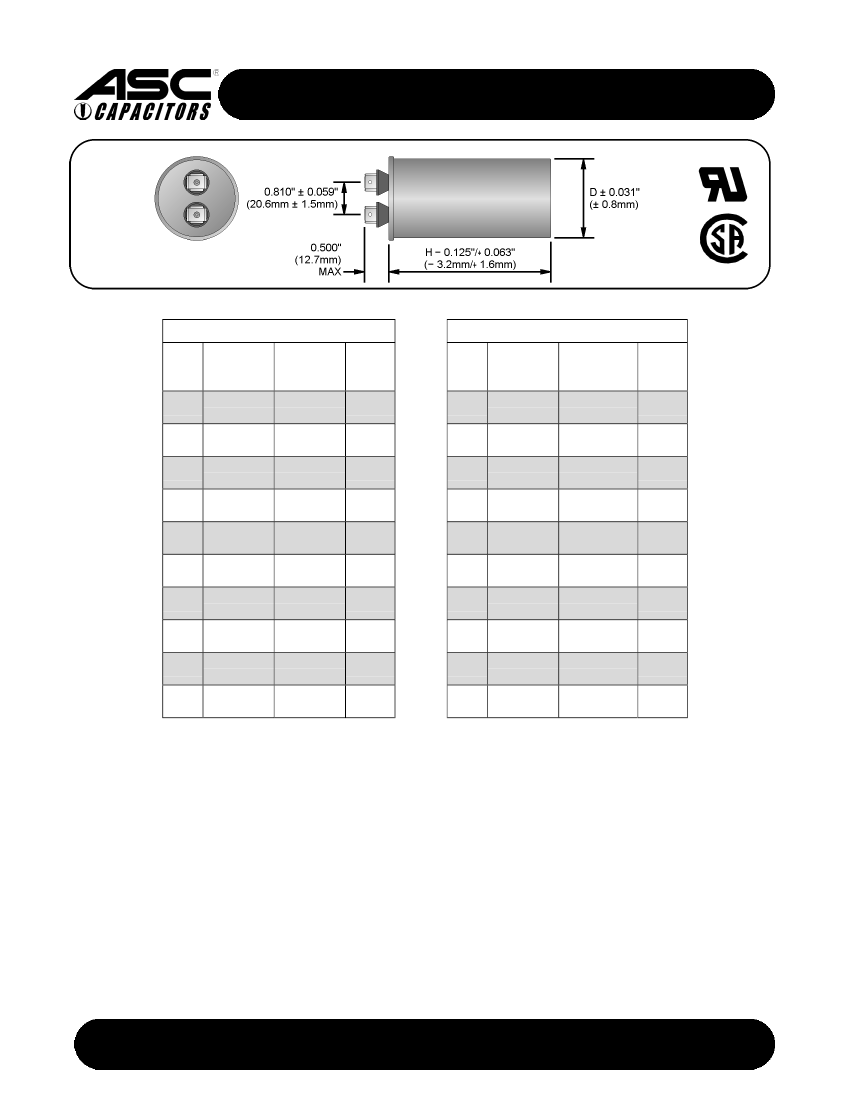

DIMENSIONS:
AS SPECIFIED IN TABLES. CAN SEAM DIAMETER TYPICALLY 0.125" (3.2mm) GREATER
THAN CAN BODY DIAMETER SPECIFIED IN TABLES.
ELECTRICAL CHARACTERISTICS
CAPACITANCE:
AS SPECIFIED IN TABLES ± REQUESTED TOLERANCE WHEN MEASURED AT OR
REFERRED TO 60 ± 5 HZ AND 25 ± 5 °C. OTHER CAPACITANCE VALUES AVAILABLE UPON REQUEST.
TOLERANCE:
±3%, ±5%, ±6%, AND ±10% AVAILABLE. OTHER TOLERANCES AVAILABLE UPON
REQUEST.
DISSIPATION FACTOR:
SHALL NOT BE GREATER THAN 0.1% WHEN MEASURED AT OR REFERRED TO
60 ± 5 HZ AND 25 ± 5 °C.
DIELECTRIC STRENGTH:
TERMINAL TO TERMINAL - 180% RATED VOLTAGE FOR 1 SECOND AT
25 ± 5 °C. TERMINAL TO CASE - 200% RATED VOLTAGE + 1000VAC FOR 1 SECOND AT 25 ± 5 °C.
RATED VOLTAGE:
240VAC, 330VAC, 370VAC, 440VAC AND 660VAC AVAILABLE. ALL RATINGS ARE FOR
50/60 HZ OPERATION ONLY. OTHER VOLTAGE RATINGS AVAILABLE UPON REQUEST.
TEMPERATURE:
-40 °C TO +70 °C AT FULL RATED VOLTAGE OPERATIONAL TEMPERATURE.
ADDITIONAL INFORMATION
ORDERING INFORMATION:
ALL ASC CAPACITORS ARE ORDERED BY "FAMILY CAP-TOL-VOLT"
DESIGNATION. (I.E. TO ORDER AN X386S 20.0µF, ±10%, 400VAC CAPACITOR, REQUEST PART NUMBER
"X386S 20-10-400")
SEE ALSO:
"GENERAL INFORMATION - POLYPROPYLENE CAPACITORS" DOCUMENT FOR ADDITIONAL
PHYSICAL, ELECTRICAL, AND PERFORMANCE CHARACTERISTICS NOT MENTIONED IN THIS FILE.
AGENCY APPROVALS:
RECOGNIZED FOR 10,000 AFC UNDER THE FOLLOWING AGENCIES:
UL810, FILE NUMBER E83671
CSA STANDARD C22.2 NUMBER 190, FILE NUMBER LR68148
WARNING:
INFORMATION ON THIS FILE IS SUBJECT TO CHANGE WITHOUT NOTICE AT ASC'S
DISCRETION.
LAST MODIFIED: 09/25/01
Phone: (308) 284-3611
Fax: (308) 284-8324
301 WEST O STREET
•
OGALLALA, NE 69153
e-mail: sales@ascapacitor.com
web: www.ascapacitor.com
