for up to 6 AWG [10mm²] as well as PCB and busbar contacts.
Description
------- Part Numbers --------
Minimum Quantity ... 1,000
100 ......
Red
5916G7-BK
5916G7
Green
5916G6-BK
5916G6
Black
5916G4-BK
5916G4
White
5916G5-BK
5916G5
Blue
5916-BK
5916
Yellow
5916G15-BK 5916G15
Orange
5916G14-BK 5916G14
Gray
5916G16-BK 5916G16
[ 15.9 ]
0.62
[ 15.9 ]
0.62
[ 47.9 ]
1.88
[ 17.0 ]
0.67
[ 81.3 ]
3.20
Front View
Mated Length

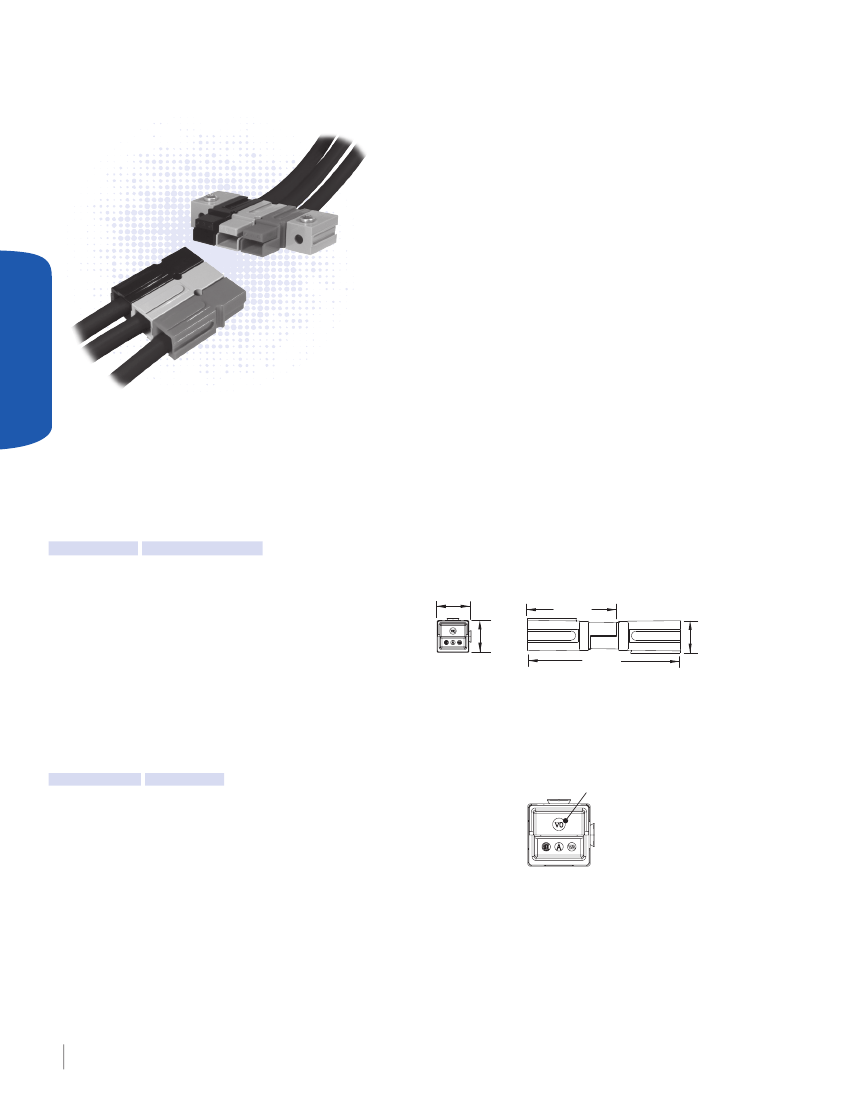

PP75 Chemical Resistant (CR) Housings
Has the same form and dimensions of the standard
PP75 housing in a chemical resistant PBT/ PC blend
housing. Suitable for use to -40°C.
Description
- Part Numbers -
Minimum Quantity ...
1,000 .......
Red
P5916G7-BK
Black
P5916G4-BK
White
P5916G5-BK
Blue
P5916-BK
Material ID
Located Here
V0 = Standard
P = Chemical Resistant
- 30 -
www.andersonpower.com
All Data Subject To Change Without Notice
PP75 Locking Dovetail Housings
Offers dovetails for stacking housings that have a locking feature to prevent housings separating.
Can mate to standard and chemical resistant housings, but cannot be stacked with them.
Description
---------- Part Numbers -----------
Minimum Quantity ....
1,000
100 .....
Red
75LOKRED-BK
75LOKRED
Green
75LOKGRN-BK
75LOKGRN
Black
75LOKBLK-BK
75LOKBLK
White
75LOKWHT-BK
75LOKWHT
Blue
75LOKBLU-BK
75LOKBLU
Gray
75LOKGRA-BK
75LOKGRA
[ 47.9 ]
1.88

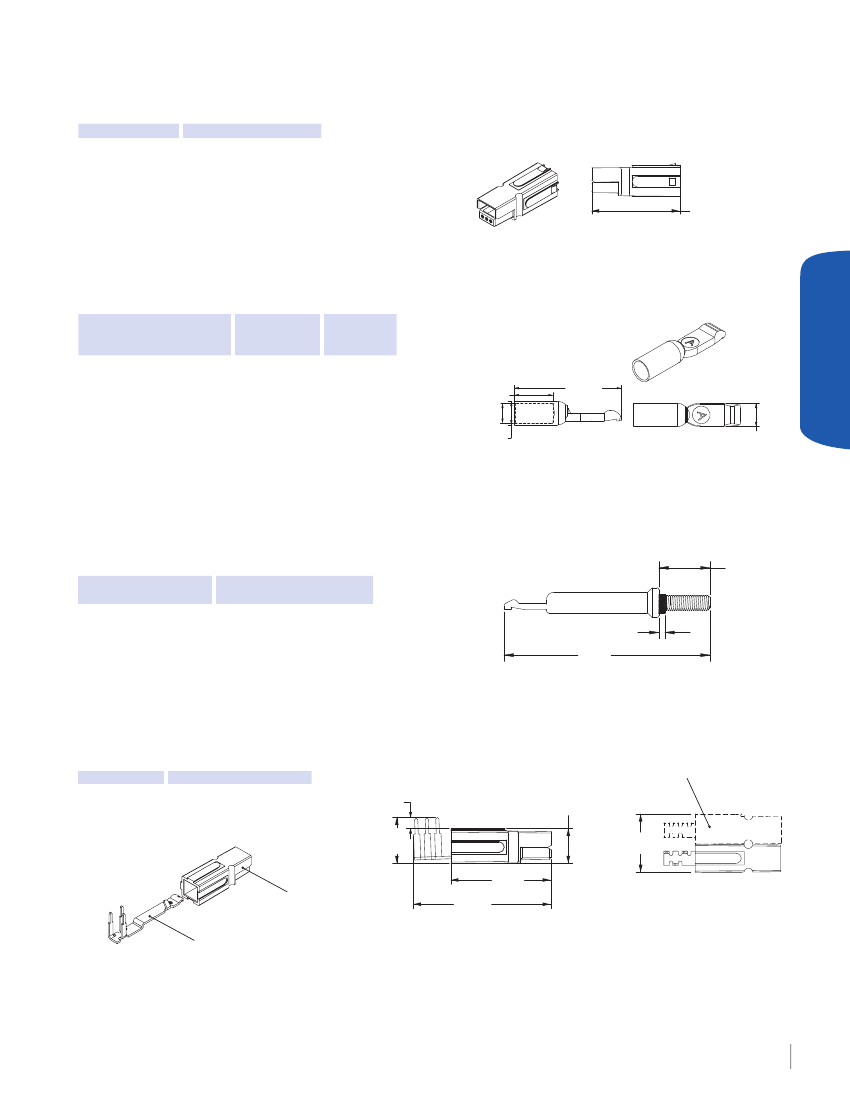

PP75 Silver Plated Wire Contacts
Powerpole
®
PP75
SECTION 2
Silver plated contacts offer the best electrical performance and durability up to 10,000 mating cycles.
See reducing bushings in accessory section for smaller wires.
Mating
AWG
mm²
Force
Minimum Quantity ........................
6
13.3
Low
6
13.3
High
8
8.4
High
12 to 10
3.3 to 5.3 Low
12 to 10
3.3 to 5.3 High
Loose Piece
-- Part Numbers --
1,000
100
1307-BK 1307
5900-BK 5900
5952-BK 5952
5953-BK 5953
5915-BK 5915
Dimensions
-A-
inches mm
........................
0.22
5.59
0.22
5.59
0.19
4.83
0.14
3.56
0.14
3.56
[ 11.4 ]
0.45
A
[ 7.2 ]
0.28
[ 30.0 ]
1.18
[ 7.1 ]
0.28
PP75 Silver Plated Busbar Contacts
Provide a quick disconnect input or output busbar connection. Busbar contacts are
for mating with wire contacts only. Part number 75BBS includes lock nuts. Locknuts
must be ordered separately for B01956P4.
Mating
Type
Thread Force ------------- Part Numbers --------------
Minimum Quantity .................
1,000
20
10 ...
Busbar
#10-24 High
B01915P1
-
75BBS
Lock Nut #10-24
-
H1216P8
110G54
-
See Busbar contact drawing on
website for further detail.
[ 17.1 ]
0.68
[ 2.0 ]
0.08
[ 69.1 ]
2.72
55A Right Angle Standard Powerclaw PCB Contacts
Standard Powerclaw contacts are for use inside a PP75 housing and
provide a color coded right angle connection to the PCB.
Description
--- Loose Piece Part Numbers --
Minimum Quantity .....
500
100 ........
Tin Plated
PC5930T-BK
PC5930T
Silver Plated
PC5930S-BK
PC5930S
Second housing
and contact in two
pole version only.
[ 17.0 ]
0.67
[ 32.8 ]
1.29
[ 48.0 ]
1.89
See PCB contact drawing on
website for further detail.
[ 5.2 ]
0.20
[ 22.2 ]
0.87
PP75 Housing
[ 66.0 ]
2.60
Standard Powerclaw Contact
All Data Subject To Change Without Notice
www.andersonpower.com
- 31 -
55A Right Angle Mini Powerclaw PCB Contacts
Right angle Mini Powerclaw contacts can be used on the PCB edge
without a PP75 housing on the PCB side. A self polarizing design only
allow PP75 wire housings to mate to PCB contacts one way.
Loose Piece
Description
-------- Part Numbers --------
Minimum Quantity ... 1,000
100 ......
Tin Plated
PC5934T-BK PC5934T
Silver Plated
PC5934S-BK PC5934S
[ 58.4 ]
2.30
[ 15.6 ]
0.61
[ 8.1 ]
0.32
[ 7.6 ]
0.30
[ 2.42 ]
0.095
[ 6.10 ]
0.240
[ 24.6 ]
0.97
[ 12.19 ]
0.480
[ 17.5 ]
0.69
[ 25.4 ]
1.00
[ 1.27 ]
0.050
55A Vertical Mini Powerclaw PCB Contacts
Vertical Mini Powerclaw contacts save space by not
requiring a PP75 housing on the PCB side. The guide
housing is required for 2 pole applications to provide a
polarized connection. (See PP75 accessories).
[ 12.2 ]
0.48
[ 24.3 ]
0.96
[ 9.7 ]
0.38
[2.32]
0.091
[ 10.29 ]
0.405
[ 6.25 ]
0.246
Powerpole
®
PP75
SECTION 2
Loose Piece
Description
--------- Part Numbers -------
Minimum Quantity ...
1,500
100 ......
Tin Plated
PC5933T-BK PC5933T
Silver Plated
PC5933S-BK PC5933S
[ 1.27 ]
0.050
[ 4.98 ]
0.196
See PCB contact drawing on website for further detail.

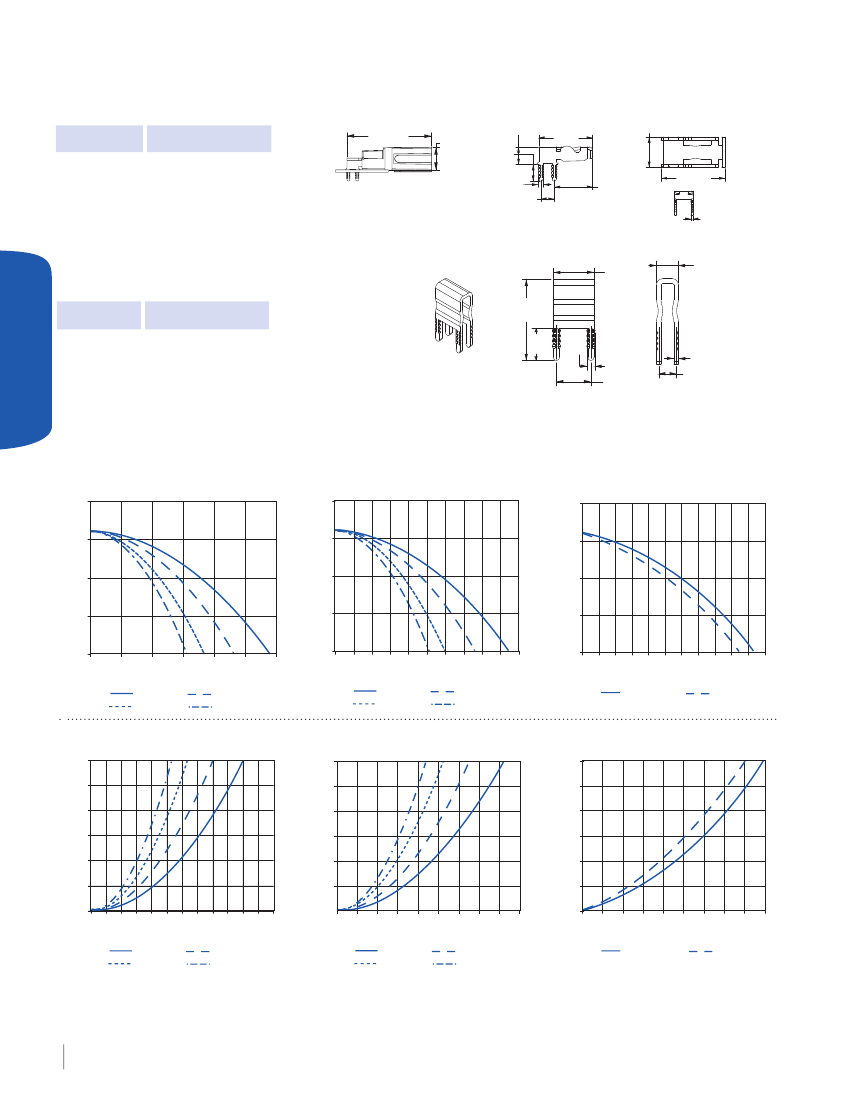

| PP75 TEMPERATURE CHARTS |
125
PP75 Singlepole
Derating vs. Ambient Temperature
125
PP75 Multipole
Derating vs. Ambient Temperature
125
Mini Powerclaw
Derating vs. Ambient Temperature
Temperature (°C)
Temperature (°C)
75
75
50
Temperature (°C)
0 10 20 30 40 50 60 70 80 90 100
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
100
100
100
75
50
50
25
25
0
20
40
60
80
100
120
25
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
PP75 Singlepole Loose Piece Contact
Temperature Rise at Constant Current
0 10 20 30 40 50 60 70 80 90 100110
Amperes Applied
Singlepole
2-Pole
60
50
Temperature (°C)
60
50
Temperature (°C)
PP75 Multipole Loose Piece Contact
Temperature Rise at Constant Current
60
50
Temperature (°C)
40
30
20
10
Mini Powerclaw
Temperature Rise at Constant Current
40
30
20
10
0
0 10 20 30 40 50 60 70 80 90 100 110 120
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
40
30
20
10
0
0
10 20 30 40 50 60 70 80 90
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
0
0
10 20 30 40 50 60 70 80 90
Amperes Applied
Singlepole
2-Pole
NOTE: Temperature rise charts are based on a 25°C ambient temperature. Powerclaw charts are based on #8 AWG equivalent copper foil on board side, mated to
#6 AWG conductor on wire side.
- 32 -
www.andersonpower.com
All Data Subject To Change Without Notice
| PP75 SPECIFICATIONS |
Electrical
Current Rating Amperes¹
Wire to Wire (6 AWG)
Wire to PCB (6-AWG)
Wire to Busbar (6 AWG)
Voltage Rating AC/DC
UL 1977
UL 1977
120
55
75
CSA
70
50
Mechanical
Wire Size Range
Wire Contcts with Bushings
Max. Wire Insulation Diameter
AWG
16 to 6
in.
0.437
mm²
1.3 to 13.3
mm
11.100
°C
-20° to 105°
-40° to 105°
600
PCB Connector Recommended Voltage
3
per IEC 60950-1 Table 2L Pollution Degree
2
Mini Vert. Contact Adjacent Poles
220
Mini Horiz. Contact Adjacent Poles
200
Standard Contact Adjacent Poles
635
Dielectric Withstanding Voltage
Volts AC
Operating Temperature²
°F
Standard
-4° to 221°
Chemical Resistant*
-40 to 221°
*Chemical resistant material not available for PCB guide housings
Mating Cycles No Load by Plating
Wire and PCB Contacts
Avg. Mating / Unmating Force
Wire to Wire Low Force Contacts
Wire to Wire High Force Contacts
Standard Powerclaw to Wire
Mini Powerclaw to Wire
PCB Specifications
Mounting Style
Max PCB Thickness- in. [mm]
Recommended Traces
Min. Contact / Spring Retention Force
Wire Housing
Min. Creepage / Clearance Distance PCB
Standard Powerclaw Adjacent Poles
Mini Vert. Powerclaw Adjacent Poles
Mini Horz. Powerclaw Adjacent Poles
Silver (Ag)
10,000
Lbf.
5
7
7
4
Tin (Sn)
1,500
N
22
31
31
17
Powerpole
®
PP75
SECTION 2
2,200
Avg. Mated Contact Resistance Milliohms¹
Wire Contact with 1 1/4” of #6 AWG
0.200
PCB Contact to Contact
0.500
UL Hot Plug Current Rating Amperes - 250 cycles at 120V DC
Wire- wire
50A
PCB- wire (Vertical Mini Powerclaw)
40A
Materials
Plated Through Hole
Standard: 0.15 [0.381]
Mini:
0.25 [0.635]
#8 AWG Cross Section
Lbf.
50
in.
0.260
0.087
0.079
N
222
mm
6.6
2.2
2.0
Housing
Standard Plastic Resin
Chem. Resistant Resin
Contact Retention Spring
Polycarbonate
Polycarbonate / PBT blend
Stainless Steel
Housing Flammability Rating
UL94
V-0
Contact
Base
Wire Plating
PCB Plating
Copper Alloy
Silver
Sn or Ag over Ni
Protection
Touch Safety with Wire Contacts
IEC 60529
IP10
Contact Termination Methods
Crimp
4
Wire Contacts
Hand Solder
Wire and PCB Contacts
Solder Dip*
PCB Contacts
Wave Solder*
PCB Contacts
Wrench / Socket
Busbar Contacts
¹ Based on: 105°C rated or better cable of the largest size, Properly calibrated APP
®
recommended tooling, and a 25°C ambient temperature. UL rating not to exceed
the maximum operating temperature. CSA rating below a 30°C temperature rise.
² Limited by the thermal properties of the connector plastic housing.
³ Without use of spacers to increase creepage and clearance distances.
4
Use APP
®
recommended tooling only. Alternate tools may adversely affect the performance of our connectors along with UL and CSA recognition.
All Data Subject To Change Without Notice
www.andersonpower.com
- 33 -
| Powerpole
®
PP75 Accessories |
Strain Relief Grommets
Use for strain relief in the back side of a PP75 housing. Wire gauge given for
reference only, use grommet ID and wire OD to determine suitability in the
end application.
Dimensions
-A-
Description
- Part Numbers - inches mm
Minimum Quantity ...
100
.......................
#6 AWG, Black
114411P2
0.35 8.89
#8 AWG, Black
114411P1
0.25 6.35
#10 - 12 AWG, Black
114411P3
0.17 4.32
A
Mounting Wing for Standard or CR Housings
®
Powerpole
®
PP75
Mounting wings can be used to secure dovetailed Powerpole 75 series housings
by passing fasteners through the wings in either a horizontal or vertical orientation.
Useful for sheet metal panels, printed circuit boards, and many other mounting
surfaces. Fasteners not included.
Description
------- Part Numbers -------
Minimum Quantity ...
1,000
100
...
Blue, Round Hole
1399G20-BK 1399G20
Blue, Oval Hole
1399G7-BK
1399G7
[ 27.4 ]
1.08
[ 15.9 ]
0.63
[ 15.9 ]
0.63
[ 27.4 ]
1.08
[ 15.9 ]
0.63
[ 15.9 ]
0.63
SECTION 2
Mounting Wing for Locking Housings
Mounting wings can be used to secure Powerpole
®
75 series housings with
locking dovetails by passing fasteners through the wings in either a horizontal or
vertical orientation. Useful for sheet metal panels, printed circuit boards, and
many other mounting surfaces. Fasteners not included.
Description
--------------------- Part Numbers ---------------------
Minimum Quantity ...
1,000
100
...
Blue, Oval Hole
75LOKWNGBLU-BK
75LOKWNGBLU
Blue, Round Hole
75LOKWNGBLU-R-BK 75LOKWNGBLU-R
[ 2.6 ]
R 0.10
Oval Hole
- Mounting Wing Top
[ 6.9 ]
0.27
[ 15.9 ]
0.63
[ 15.9 ]
0.63
[ 5.1 ]
Ø 0.20
Round Hole
- Mounting Wing Top
[ 5.1 ]
Ø .20
Left Side View
- Both Versions
Right Side View
- Both Versions
[ 27.4 ]
1.08
Surface Mount for Locking Housings
Use to secure Powerpole
®
75 series housings with locking dovetails to a flat
surface. Useful for sheet metal panels, printed circuit boards, and many other
mounting surfaces. Fasteners not included.
Description
----------------- Part Numbers ----------------
100
...
75LOKSMTBLU
[ 3.6 ]
0.14
Minimum Quantity ...
1,000
Blue
75LOKSMTBLU-BK
[ 2.8 ]
0.11
[ 15.7 ]
0.62
[ 7.9 ]
0.31
[ 43.2 ]
1.70
Side View
[ 4.9 ]
0.19
Top View
NEW
Use to separate housings under high power to minimize power capability derating
due to heat rise. They are recommended for squaring off a block of Powerpole
®
75
housings to enable mounting accessories or retaining pins to be used. Combining
long and short spacers opposite each other in a mated block adds keying features,
After synthesis, I added sensitive variables according to the warning, but the program does not run. I want to know, after synthesis, I must remove the latch according to the warning, but must I add s...
EMI pre-compliance test and debugging have become an unavoidable problem for engineers in electronic product design.It is difficult to pass the expensive EMI compliance test in one go.It is difficult ...
DSP INT1 pin is connected to the status input signal of external device. Now I need to judge whether INT1 level is high or low to execute other programs. I have not realized it by judging IFR bit. How...
Hello everyone: I want to use 485 bus for transmission, but I am not familiar with 485. Can you give me some good methods and information? Email: dpjkf@163.com...
In the past year, I guess the most mentioned thing by my friends is stm32. I remember reading Xiaolian's article. The key to the success of the promotion of microcontroller products lies in: Is the de...
1. Several nouns
ABI:
The specifications that an executable file must follow in order to run in a specific execution environment;
Separately generated relocatabl...[Details]
The problem of dynamic sealing of equipment always exists with the operation of the equipment. Today, we have specially sorted out the various commonly used sealing forms, usage scope and character...[Details]
A parallel inverter consists of two thyristors (T1 and T2), a capacitor, a center-tapped transformer, and an inductor. The thyristors provide a current path, while the inductor L maintains a consta...[Details]
In recent years, many people have switched to new energy vehicles, and this type of vehicle has indeed been highly sought after and is considered the future direction of automobile development, and...[Details]
Whether it is an electric car or an ordinary fuel car, for the vast majority of car buyers, the final cost of use is what they care about most. For fuel cars, how to save fuel is what drivers care ...[Details]
1. Multi-channel DAC technology bottleneck
Currently,
the development of multi-channel DAC technology focuses on two core challenges.
First, industrial applications urgently ...[Details]
To improve the lateral active safety of intelligent connected vehicles, the identification and definition of unexpected functional safety scenarios for the EPS (Electronic Steering System) ...[Details]
Tools/Materials
Yitong Chuanglian MODBUS to PROFIBUS Gateway YT-PB-03
Siemens s7-300
This article describes how to configure the YT-PB-03 MODBUS to PROFIBUS gat...[Details]
Common methods for troubleshooting roller press bearing wear include repair welding, thermal spraying, brush plating, and scrapping and replacement. However, these methods are often subject to asse...[Details]
1. Introduction
In 2015, Apple's new MacBook and Apple Watch both featured force-sensing technology, which Apple calls Force Touch. Each time a user presses the touchpad, the device not only p...[Details]
On August 20, Huawei Device announced that the all-new M7 is the first to feature an in-cabin laser vision solution. This solution offers enhanced active safety capabilities compared to primary vis...[Details]
When we pick up an unfamiliar object, the first thing we want to know is what it actually does. A drive shaft, as the name suggests, is a shaft that transmits power. It's the transmission medium th...[Details]
Charge your electric car for just six minutes and you'll get 1,000 kilometers! This isn't just a scene from a science fiction film, but a reality made possible by Guoxuan High-Tech's Jinshi solid-s...[Details]
EVTank predicts that all-solid-state batteries will achieve small-scale mass production in 2027 and large-scale shipments by 2030. Global solid-state battery shipments will reach 614.1GWh, of which...[Details]
With the global number of new energy vehicles expected to exceed 45 million by 2025, the performance boundaries of battery management systems are being reshaped.
Infineon Technologies
'
...[Details]
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
