DMA010MF: DescriptionRectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Board And Panel Mount, Male-Female,; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerL-com Global Connectivity

Download Datasheet Parametric View All

DMA010MF Overview

Rectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Board And Panel Mount, Male-Female,

DMA010MF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
触点数量:侧 1	9
触点数量:侧 2	9
Options	GENERAL PURPOSE
direct connection	YES
Base Number Matches	1

Preview

Download Datasheet

View All

REV.

REVISIONS

DESCRIPTION

RELEASED FOR PRODUCTION

PRODUCT VALIDATION UPDATE (ECN XXXX)

DATE

12/03/01

01/20/03

APPROVED

R.CARRICK

MCCORMICK

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN

PERMISSION OF L-COM, INC. IS PROHIBITED.

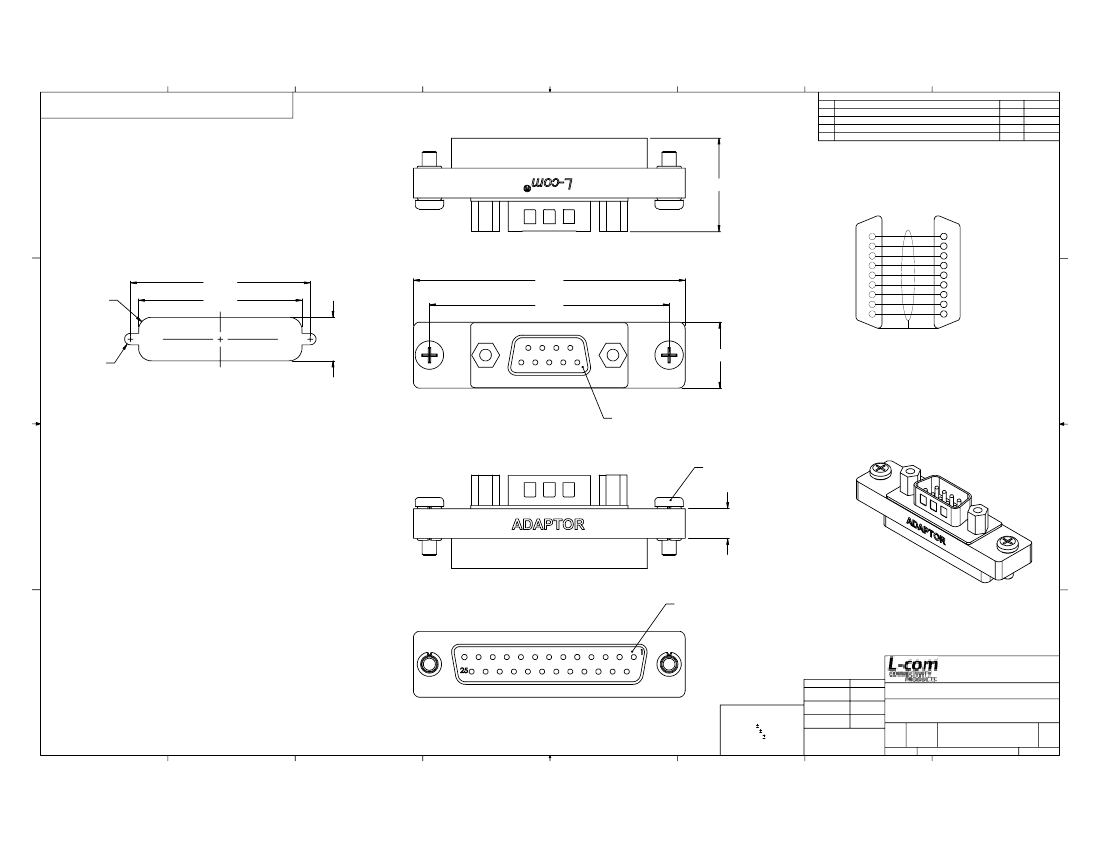

.72

DB9

DB25

1.852

4X R.132

2.10

1.85

.449

1.684

2X R.06

.51

RECOMMENDED

PANEL OPENING

MAX PANEL THICKNESS: 0.06"

MALE, 9 PIN

D-SUB CONNECTOR

2X 4-40 PHILLIPS HD

.23

SPECIFICATIONS;

MATERIALS;

SHELL: COLD ROLLED STEEL

CONTACTS: BRASS

INSULATOR: PBT UL94-V0 RATED

FINISH;

SHELL: TIN PLATED

CONTACT: GOLD FLASH

LABELING:

PANTONE 2945 BLUE. "L-COM" FONT MyriaMM ITALIC.

"ADAPTOR" FONT ARIAL BOLD, TEXT HEIGHTS; .085"

TEXT COLOR; WHITE.

APPROVALS

DRAWN BY

R.CARRICK

CHECKED BY

C.MCCORMICK

DATE

12/03/2001

PRODUCT DESCRIPTION

DRAWING TITLE

FEMALE, 25 PIN

D-SUB CONNECTOR

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

ADAPTOR, DB25 FEMALE/DB9 MALE

UNLESS OTHERWISE SPECIFIED

12/03/2001

DIMENSIONS ARE IN INCHES

APPROVED BY

TOLERANCES ARE:

D.PARHAM

12/03/2001 SIZE

.X .1

.XX .05

CONFIGURATION DETAILS OF

.XXX .005

UNDIMENSIONED FEATURES

CABLE LENGTH TOLERANCE

MAY VARY

<300" ±5% >300" ±2%

SCALE

OUTLINE DRAWING

DWG. NO.

REV.

FSCM NO.

43321

2:1

CAD FILE:

DMA010MF-OD1

DMA010MF-OD1.SLDDRW

SHEET
