SAB80C537-N16-T40/85 datasheet, PDF

SAB80C537-N16-T40/85: DescriptionMicrocontroller, 8-Bit, 16MHz, CMOS, PQCC84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size569KB，20 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

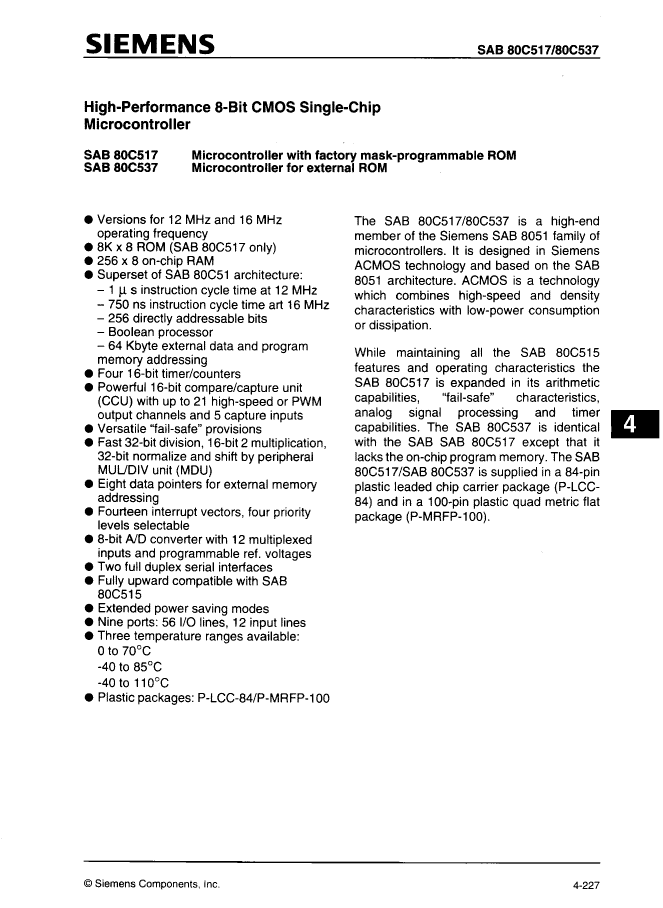

SAB80C537-N16-T40/85 Overview

Microcontroller, 8-Bit, 16MHz, CMOS, PQCC84

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Has ADC	YES
Other features	BOOLEAN PROCESSOR
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J84
low power mode	YES
Number of DMA channels
Number of external interrupt devices	7
Number of I/O lines	68
Number of serial I/Os	2

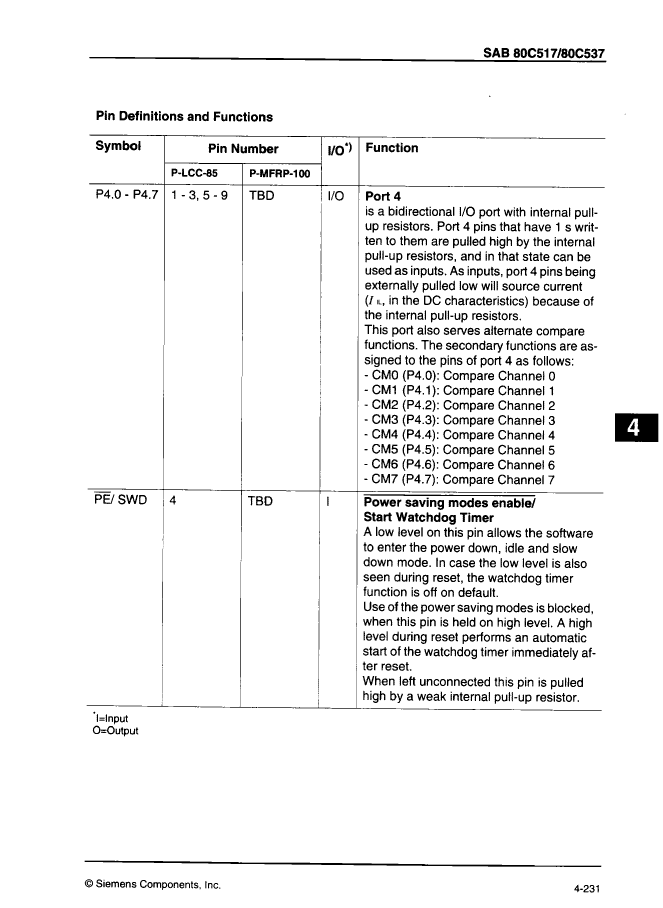

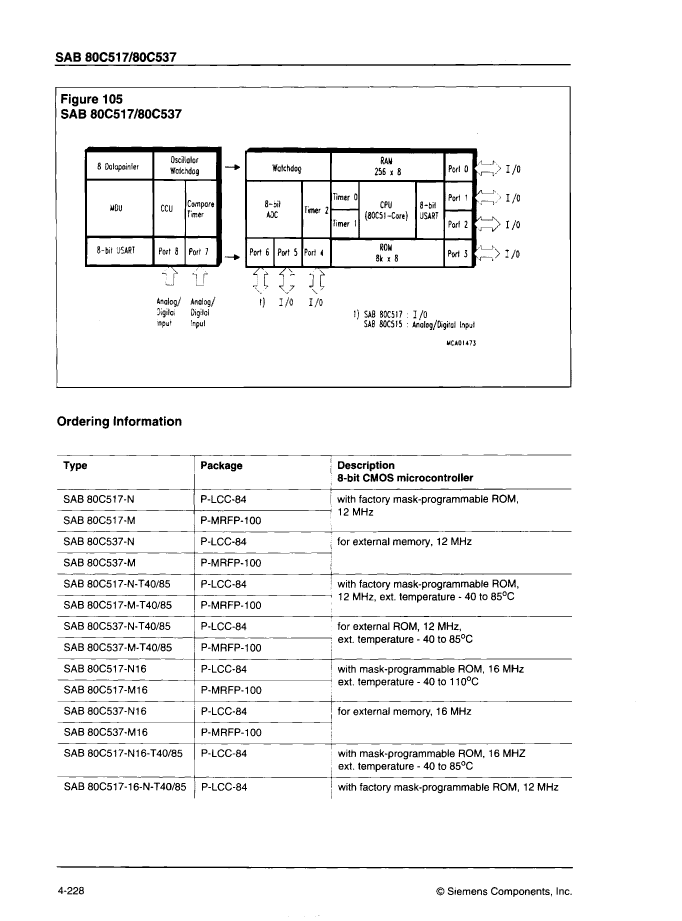

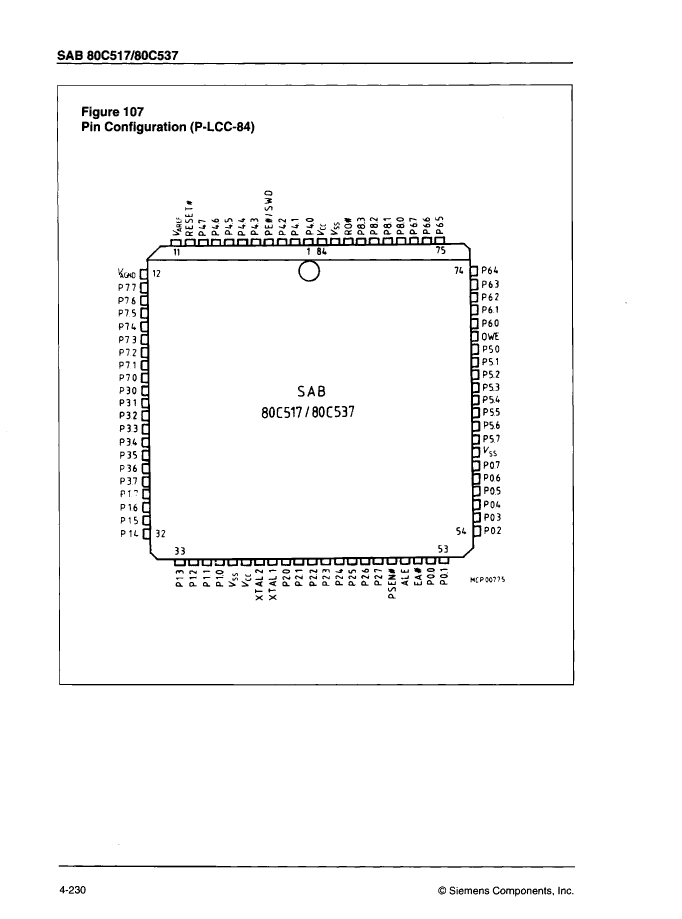

Number of terminals	84
Number of timers	4
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	0
speed	16 MHz
Maximum slew rate	52.3 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
