GXO-7551/IN3.6864MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GXO-7551/IN3.6864MHZ

GXO-7551/IN3.6864MHZ: DescriptionHCMOS Output Clock Oscillator, 3.6864MHz Nom; CategoryPassive components oscillator; File Size65KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GXO-7551/IN3.6864MHZ Overview

HCMOS Output Clock Oscillator, 3.6864MHz Nom

GXO-7551/IN3.6864MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	GXO-7551
Installation features	SURFACE MOUNT
Nominal operating frequency	3.6864 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

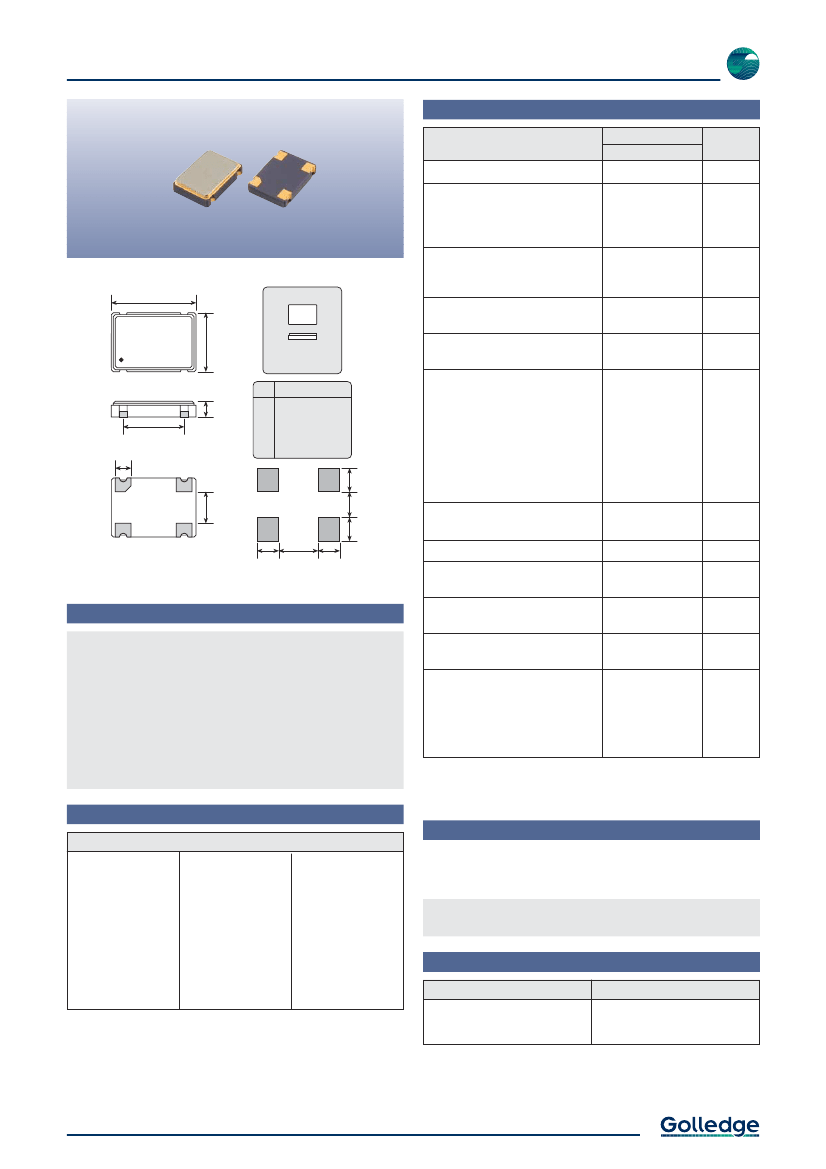

5V CMOS Oscillator

Specifications

GXO-7551

Parameters

Frequency range:

0.50 ~ 107MHz

Frequency stability:

±100ppm

±50ppm

±25ppm

±20ppm

Product

GXO-7551

Option

Codes

7.20

(max)

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

5.20

(max)

Supply voltage (V

ACTUAL SIZE

PAD

CONNECTION

Not connected or

Enable/Disable

+5.0V (±5%)

1.40

(max)

5.08

1.40

2.60

Ground

Output

Supply

2.00

2.20

Supply current (max):

10mA (0.5 ~ 14.9MHz)

15mA (15.0 ~ 29.9MHz)

25mA (30.0 ~ 39.9MHz)

35mA (40.0 ~ 49.9MHz)

40mA (50.0 ~ 59.9MHz)

40mA (60.0 ~ 69.9MHz)

50mA (70.0 ~ 89.9MHz)

60mA (90.0 ~ 107MHz)

Logic levels:‘0’

level = 10%V

max

‘1’ level = 90%V

min

Start up time:

10ms max

1.80

3.28

TOP VIEW

1.80

2.00

Scale 3:1

Waveform symmetry:

45:55 max

40:60 max (>50.0 ~ 107MHz)

Driving ability:

15pF HCMOS (*see note)

Rise / fall time:

10ns max

6ns max (>40.0MHz)

Enable / disable function:

None (pad 1 not connected)

Standard tristate, no power saving

(E/D times 100ns / 100ns)

Power-saving, standby current 10µA

(E/D times 10ms / 100ns)

Features

Ceramic package with metal lid

Standard frequencies held in stock

Enable / disable tristate function

Power saving option

Competitive pricing

Standard. Optional - Please specify required code(s) when ordering

* Note: will drive up to 50pF, but figures for rise/fall and supply current may vary from

those shown. For details, contact our sales office.

Standard Frequencies

Frequencies in MHz

1.84320

2.00000

3.68640

4.00000

5.00000

8.00000

10.00000

12.00000

12.28800

14.31818

16.00000

16.38400

18.43200

20.00000

24.00000

24.57600

25.00000

27.00000

29.49120

30.00000

32.00000

32.76800

33.86880

36.86400

40.00000

44.23680

48.00000

50.00000

54.00000

60.00000

64.00000

66.66600

70.00000

80.00000

100.00000

106.25000

Ordering Information

Product name + option codes (if any) + frequency

eg:

GXO-7551 32.0MHz

5V, ±100ppm, -10+70°C

GXO-7551/BIP 40.0MHz

5V, ±50ppm, -40+85°C, power-saving

Available on T&R - 1k pcs per reel.

Refer to our website for T&R and soldering details.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Other frequencies available. Please consult our sales office.

Tel:

+44 1460 256 100

13 Sep 2004

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
