9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and VCTCXO
MtronPTI is one of the first companies to introduce a family of low voltage, surface mount TCXO’s
and VCTCXO’s (voltage controlled TCXO) that are designed to provide network and wireless engi-
neers with products that offer tight stability and excellent aging characteristics. The M6001-6004
Series utilizes hermetically sealed crystals, along with a “low-aging” process, to achieve consistent,
long-term stability and minimal frequency shift in the customer’s application after re-flow. With this
process, a first year aging rate of less than 1 ppm is achievable. A stability of ± 0.5 ppm over 0°C to
+70°C is available as well as stabilities ranging from ± 1 ppm to ± 4.6 ppm over -40°C to +85°C.
A special version (L-stability option) of the M6001-6004 is available for Stratum 3 applications.
MtronPTI’s unique approach to crystal compensation enables these devices to achieve Stratum 3
stability (± 4.6 ppm) from -40°C to 85°C. The low phase noise (-143 dBc/Hz @ 10 kHz) make the
M6001-6004 ideal for those design engineers working on high data-rate, low BER data communica-
tion network products.
The M6001/M6002 (3.3 V and 5 V TCXO) and M6003/M6004 (3.3 V and 5 V VCTCXO) are ideally
suited for a wide range of applications such as: SONET, SDH, SERDES, and PCS base stations;
point to point/multi-point radios; WDM systems; Gig-Ethernet; 10G and 40G systems; test and mea-
surement; frequency synthesis; frequency translation; specialized mobile radio, and WLAN. Stan-
dard output for the M6001-6004 series is HCMOS compatible and draws as little as 4 mA with a 3.3
volt supply at 19.440 MHz frequency. This low power consumption provides an advantage over
similarly specified ovenized oscillators for power-sensitive applications.
Customers can order product with or without the tristate feature. The M6003-6004 series offers ±10
ppm minimum pull range with excellent tuning linearity performance for critical PPL applications.
These products are available in frequencies from 5 to 30 MHz, and can be offered in a surface mount
FR-4 based platform with industry standard 9 x 14 mm footprint. Contact the factory for 14 pin DIP
configuration.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
M6001, M6002, M6003 & M6004 Series
9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and VCTCXO
Features:
•
Operating stabilities to ± 0.5 ppm
•
Stratum III stability of
±
4.6 ppm (non holdover)
Applications:
•
Ideal for Signal Processing, Military / Avionic
Communiations, Flight Controls, WLAN,
Basestations, DWDM, SERDES, SONET / SDH,
10G and 40G Ethernet applications.

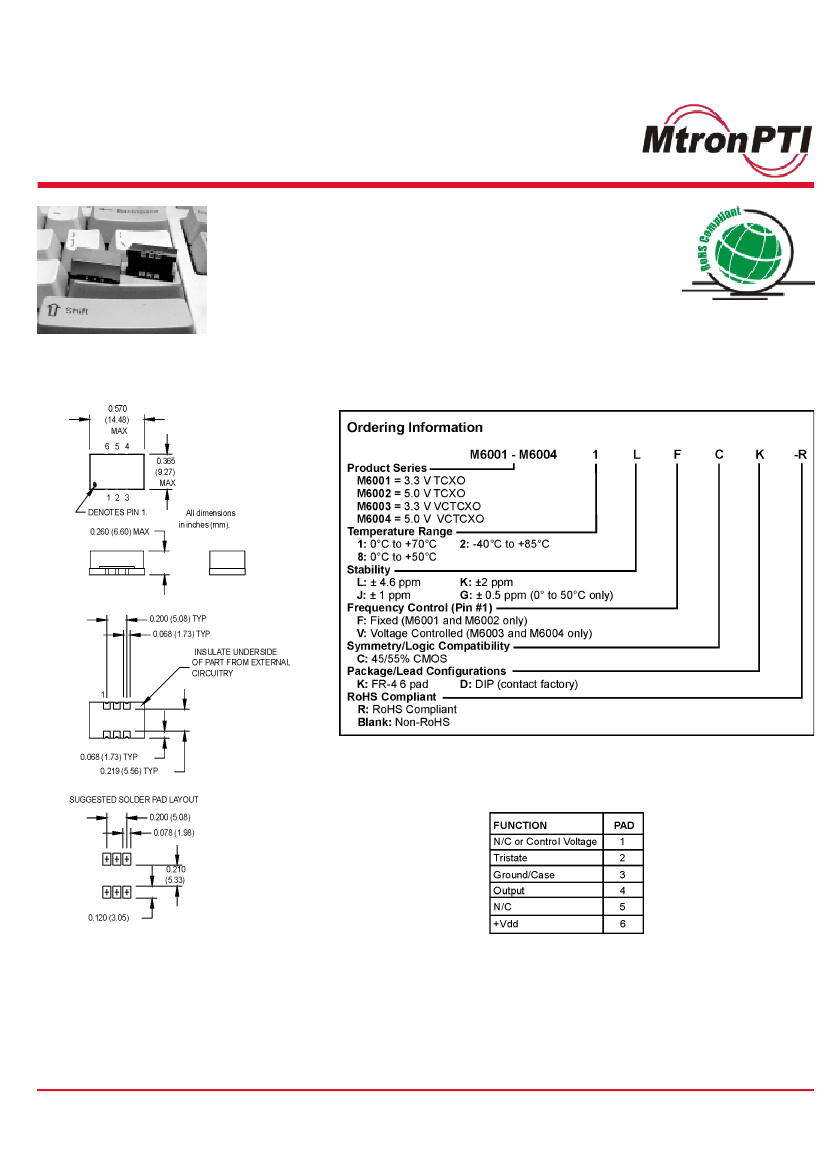

Pin Connections
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.

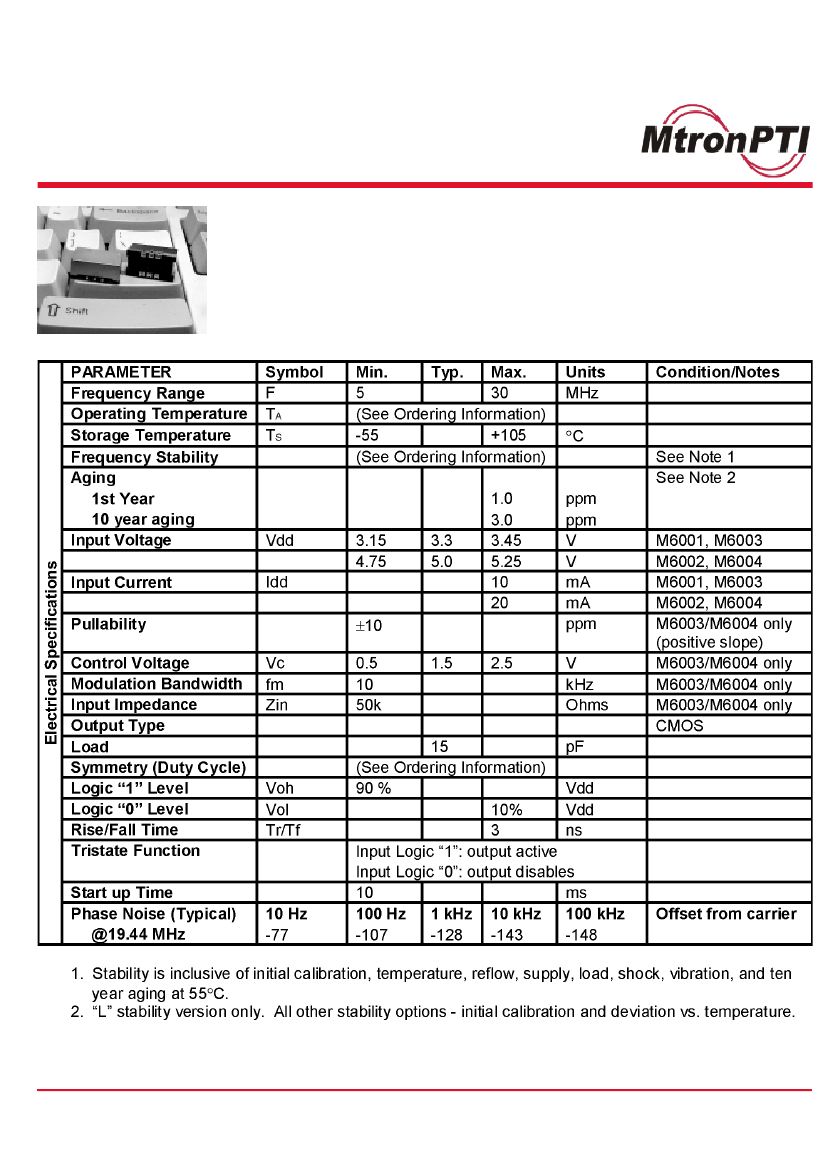

M6001, M6002, M6003 & M6004 Series
9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and VCTCXO
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
M6001, M6002, M6003 & M6004 Series
9x14 mm FR-4, 5.0 or 3.3 Volt, HCMOS/TTL, TCXO and VCTCXO

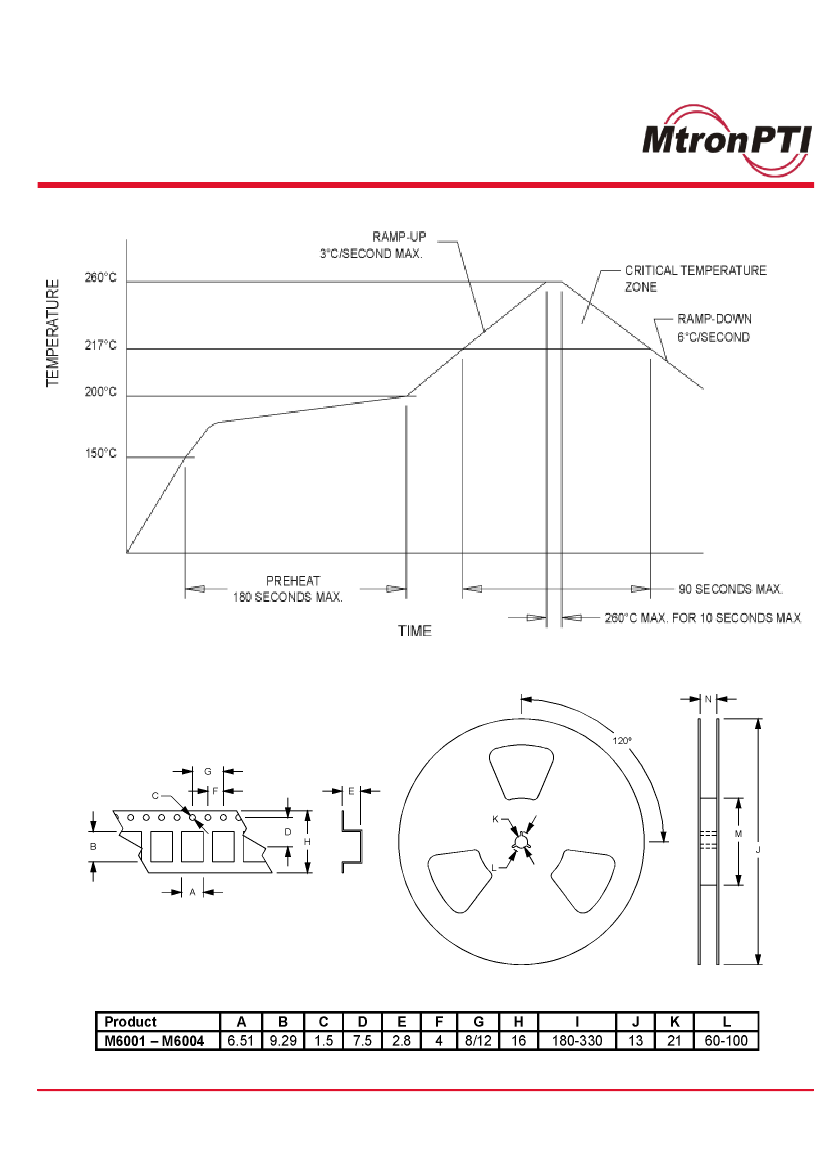

Solder Profile:
Tape and Reel Specifications:
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
